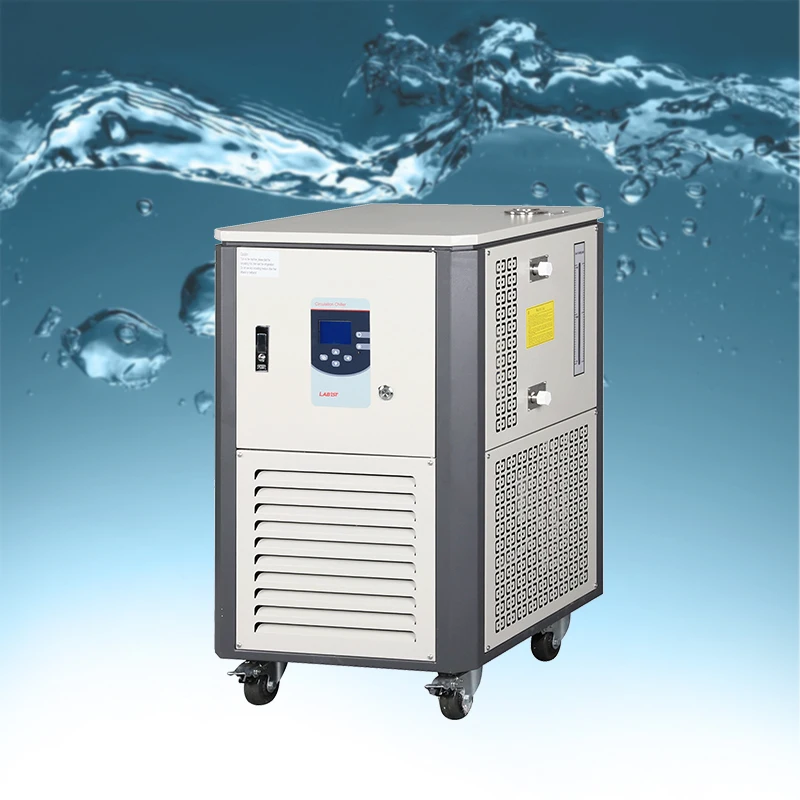

Lab Automatic chiller machine ultra low chiller system experimental 20 30 degree manufacturer cooling circulator
- Category: >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (1600484683773):
Product Overview
Description
Product Description
Technical Data
Model | DLH-20-20L | DLH-30-30L | DLH-30-50L | DLH-30-80L | DLH-30-100L | ||||
Temp. Range(℃） | -20 ~ RT | -30 ~ RT | |||||||
Total Power (W) | 1400 | 2100 | 4580 | 5500 | 8000 | ||||
Max. Operating Current(A) | 7.3 | 10 | 20 | 14.5 | 16 | ||||
Thermally Conductive Liquid | Absolute Ethyl Alcohol | ||||||||
Max. Cooling Capacity(W) | 2800-600 | 3380-829 | 11250-3000 | 13000-4200 | 15000-4700 | ||||
Circulating | 20 | 20 | 30 | 35 | 35 | ||||
Pump Flow Rate (L/min) | |||||||||
Circulating | 6 | 6 | 12 | 12 | 12 | ||||
Pump Lift(m) | |||||||||
Refrigerating Fluid | R404A | ||||||||
Compressor Power (W) | 1125 | 1500 | 3750 | 4500 | 5650 | ||||
Circulating Pump | 100W 220V Single-stage | ||||||||
Temp. Probe | Pt100，±100℃ Thermistor Circuit | ||||||||
Requirement | Operating Temp. ≤ 30℃ / Humidity：60-80% | ||||||||
Power Supply | 220V Single-phase (customization) | ||||||||
Connection Size | 1/2" BSP Male | 3/4" BSP Male | |||||||
Dimension (W x H x D mm) | 540×920×620 | 580 x 1050 x 710 | 670 x 1180 x 770 | 650 x 1400 x 750 | 730 x1400 x 920 | ||||
