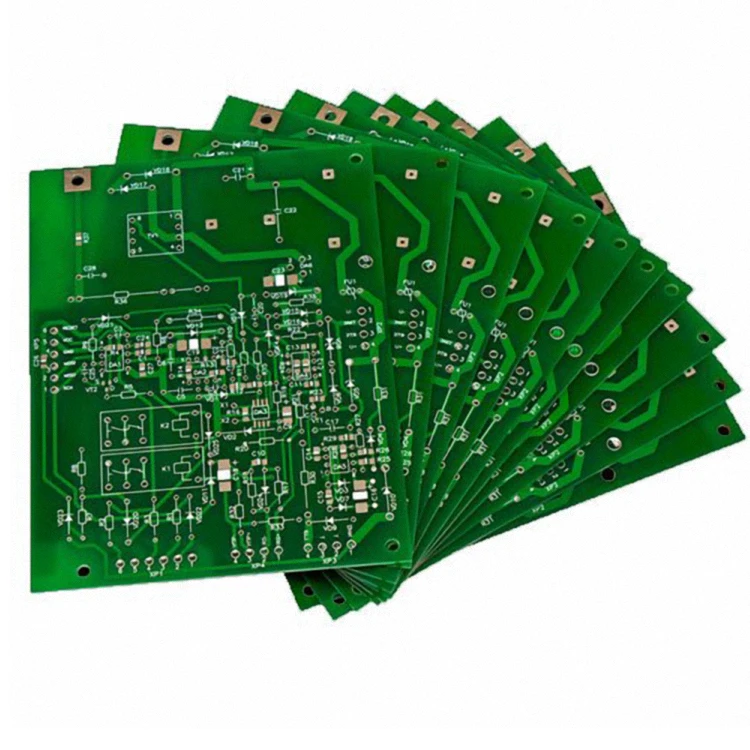

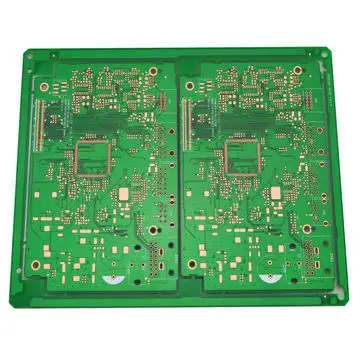

Double side printing high quality professional manufacture pcb electronic circuit board
- Category: Double-Sided PCB >>>
- Supplier: Shenzhen Fastcloud Electronic Limited
Share on (1600484750737):
Product Overview
Description
Double side printing high quality professional manufacture pcb electronic circuit board
Our service
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Component Procurement & Material Management
- Product Design
- Fast Track Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
- Function Testing Service
Product Description
1.Detailed Specification of pcb board Manufacturing
1 Layer 1-12 layer
2 Material FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3 Board thickness 0.2mm-7mm
4 Max.finished board side 500mm*500mm
5 Min.drilled hole size 0.25mm
6 Min.line width 0.075mm(3mil)
7 Min.line spaceing 0.075mm(3mil)
8 Surface finish/treatment HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
9 Copper thickness 0.5-4.0oz
10 Solder mask color green/black/white/red/blue/yellow
11 Inner packing Vacuum packing,Plastic bag
12 Outer packing Standard carton packing
13 Hole tolerance PTH:±0.076,NTPH:±0.05
14 Certificate UL,ISO9001,ISO14001,ROHS,CQC
15 Profiling Punching Routing,V-CUT,Beveling
16 Assembly Service Providing OEM service to all sorts of printed circuit board assembly
2.Quote&Production Requirement
1 Gerber File or PCB File for Bare PCB Board Fabrication
2 Quantity required
3 Special requirement for Solder Mask color,Copper thickness ,surface finishing.

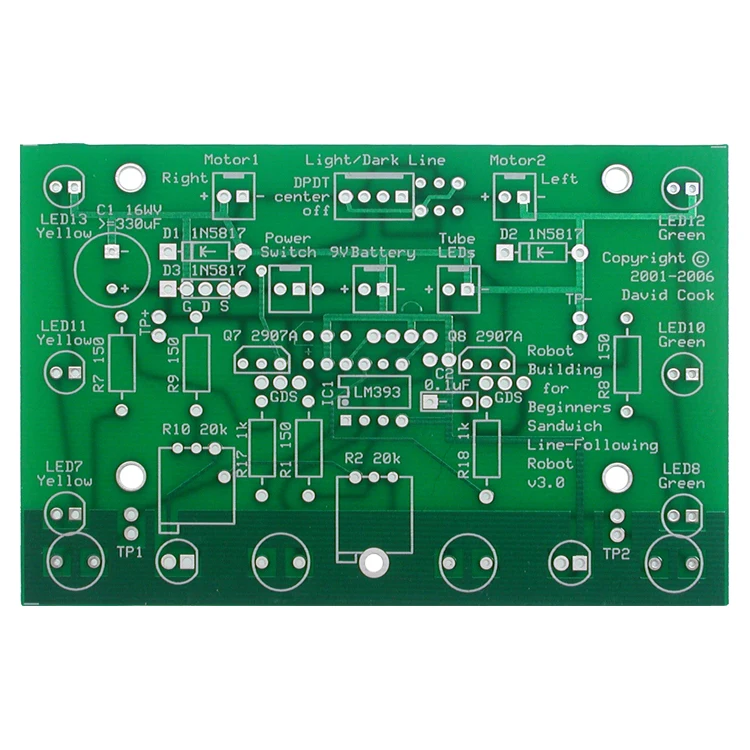

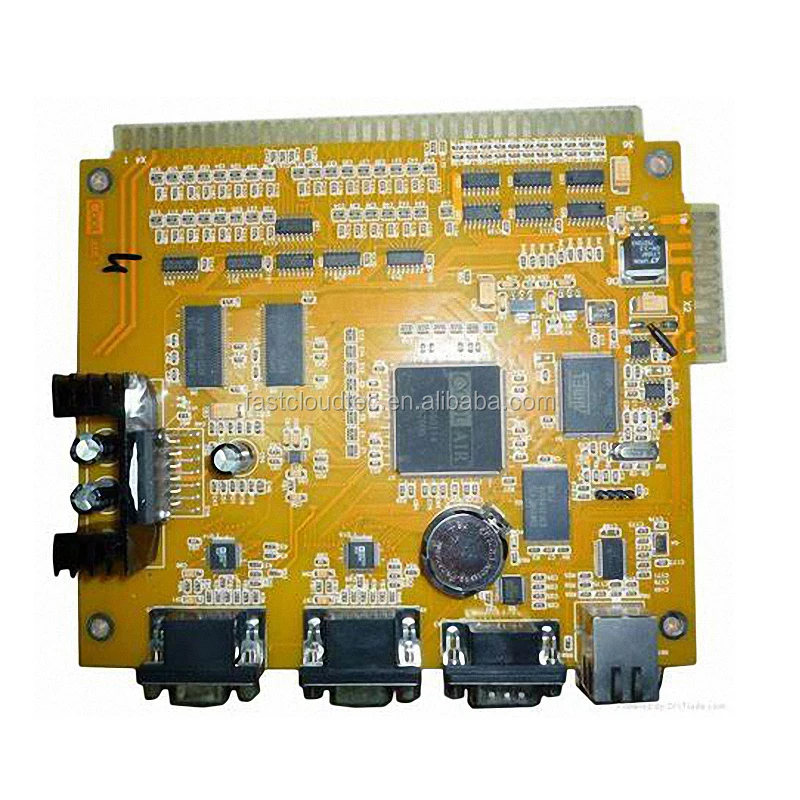

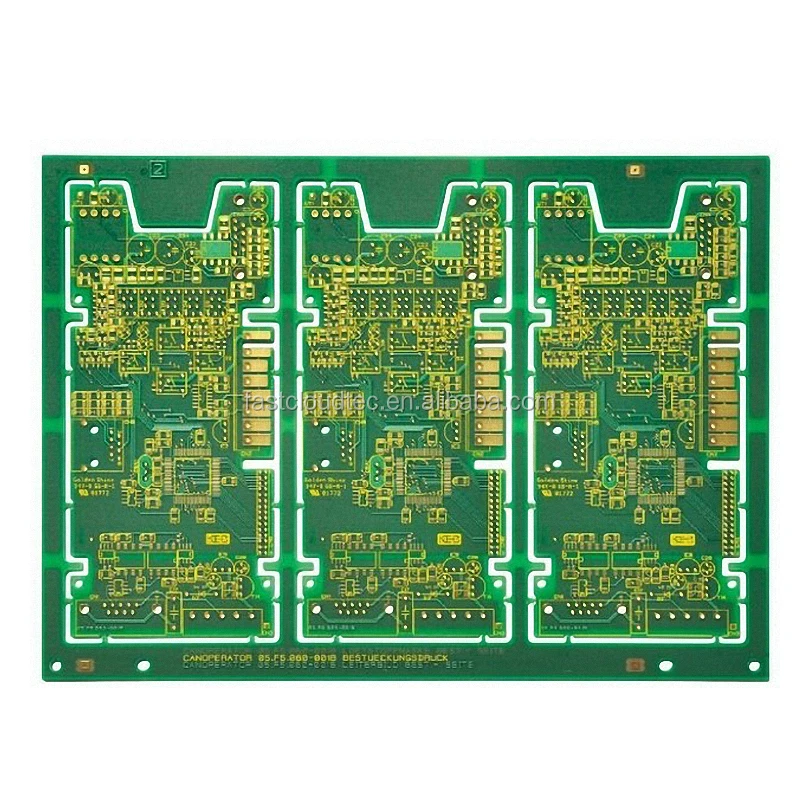

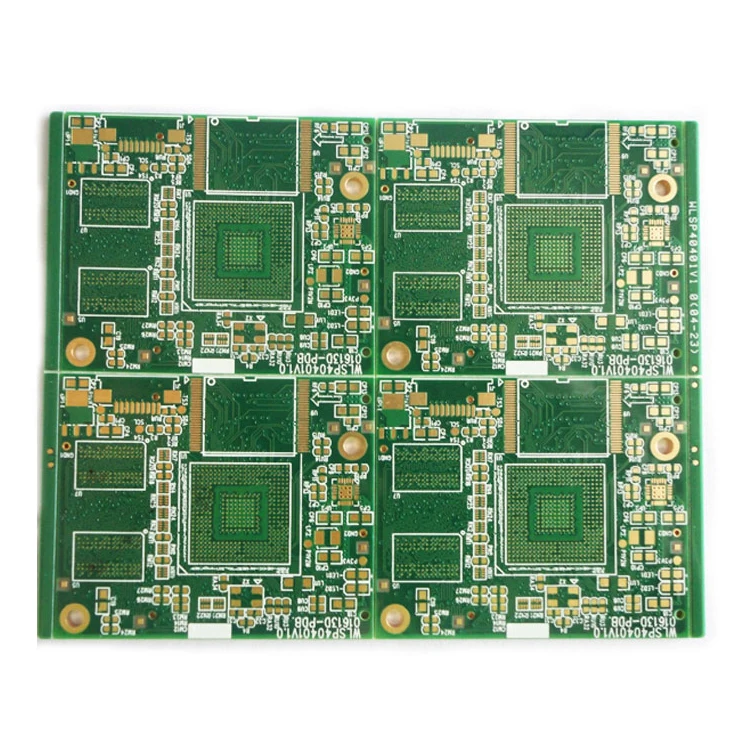

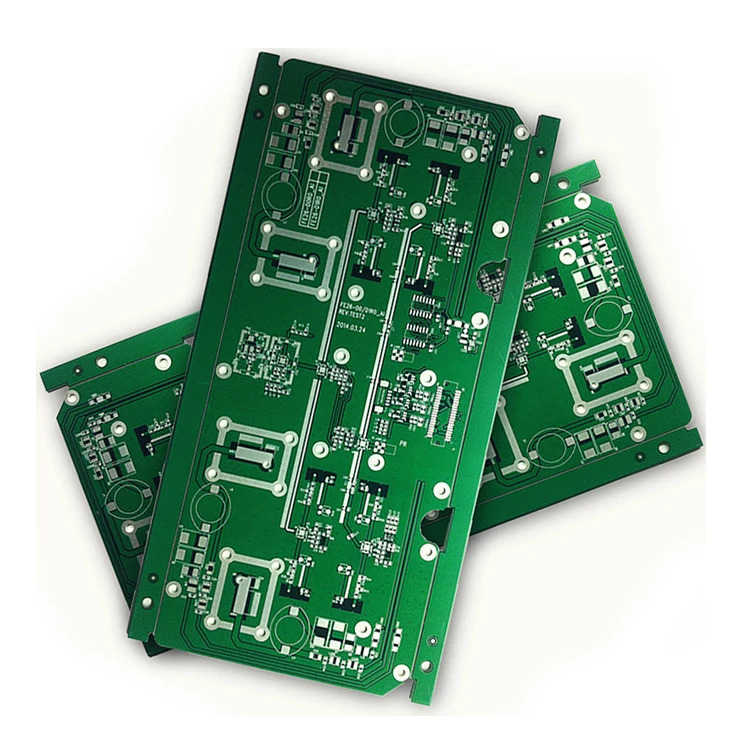

Products Show

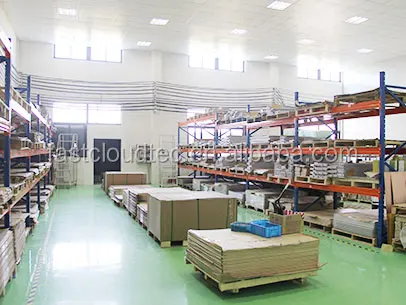

Company Information

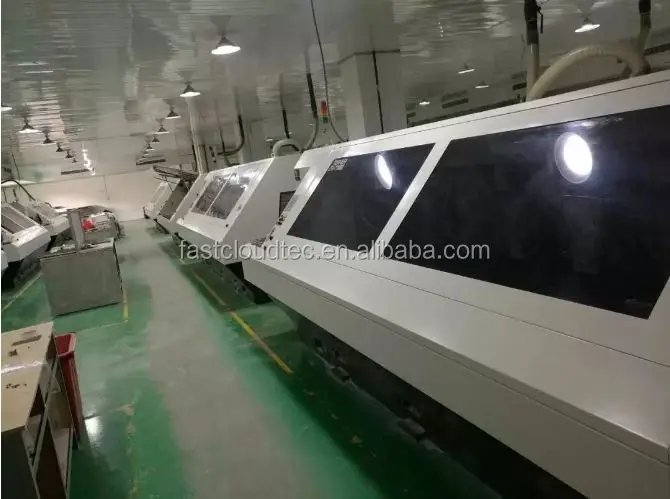

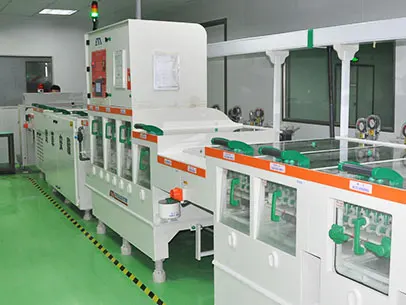

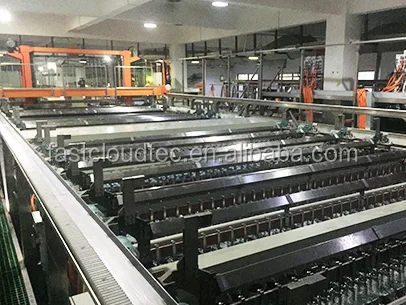

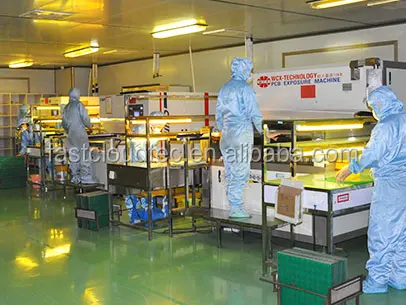

Company Capacity
Fastcloud PCB simple fabricaiton,2 days normal delivery! Service for engineer,designer,Creators,electronic fans.
Our Daily capacity can reach to 200 Models per day,10000sq^meter per month. Experience service for world-wide Engineers. SMT, BGA Rework, Re-balling, X-Ray are all readily achieveable. Stencils can be cut and delivered inside of 4 hours.
Our Smallest SMT components size can reach to 0201, capable of 0.6mm*0.3mm ~ 50mm*50mmQFP, 0.15mm gap, ±0.05 accuracy .

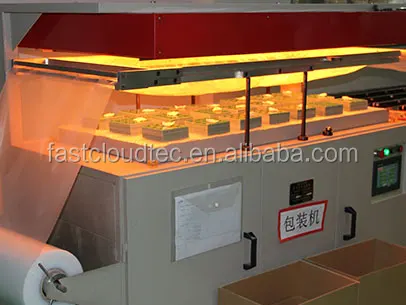

Packaging & Shipping
Package:
Shipping
FAQ
Q1.What is needed for quotation?
A:PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A:Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A:Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.
Q4. MOQ?
A:There is no MOQ . We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A:The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
