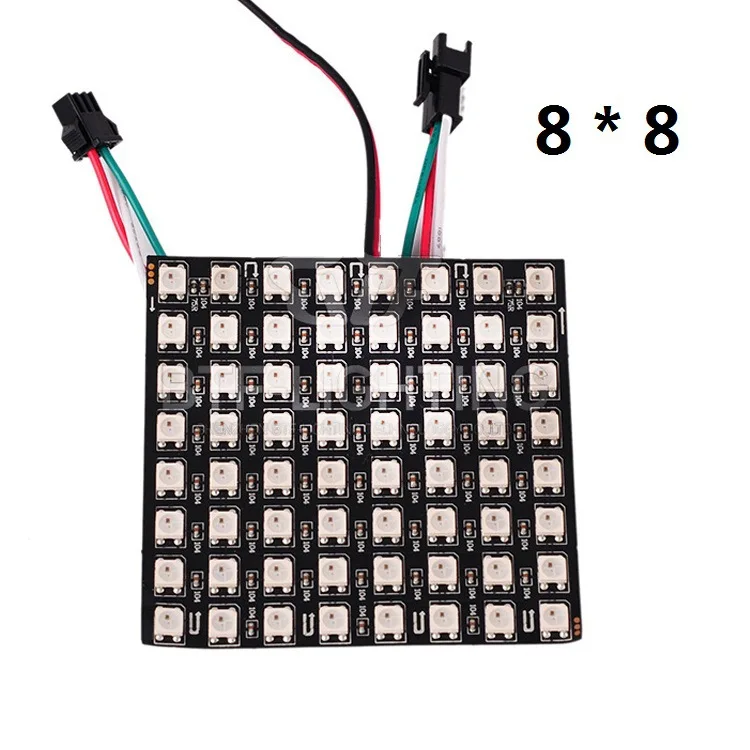

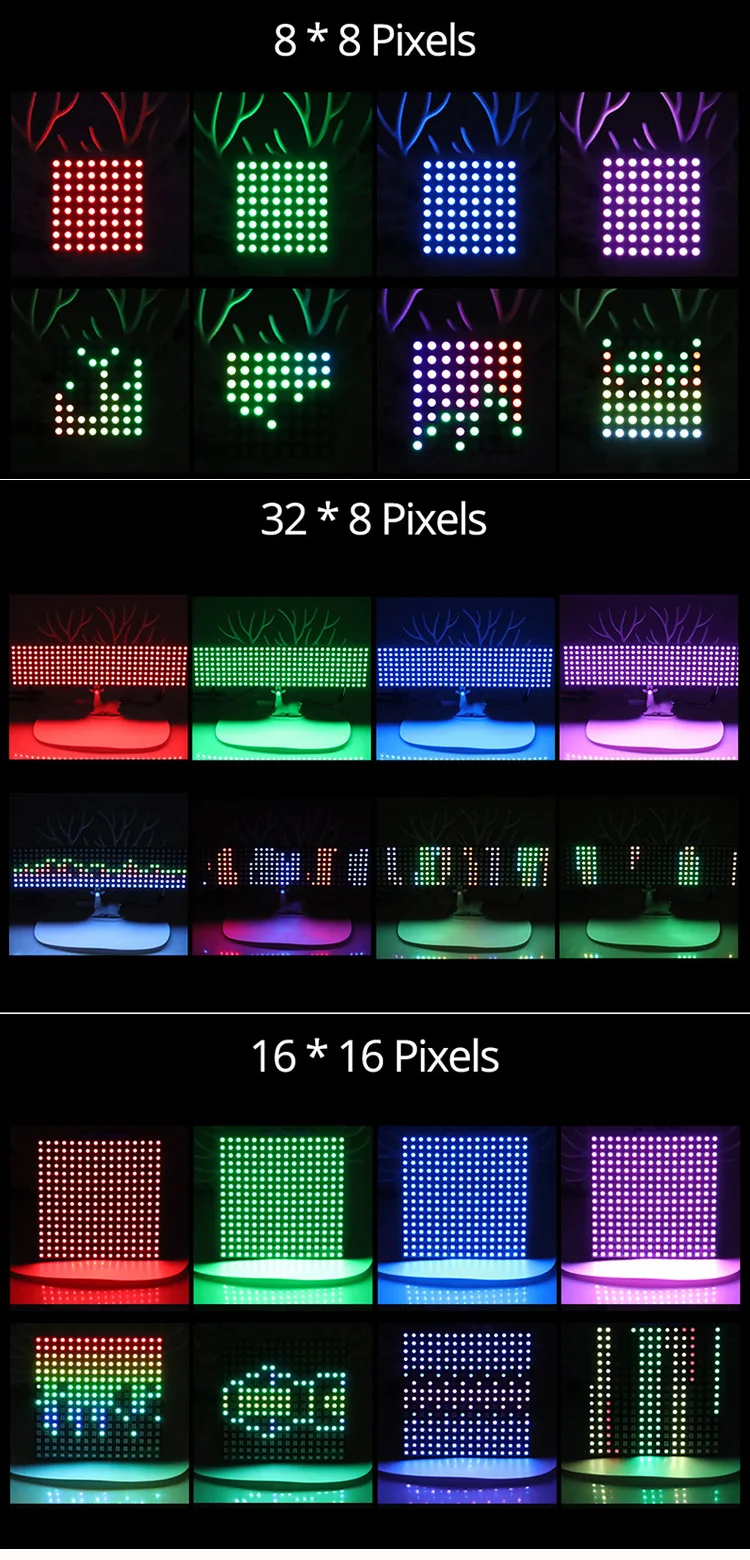

DC5V 8x8 16x16 8x32 pixels addressable WS2812B RGB LED Flex Matrix Strip Light Screen

[Smart device] Each LED controlled by integrated circuit, which is individually addressable. You can set each LED as you wish to scroll messages or draw little images.Full color, high brightness, good heat dissipation, long working life, up to 50,000 hours.

[Safe to use] DC5V input and working. Unlike the traditional LED panel which has many circuit wires and is dangerous to touch, this LED Matrix panel adopts hidden circuit. You can touch it randomly and hang it at anywhere.

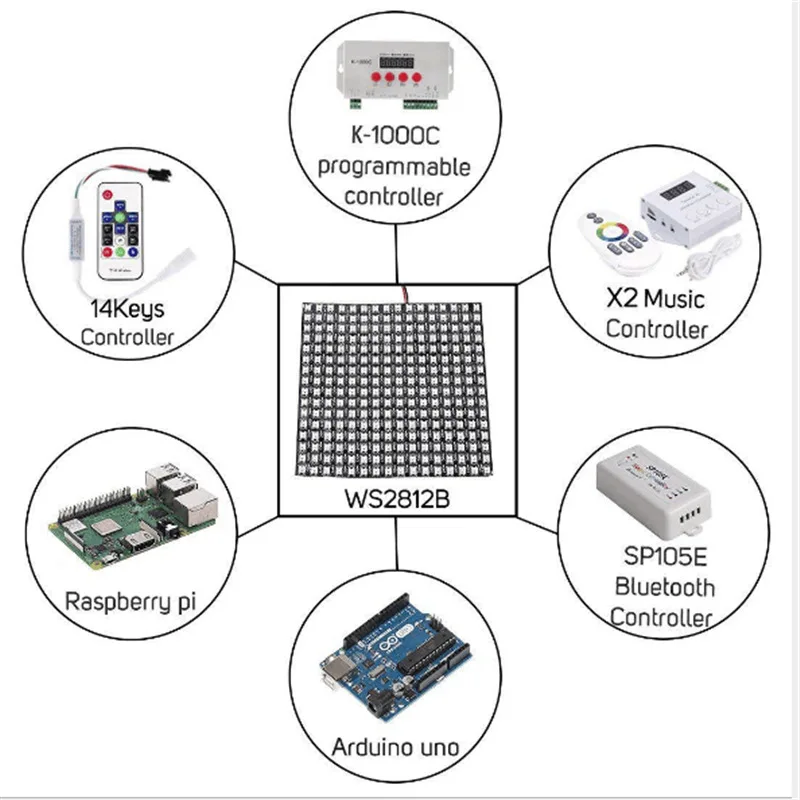

[Wide compatibility] Works great with Raspberry pi, Arduino or stand-alone ATmega328p setup. And also works directly with SPE105E, SP107E, K1000C, T1000S and more controllers. With different controllers, it will provide different effects, spectrum music mode, rolling subtitle, picture display, video display, fireworks effect and chase effect.

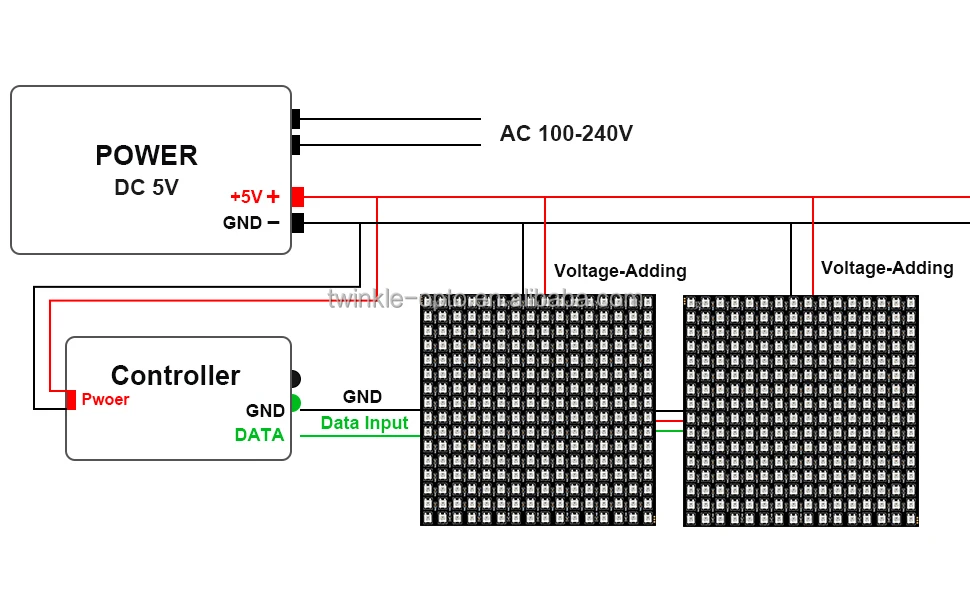

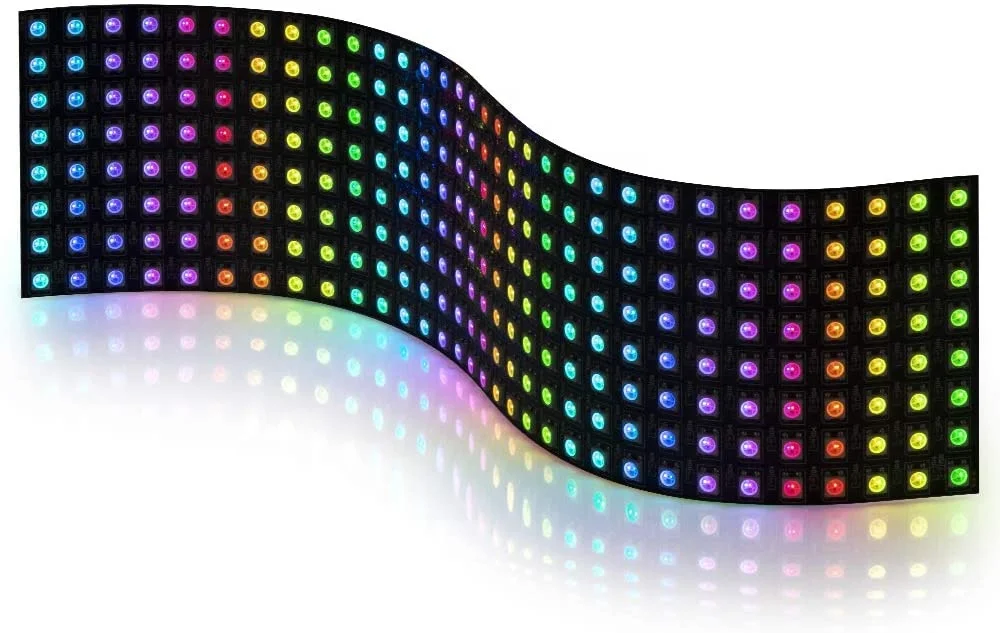

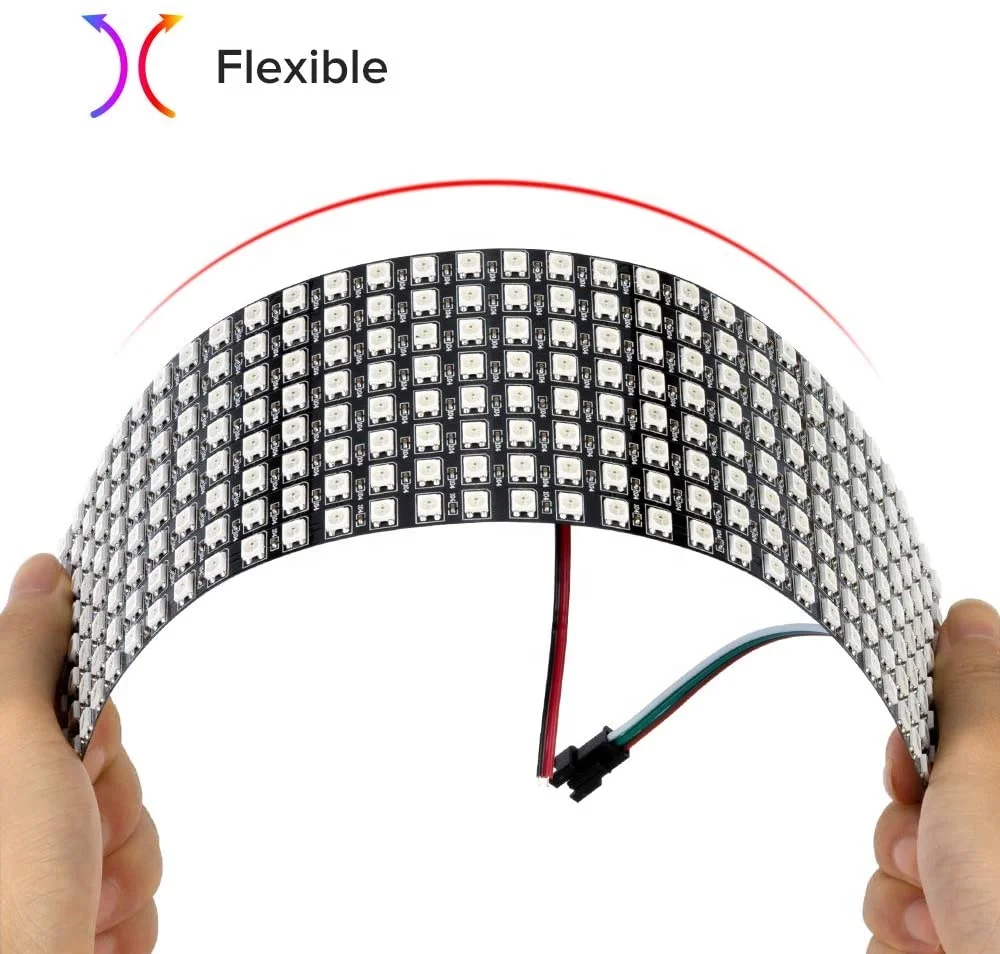

[Flexible design] You can extend the panel by hooking them up one by one with the 3pin JST connectors. Flexible FPCB can be gently bent and curved around surfaces. More panels can be spliced into a larger pixel screen.

[Wide applications] Used to make LED display, LED wall, advertising board, taxi advertising or information display, music beats display board and so on. Applied to shops, bars, clubs, shopping malls, dorms and boutique atmosphere lighting.

Specification:

IC type:WS2812B IC Built-in

Work voltage: DC 5V

Power: 0.1W~0.3W/LED, Total 25W~75W

Color: full color 24-bit

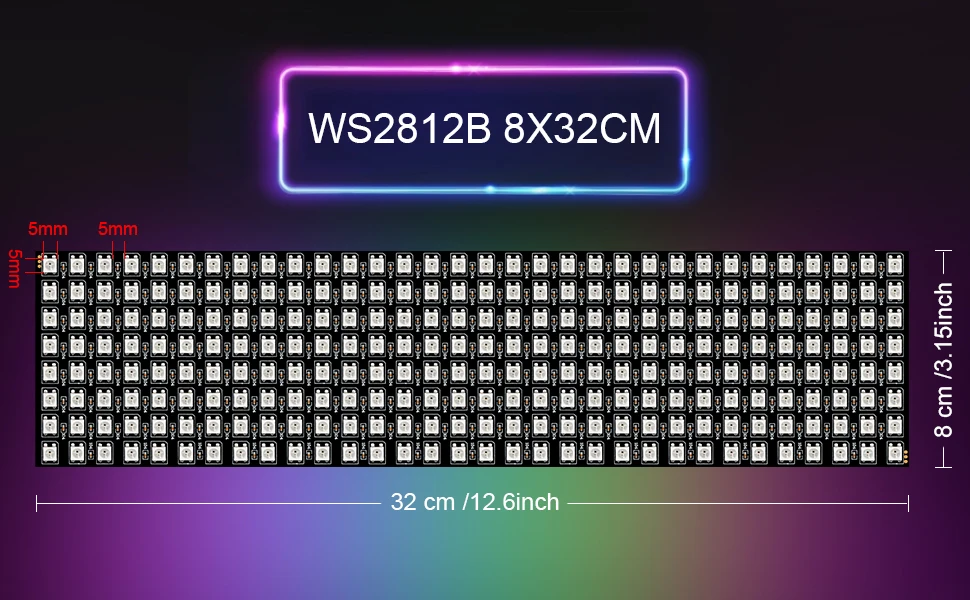

Size: 32cmx8cmx0.2cm

LED quantity: 256 WS2812B SMD5050 RGB leds, 256pixels

Waterproof level: Non-waterproof

Board color : Black

Shenzhen Twinkle Opto-Electronic Co.,Ltd. is an integrated high-tech LED product manufacturer, which is devoted to researching and developing LED and LED lighting products of high quality, high reliability and high performance. We offer a wide range of LED products, such as LED strip, LED tube light, LED horticulture light.

Through more than 11 years of experience accumulation,we have developed a complete production system,QC system and logistics system.We are high-tech enterprise with ISO9001-2015 and honored with many certificates to export to lots of overseas countries,such as UL,CE,RoHS,SAA,PSE etc.

From raw material to finished products,our team are always responsible to hand high quality products to every of our  customers.We are equipped with modernized auto-assembly production machinery,LED tube light production capacity is up to 500,000pcs per month. And LED strip light production capacity is 1,000,000 meters per month. All products will have 1 0 0% aging-test before shipment.

Q1. Can I have a sample order for led light?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2:How about your quality?

A2: All raw material with top quality to ensure high luminous and enough brightness.

Q3:What about the lead time?

A3:Sample needs 3-5 days, mass production time needs 25-30 days after receving the deposit

Q4. Do you have any MOQ limit for led light order?

A4: Low MOQ, 1pc for sample checking is available

Q5. How do you ship the goods and how long does it take to arrive?

A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Is it OK to print my logo on led light product?

A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample
