Quick Assemble Outdoor Event Concert Aluminum Steel Layer Portable Stage Platform
Name | steel layer stage |
Size | 1.22*1.22m 4*4feet ,1.22*2.44m 4*8feet,2*1m,1*1m |
horizonal tube | 48*1.5mm |
Material | steel |
Height | 0.4-0.6m, 0.6-1m, 0.8-1.2m, 1-1.5m, 1.5-2m |
pillar tube | 48*2.5mm |
diagonal tube | 42*2mm |
Platform | glass/ plexiglass/ plywood |
Loading capacity | 750kgs/m2 |
Feature | strong,easy to assemble and dismantle. Adjustable height |
Application | for dancing on following occassions:school stage, event stage, performance stage, celebration stage,concert stage,wedding stage |

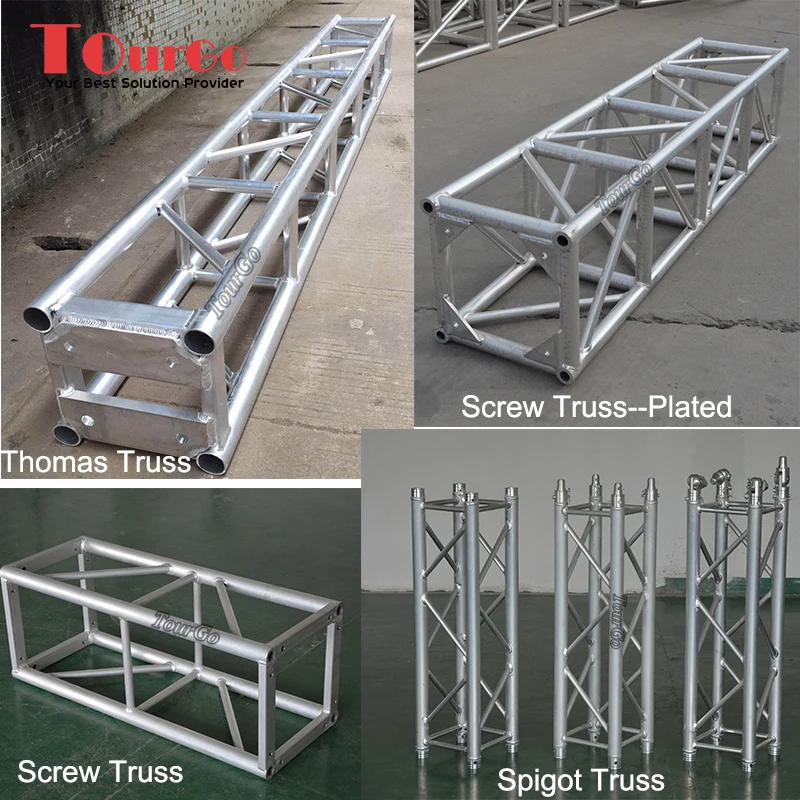

Layer Truss Features:
1) Easy to assemble:
Layer truss consist of Pillar, Horizontal Pipe, Diagonal Pipe, Adjustable Base, Joint pipe. Its construction is simple and stable.
2) wide range of applications:Layer truss is mainly used for lifting the Line Array Speaker.lifting LED screen, Advertisement Picture. Widely used in different outdoor shows and events.
Specification:
Item Name | Layer Truss |
Material | Q235 |
Surface Treatment | Hot zinc galvanization |
Pillar Pipe | 48*3mm |
2m | |
10.47kg | |
Diagonal Pipe | 48*2.5mm |
2.3m | |
7.6kg | |
Horizontal Pipe | 48*2.5mm |
Adjustable Foot | 2.5kg |
Cross Section | 2*2m |
Height | 2-38m |
Advantage | Heavy loading capacity and stable, |
Demountable,easy to assemble and transport | |
Self-locking, non-rust | |
Application | Hanging line array speaker and led screen |
Outdoor shows and events | |
Packing | standard package or customized |
Delivery Time | 5-7 working days after 30% payment |
