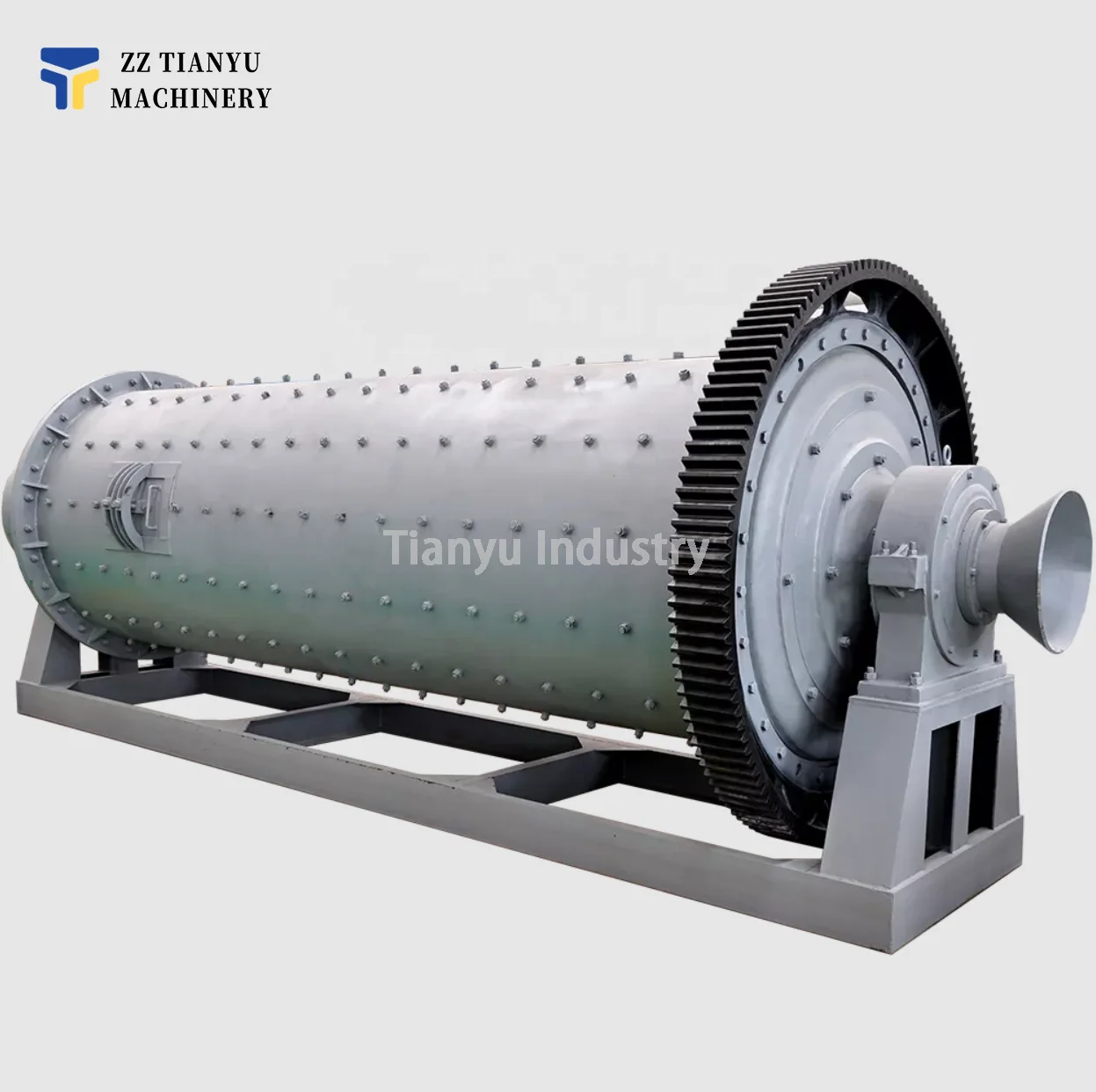

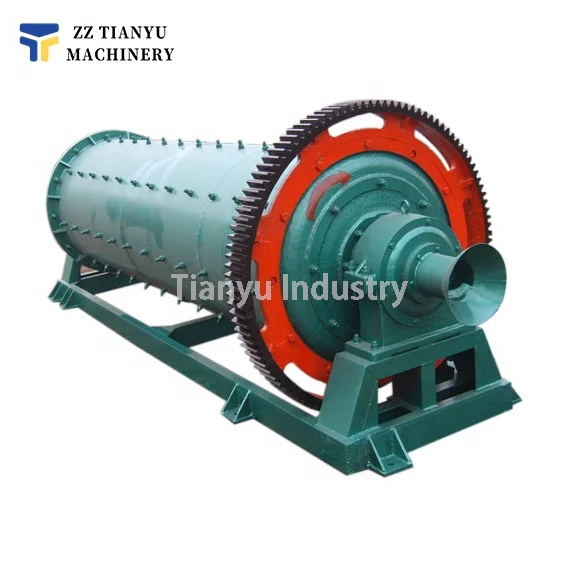

Mobile Small Gold Silica Sand Paint Round Industrial Ball Crusher Mill Working Processing Machine

Share on (1600485015804):


Price:$43,500.00 - $44,000.00

Quantity:


Product Overview

Description



Product Overview


Mobile Small Gold Silica Sand Paint Round Industrial Ball Crusher Mill Working Processing Machine

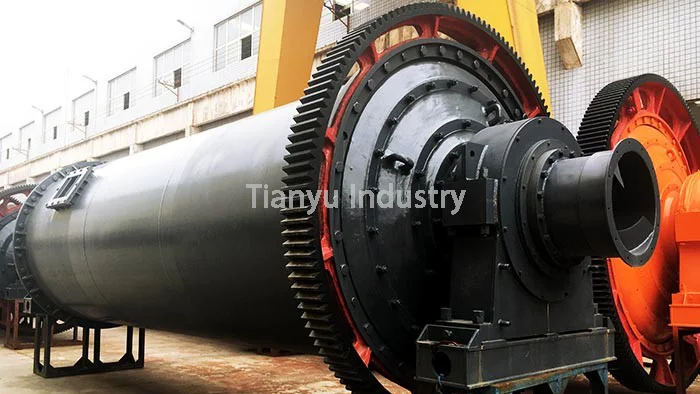

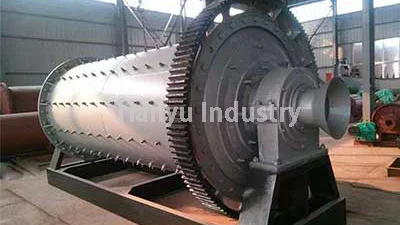

Ball Mills from Tianyu Heavy Industry work by using balls to grind materials. Materials such as iron ore, pain and ceramics are added to the ball mill, at which point the balls knock around inside the mill. It consists of a hollow compartment that rotates along a horizontal or vertical axis. Ball Mills are among the most variable and effective tools when it comes to size reduction of hard, brittle of fibrous materials. The variety of grinding modes, usable volumes and available grinding tool materials make ball mills the perfect match for a vast range of applications.

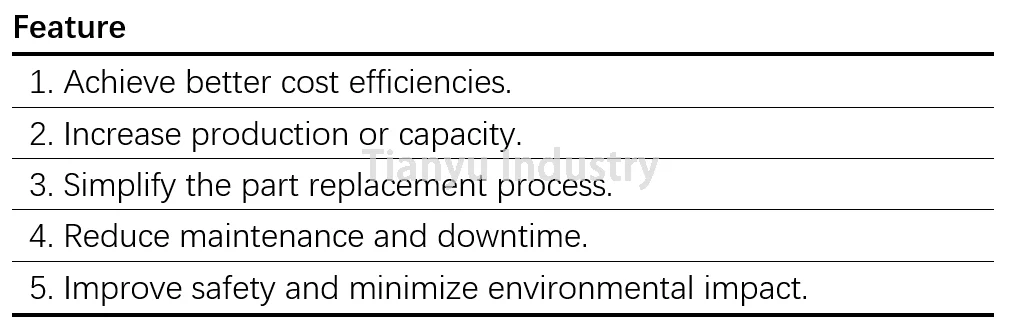

Feature & Advantage


Tianyu is continuously upgrading designs and collaborating with customers to optimize the use of spare parts. Together we can explore new fabrication and material options to achieve your specific goals.


Reliable Grinding Technology For Diverse Applications
Reliable and effective grinding mills includes being safe throughout. When the mills are quoted we make sure to include any and all safety components needs.
Long Life and Minimum Maintenance
To help you get the most of your business, we have designed our ball mills with long-term operation in mind with a minimum need for maintenance.


Efficient Operation Through Automatization
Tianyu process engineers welcome the opportunity to assist you with circuit and circuit control design as well as start-up, operation, and optimization of the milling plant. Automatic operation saves power, grinding media, and liner wear, while increasing capacity.
Support For Results
To ensure top-of-the-line operation, software can be developed to suit the most complicated circuits and complex ores. Our engineers can specify or supply computer control systems for your sophisticated circuit needs.




Technical Specifications



BM1230
BM1830
BM2130
BM2245
BM2270
BM2445
Rotary Speed(r/min)
36
25.4
23.7
21.5
21.7
21
Balls Load(t)
3.5
11
15
27
35
30
Feeding Size(mm)
≤25
≤25
≤25
≤25
≤25
≤25
Discharging Size(mm)
0.074-0.4
0.074-0.4
0.074-0.4
0.074-0.4
0.074-0.4
0.074-0.4
Capacity(t/h)
1.6-5
4-10
6.5-36
9-45
15-28
8.5-60
Motor Power(kw)
37
130
210
280
380
320
Weight(kg)
12800
28000
34000
48500
54000
65000


Application


Ball Mills are used the size reducing or milling of hard materials such as minerals, glass, advanced ceramics, metal oxides, solar cell and semiconductor materials, nutraceuticals and pharmaceuticals materials down to 1 micron or less. The residence time in ball mills is long enough that all particles get consistent treatment, which also provides a narrow particle size distribution. Ball mills are simple in design, consisting of horizontal slow rotating vessels half filled with grinding media of 0.25 - 1.5. The particles to be milled are trapped between the grinding media or balls and are reduced in size by the actions of impact and attrition.




Ball mills have the advantage of being self-contained so operators are not exposed to the product being milled. Ball mills cab be used equally well for wet or dry grinding. In the case of wet grinding the particles are also dispersed in the liquid medium. For temperature sensitive products, ball mills can be fully jacketed to maintain temperatures of the product. Ball mills scale up well and in fact improve in performed with increasing size. Ball mills are available in sizes from laboratory scale (also called milling jars) of 0.1 usg to large 5,000 gallon mills.

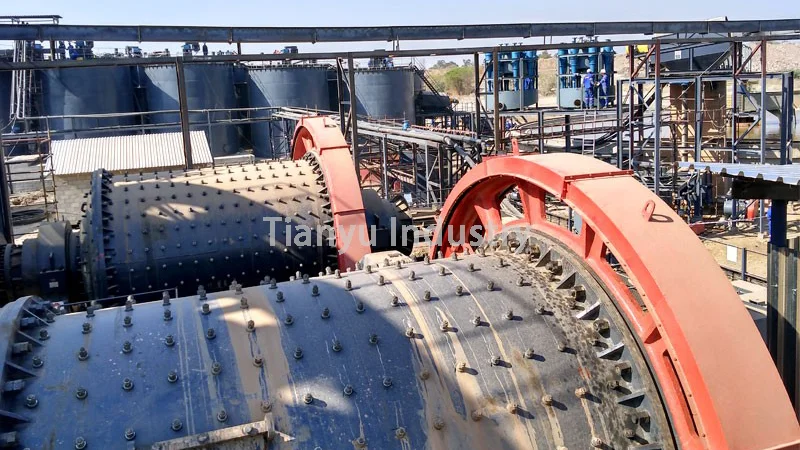

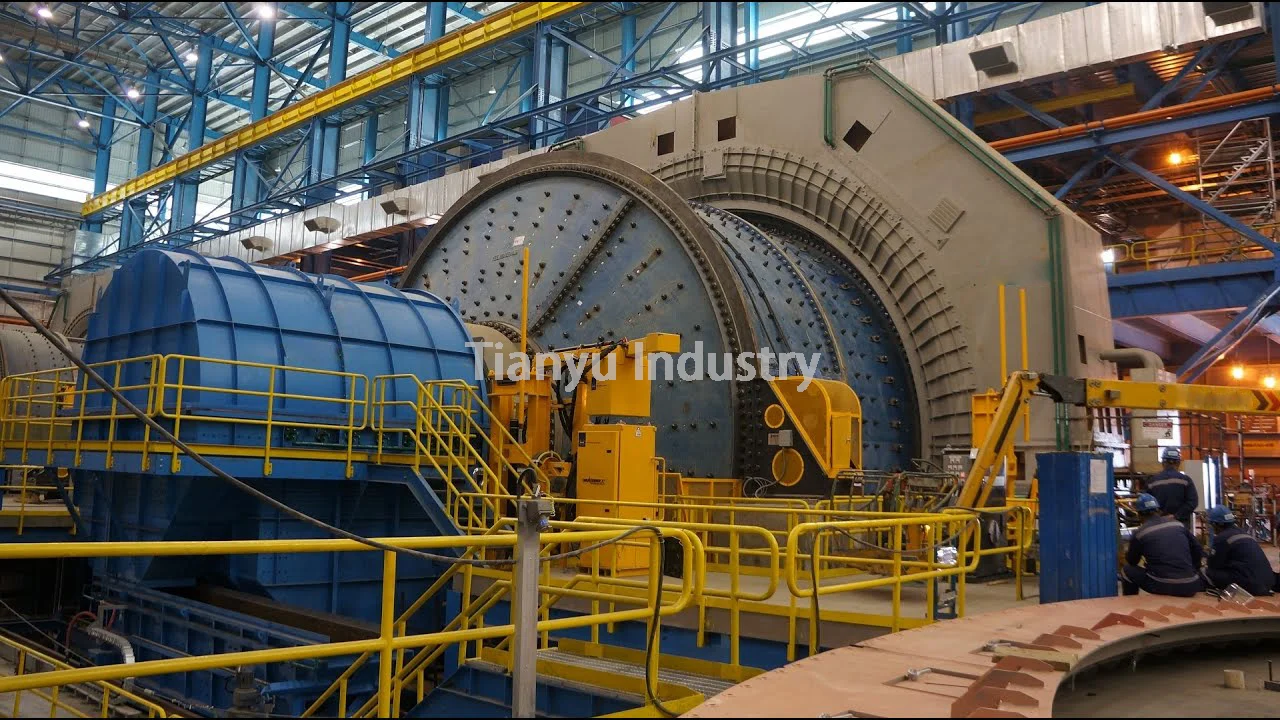

Customer Case

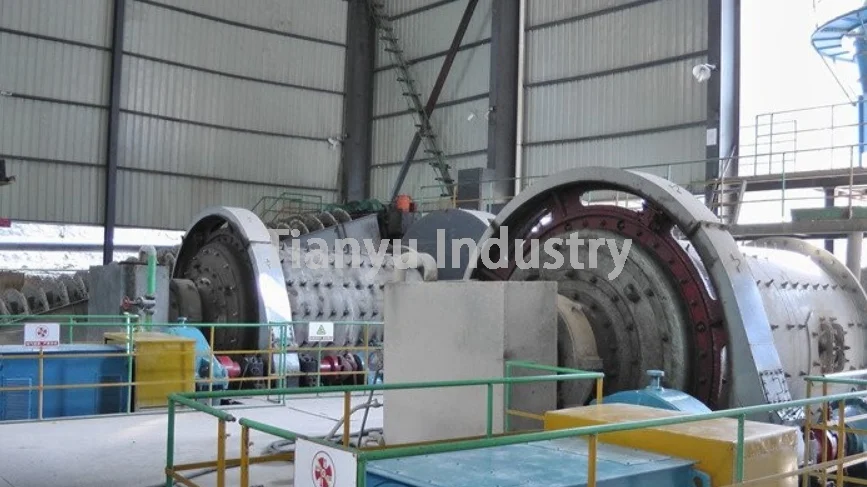

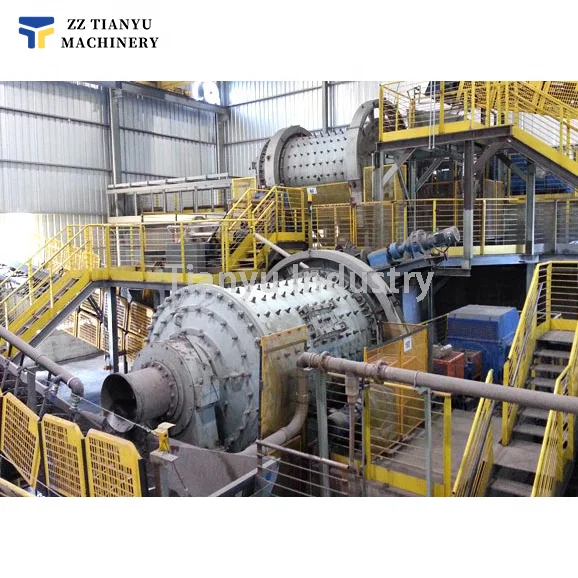

Project Name: Iron Ore Processing Ball Mill Plant for Zhengzhou Mining Machinery Co., Ltd.
Equipment Model: BM1830
Rotary Speed: 25.4 r/min
Balls Load: 11000kg
Feeding Size: ≤25 mm
Discharging Size: 0.074-0.4 mm
Capacity: 4-10 t/h
Motor Power: 130 kw


Project Name: Coal Crushing & Grinding System for China Thermal Power Plant Construction Project
Equipment Model: BM2145
Rotary Speed: 23.7 r/min
Balls Load: 24000kg
Feeding Size: ≤25 mm
Discharging Size: 0.074-0.4 mm
Capacity: 8-43 t/h
Motor Power: 245 kw


FAQ


In order to give you more effective information, some useful messages are as follows:

Q1: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q2: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment and operation training.

Q3: Do you offer spare accessories?
A: Yes, a set of spare accessories will be sent together with the delivery.

Q4: Do you provide after-sale service?
A: Yes, the warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
