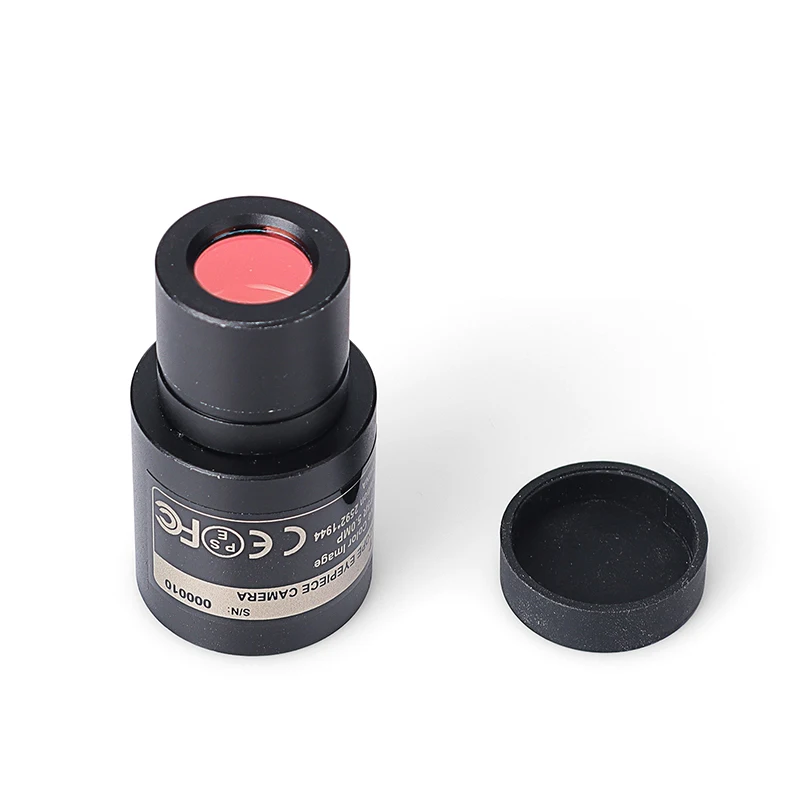

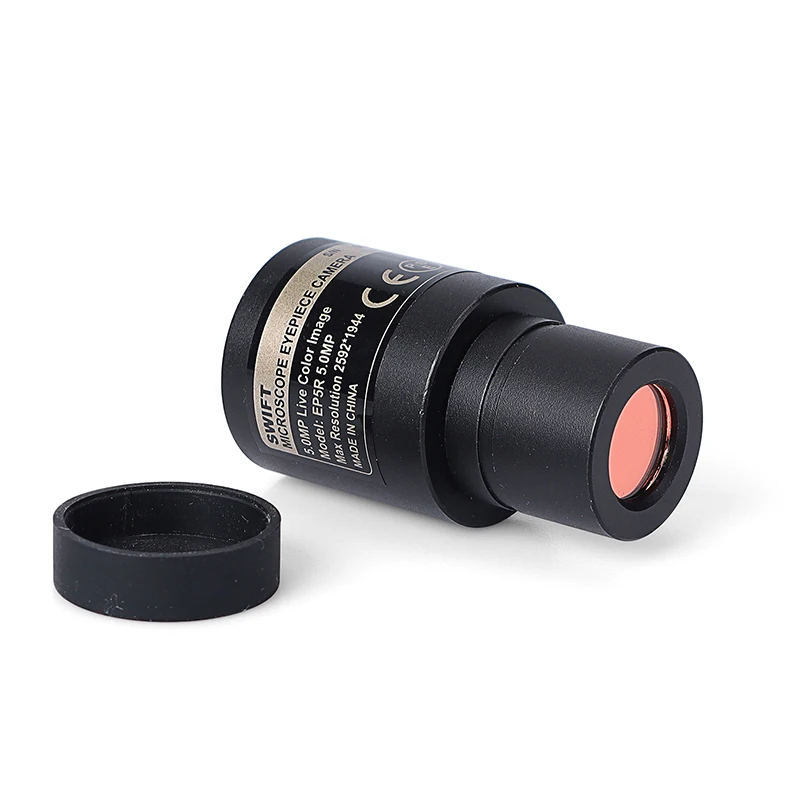

New Arrival 23.2mm SWIFT Eyepiece Camera 5MP USB2.0 CMOS Sensor HD Autofocus Digital Microscope Lab Camera
- Category: >>>
- Supplier: M Tec (Xiamen) Co. Ltd.
Share on (1600485082243):
Product Overview
Description
Product Description
SWIFT OPTICAL INSTRUMENTS
For ninety five years, Swift Optical Instruments has been a trusted global producer of quality microscopes and microscope accessories. During that time, we've partnered with K-12 teachers and university educators across the United States to provide them with innovative solutions to meet the increasingly complex STEM teaching needs of the 21st century. Our microscopes are complemented by a full line up of accessories and upgrade possibilities, including digital cameras with software powered by Swift, slide kits, illumination options, and more.
SWIFT Line is designed to meet ever-increasing and challenging needs of teachers and students. Through innovation, design and quality workmanship, SWIFT Line offers high quality microscopes that meet customer's needs. SWIFT Line includes durable microscopes for classroom use with student-proof features and versatile hybrid microscopes. Our constant commitment to enduring quality and technical excellence ensures that you are getting the best product for your application.
Warranty Information
* Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
* One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords.
* All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
* Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
* One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords.
* All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
Sensor type | CMOS |
Sensor size | 1/2.5'' |
Imaging area | 5.70mm*4.28mm |
Pixel size | 2.2μm*2.2μm |
Resolution | 5.0MP |
FPS/resolution | 2592*1944 @14.4fps, 1600*1200 @14.4fps, 1280*1024 @14.4fps |
Scan mode | Progressive |
Data transfer | USB2.0 |
Binning | None |
Exposure time | 0.1ms~2000ms |
Sensitivity | 0.53v/lux-sec |
Dynamic range | 66dB |
Max. signal to noise ratio | 42dB |
Mount | 23.2mm eyepiece tube |
Software | SWIFT Easyview |

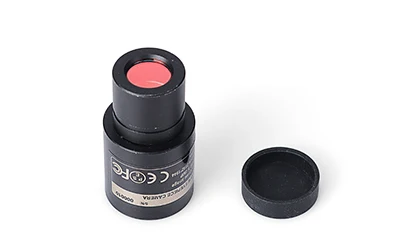

Spectral range | 380-650nm (with IR-CUT Filter) |
White balance | Auto/manual |
Color technique | DigitalClarity TM |
Capture/control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording system | Still picture and movie |
Cooling system* | Natural |
Operating temperature (in centidegree) | -10~50 |
Storage temperature (in centidegree) | -20~60 |
Operating humidity | 30~80%RH |
Storage humidity | 10-60%RH |
Power supply | DC 5V over PC USB Port |
Operating system | Microsoft® Windows® Vista/7/8/10 (32 & 64 bit); OSx (Mac OS X) |
PC requirements | CPU: Equal to Intel Core2 2.8GHz or higher; Memory: 2GB or more; USB port: USB2.0 high-speed port; Display: 17'' or larger; CD-ROM; |
Dimensions | φ30*53.7mm |
Weight | 45g |
Individual package weight | 145g |
Detailed Images
5.0MP resolution
USB2.0 data transfer

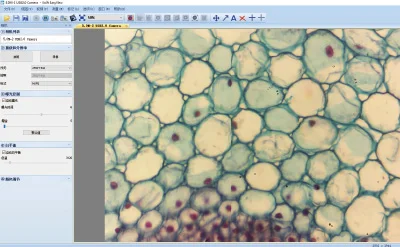

Include SWIFT Easyview software
HOW TO USE EP5R EYEPIECE CAMERA
- Step 1
- Slide the camera mount directly into your microscope's eyepiece tube (fits 23.2mm eyepieces)

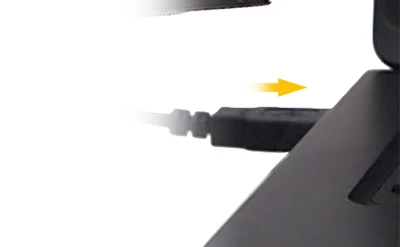

Step 2

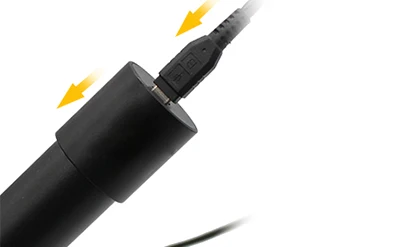

Connect the USB cord to your computer's USB 2.0 port
Step 3
Begin streaming live videos or taking still pictures in full color

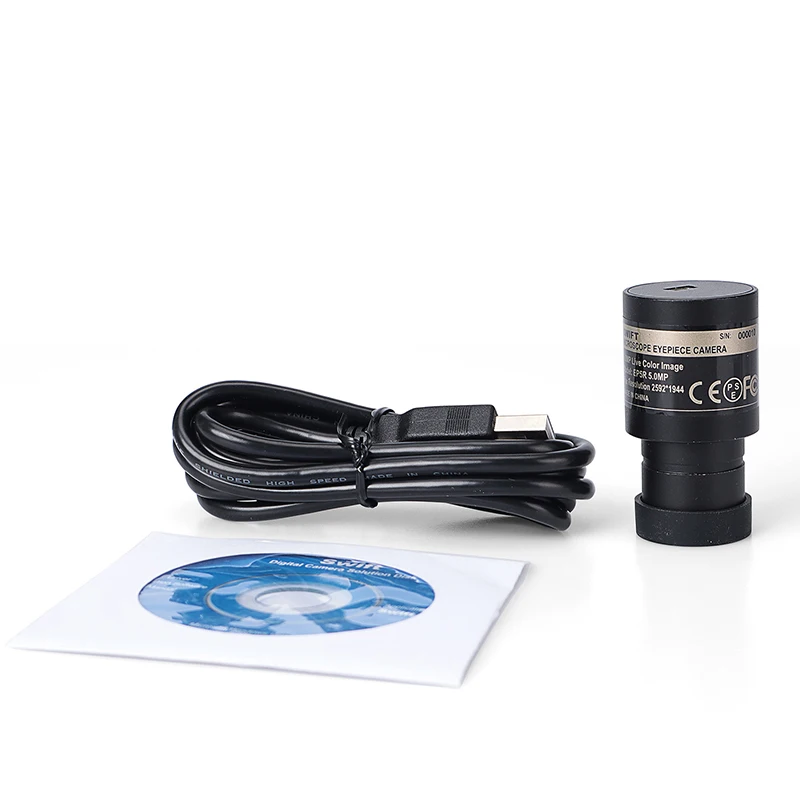

PACKING LIST

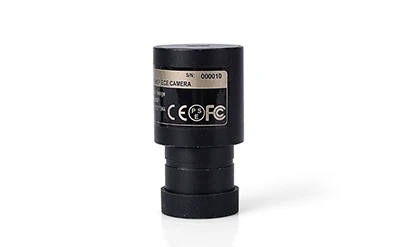

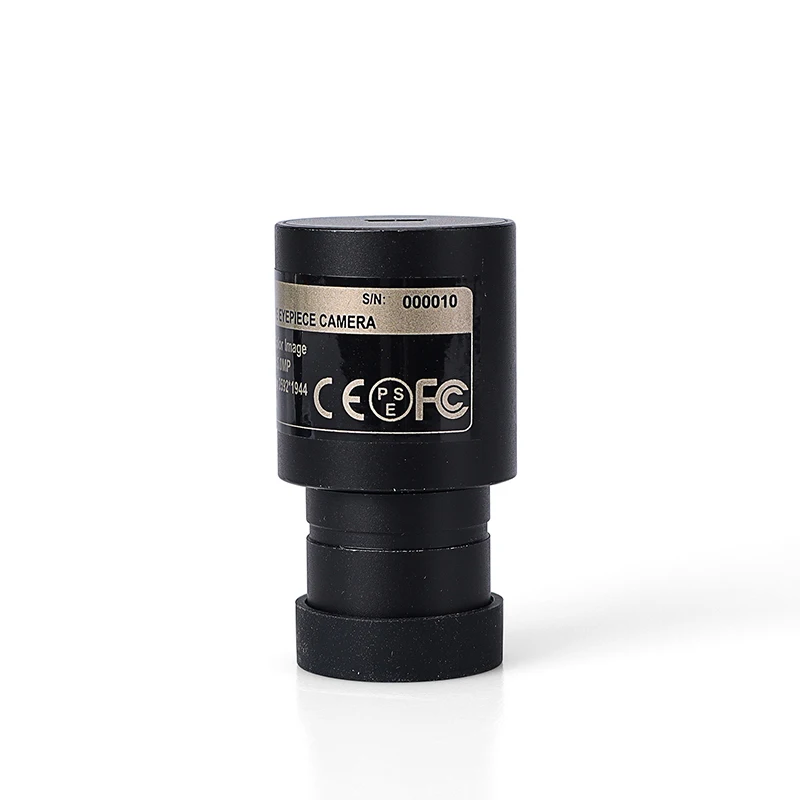

1*EP5R microscope camera
1*USB2.0 cable1*Application CD
We rigorously test and inspect every single unit before shipping to ensure that each microscope reaches our standards for excellence.
OUR TIPS
Not Include In Our Box
Computer and microscope... sold separately
Application
School, university, college, lab, hospital, clinic, medicine, research, vet, dentistry, hobby, gift, etc
Anywhere you want to use our EP5R
Observe cells, bacteria, animal, plant specimens, etc

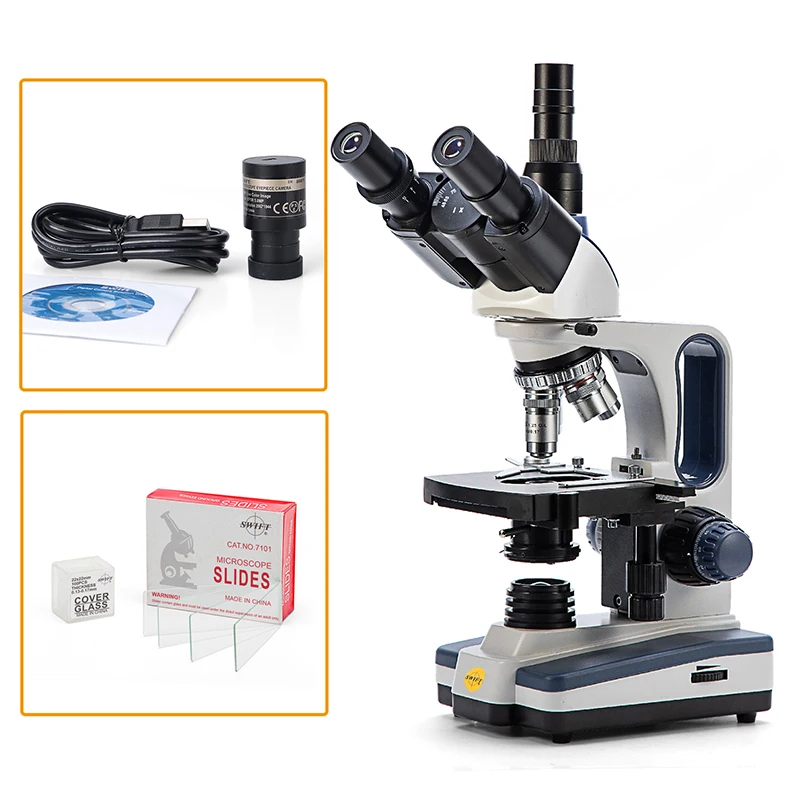

How to Match Our Microscopes
You can buy an extra microscope as SW350T.
