Factory Wholesale Servo controlled Automatic Screen Printer Machine Italy Beer Glass Bottle Wine Vodka Beer Jar Container Cup
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.Luen Ltd.
Share on (1600485177796):
Product Overview
Description
Product Description
Fully CNC servo-controlled automatic screen printing machine with CCD for plastic or glass bottles jars cups tubes container
It can screen print from 1 to 17 colours.High printing precision could reach to 0.1mm
Fast, Innovative, Convenient and GreenThis full servo printing machine can print round, oval, square, polygonal plastic and glass products. The visual positioning system can locate the bottle bottom or bottle body.
Compact look and reduced overall dimensions make it suitable for small-sized companies as well.
User-friendly interface which the screen can be made one turn around the machine.
screen printing head can be replaced to hot stamping head,make multi color screen printing and hot stamping in one line.
2. Printing color:4 colors
3. Printing speed: 2000-2700pcs/hr
4. Max Product size: round diameter 100mm, length 280mm
5. Applicable products: Round ,Square,Oval and other special shape glass plastic bottles,jars,cans ,cups.
6. Left and right stroke of scraper:350mm
7. Scraper, oil return knife up and down stroke:Cylinder control 20mm, adjustable screw stroke 50mm
8.Compressed air:5-6BAR
9. Power supply: 380V/50HZ
10. Total power: 35KW
Compact look and reduced overall dimensions make it suitable for small-sized companies as well.
User-friendly interface which the screen can be made one turn around the machine.
screen printing head can be replaced to hot stamping head,make multi color screen printing and hot stamping in one line.
Specifications:
1.Moel :LC-CNC412
2. Printing color:4 colors
3. Printing speed: 2000-2700pcs/hr
4. Max Product size: round diameter 100mm, length 280mm
5. Applicable products: Round ,Square,Oval and other special shape glass plastic bottles,jars,cans ,cups.
6. Left and right stroke of scraper:350mm
7. Scraper, oil return knife up and down stroke:Cylinder control 20mm, adjustable screw stroke 50mm
8.Compressed air:5-6BAR
9. Power supply: 380V/50HZ
10. Total power: 35KW
Features

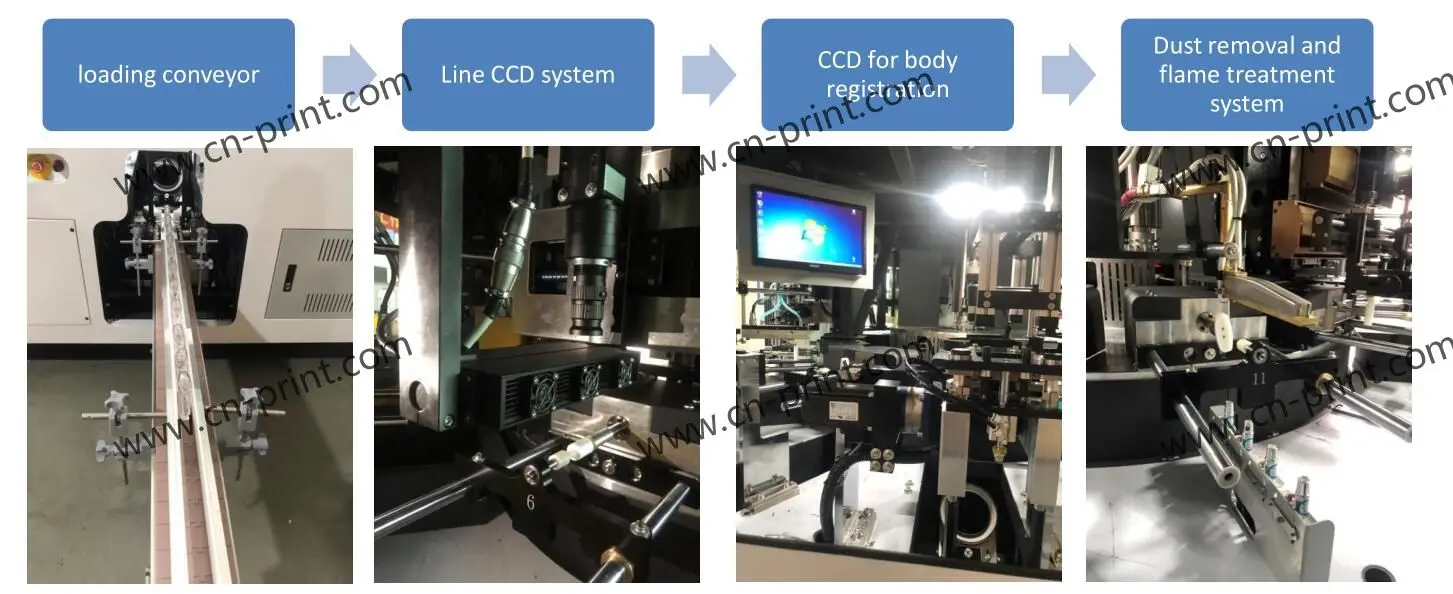

1.Auto loading and unloading with multi axis servo robot.
2.Dust clean

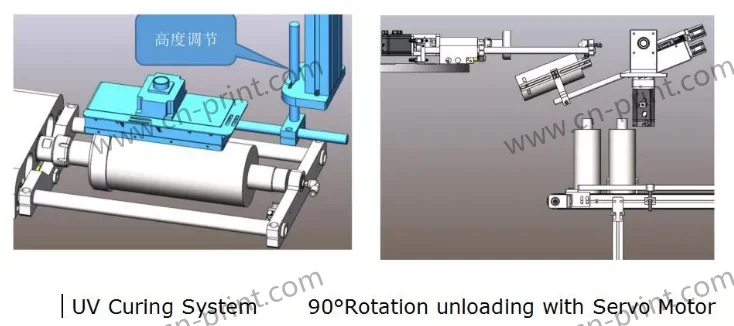

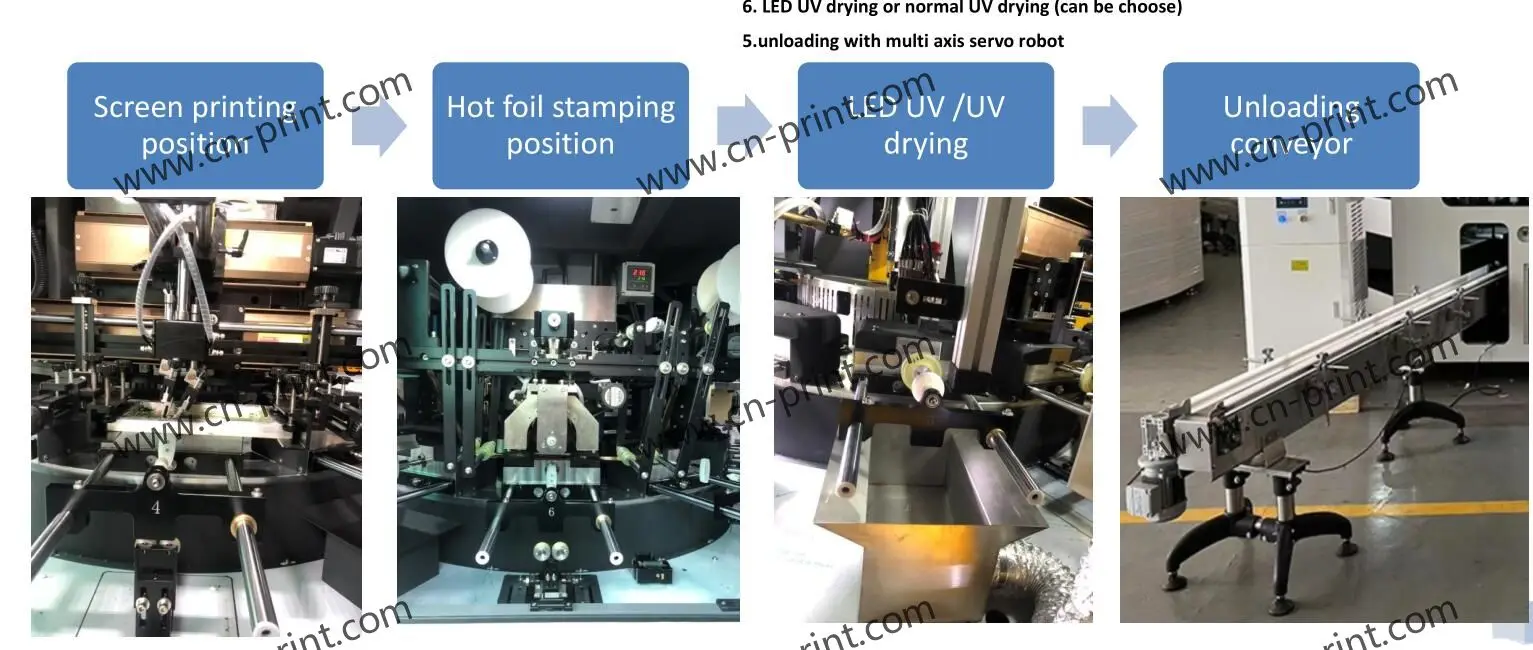

3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes
20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for
fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double
colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes
20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for
fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double
colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
Specification
item | value |
Plate Type | Screen Printer |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other, Advertising Company |
Condition | New |
Place of Origin | GUA |
Usage | Tube Printer, bottle cup jar tube printer |
Automatic Grade | Automatic |
Color & Page | Multicolor |
Voltage | 380V 50HZ |
Dimensions(L*W*H) | 5400x2000x1700mm |
Weight | 2000KG |
Certification | CE |
Warranty | 1 Year |
Online support | |
Key Selling Points | Automatic |
Video outgoing-inspection | Provided |
Core Components | PLC, Pressure vessel, servo motor, CCD image positioning |
Printing Product Shape | Round/Flat/Oval/Other |
Max Product size | round diameter 100mm, length 310mm |

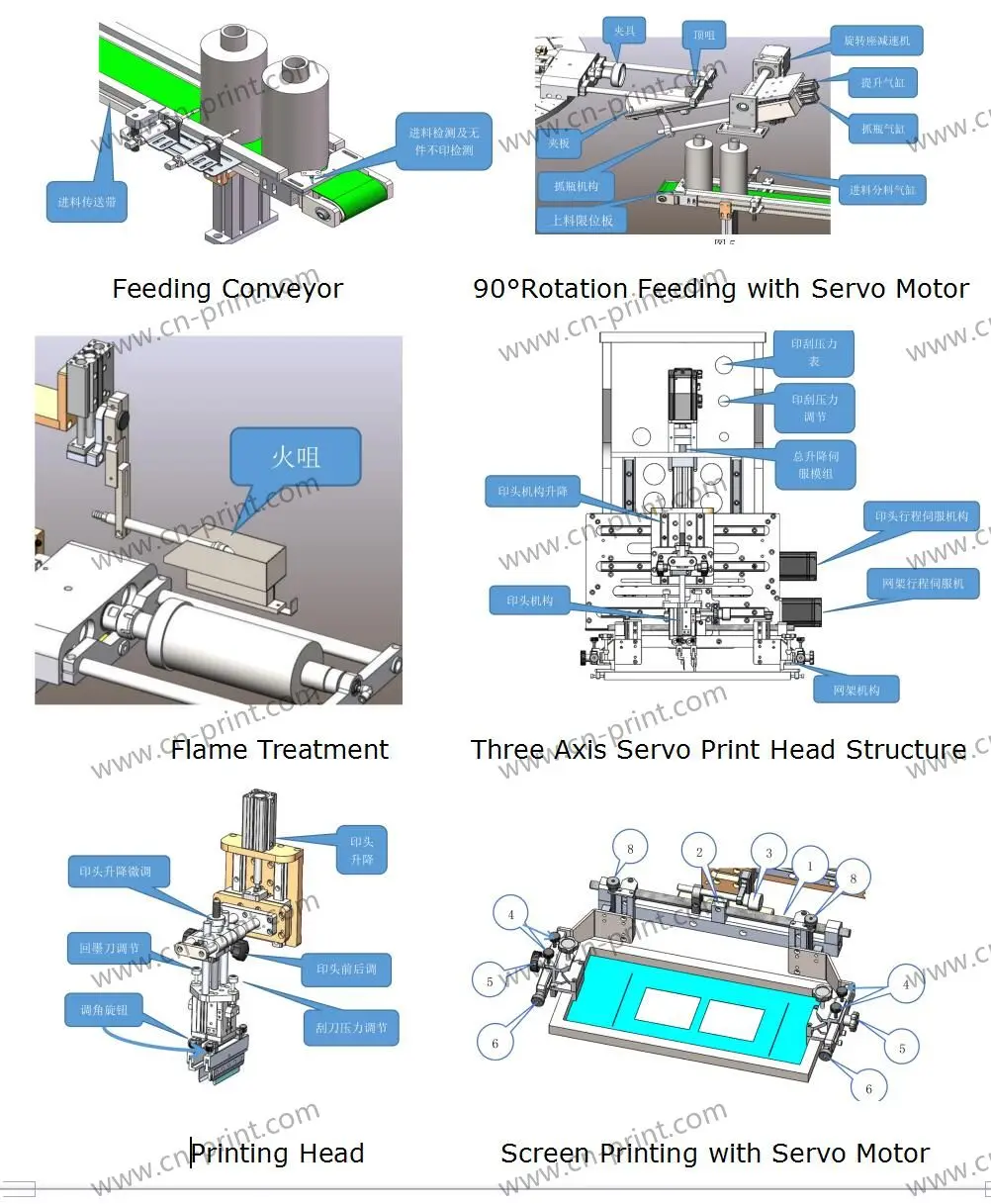

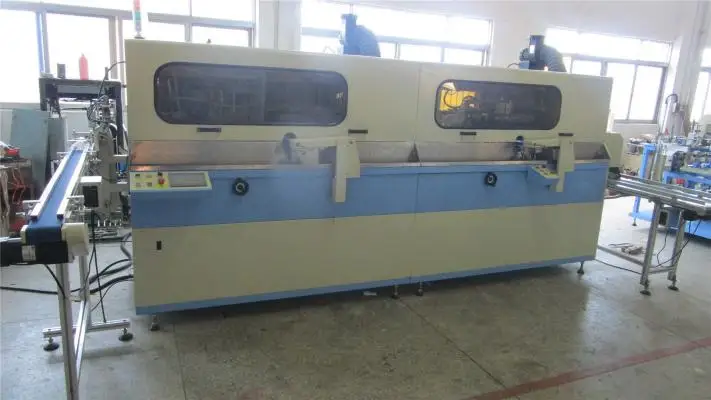

Product Details
Printing Samples
Company Profile
Luen Cheong Printing Equipment Ltd., established in 1991, is a professional in developing, manufacturing, and selling the screen printer, pad printer, hot stamping machine, heat transfer machine, peripheral equipment & accessory. With rich experience in manufacturing special printing equipment, we are focusing on making good quality printing equipment and whole solution services for domestic and abroad customers.
In order to keep up with the automatic industry, we continue to improve the diversified printing equipment and become an agent for Ink, Screen fabric, Squeegee, and so on. Nowadays, we are successful in developing & producing the new series of a screen printer, pad printer, hot stamping machine, heat transfer machine, automatic printing machine, peripheral equipment & accessory. We are highly praised by the customers from domestic and aboard.
We promote the innovation series ink cup pad printer, which adopts the automatic control system. It makes the operation easy and stable, the procedure more flexible and lightweight due to the strong aluminum cast machine frame. The pneumatically driven component is adopted from Europe and Japan as well as the shaft lever and shaft sleeve, ensuring that it is hard to wear, reducing the maintenance and extended mechanical life. Otherwise, with the long slide stroke and rotating body design, it can help you in large format printing and machine testing. The sealed ink cup can reduce the ink volatile and it is more fuel-efficient and more environmentally friendly.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the delivery. We try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best products and service for our customers.
In order to keep up with the automatic industry, we continue to improve the diversified printing equipment and become an agent for Ink, Screen fabric, Squeegee, and so on. Nowadays, we are successful in developing & producing the new series of a screen printer, pad printer, hot stamping machine, heat transfer machine, automatic printing machine, peripheral equipment & accessory. We are highly praised by the customers from domestic and aboard.
We promote the innovation series ink cup pad printer, which adopts the automatic control system. It makes the operation easy and stable, the procedure more flexible and lightweight due to the strong aluminum cast machine frame. The pneumatically driven component is adopted from Europe and Japan as well as the shaft lever and shaft sleeve, ensuring that it is hard to wear, reducing the maintenance and extended mechanical life. Otherwise, with the long slide stroke and rotating body design, it can help you in large format printing and machine testing. The sealed ink cup can reduce the ink volatile and it is more fuel-efficient and more environmentally friendly.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the delivery. We try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best products and service for our customers.
