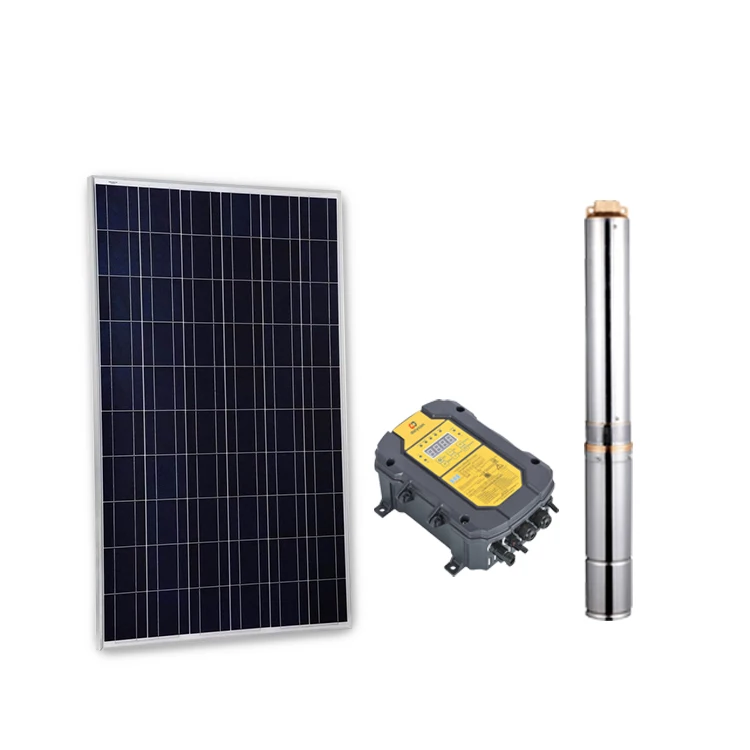

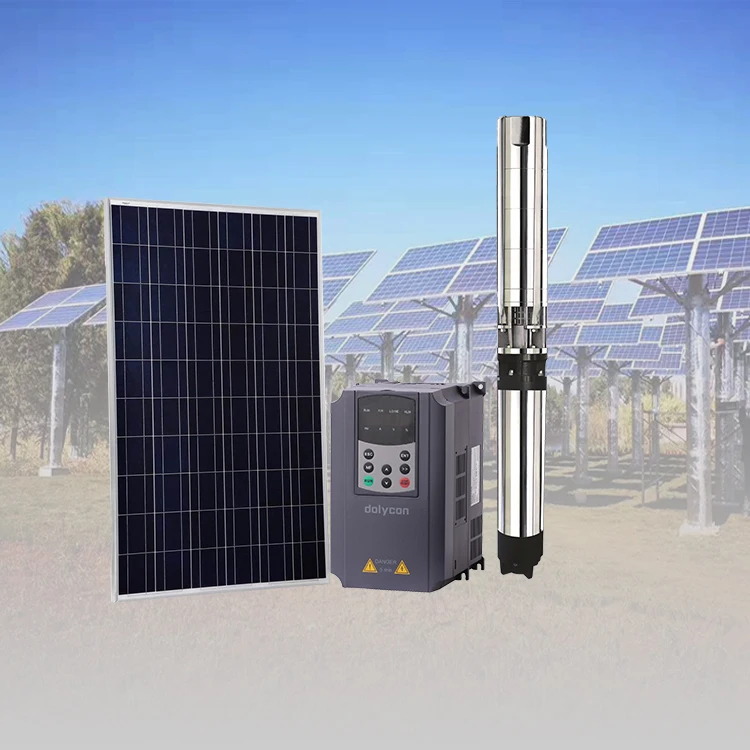

The solar water pump system uses solar energy as power to drive water pumps to pump water from deep wells, rivers, lakes, reservoirs and other water sources. The system is mainly composed of three parts: solar panel, solar pump inverter and water pump. Solar pumps use long-lasting energy from the sun. They work at sunrise and rest at sunset. No diesel, no power grid, and no need for manual duty. The system doesn't need energy storage batteries, and the economic and environmental protection concept of replacing electricity storage with water directly drives the water pump to raise water, which greatly saves the cost of system construction and operation and maintenance.
Advantage of solar water pump system
The solar water pump system runs fully automatically, no manual duty is required. No need for batteries or building a control room;

item | value |
Warranty | 2 Years |
Free installation service | NO |
Place of Origin | China |
Guangdong | |
Brand Name | DOLYCON |
Model Number | DOLY-SP |
Application | Home, Commercial, Industrial, Irrigation |
Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
Battery Type | NONE |
Controller Type | MPPT |
Mounting Type | Ground Mounting, Roof Mounting |
Load Power (W) | 3KW, 50kw, 30KW, 8KW, 6KW, 20KW, 5kW, 10KW, Others, according to your water head and flow requirment |
Output Voltage (V) | 220V-380V |
Output Frequency | 60Hz/50Hz |
Work Time (h) | Your daily sunligh hours |
Certificate | CE, IEC |
Pre-sales project design | Y |
Water pump | submersible or surface |
Solar pump inverter | Dolycon CT112 |
Solar panel | A grade |
Mounting brackets | Alluminium/ Hot zinc plating steel |
Water pipe | PE/GI steel/stainless steel |
Water flow range | 0.5~500m3/h |
Water head range | 0~500m |
Outdoor case | IP54 |
Water level sensor | Optional |
GPRS monitoring | Optional |
