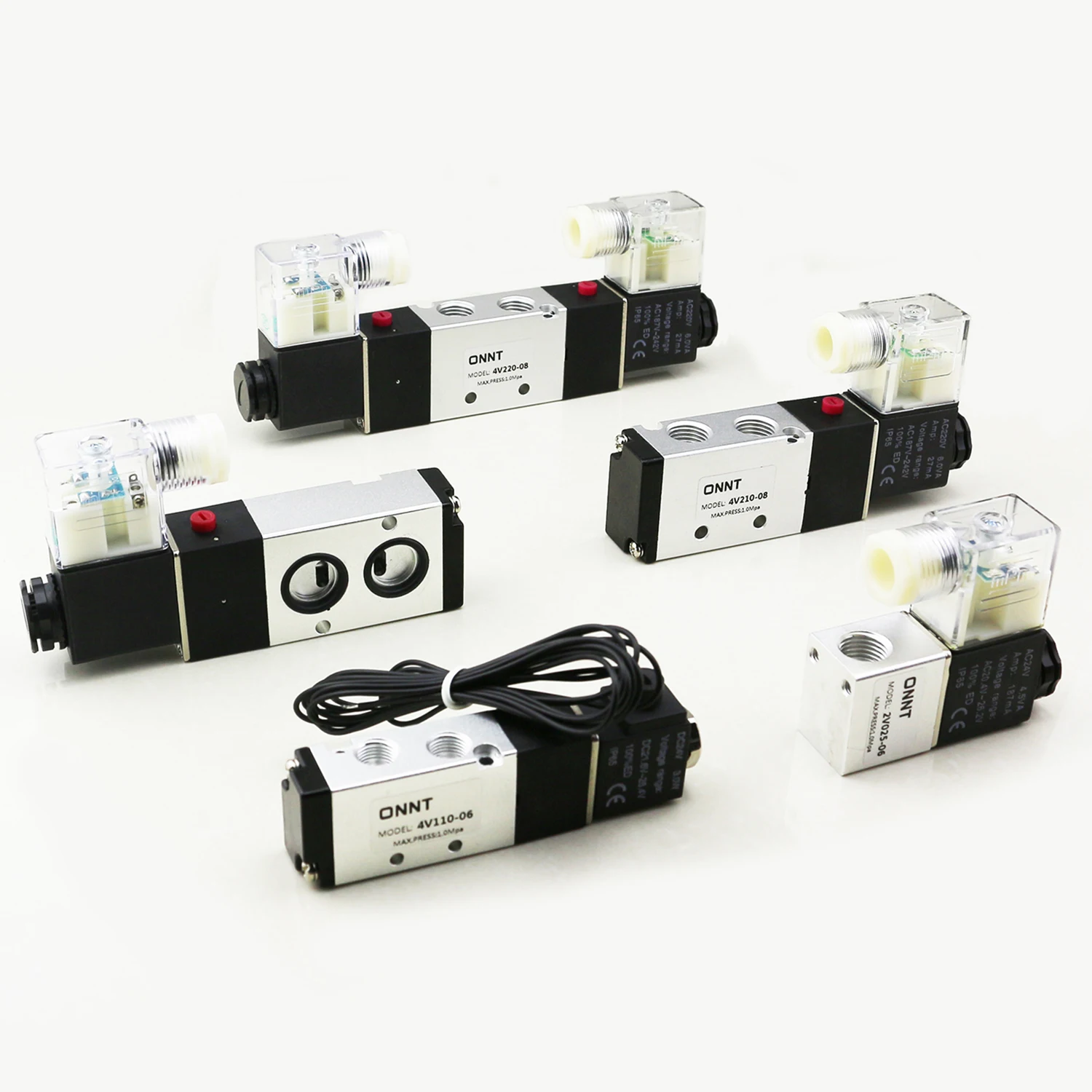

Pressures Model Electro Valvula G1/4 Port 24V DC Pneumatic Air Valve Airtac 4V210 08 Solenoid Valve 4v210
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600486075630):
Product Overview
Description

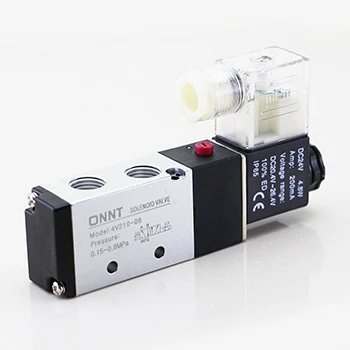

Pressures Model Electro Valvula G1/4 Port 24V DC Pneumatic Air Valve Airtac 4V210-08 Solenoid Valve 4V210

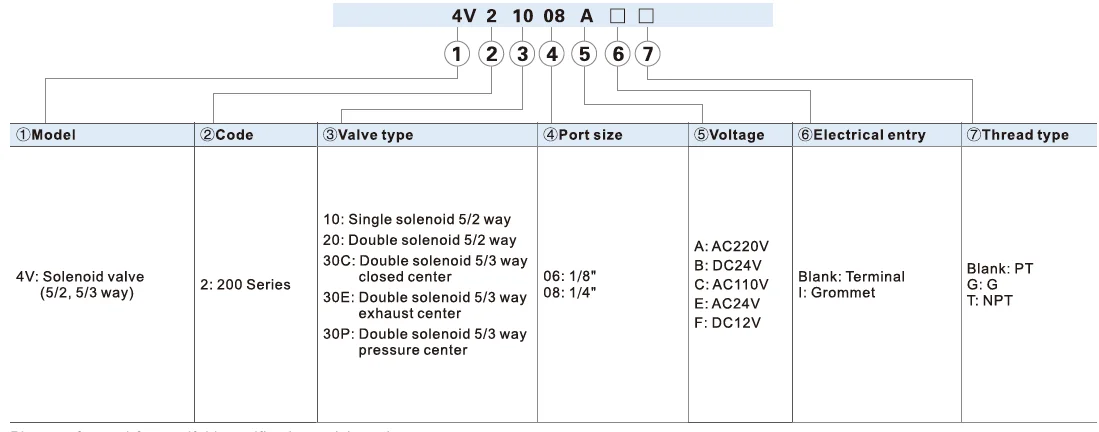

Ordering Code:

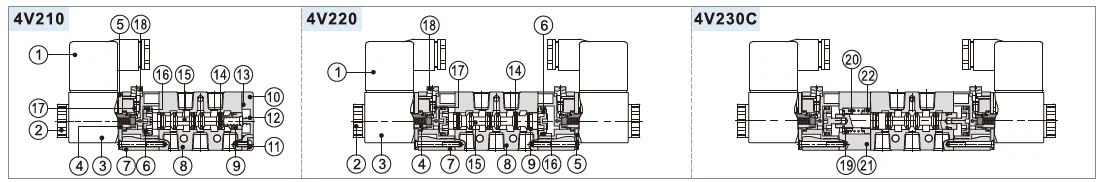

Inner structure and material of major parts
NO | Item | NO | Item | NO | Item |
1 | Connector | 9 | Wear ring | 17 | Override spring |
2 | Coil net | 10 | Bottom cover | 18 | Manual override |
3 | Coil | 11 | Fixed screw | 19 | Spring holder |
4 | Armature | 12 | Spool spring | 20 | Return spring |
5 | Fixed plate | 13 | Bottom cover gasket | 21 | Side cover |
6 | Piston | 14 | Spool O-ring | 22 | Spring holder |
7 | Pilot kit | 15 | Spool | ||
8 | Body | 16 | Piston O-ring |
Specifications
Model | 4V210-06 4V220-06 | 4V230C-06 4V230E-06 4V230P-06 | 4V210-08 4V220-08 | 4V230C-08 4V230E-08 4V230P-08 | |||
Fluid | Air( to be filtered bu 40 µ m filter element) | ||||||
Acting | Internal pilot or external pilot | ||||||
Port size | In=Out=Exhaust=1/8'' | In=Out=1/4''Exhaust=1/8'' | |||||
Orifice size | 14.0mm² (C=0.78) | 12.0mm² (Cv=0.67) | 16.0mm² (Cv=0.89) | 12.0mm² (Cv=0.67) | |||
Operating pressure | 0.15MPa~0.8MPa(21~114psi) | ||||||
1.2MPa(175psi) | |||||||
Temperature °C | -20~70℃ | ||||||
Material of body | Aluminum Alloy | ||||||
Lubrication | Not required | ||||||
Max. frequency | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec | |||
Coil Specification
Item | Specification | ||||||||
Standard voltage | AC220V | AC100V | AC24V | DC24V | DC12V | ||||
Scope of voltage | AC: ±15% DC: ±10% | ||||||||
Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 3.0W | ||||
Protection | IP65(DIN40050) | ||||||||
Temperature classification | B Class | ||||||||
Electrical entry | Terminal, Groment | ||||||||
Activating time | 0.05 sec and below | ||||||||
More products:

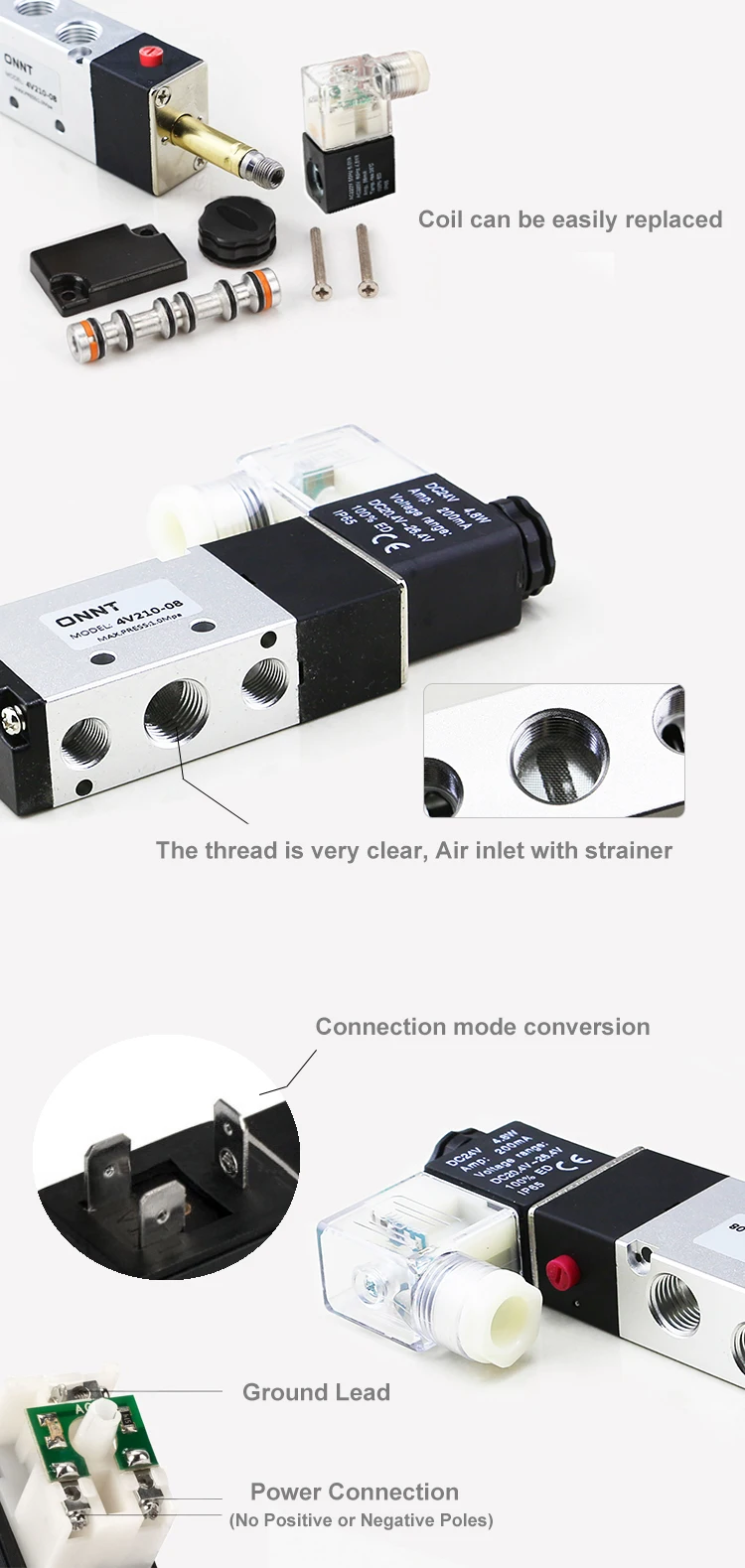

Details Images:

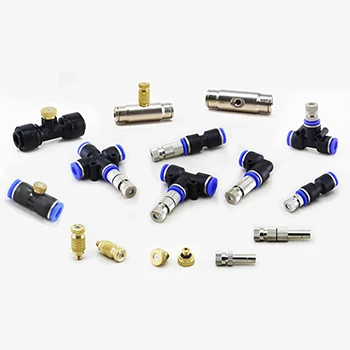

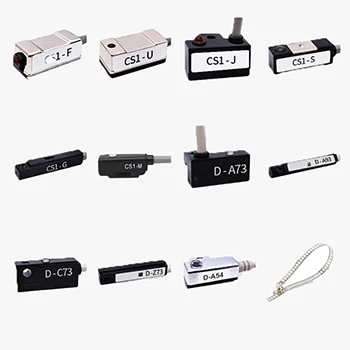

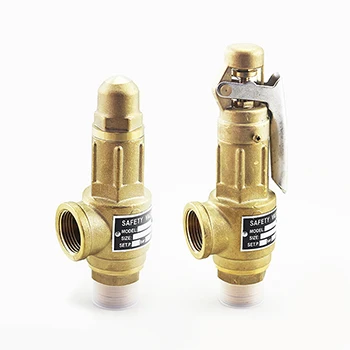

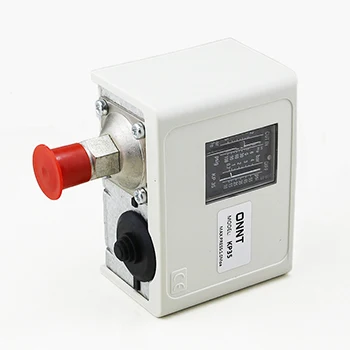

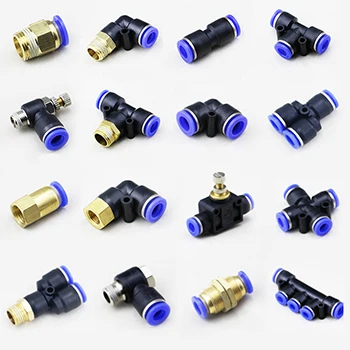

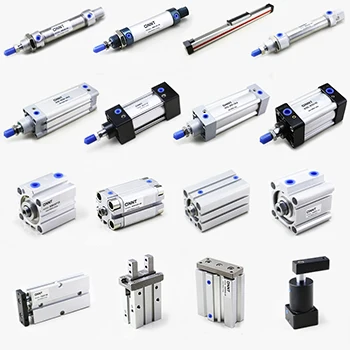

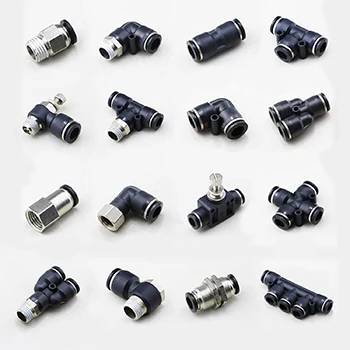

Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
