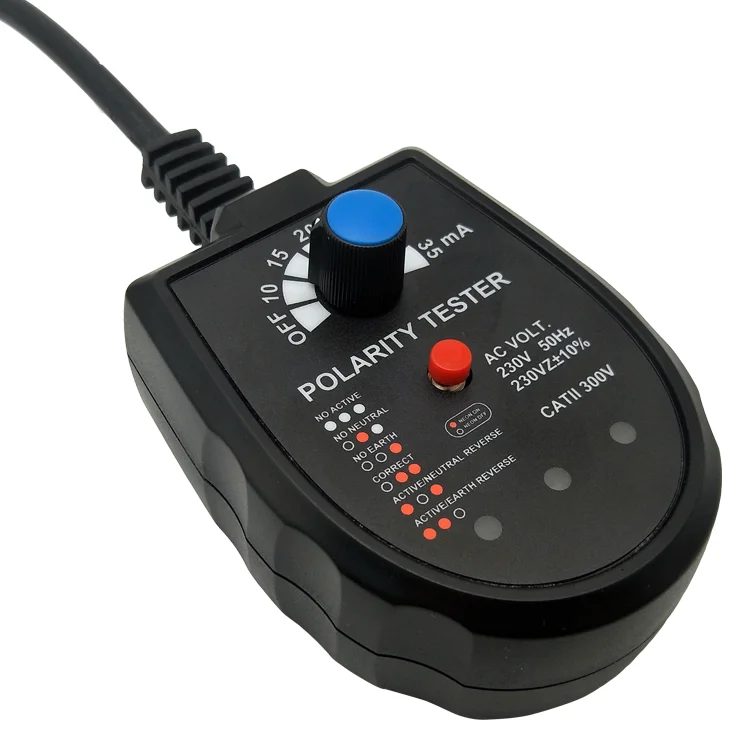

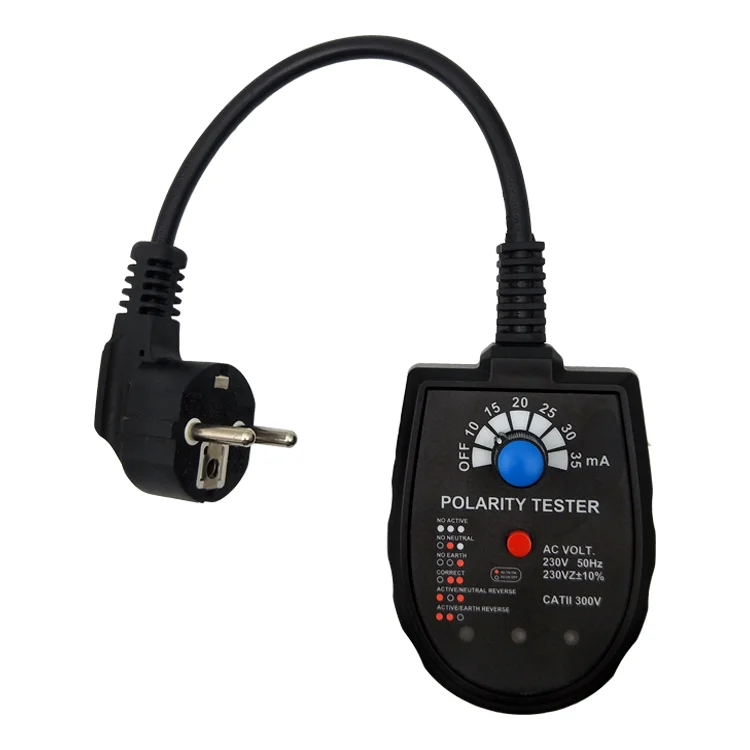

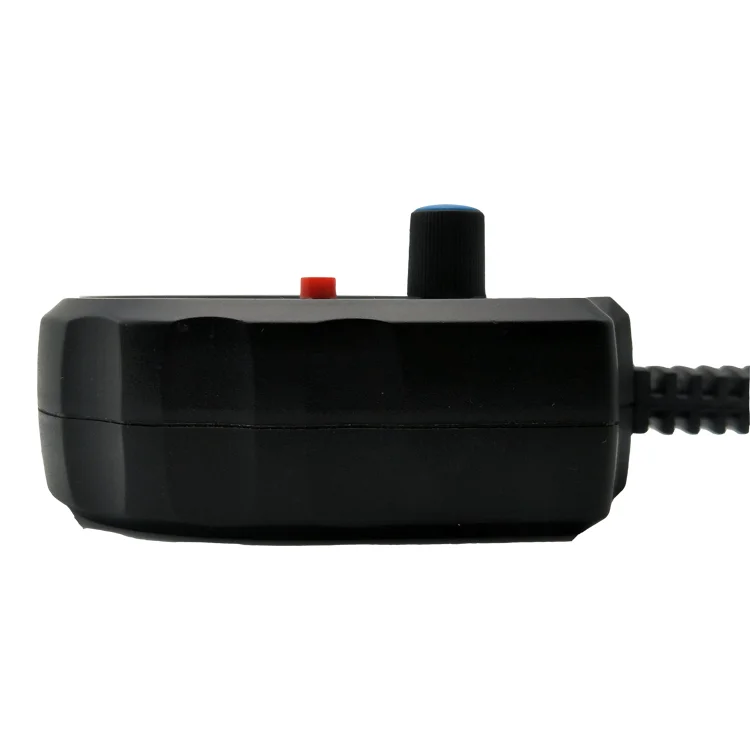

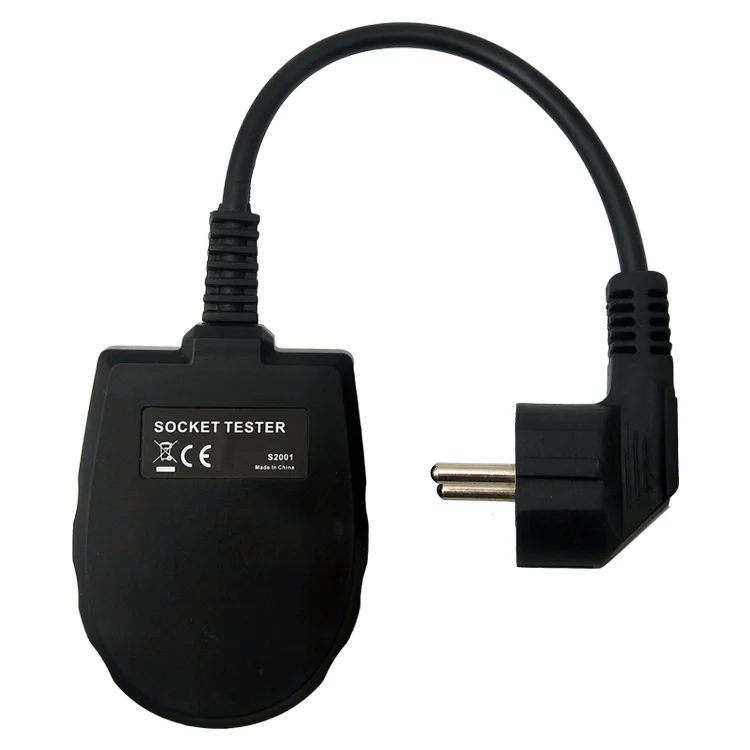

S2001 home-used Socket Tester Outlet Tester Receptacle Tester RCD/GFCI Test with Cable and ABS flame retardant
- Category: Other Electrical Instruments >>>
- Supplier: Fuzhou,Yuxin,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
home-used Outlet Tester Receptacle Tester Socket Tester RCD Test with Cable and ABS flame retardant
| S2001 | Operating voltage range | American: 110V-125V AC European: 220V-250V AC United Kingdom: 230V AC Chinese: 220V AC |
| Frequency range | 50-60Hz | |
| Polarity test | 6 Conditions(Correct, Active/Neutral Reverse, Active/Earth Reverse, No Neutral, No Earth, No Active) | |
| RCD test | 10mA, 15mA, 20mA, 25mA, 30mA, 35mA | |
| Power supply | from mains | |
| Temperature range | Normal Temperature | |
| Humidity | <95% non condensing | |
| Overvoltage category | CATIII /300V | |
| Cable: Length | 190±10mm | |
| Cable diameter | 6.5mm | |
| Features | 1) Bright NEONs, indicates 6 wiring fault conditions 2) Complete polarity test first, DO NOT procedd if polarity test FAILS 3) Remove the tester from the socket after the test is completed, DO NOT leave the tester in a socket longer than 2 minutes. 4) Microprocessor control with built-in self check 5) CE approval |
