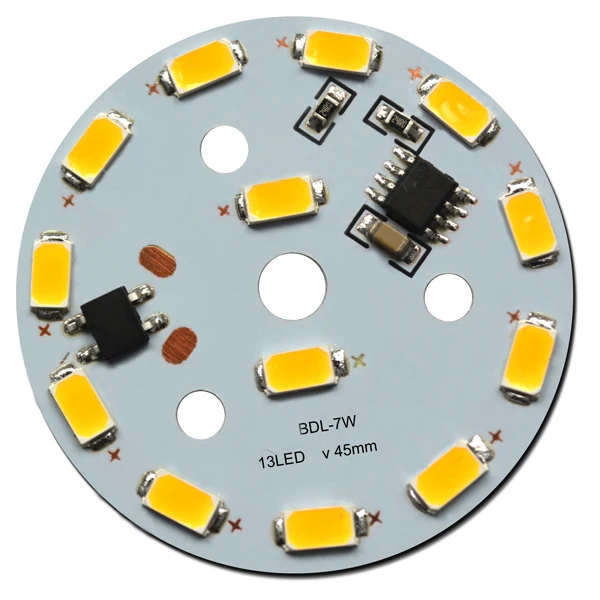

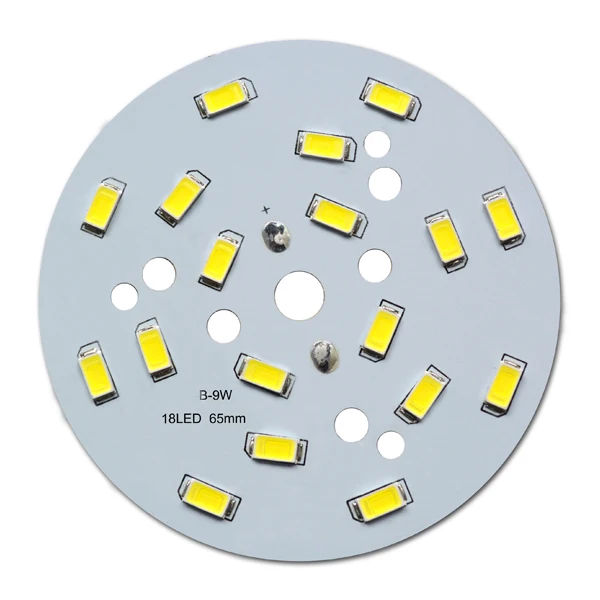

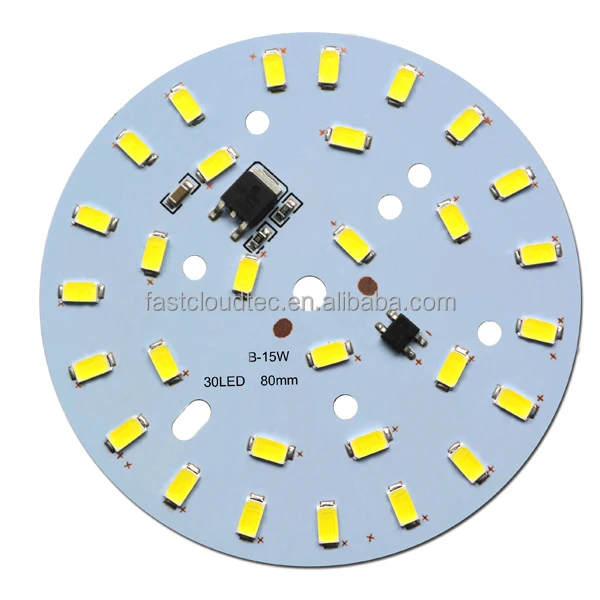

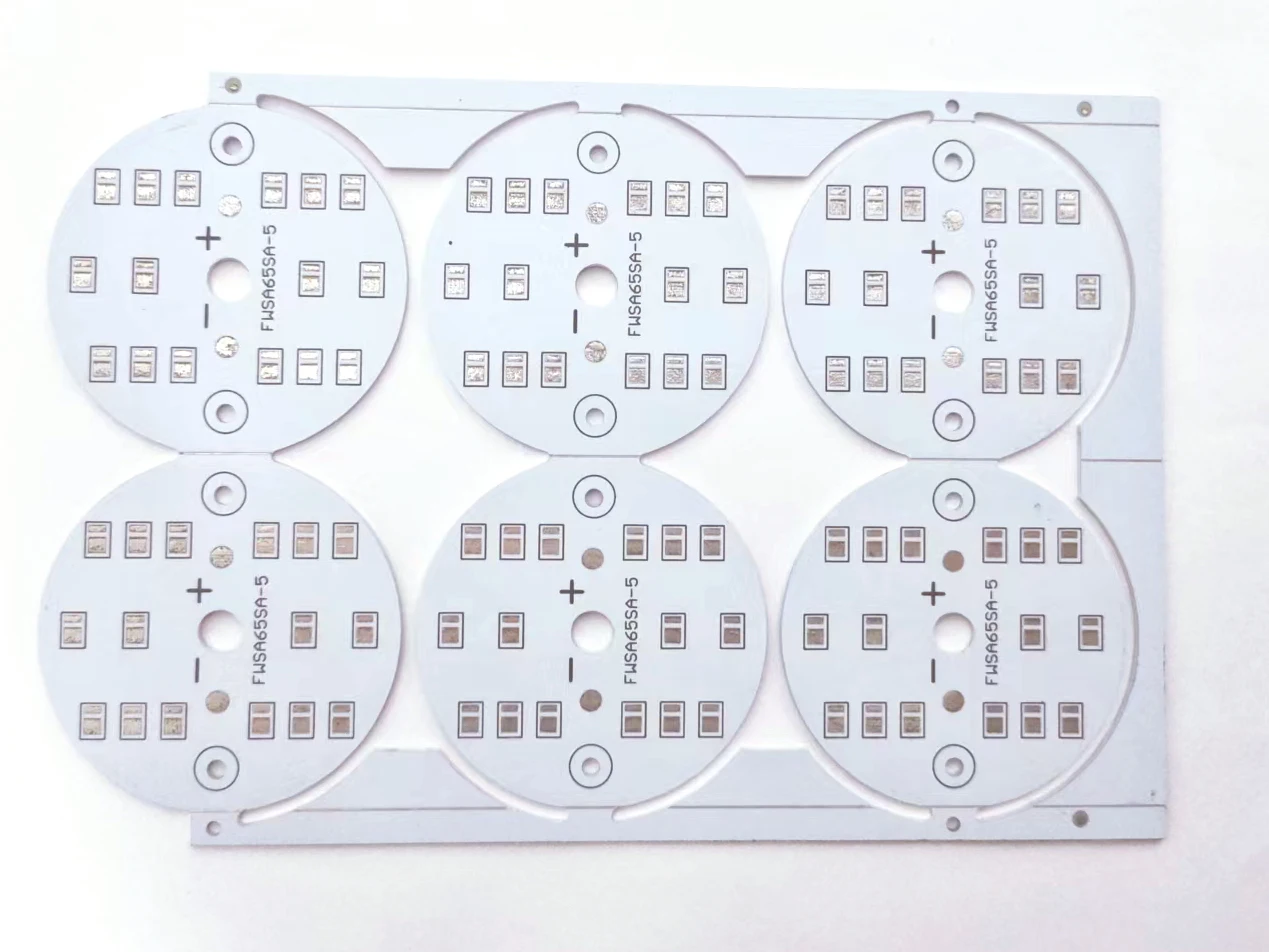

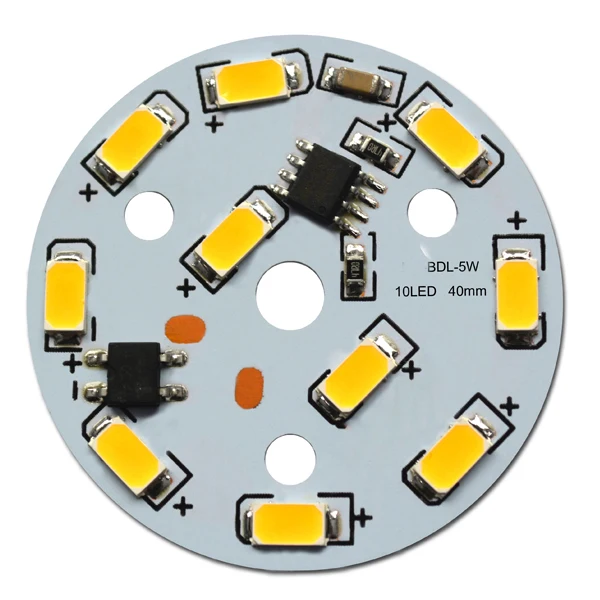

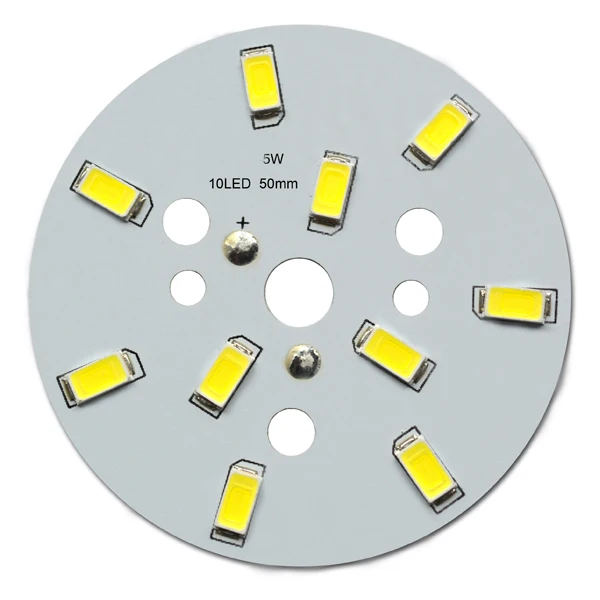

Custom LED PCB board assembly fabrication 15W led light board

Product Overview

Description

Company Profile

Shenzhen FastCloud Electronic Limited established in the year 2010 , One stop supplier for PCB &PCBA. Our factory are ISO9001:2008,ISO14001:2015,UL certificate.The factory covered area of 8000 sq^meter.There are 150 experienced staffs in our factory.We can help with single layer ,2-18 Layer PCB fabrication.FR4 Rigid PCB,Flexible PCB,Metal Core PCB,Rigid&Felxible PCB.We also have the capability for High TG170 PCB,HDI PCB,Rogers materials PCB . Our PCB produce capacity is 10,000 Sq^meter per month.We can help with PCB fabrication, Components sourcing, PCBA manufacturing,PCBA Programming and function testing, injection Molding, Plastic and metal parts fabrication; one site of Electronic manufacturing service All of the PCBAs will in strictly testing by QC Visual inspection, AOI Testing ,X-RAY inspection,QA Inspection before packing; we offer programming and PCBA function testing service. Quality First,Fast Delivery,Fair Price is our mission.



 Factory Show

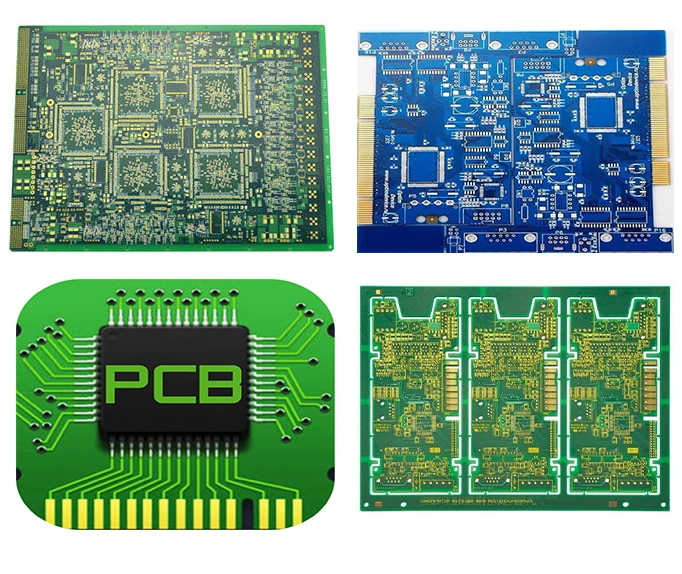

PCB Products

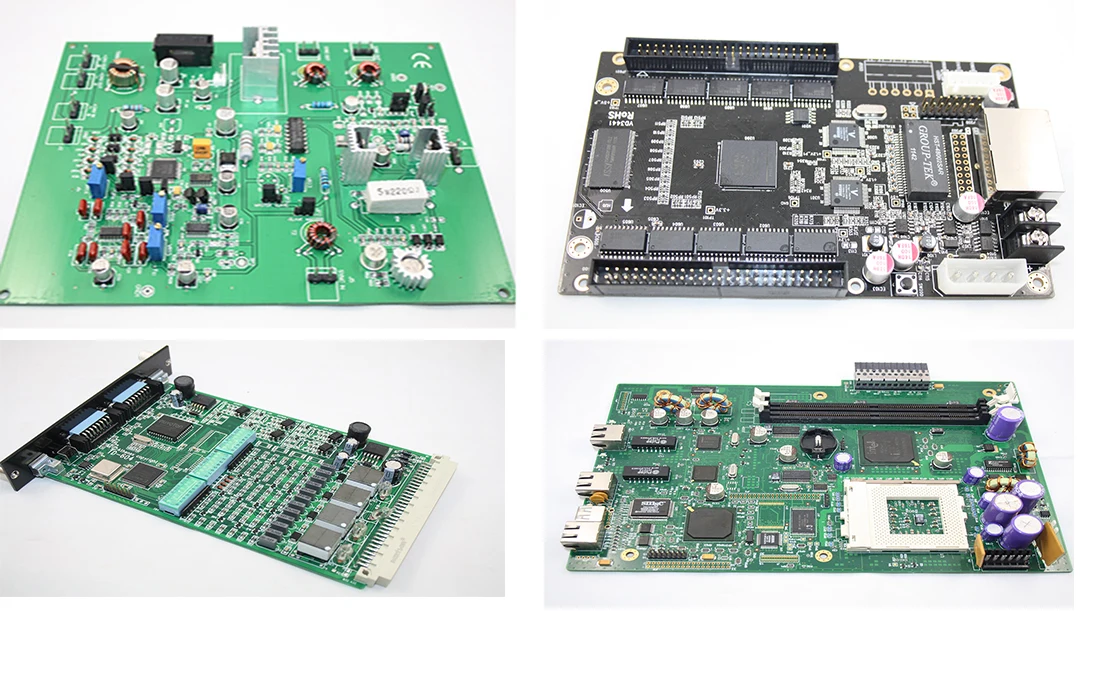

PCBA Products



- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Component Procurement & Material Management

- Product Design

- Fast Track Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

- Function Testing Service



2.Detailed Specification of Double Sided PCB Manufacturing



Product Name	OEM /ODM Circuit Board Prototype pcb fabrication factory from China Shenzhen
Materials	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum/F4B-2
Number of Layer	1-12 layers (include Rigid-Flex PCB)
Board Thickness	Rigid 0.15mm-3.00mm
Board Thickness Tolerance	5-10%
Profile Processing	CNC Milling/V-Cut/Mold Flushes
Copper Weight Tolerance	±0.15 oz
Copper Thickness	0.5oz-5oz
Min Line Width	0.1mm
Min Space Width	0.127mm
Min Drill Hole Diameter	0.1mm
Max Processing Sheer	600mm*400mm
Silk Screen Min Line Width	0.15mm
Anti-welds resin	Thermosetting resin/Without the gloss resin/Photosensitive resin
Soldermask	green,red,blue,white,black,yellow,etc.
Flame resistance	94v0
Certification	ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640
Approval Standard	IPC-600F
Suface Finish	HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc





Product Packaging and Logistics

-Inside Packing:Vacuum plastic Bag
-Outside Packing:Carton Box
-Or in your requirement
