Product Introduction

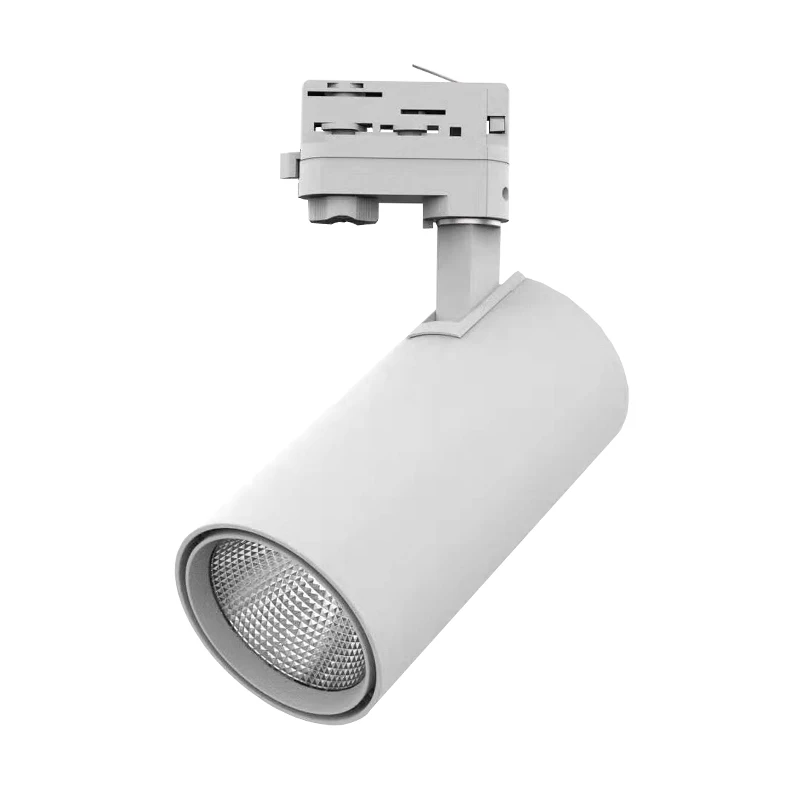

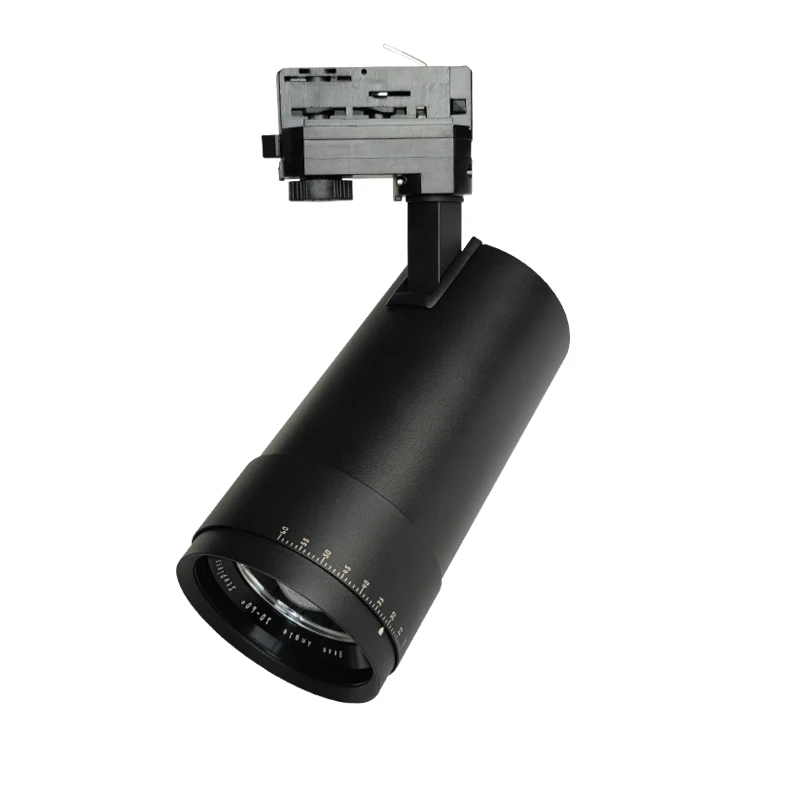

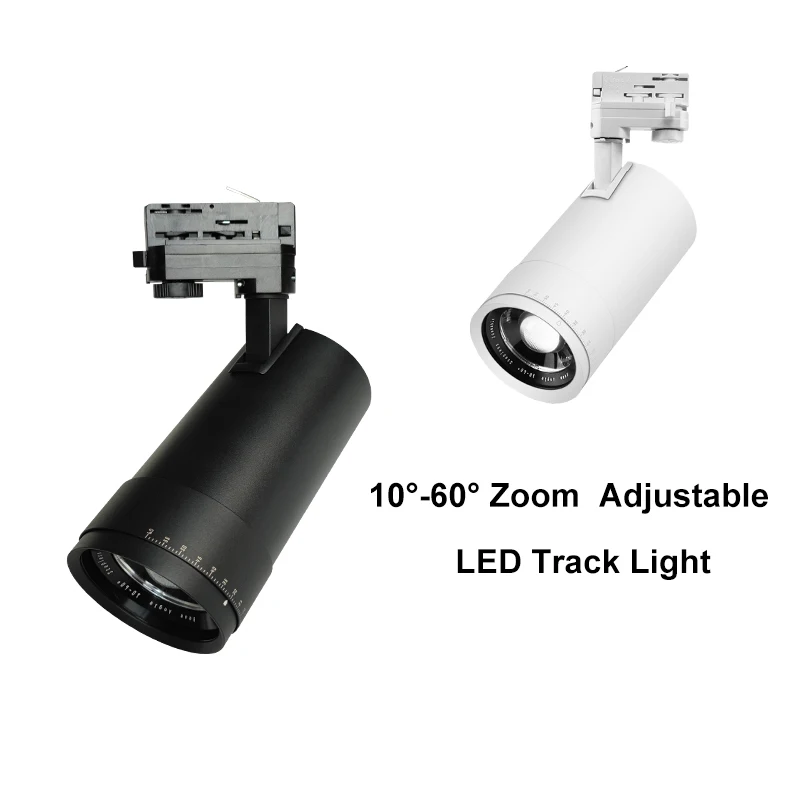

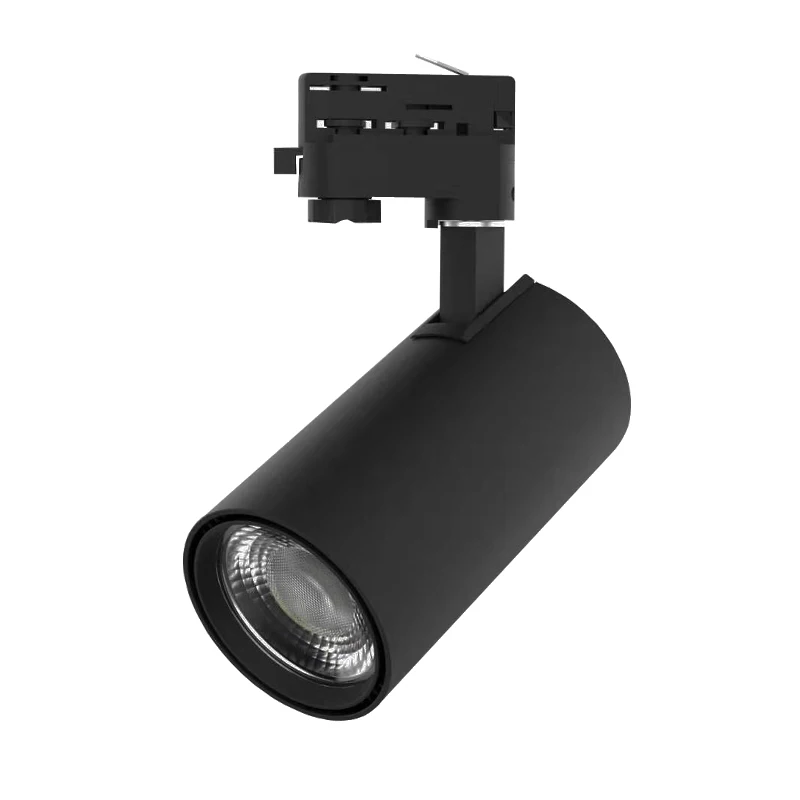

LUMIWELL® D series 10-60° zoomable LED track lighting, the innovation is based on the focusing technology of the SLR cameras. Just rotating the front ring allows you to accurately change the beam angle of 10°~60°. It can be used in a variety of scenarios without changing the lens.
We also offers a full selection of track, heads and accessories to make building a complete track lighting solution easy.
Applications: Museum, Gallery, Hotels, Restaurant, Stores, Supermarkets, etc.
Main Features
1. CREE COB LED chips, no shadow, strong penetrability, high fidelity CRI95 and high efficacy up to 100lm/W.

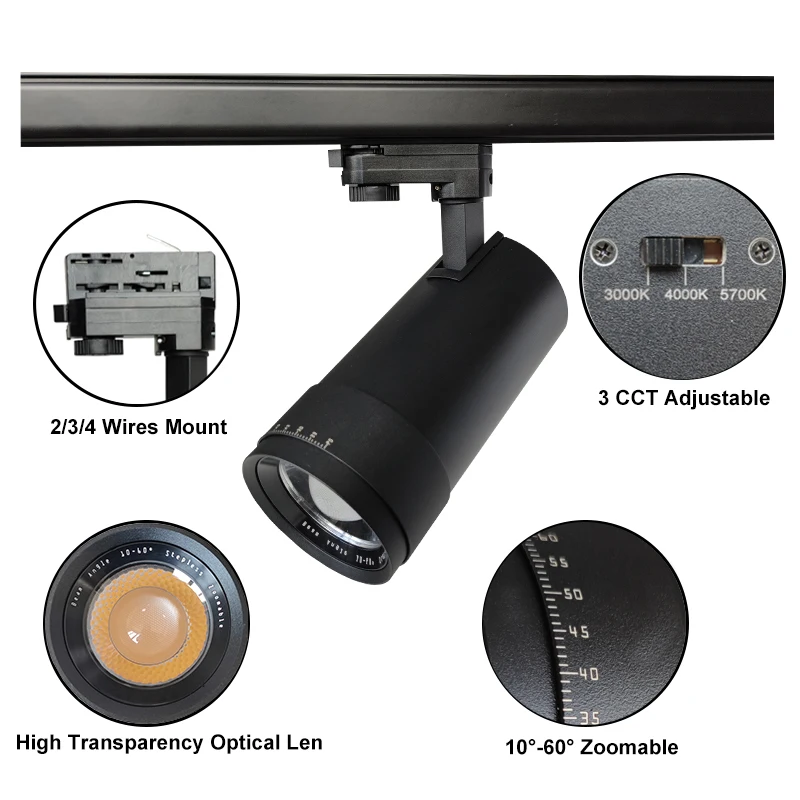

2. 10-60° zoomable, 3CCT adjustable, triac/0-10V dimming optional.
3. Compatible track systems: 2 wires, 3 wires, 4 wires.

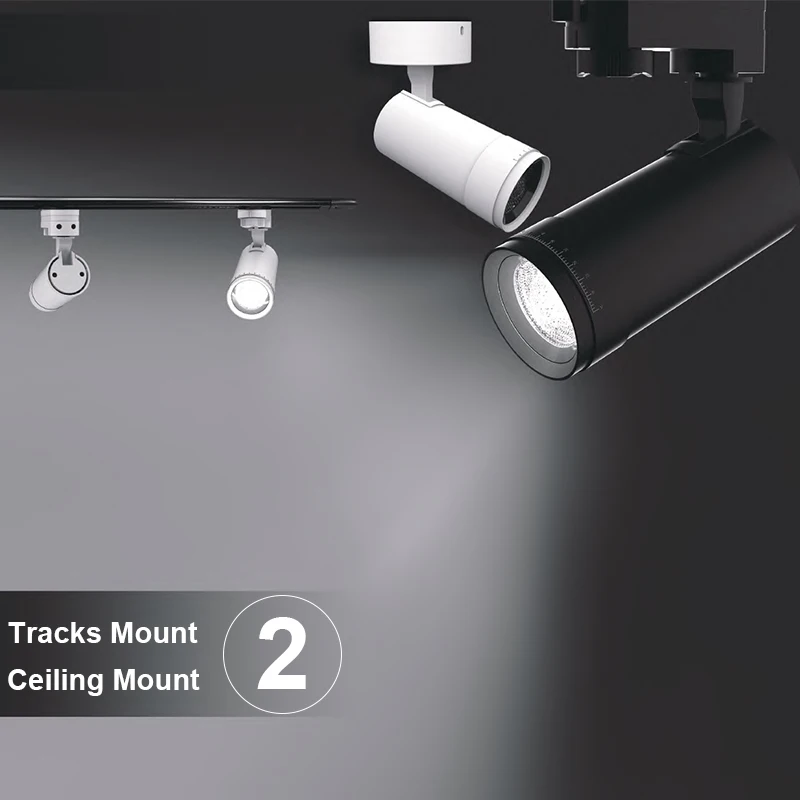

4. Tracks mount, ceiling mount optional.

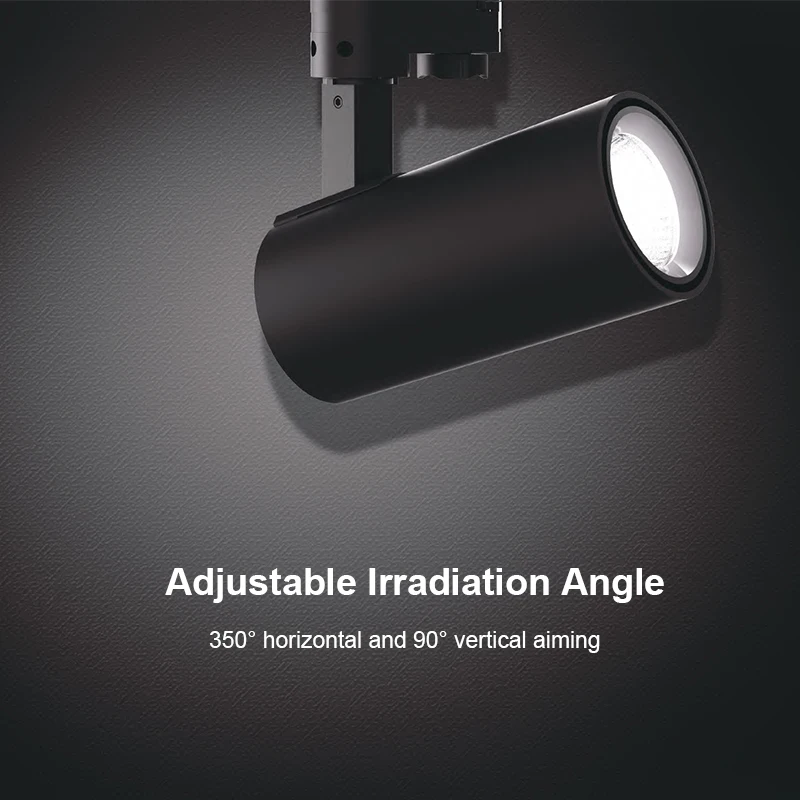

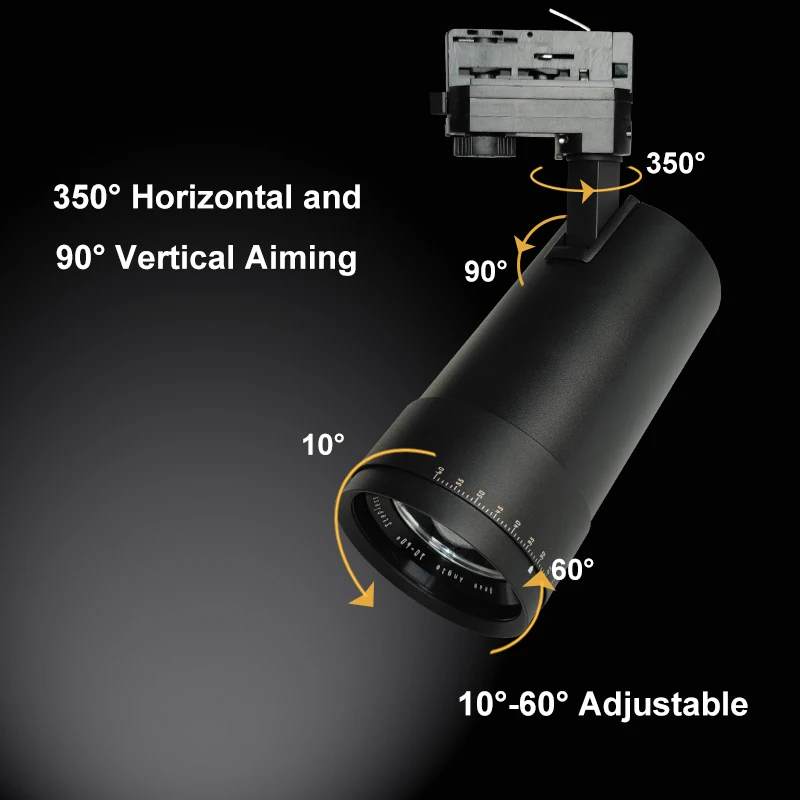

5. Adjustable irradiation angel: 350° horizontal and 90° vertical aiming.

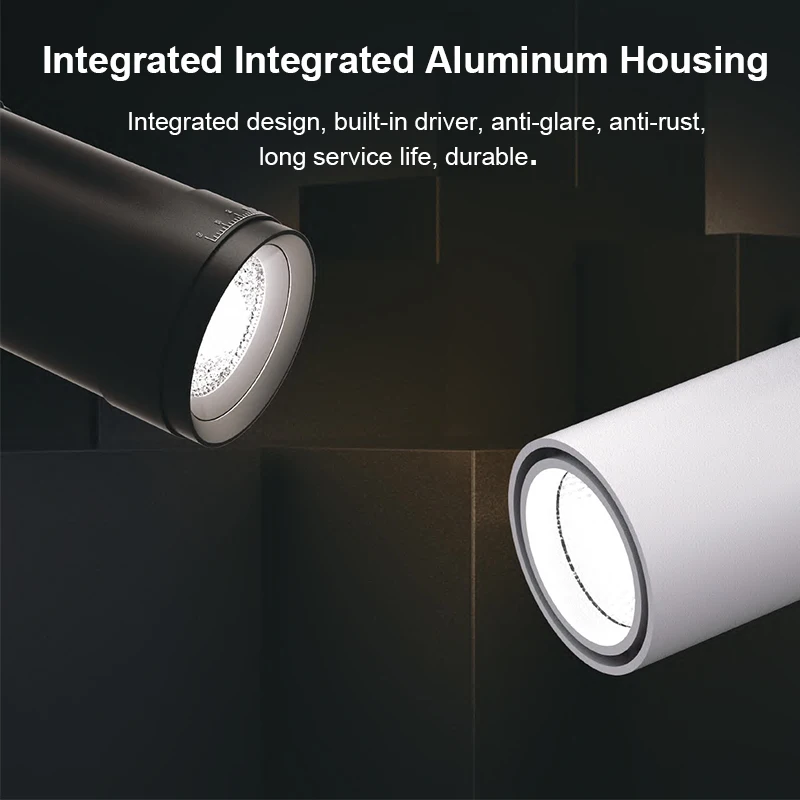

6. Unique built-in driver and anti-glare design.
7. No UV, no IR, safe as accent task lighting for artworks.
8. Innovative thermal design: aluminum housing, high strength and hardness with convective holes for better heat dissipation.
9. Eco-friendly: nearly 70% energy saving compared to traditional lights.
Specifications
| Model No. | LW-TRD7W | LW-TRD10W | LW-TRD15W | LW-TRD30W | LW-TRD45W |
| Power | 7W | 10W | 15W | 30W | 45W |
| Lumens | 700lm | 1000lm | 1500lm | 3000lm | 4300lm |
| Dimming | Triac, 0-10V Dimming | ||||
| Voltage | AC120V, AC200-240V, AC100-277V | ||||

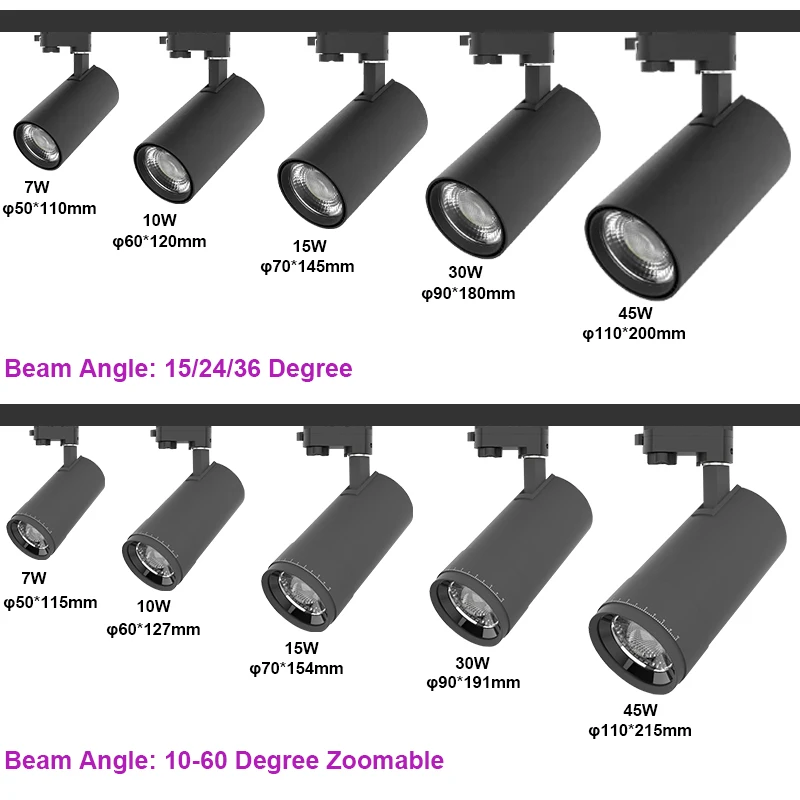

| Size | φ50*110mm | φ60*120mm | φ70*145mm | φ90*180mm | φ110*200mm |

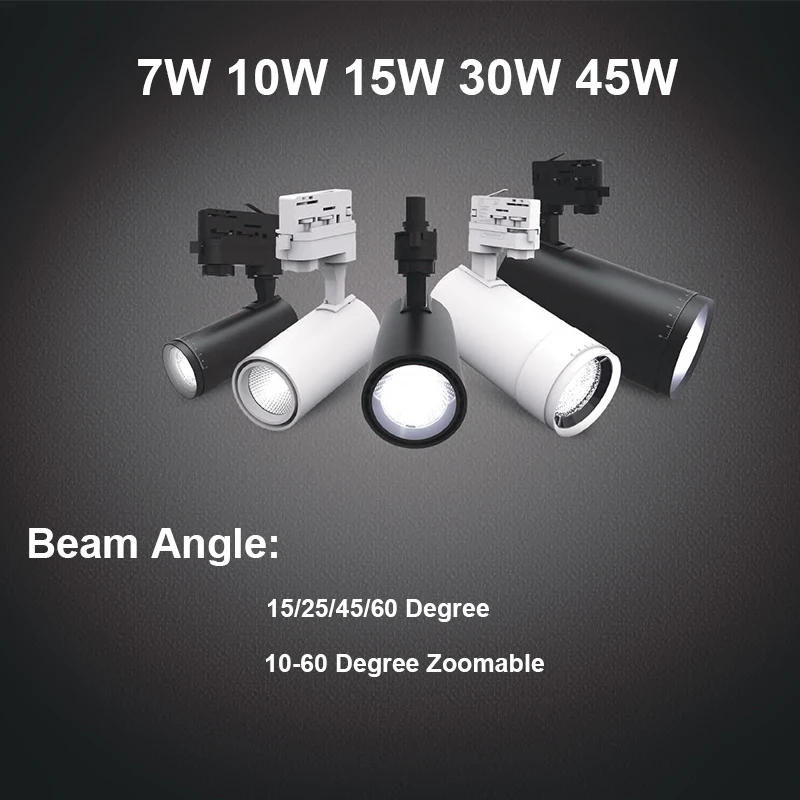

| Beam Angle | 15/25/45/60 Degree, 10°-60° Zoomable | ||||

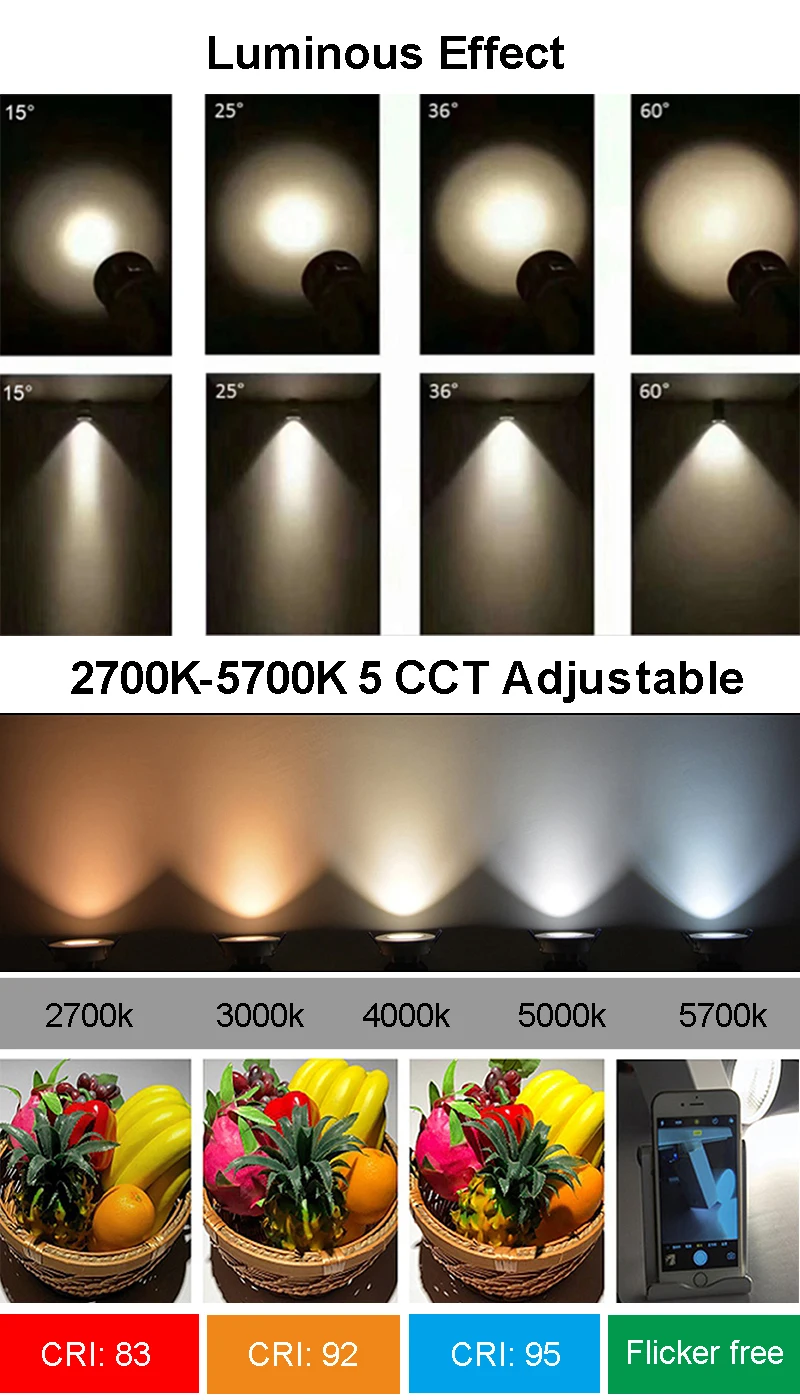

| CCT | 2700K/3000K/4000K/5000K//6000K, 3CCT Adjustable (3000K, 4000K, 5700K) | ||||
| CRI | 83Ra/95Ra | ||||
| PF | 0.95 | ||||
| Adaptor | 2 Wires, 3 Wires, 4 Wires, Ceiling | ||||
| Lifespan | 50000hrs | ||||
| Finished Color | Black, White | ||||
| Certificate | CE, RoHs, FCC | ||||
| Warranty | 3 Years, 5 Years | ||||








1. H-type 3-wrie tracks 4. Live-End connector 7. "L" Connector
2. Cables 5. Mini joiner 8. "T" Connector
3. Floating canopy 6. Flexible connector 9. "+" Connector

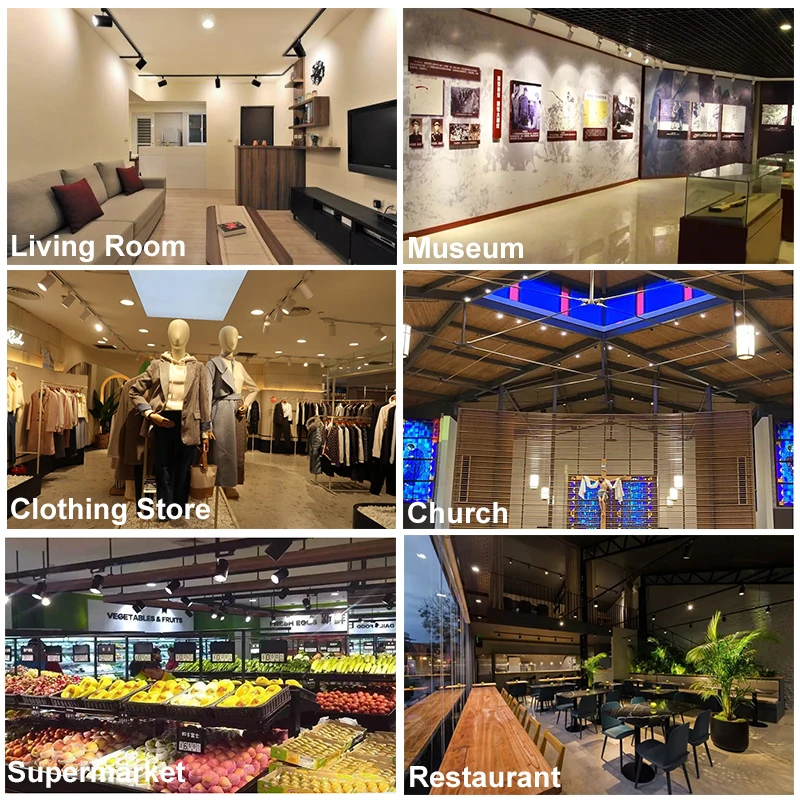

Applications:

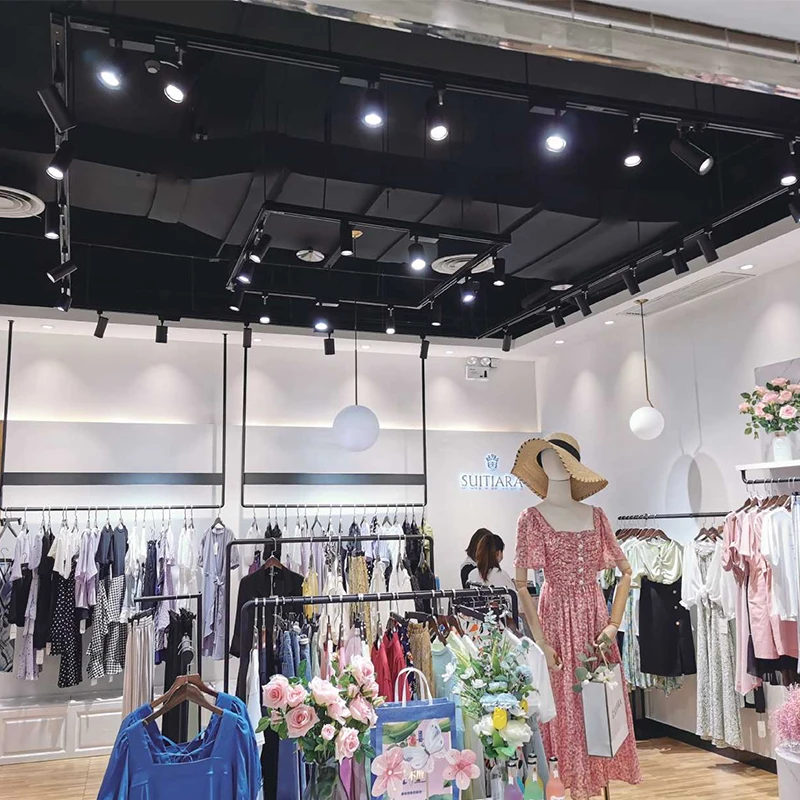

1. Clothing/Shoe/Furniture/Jewelry stores
2. Supermarkets
3. Hotels/ Restaurant
4. Auto shops
5. Museum/Gallery
