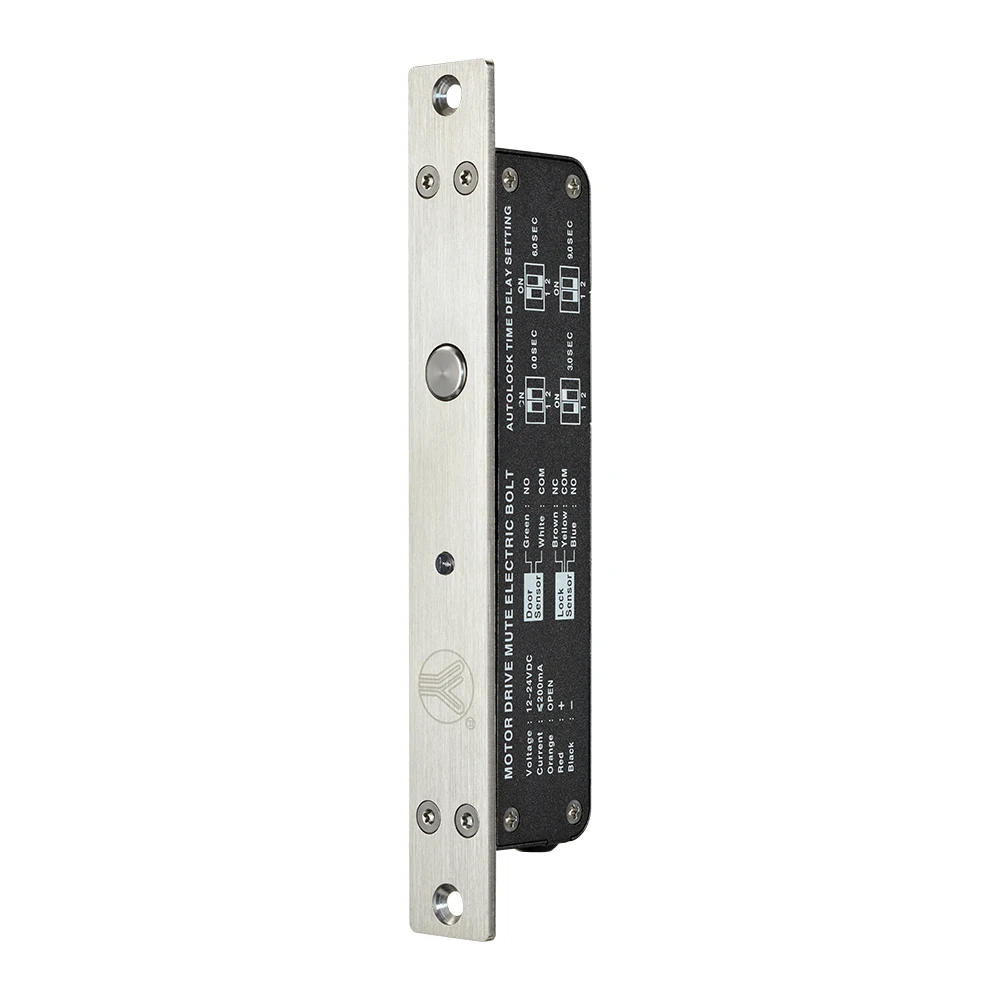

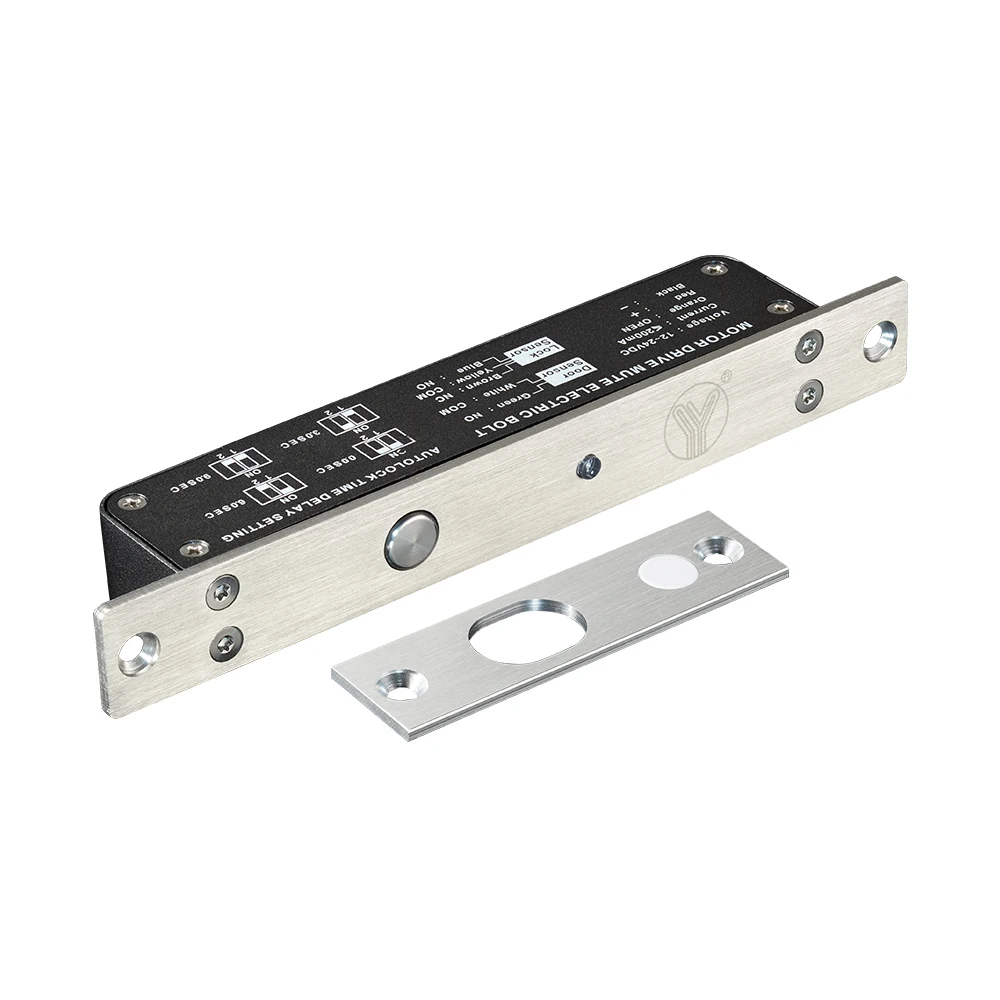

С приводом от двигателя бесшумный Электрический Болт, YB 1300MD(LED)

Share on (1600486190501):


Price:45,00 $

Quantity:


Product Overview

Description



Product Description


Product Application

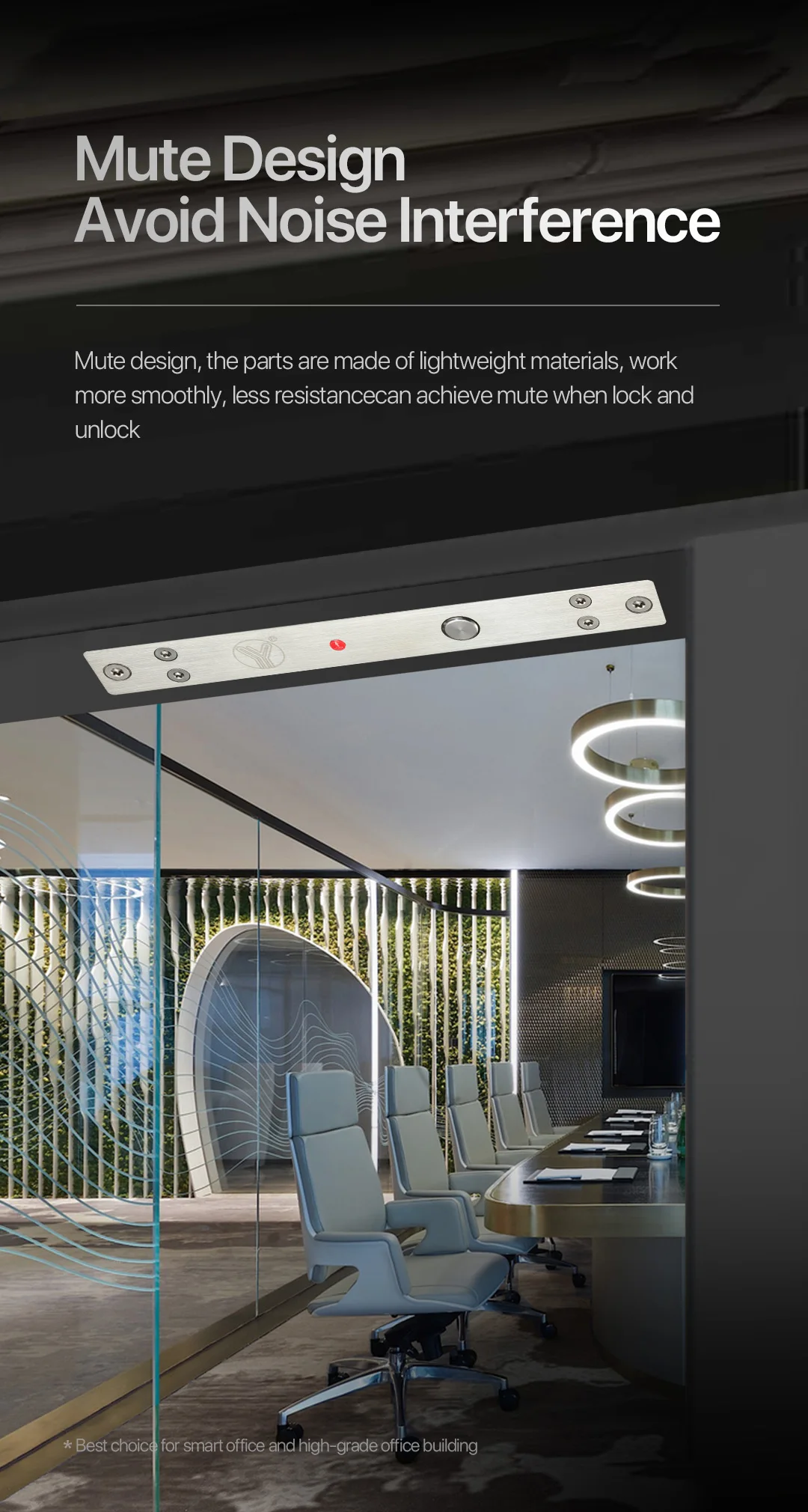

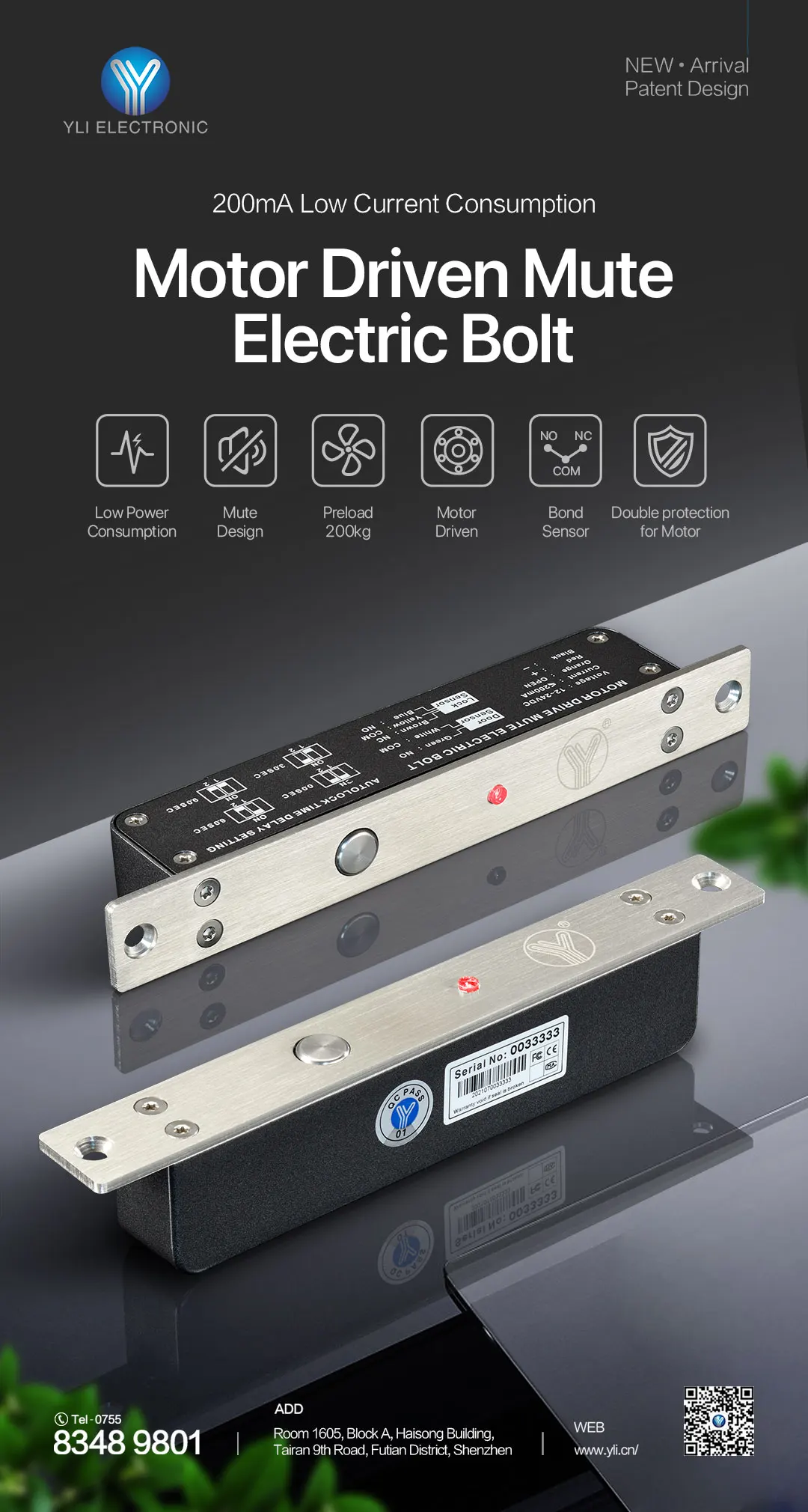

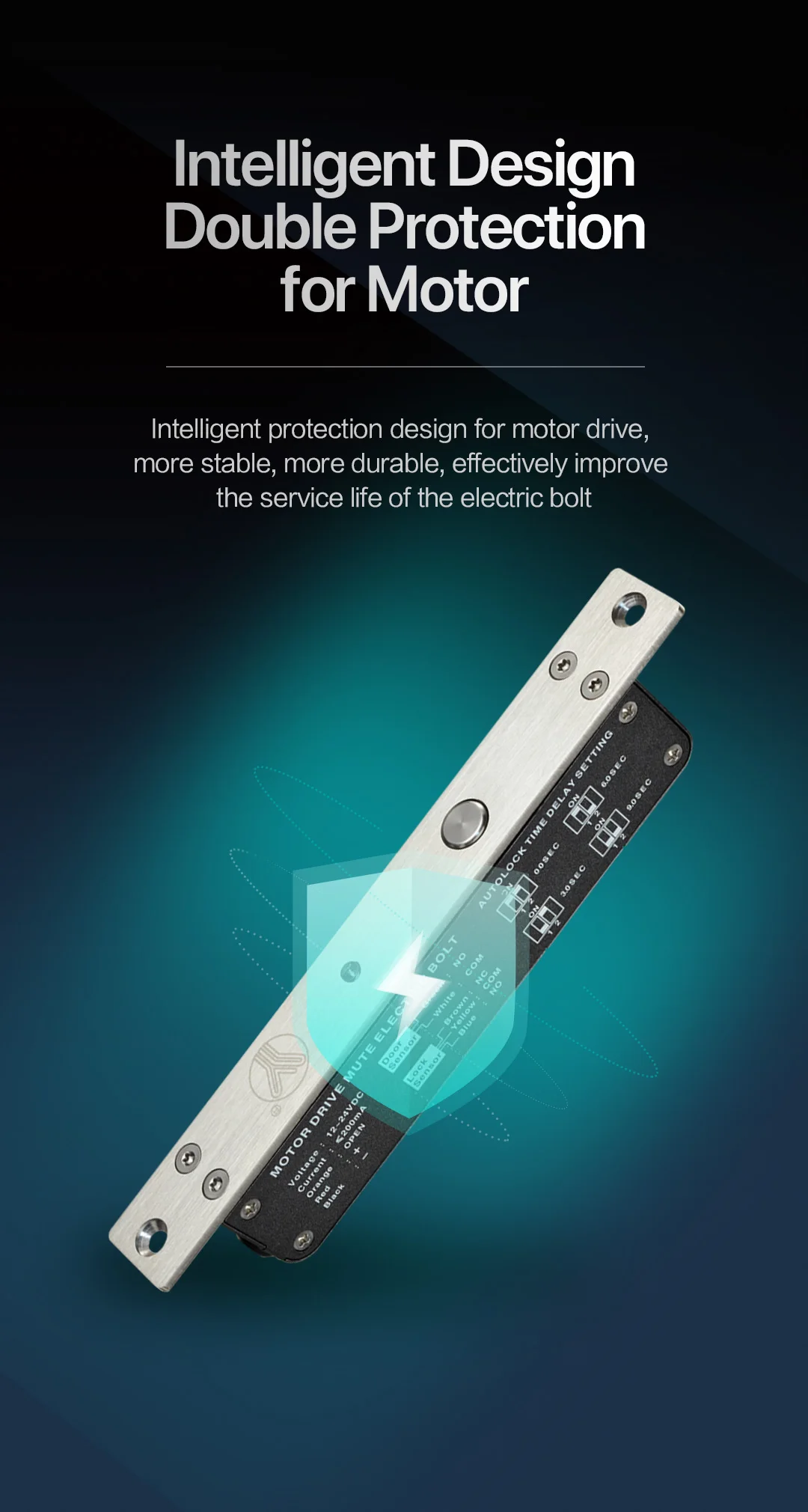

Motor driven mute electric bolt, the bolt is controlled by motor drive to realize lock and unlock. The driving force of the motor is very strong, the bolt can be pushed out by the powerful thrust of the motor to align the door when the door is deformed or misaligned. The parts are made of lightweight materials, work more smoothly, less resistance, can achieve mute when lock and unlock.The PCB is equipped with an electronic protection device to realize the precise control of locking and unlocking. In addition, compared with the traditional electric bolt which uses electromagnet to lock, which is low power consumption, energy saving and environmental protection.

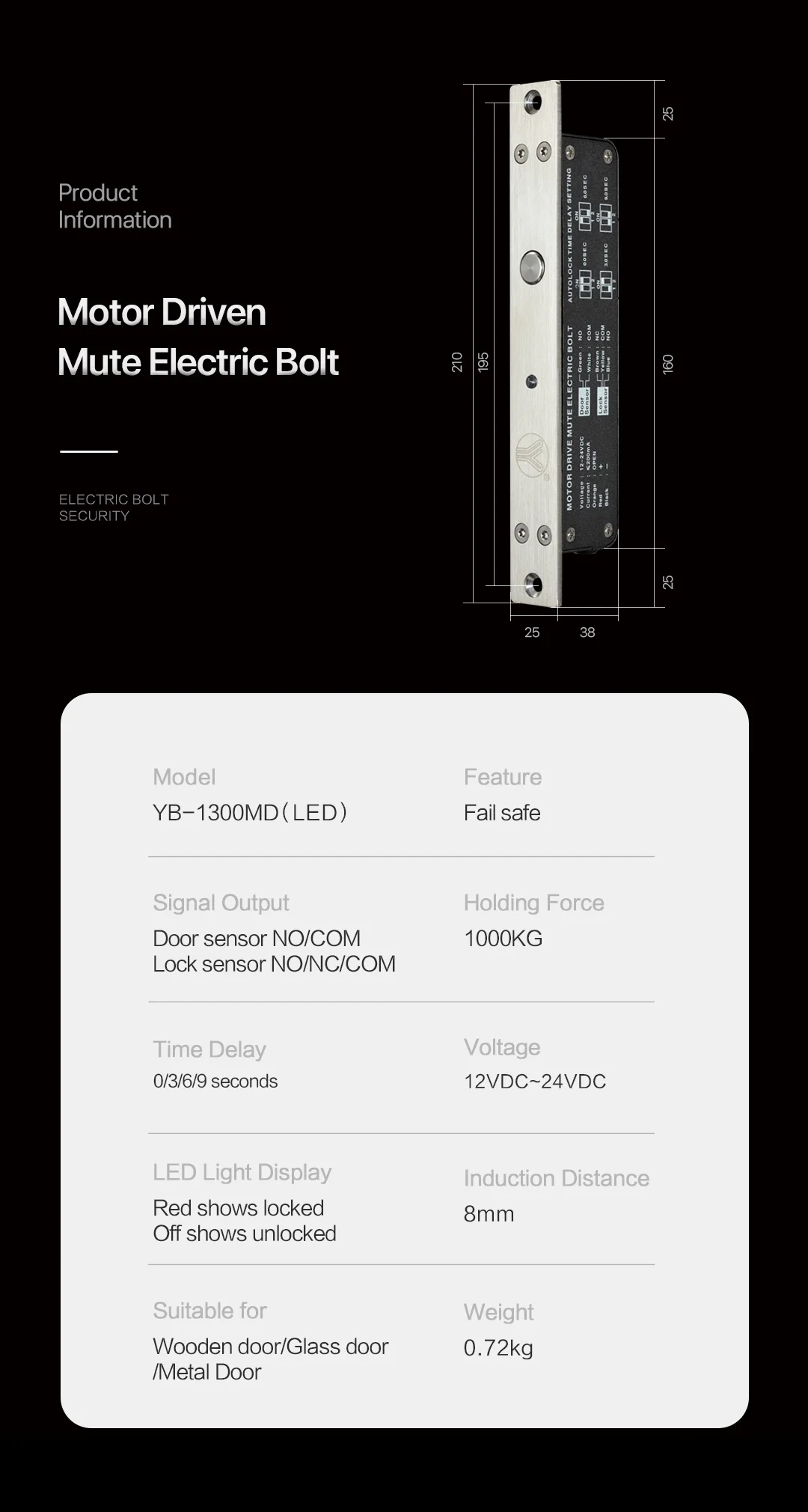

Lock Body
210Lx25Wx38H(mm)
Voltage
12 ~ 24VDC
Current
≤200mA
Suitable For
Wooden door, metal door, fireproof door, glass door

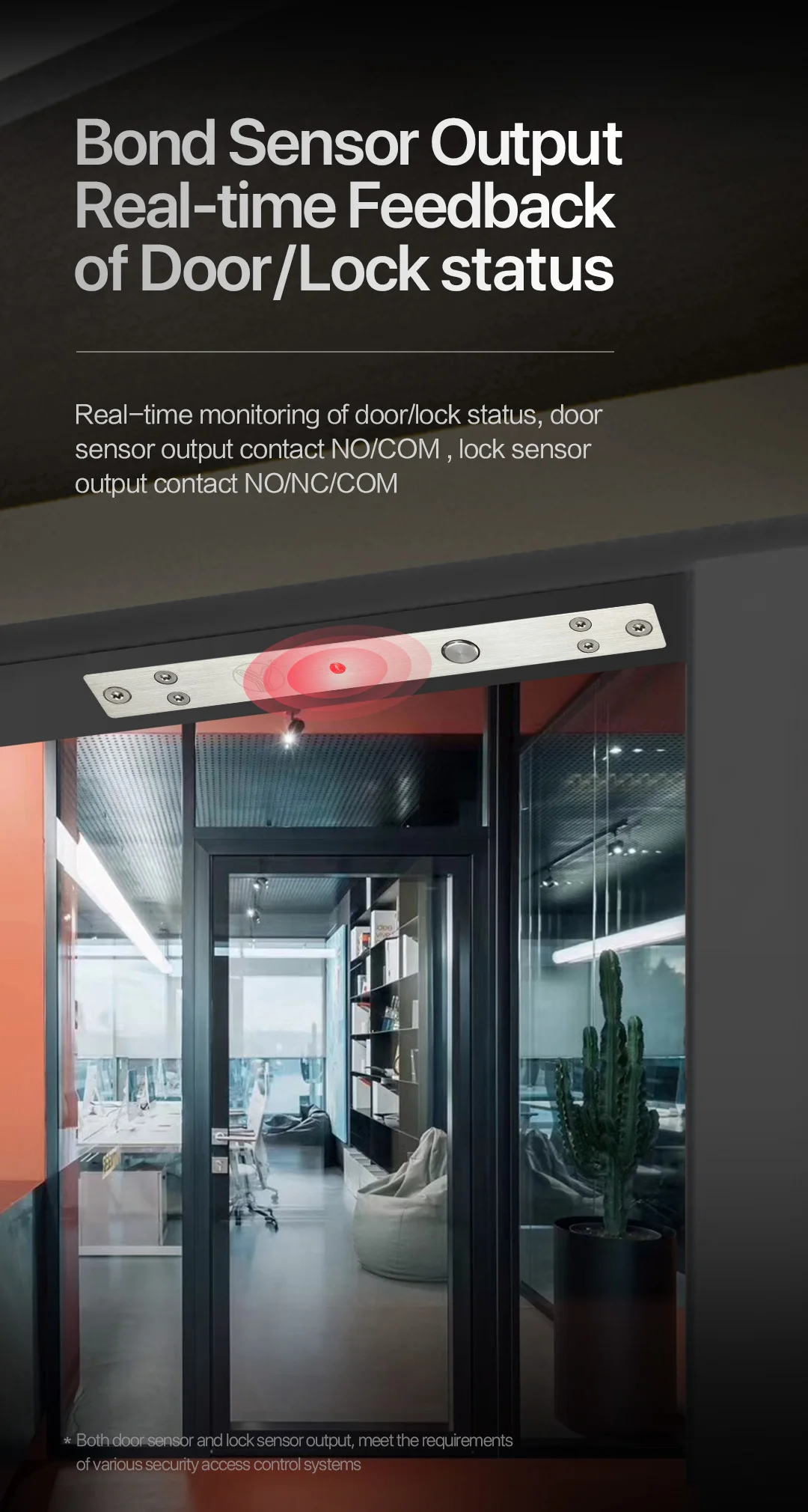

Signal Output
Door Sensor (NO/COM)、Lock Sensor(NO/NC/COM)

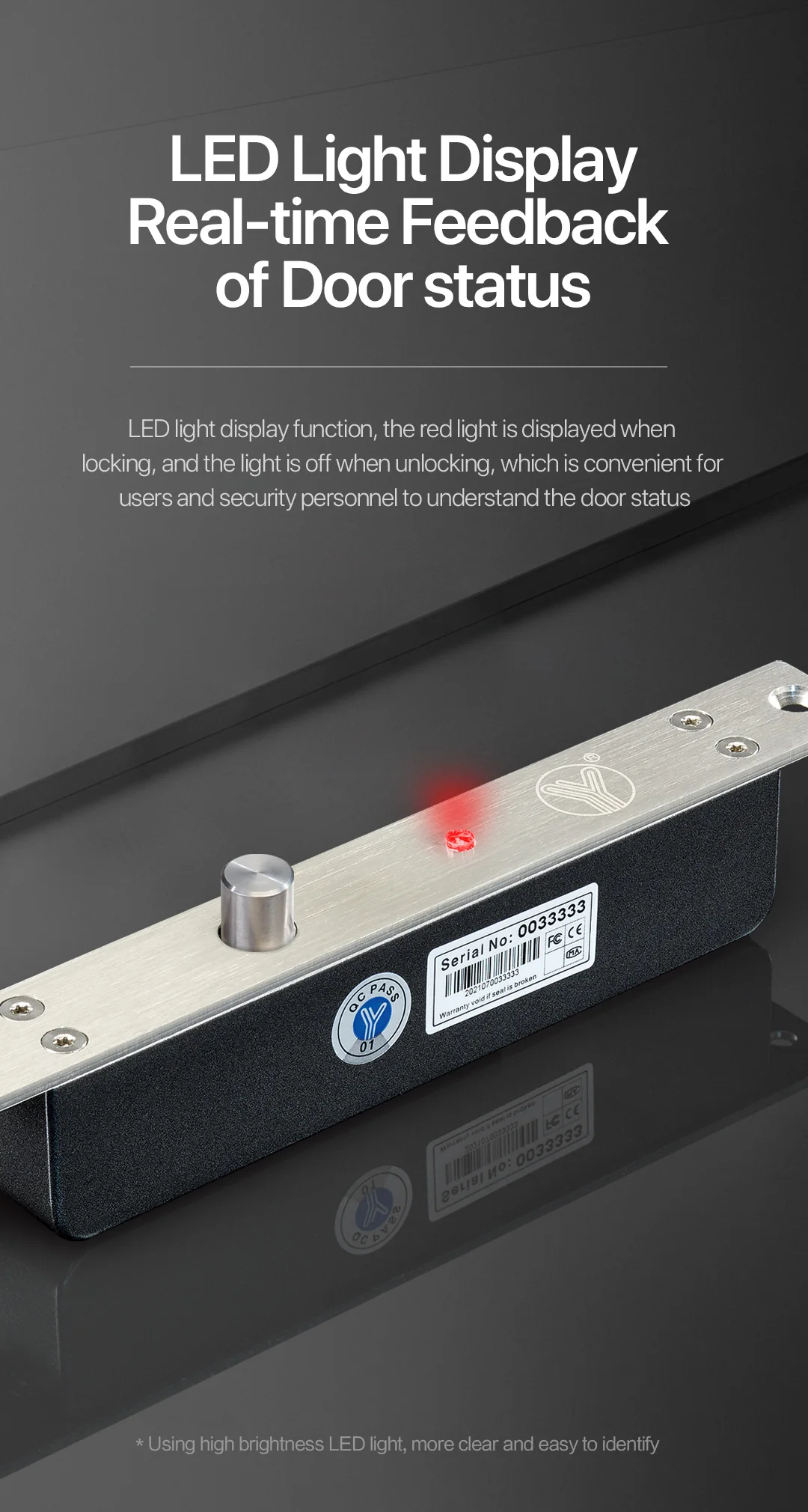

LED
Light on indicates locked, light off indicates unlocked
Material
304 stainlesssteel, wire draw finishing

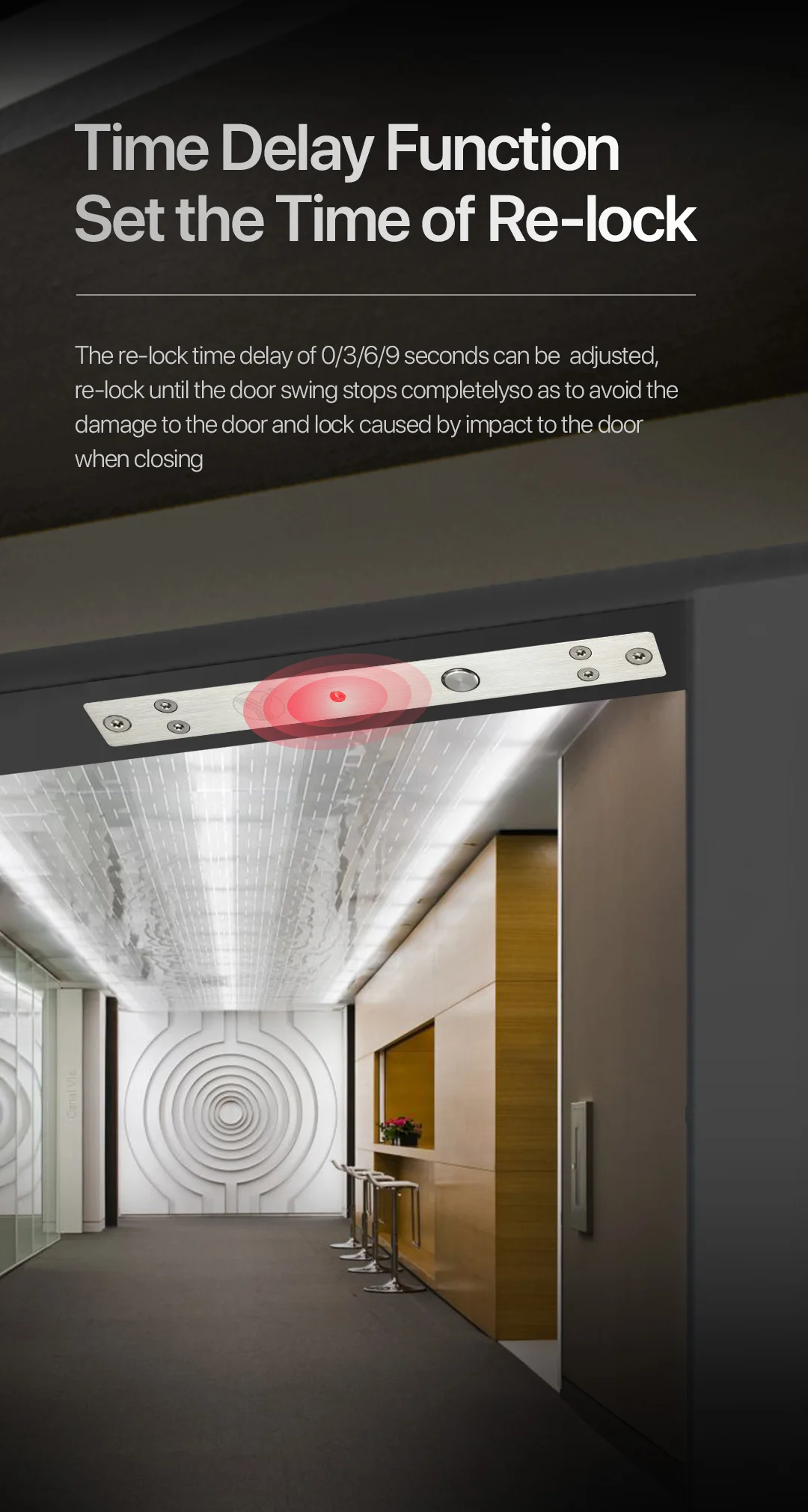

Autolock Time Delay
0,3,6,9sec
Induction Distance
8mm
Weight
0.55kg
