China Manufacturer Auto Oven Car Paint Spray Booth,car spray paint booth oven,Car Painting Camera
- Category: Spray Booths >>>
- Supplier: Yantai Clear Electromechanical Equipment Co. Ltd.
Share on (1600486205185):
Product Overview
Description
Product Description
Dear Friend,
Thank you for visiting our website.

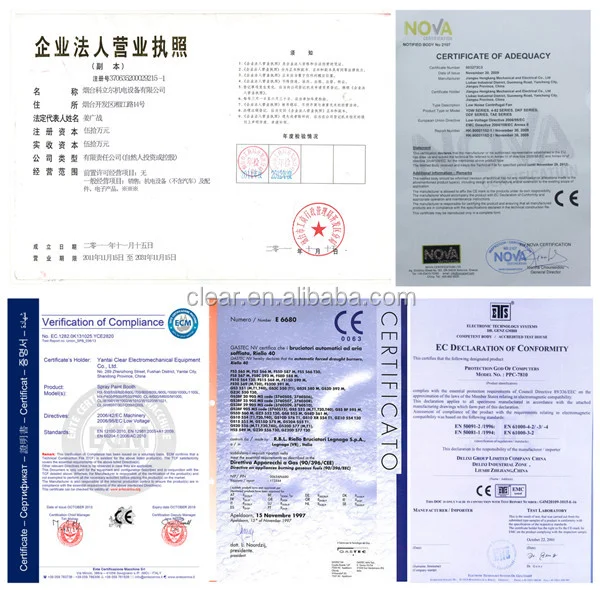

This is Nina from Yantai Clear Group Company is a professional designer and manufacturer for powder coating system and liquid painting system . We have professional team to serve for our client . Our company has passed "CE", "ISO 9001" . More than 30 years experience . So many kinds of powder coating system and liquid painting system .
Considerater ofter - sale service , technial assistance and provide installing ,debugging and training one site .
Thank you for visiting our website.
This is Nina from Yantai Clear Group Company is a professional designer and manufacturer for powder coating system and liquid painting system . We have professional team to serve for our client . Our company has passed "CE", "ISO 9001" . More than 30 years experience . So many kinds of powder coating system and liquid painting system .
Considerater ofter - sale service , technial assistance and provide installing ,debugging and training one site .
Our equipment has been exported to more than 100 countries.
Specification of Cabinas de pintura Car spray cabin /
spray painting booth
Outside Size (mm) | 8000×5560×3430mm (L*W*H) | ||||||
Inside Size (mm) | 7900×4000×2800mm (L*W*H) | ||||||
all panel | Rock Wool powder coated panel, 50 mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork Door, Galvanized Steel Roof Panel. | ||||||
Doors | Front door size: 2950*2700mm(W*H), side door size:800*2000mm(W*H) | ||||||
Basement | Two Grids & Three Embossed Plates, Galvanized Steel Sheet Construction, Two Ramps. | ||||||
Air Circulation System | Inlet Fan | Blower capacity: 24000 m³/h | Outlet Fan | Blower capacity: 24000 m³/h | |||
Power: 4 kw/set | Power: 5.5 kw/set | ||||||
Quantity: 2 sets | Quantity: 1 set | ||||||
Air Volume: 24,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h; | |||||||
Purification System | Dual filtering structure. The primary filter can capture granules larger than 10um. Ceiling Filter can Capture Granules Bigger than 5 μm. The whole purification system has capacity of large volume of dust. Its filtering ratio reaches 98%. TSP≤1.4 mg/m3. | ||||||
Heating system | Riello Brand FS20 natural gas burner, 200,000 Kcal/h, SUS304 stainless steel heating exchanger, argon arc welding; max temp:80 ℃, heating time: 4-6 min (20-60℃), fuel consumption:4-5 kg/vehicle | ||||||
Lighting System | Ceiling Light: 32 pcs 18W Philips Lamp; Side Light: 16 pcs 18W Philips Lamp, tempered glass,900 Lux | ||||||
Control system | Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm | ||||||
Environmental System | Multi-lagers fiberglass filter, active carbon | ||||||

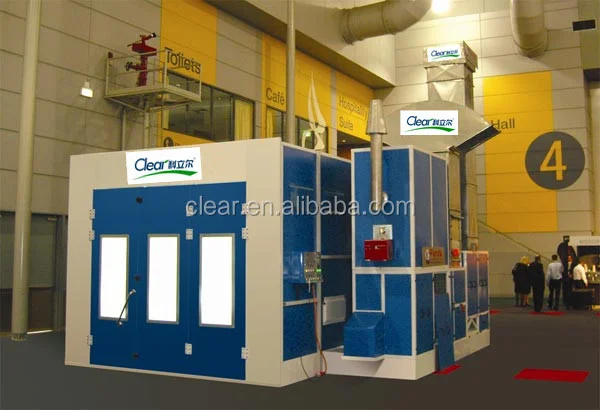

Classical structure

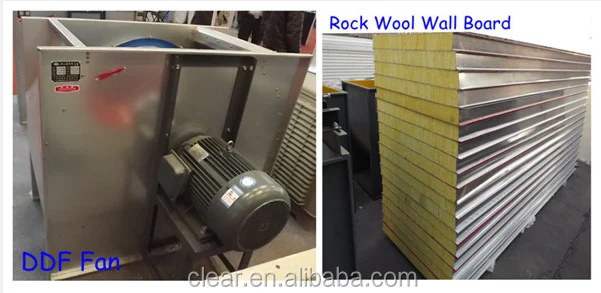

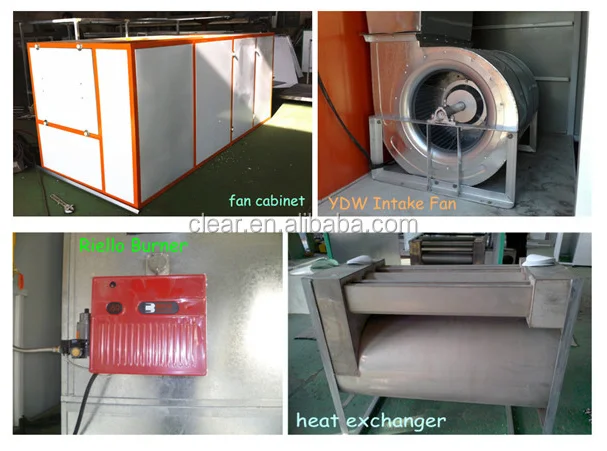

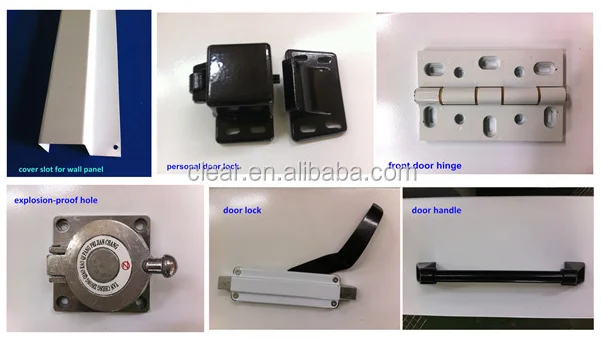

Spare parts

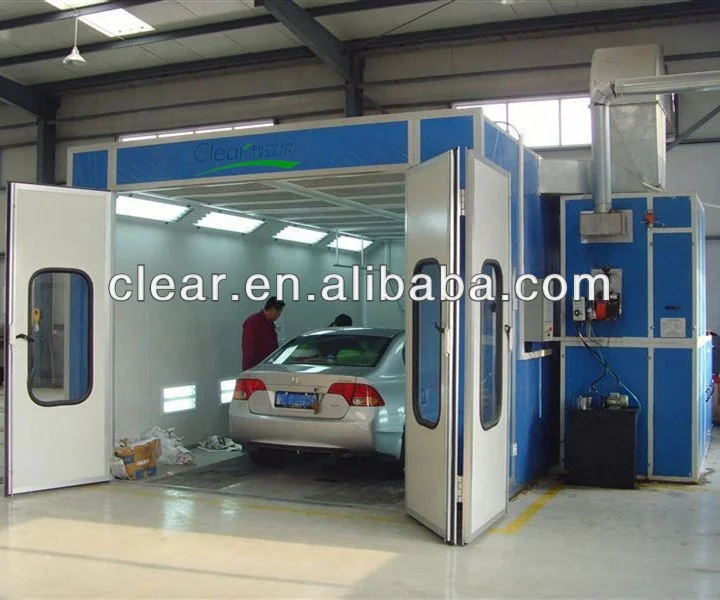

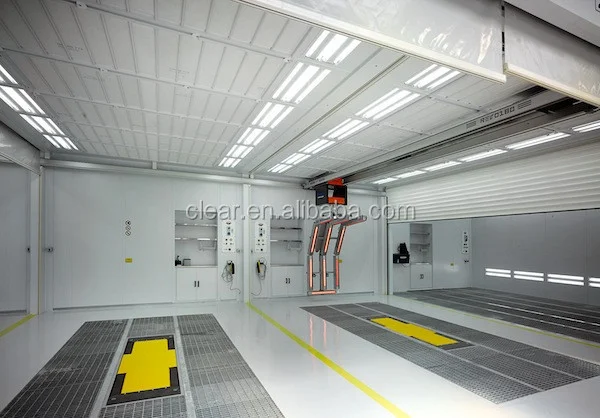

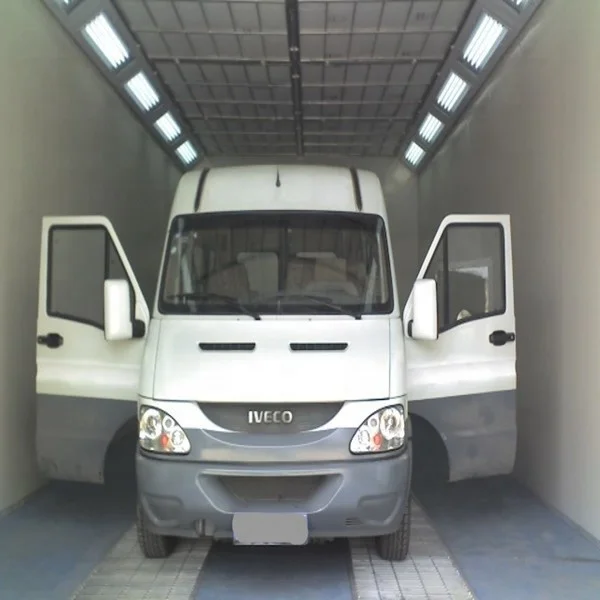

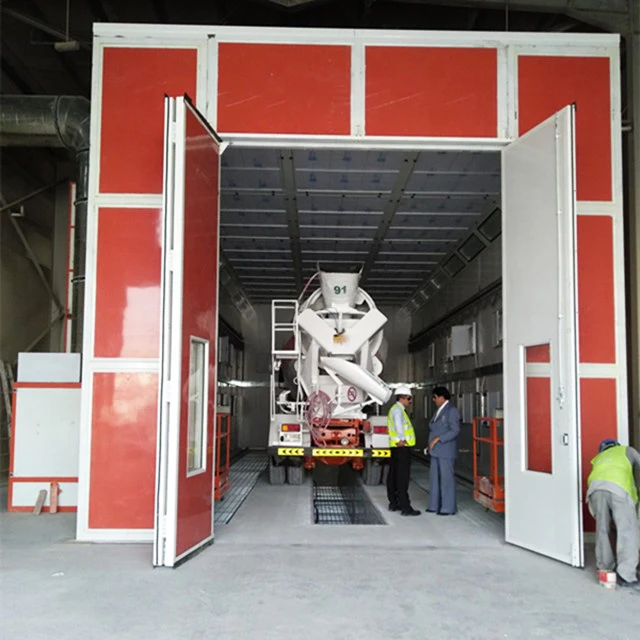

Successful case

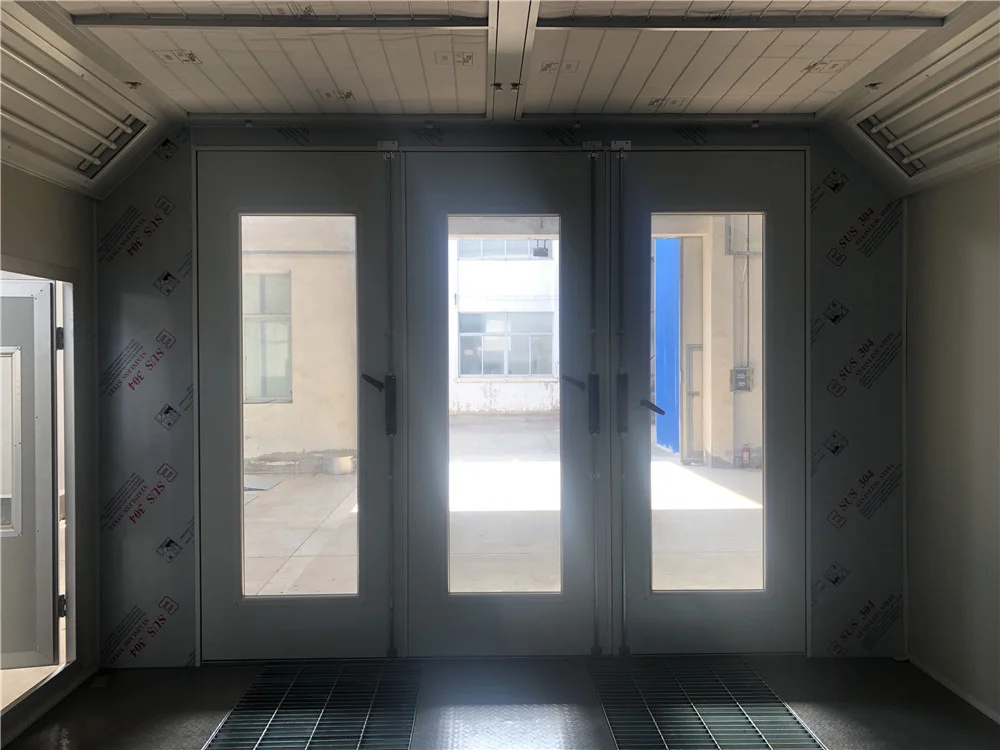

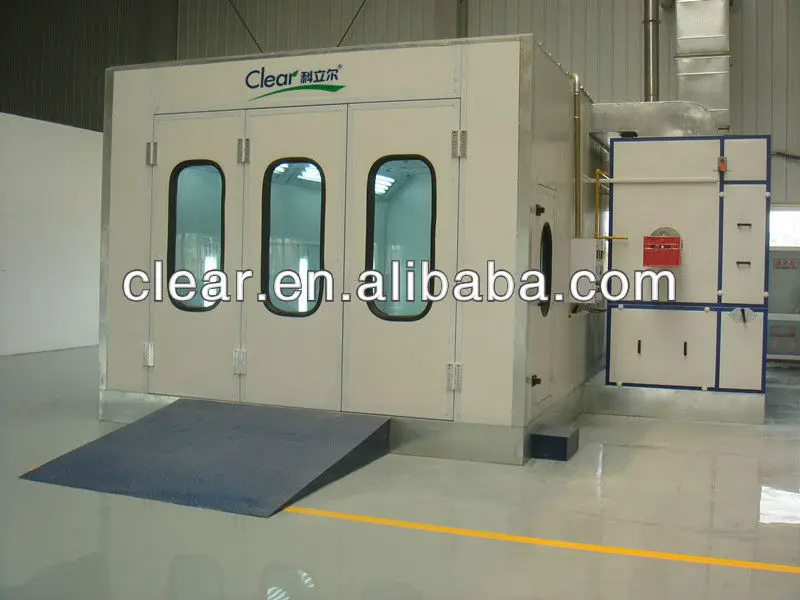

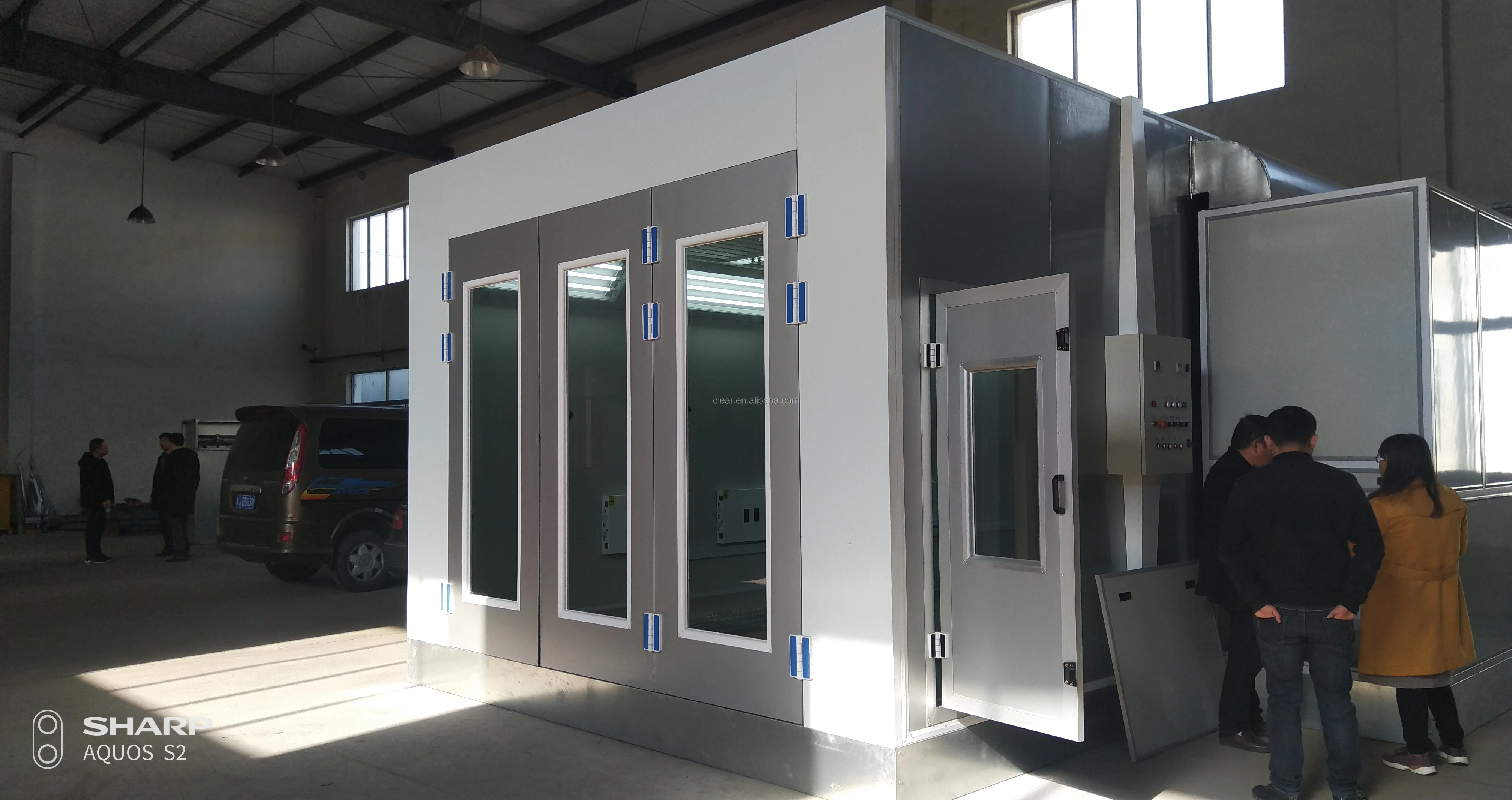

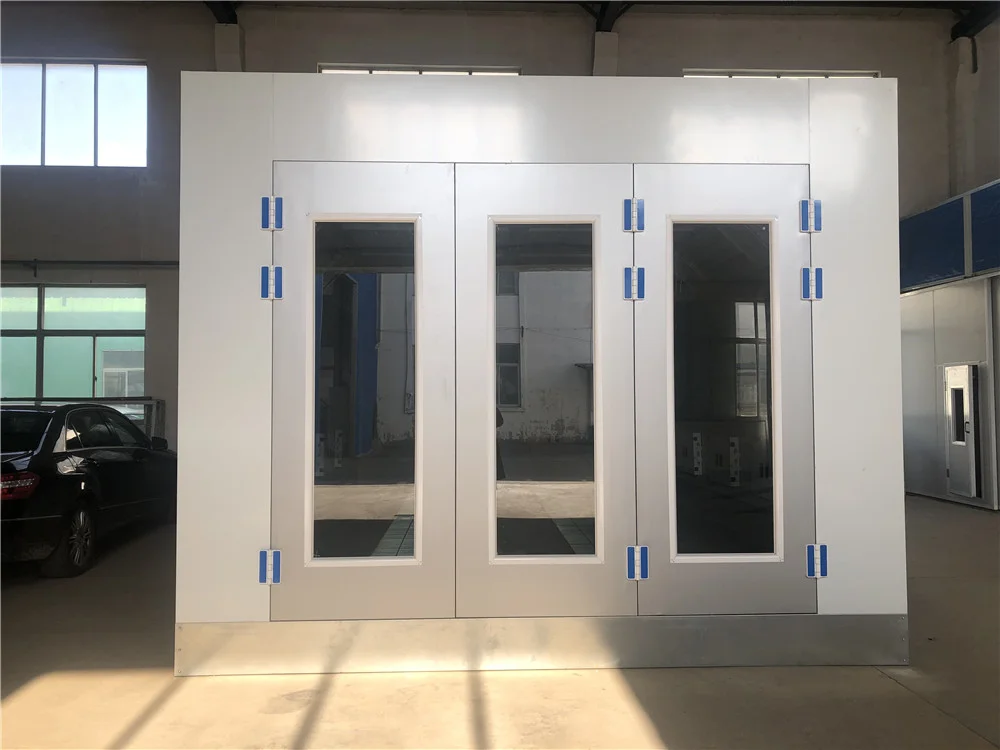

Detailed Images
Related Products

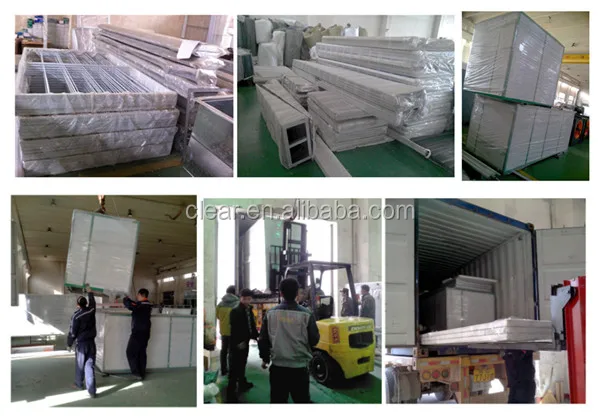

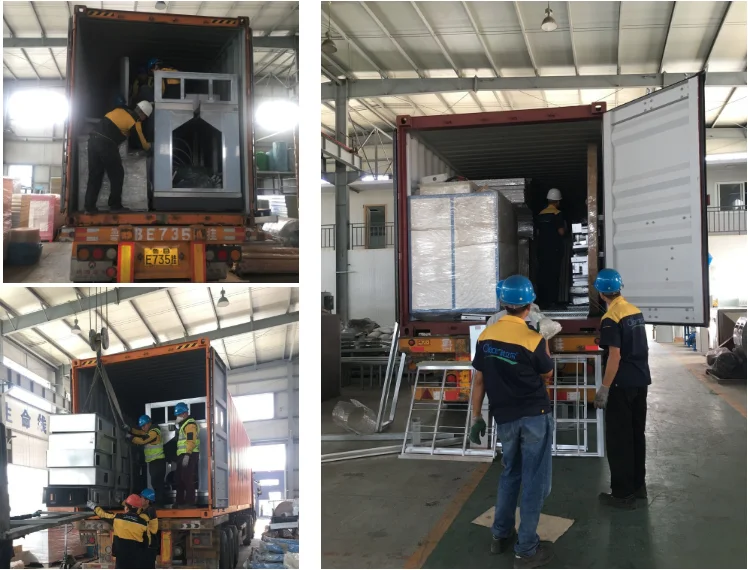

Packing & Delivery
Plastic film and carton package
Company Introduction
Yantai Clear Group Company is a professional designer and manufacturer for powder coating system and liquid painting system . We have professional team to serve for our client . Our company has passed "CE", "ISO 9001" . More than 30 years experience . So many kinds of powder coating system and liquid painting system .
Considerater ofter - sale service , technial assistance and provide installing ,debugging and training one site .

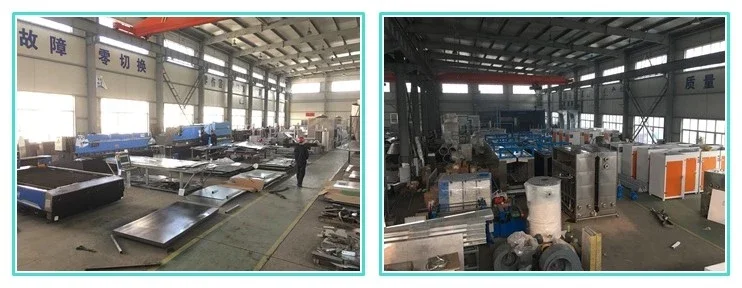

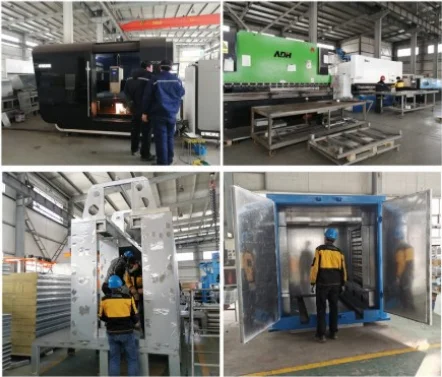

We have 3 workshops,each one is more than 2500 square meter ,we have aser cutting machine,shearing machine,bending
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total more than 200 office stuff.
Considerater ofter - sale service , technial assistance and provide installing ,debugging and training one site .

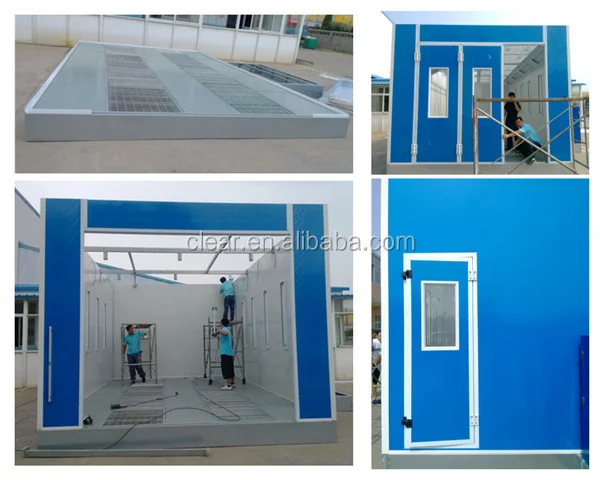

We have 3 workshops,each one is more than 2500 square meter ,we have aser cutting machine,shearing machine,bending
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total more than 200 office stuff.
Our Services & Strength
Oversea installation team and aftersale service
1.Auto spray booth,bus/truck spray booth,train spray booth
2.Industrial spray booth and oven
3.Powder coating booth and oven
4.Spray painting line
5.Spray booth spare parts,paint guns,powder coating guns,filters
Professional design team is always at your service!
Professional design team and production team
Products also including:
1.Auto spray booth,bus/truck spray booth,train spray booth
2.Industrial spray booth and oven
3.Powder coating booth and oven
4.Spray painting line
5.Spray booth spare parts,paint guns,powder coating guns,filters
Professional design team is always at your service!
After Sales Service
Our service :
1. Our engineer do design drawing to you as your requirements. 2. If you have any questions and requirements , you can contact
with us any time .
3. 24 h after - service for our client .
4. Life long technical support and after sale service.
1. Our engineer do design drawing to you as your requirements. 2. If you have any questions and requirements , you can contact
with us any time .
3. 24 h after - service for our client .
4. Life long technical support and after sale service.
Why Choose Us
Exquisite and meticulous
We always adheres to the principle of quality first and customers first, and sincerely cooperates with domestic and foreign
customers to create brilliant business opportunities.
customers to create brilliant business opportunities.
Keep improving, with the concept and policy of sustainable operation, small profits but quick turnover, guarantee quality, and continuously provide customers with quality products.
FAQ
Q1: What product can I customize from you?
A1: We could supply the customized design for all the sizes of the workpieces you produce, such as Various styles of powder coating and spraying production lines, industrial spray booths, environmentally friendly and energy-saving spray booths, high-temperature rooms, through-type spraying, dry (water curtain) spraying chambers, electric hot air drying ovens, drying ovens and drying tunnels, hanging conveying equipment, Painting equipment such as furniture baking room.
Q2: What types coating line could you make?
A2: Automatic Powder Coating Line For Column,Powder Coating Line With Fast Color Change System,Automatic Powder Coating Line For Control Box,Powder Coating Line For Springs.
Q3: What is your terms of packing?
A3: Generally, we pack our goods in Carton boxes and square tube . If you have other requirements , please let us know .
Q4: Payment terms?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2: What types coating line could you make?
A2: Automatic Powder Coating Line For Column,Powder Coating Line With Fast Color Change System,Automatic Powder Coating Line For Control Box,Powder Coating Line For Springs.
Q3: What is your terms of packing?
A3: Generally, we pack our goods in Carton boxes and square tube . If you have other requirements , please let us know .
Q4: Payment terms?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
L/C is also acceptable.
Q5: What is your terms of delivery?
A5: EXW, FCA,FOB, CFR,CIF, DDU
Q6: How about your delivery time?
A6: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery. And we welcome you to coming and checking the quality of the equipment.
Q8: How to make sure the equipment suitable for you ?
A8: After we get your requirements about equipment , we will ask our engineer to do design drawing to you . If you think ok, we will give you quotation .
Q9: How do you make our business long-term and good relationship?
A9: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q10: Can you send engineer oversea for installation instruction?
Q5: What is your terms of delivery?
A5: EXW, FCA,FOB, CFR,CIF, DDU
Q6: How about your delivery time?
A6: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery. And we welcome you to coming and checking the quality of the equipment.
Q8: How to make sure the equipment suitable for you ?
A8: After we get your requirements about equipment , we will ask our engineer to do design drawing to you . If you think ok, we will give you quotation .
Q9: How do you make our business long-term and good relationship?
A9: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q10: Can you send engineer oversea for installation instruction?
A10: Yes, we have very experienced engineers for oversea installation.
Q11: What about the guarantee period?
A11: You will have 12 months guarantee time for the paint booth, if the parts broken as our mistake, we will send you by DHL. But as we do the pre install before the loading, so this situation won't happen we believe.
After one year, if you still have any help about the equipment, please feel free to contact us at any time, as we will supply you lifelong service.Contact： Nina Wang Mobile: 0086 13668659906
After one year, if you still have any help about the equipment, please feel free to contact us at any time, as we will supply you lifelong service.Contact： Nina Wang Mobile: 0086 13668659906
