Land Line Telephone Recorder,Compatible Analog Digital IP Telephone Line System,Records Phone Call by RJ11 or RJ12 Connector
- Category: Other Telephone Accessories >>>
- Supplier: RR (Shenzhen) Tech Co. Ltd.
Share on (1600486273227):
Product Overview
Description
Products Description
Bullet Points:
1. Multiple Function Recorder: The device can record analog, digital, IP, VoIP telephone system, it can also be a voice recorder
to record surrounding sounds by its internel microphone,answering machine mode to help your caller leave voice message,you can
listen to the message locally or remotely by calling back with password input
2. Compatible with Analog Digital IP Voip Phone System: The telephone recorder REC780 can record analog phone line through RJ11 port, it can also record digital Voip IP phone system through RJ12 port by connecting the recorder to telephone headset via RJ12 port,for analog RJ11 connection，you need to set the recording menu to "auto" mode, for digital RJ12 connection, you need
to set the recording menu to "voice trigger" mode.
to record surrounding sounds by its internel microphone,answering machine mode to help your caller leave voice message,you can
listen to the message locally or remotely by calling back with password input
2. Compatible with Analog Digital IP Voip Phone System: The telephone recorder REC780 can record analog phone line through RJ11 port, it can also record digital Voip IP phone system through RJ12 port by connecting the recorder to telephone headset via RJ12 port,for analog RJ11 connection，you need to set the recording menu to "auto" mode, for digital RJ12 connection, you need
to set the recording menu to "voice trigger" mode.
3. Caller ID & Time/ Date Stamp: The screen displays the caller ID, date & time of each phone call,for the analog connection, the recorded file is named with caller id number and date& time stamp,for the digital, VoIP connection the recorded file is named with date& time stamp only.
4. Plug & Play: Simply connect the recorder to the telephone system to recorder phone calls or records sound locally, and playback recorded sounds by its internal speaker, the recorder also supports plugging extend microphone for local voice recording, and plugging earphone for playback the recorded sounds.
5. Loop Recording/ Expandable Memory (32GB included): Recording is never stopped due to a full memory card. When the memory fills up the newest calls are recorded and overwrite the oldest calls on the sd card. This landline phone recorder supports class 10 micro SD card, maximum supports 128GB(NOT Included!), we offers free 32GB memory card in the device, it can record over 360 hours phone calls, which is enough most of the time.
6. One Mode & One Channel: This telephone recorder only supports one channel analog line or one channel digital telephone line, the analog and digital modes can not work simultaneously, you have to choose one mode only.
7. Remotely Access to Phone Voice Message: When you set the telephone recorder to answer machine mode, you can listen to the message left by caller anywhere when you make a phone call back home.
8. Backup Power: The device needs to plug a 5V power adapter to work, you can also put 3 pieces AAA size alkaline batteries for backup power supply,dual power systems to ensure the device never lose important phone calls.
4. Plug & Play: Simply connect the recorder to the telephone system to recorder phone calls or records sound locally, and playback recorded sounds by its internal speaker, the recorder also supports plugging extend microphone for local voice recording, and plugging earphone for playback the recorded sounds.
5. Loop Recording/ Expandable Memory (32GB included): Recording is never stopped due to a full memory card. When the memory fills up the newest calls are recorded and overwrite the oldest calls on the sd card. This landline phone recorder supports class 10 micro SD card, maximum supports 128GB(NOT Included!), we offers free 32GB memory card in the device, it can record over 360 hours phone calls, which is enough most of the time.
6. One Mode & One Channel: This telephone recorder only supports one channel analog line or one channel digital telephone line, the analog and digital modes can not work simultaneously, you have to choose one mode only.
7. Remotely Access to Phone Voice Message: When you set the telephone recorder to answer machine mode, you can listen to the message left by caller anywhere when you make a phone call back home.
8. Backup Power: The device needs to plug a 5V power adapter to work, you can also put 3 pieces AAA size alkaline batteries for backup power supply,dual power systems to ensure the device never lose important phone calls.
The telephone recorder can records the phone calls on analog, VoIP, digital telephone system, it will records each incoming or outgoing phone calls automatically, all the recorded sound files are saved in the micro SD card,Max support 128GB (not included), playback the records files by internal speaker or extend earphone, you also can take
out the micro SD card and insert it to micro SD card reader and connect to computer for file management or playback, no extra software needed.
The recorder is a complete stand alone phone call recording system, it dose not require the use of a computer or any extra
software. Set-up takes less than 5 minutes and it essentially runs on autopilot when calls are set to record automatically. The date/time of each recording is displayed on the LCD screen of the recorder; each file on the SD card is organized in chronological order and stamped with the date/time.
The loop feature ensures the recording is never stopped due to a full memory card; when the memory fills up the newest calls are recorded over the oldest calls on the SD card. The phone number of incoming calls is displayed on the recorder's LCD screen( phone line must have caller ID).
out the micro SD card and insert it to micro SD card reader and connect to computer for file management or playback, no extra software needed.
The recorder is a complete stand alone phone call recording system, it dose not require the use of a computer or any extra
software. Set-up takes less than 5 minutes and it essentially runs on autopilot when calls are set to record automatically. The date/time of each recording is displayed on the LCD screen of the recorder; each file on the SD card is organized in chronological order and stamped with the date/time.
The loop feature ensures the recording is never stopped due to a full memory card; when the memory fills up the newest calls are recorded over the oldest calls on the SD card. The phone number of incoming calls is displayed on the recorder's LCD screen( phone line must have caller ID).
How to connect it to analog telephone system?
Title goes here.
The REC780 telephone recorder can connect to your home telecomm line, suit for analog telephone system, or the router has telephone line port, you can check with your ISP provider.

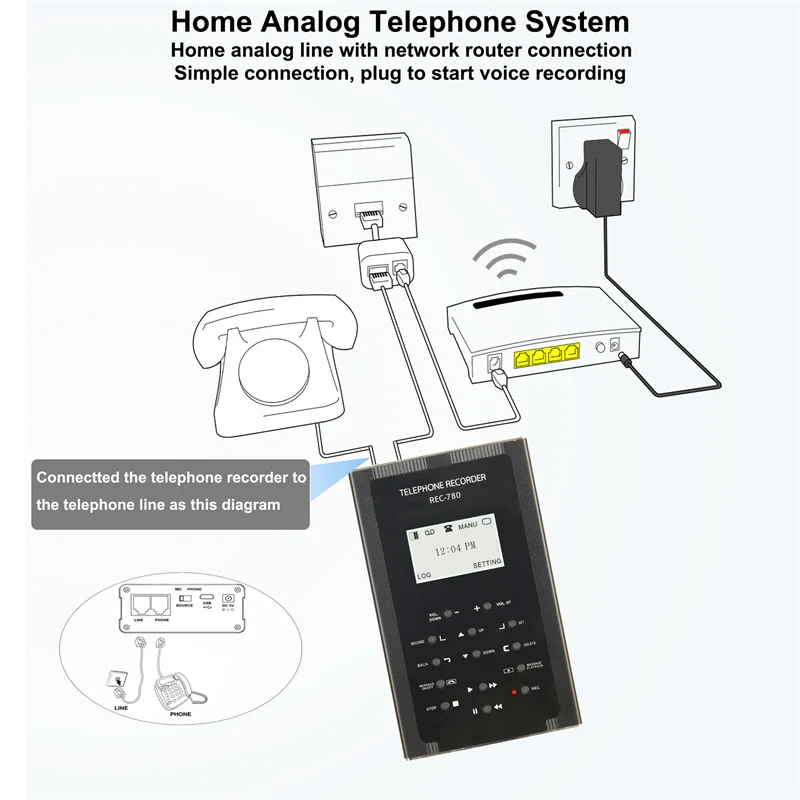

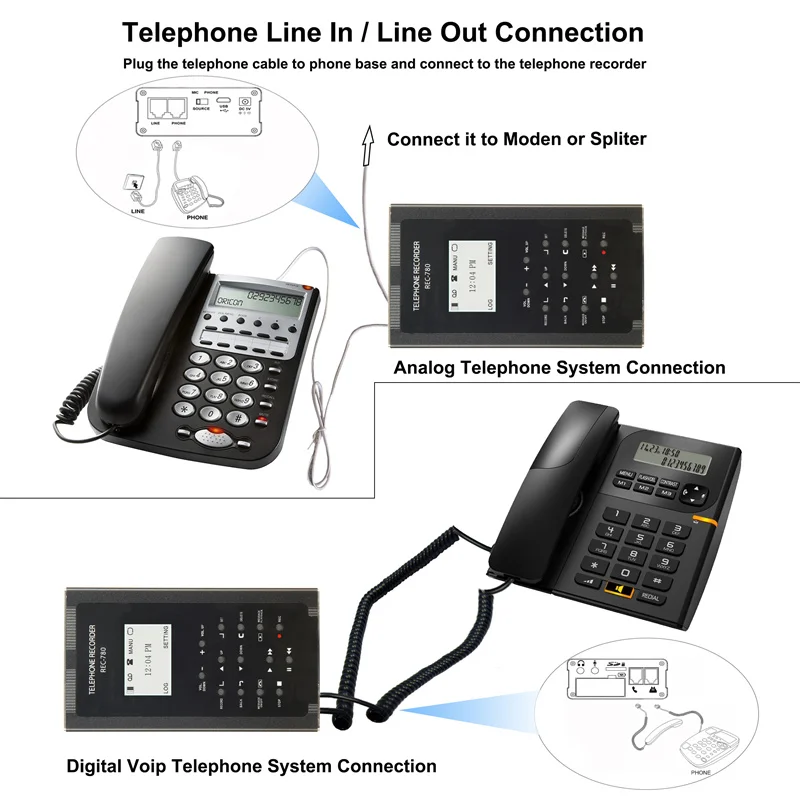

Analog telephone line connection diagram
Analog telephone line connection diagram

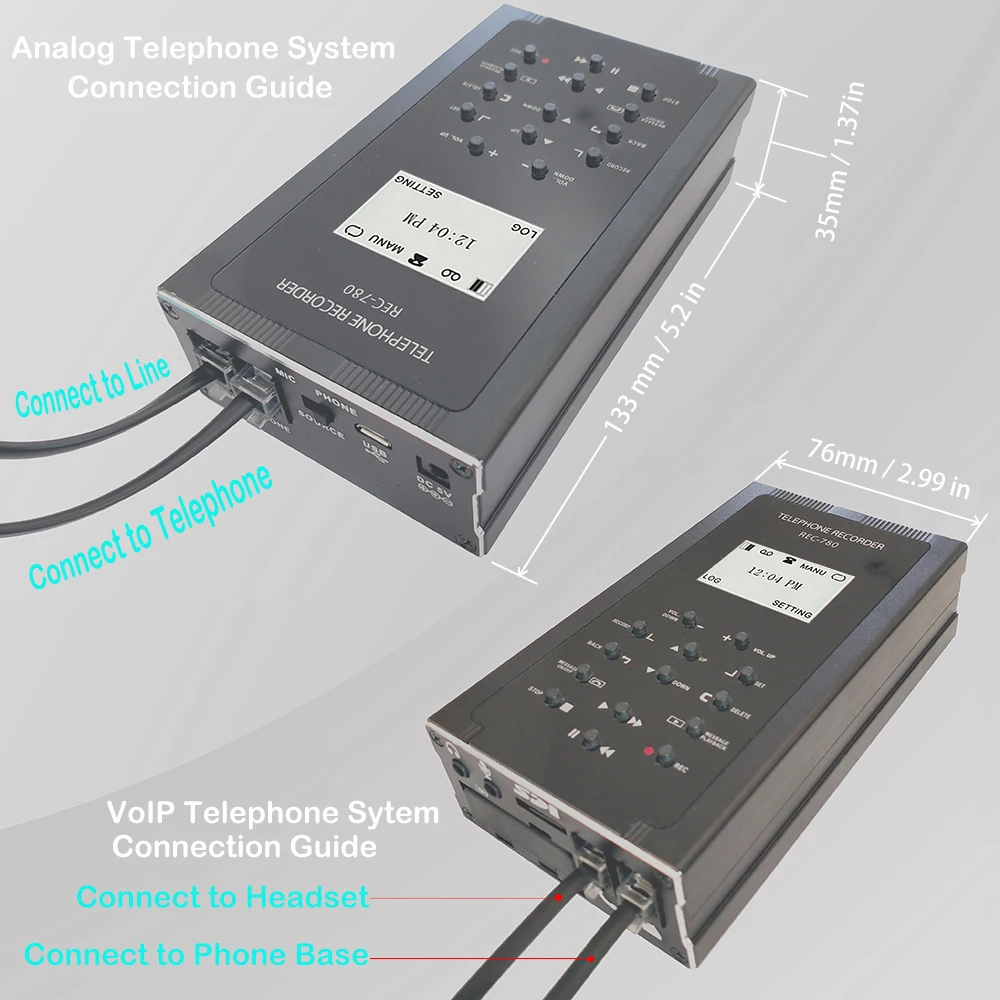

Connection Guide
The phone source port connect to the line port of the recorder, the phone port of the recorder connect to the RJ11 port of the phone base, the above diagram may differ to your home router connection, you have to check it.

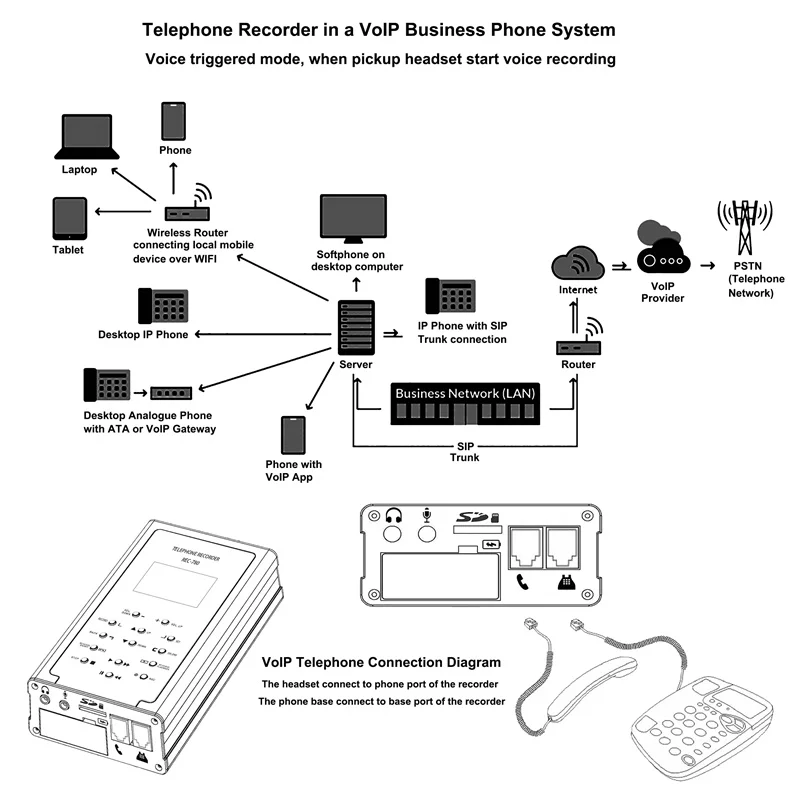

How to connect it with digital IP telephone system?
How to connect it with digital IP telephone system?
Title goes here.
he digital IP telephone system total different to the analog line, we can records the phone calls from the headset, with voice activated function to start recording when pickup the headset and speaking, end the records when it putdown or quiet.

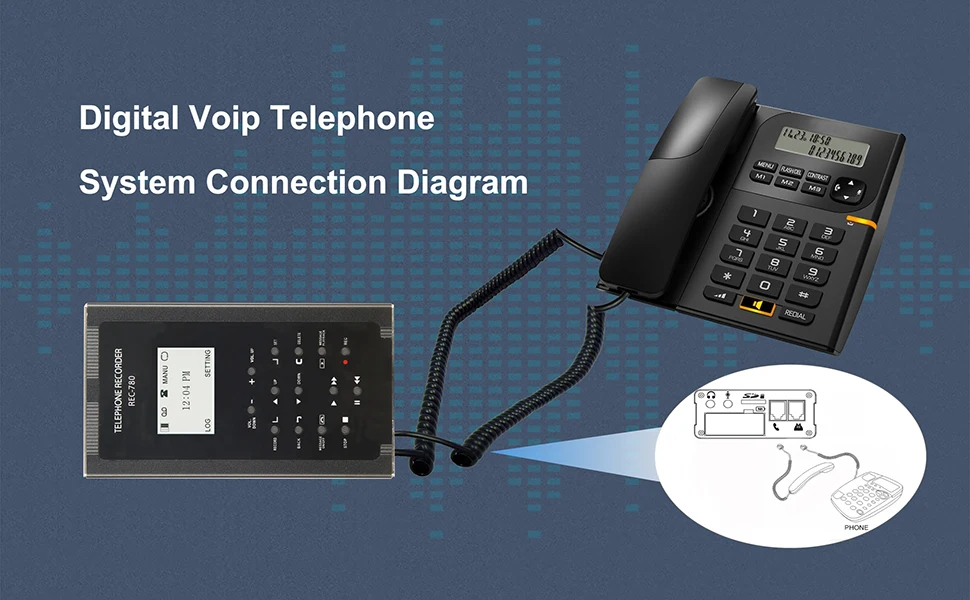

Phone headset connection diagram
Phone headset connection diagram
Connection Guide
The line port of the recorder connect to the RJ12 port of the phone base, the phone port of the recorder connect to the RJ12 port of the headset.
Analog, VoIP, Digital Telephone Line Compatible
Works with RJ11 connection for analog telephone system voice recording.
Works with RJ12 connection for digital VoIP telephone system voice recording.
Works with RJ12 connection for digital VoIP telephone system voice recording.
Home Office Automatic Call Recording
Home Office Automatic Call Recording
All incoming and outgoing calls can be set to record automatically, works for home office, simply pick up the headset to start
voice recording, putdown the headset to stop voice recording.
All incoming and outgoing calls can be set to record automatically, works for home office, simply pick up the headset to start
voice recording, putdown the headset to stop voice recording.
Call ID & Date Time Stamp and Loop Recording
The screen real time display the call ID and date & time on each phone call, the store file named by call id & date and time.
Loop recording ensures that recording is never stopped when the memory card fills up.
Loop recording ensures that recording is never stopped when the memory card fills up.
Company Profile
RR (shenzhen) Tech Co., Ltd.
The Trustworthy China Wholesaler / Dropshipper
We rigorously test every product we sell, Don’t waste any more time and money researching the wrong products. Choose RR Tech - your one-stop solution!
As a manufacturer, supplier and exporter of top sercurity systems from China, We are looking forward to cooperating with any buyer, importer, distributor, wholesaler, trader, sales agent, business partner in the international market.
We accept and offer all kinds of OEM and ODM orders for our customer for wholesale Security Camera Systems. However, every product has a minimum quantity to make OEM and ODM. Please just let us know about the particular items Minimum quantity and extra charge for printing your logo or change packing.
Timely Delievry
RR Tech provides DHL,UPS,Fedex, EMS, and express delivery method for you. Typically, it will take 3-to-10 working days to the major worldwide countries.
Warranty
All orders from us. We supply 24 months warranty.
We rigorously test every product we sell, Don’t waste any more time and money researching the wrong products. Choose RR Tech - your one-stop solution!
As a manufacturer, supplier and exporter of top sercurity systems from China, We are looking forward to cooperating with any buyer, importer, distributor, wholesaler, trader, sales agent, business partner in the international market.
We accept and offer all kinds of OEM and ODM orders for our customer for wholesale Security Camera Systems. However, every product has a minimum quantity to make OEM and ODM. Please just let us know about the particular items Minimum quantity and extra charge for printing your logo or change packing.
Timely Delievry
RR Tech provides DHL,UPS,Fedex, EMS, and express delivery method for you. Typically, it will take 3-to-10 working days to the major worldwide countries.
Warranty
All orders from us. We supply 24 months warranty.

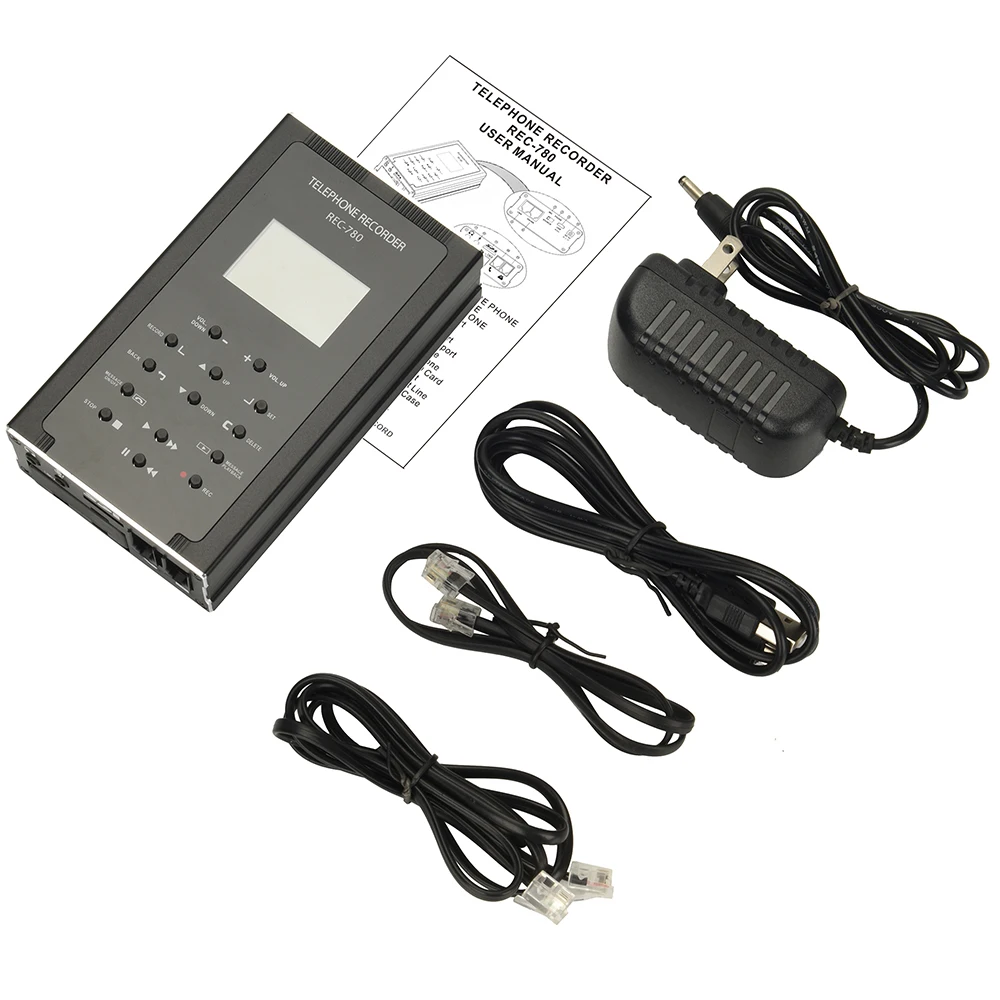

Product packaging
