2.4GHz Wireless BT Handheld Portable Auto Sensing 1D 2D QR Inversed Datamatrix Barcode Scanner With Cradle
- Category: Scanners >>>
- Supplier: Shenzhen,Honor,Way,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
2.4GHz Wireless BT Handheld Portable Auto Sensing 1D 2D QR Inversed Datamatrix Barcode Scanner With Cradle
The Advantage and Features

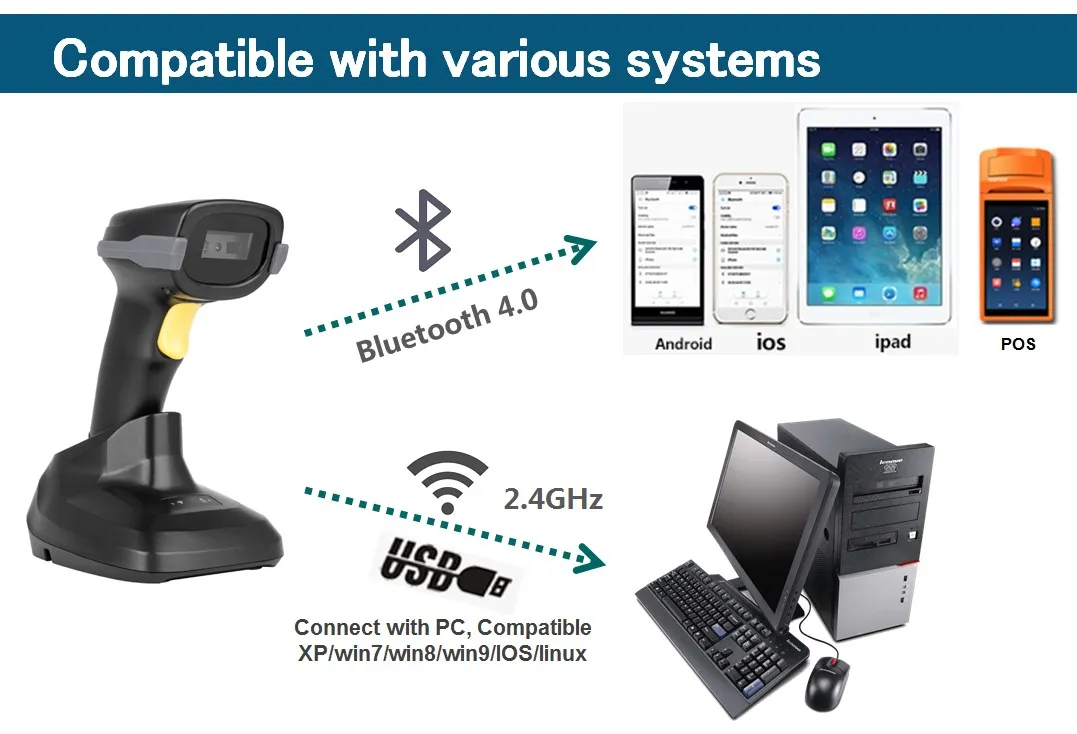

1. Support blue tooth+wireless communication methods,and switch mode by press/hold button 10seconds.
2. Data transmission,blue tooth ≤50M, 2.4GHz≤100M
3. With Charging base can be used for charging and placing barcode scanner.
4. Decode inversed datamatrix on cigarette box smoothly.
5. Support 1d+2d+QR+ pdf417+Data matrix etc almost all bar codes.
6. With 2200mAH battery,support offline storage in scanner
Product Parameters
Item | Para.Name | Para.Value |
Model | Model Name | HW-3900 wired HW-3900W wireless HW-3900B wireless+BT HW-3900CW wirless+cradle HW-3900CB wireless+BT+cradle |
Reading performance | Image Sensor | CMOS 30fps |
Resolution | 640*480pixels | |
Decoding capacity | Support paper and screen barcodes | |
2D: QR ,PDF417,Data Matrix(reversed) Aztec Maxi code etc. | ||
1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2of 5,industrial 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,GS1,etc. all normal 1D barcode | ||
Precision | 4mil | |
Light Source | 617nm Visible red LED,white LED | |
Scan Angle | Rotation360°,tilt±60°,skew±60° | |
Min Contrast | 25% | |
Scanning Speed | 500 times/s | |
Typical DOF | 60-100mm(4mil code39) 50-250mm(13mil EAN13) 40-300mm(20mil QR) 40-280mm(10mil PDF417) Performance may be impacted by bar code quality and environmental conditions | |
Mechanical and electrical | Interface | USB/USB COM Blue tooth 2.4GHz RF wireless |
Blue tooth Mode | HID SPP BLE | |
Working Voltage | DC 5V | |
Current | 200mA(working) 10mA(standby) | |
Battery | 2200mAH lithium battery, working 3-7days,charge time 4-5H | |
Memory Size | 8K barcodes (characters/barcode≤128) | |
Dimensions | 170*65*100mm(scanner) 120*95*65mm(charging base) | |
Weight | 450g | |
Cable Length | 1.5M | |
Indication | Buzzer & LED | |
Environment Request | Working Tem | -20~60℃ |
Storage Tem | -40~85℃ | |
Humidity | 5%-95%(Non-condensing) | |
Light Immunity | 0~100,000Lux | |
| Drop Test | 1.5M |
recommended product
Company Information
Our Services
Our service and commitment
1. The MOQ can be 1pcs,customer can test it firstly.
2. Product warranty—24 months
3. Welcome customer OEM, like assembly, test, even we can help customer to find good resource in China.
4. ODM--customize hardware and appearance structure according to customer requirements
5. If you encounter any problems during the use of the product, you can directly contact us by email or telephone.
6. About the package, We will pack the smallest package for you, saving your shipping costs.
7. We have cooperated with many logistics companies so that we can choose the cheapest shipping for you.
8. How to deal with after-sales quality problems, if the product is not intentionally damaged, please send pictures
and videos that can be confirmed as product problems, we will analyze and confirm the compensation method
(for products only), we can re-send the product for free.
9. We are a legal and formal Chinese enterprise under the supervision of the China Industrial and Commercial Bureau,
the Taxation Bureau, the Customs and the Foreign Exchange Administration.We have operation rights of import and
export,and we will comply with national and international trade regulations and do legal export trade.
10. We will not arbitrarily offer high prices, deceive customers, and always hold the attitude of long-term cooperation
with customers to bring customers cost-effective products and high quality services.
