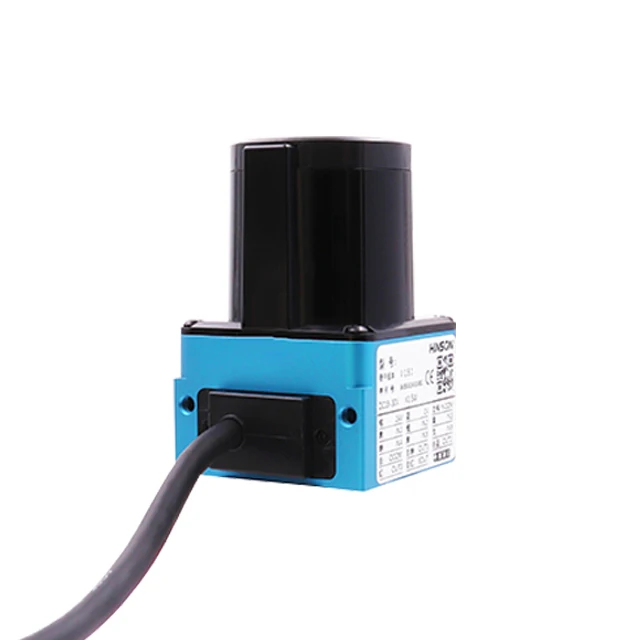

Hinson OEM ODM laser sensor TOF 270 degree IP65 Lidar sensor for AGV intelligently avoid obstacles
- Category: >>>
- Supplier: Foshan Hinson Robot Technology Co. Ltd.
Share on (1600486351507):
Product Overview
Description
Product Description

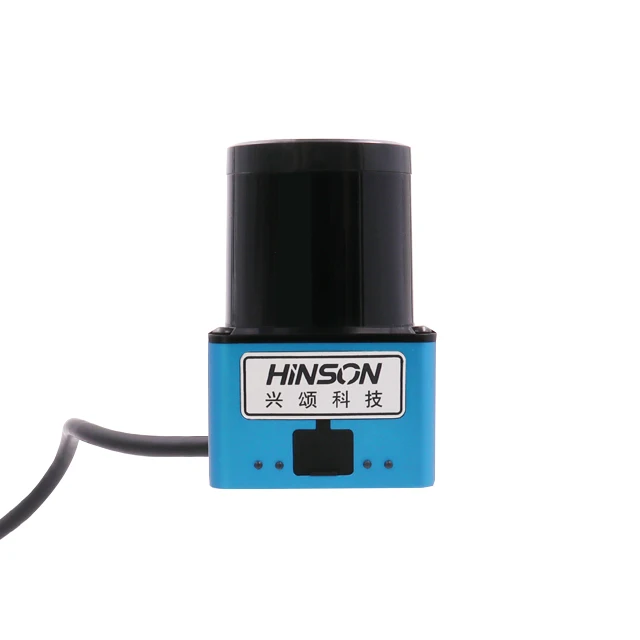

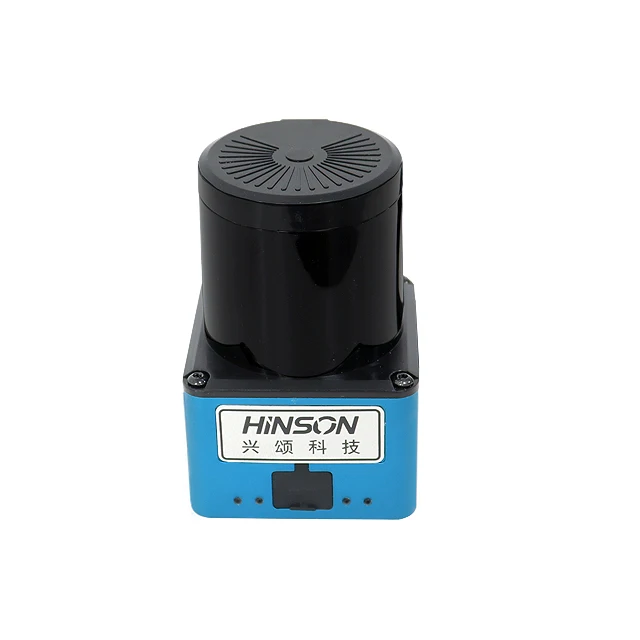

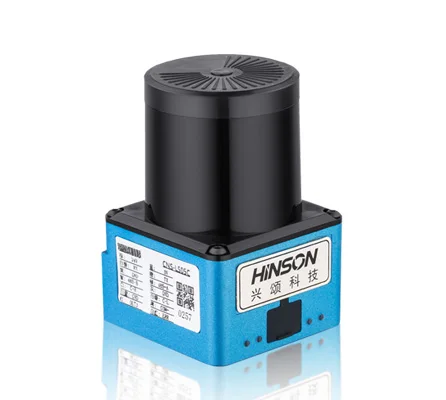

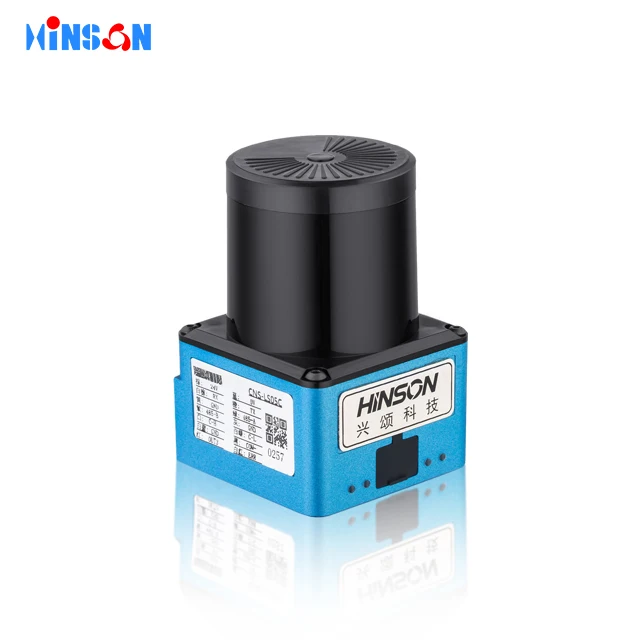

270°laser sensor SE-0526
Features
1.Ranging method based on TOF
2.270°detection for object distance and angle
3.Detection range up to 10m
4.small size
5.Wide voltage supply range
6.customizable data format
2.270°detection for object distance and angle
3.Detection range up to 10m
4.small size
5.Wide voltage supply range
6.customizable data format
7.Obstacle-avoidance channels 64
Specification
Product type | 270°laser sensor | |
Model Number | SE-0526 | |
Place of Origin | China | |
Provice | Guangdong | |
Brand Name | Hinson | |
Basic characteristics | ||
Operating voltage | DC18V-32V | |
Rated power | ＜2w | |
Light source | laser wavelength 905nm | |
Laser class | 1(IEC60825-1:2014,EN60825-1:2014) | |
Detection distance | 0.05-5m（Reflectivity 90%） | |
0.025-2m（Reflectivity 10%） | ||
Detection range | 270° | |
Identify object shape | any shape, reflectivity calculated by detection distance | |
Angular resolution | 0.5° | |
Output raw test data | × | |
Protecting areas | 3(Warningzone 1,warning zone 2, protecting zone) | |
Obstacle-avoidance channels | 64 | |
Switch input | 6PNP | |
Switch output | 4NPN | |
Micro-USB configuration port | Support | |
Rs232 port | Do not support | |
Rs485 port | Do not support | |
CAN BUS port | Do not support | |
Ethernet port | Do not support | |
Laser scanning frequency | 20Hz | |
Response time | Typical value 50ms | |
Systematic error | ＜40mm | |
Statistical error | ＜30mm | |
Detection output time-delay | 0ms-500ms can configure within range | |
Detection hold time-delay | 0ms-500ms can configure within range | |
Object reflectivity | 40%-1000% | |
Ambient light strength | < 80000lx | |
Operating environment | indoor,-10℃~+50℃，＜85%RH non-condensation,no dew | |
Packing & Delivery
To better ensure the security of your goods, will provide the professional, environmental protection, convenient and efficient packaging service
Company Profile
Hinson robot is an independent and innovative high-tech enterprise integrating R & D, design, production and sales of AGV core parts and providing AGV vehicle motion control scheme. Since its establishment, the company has been striving to become a first-class AGV control scheme and core parts supplier in the industry as its strategic development goal.The enterprise has strong independent research and development ability, strong production strength, strong product function and better compatibility,and is widely used in the industry.At present, it mainly provides: AGV intelligent robot navigation and motion control platform, AGV intelligent warehousing and logistics solution, AGV intelligent manufacturing and mobile assembly solution, industrial automation equipment development, technical service renewal, transformation scheme, etc.
The products include: laser sensor, magnetic navigation sensor, optical communication sensor, magnetic landmark sensor, RFID RF sensor, gyroscope sensor and various AGV core parts.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
