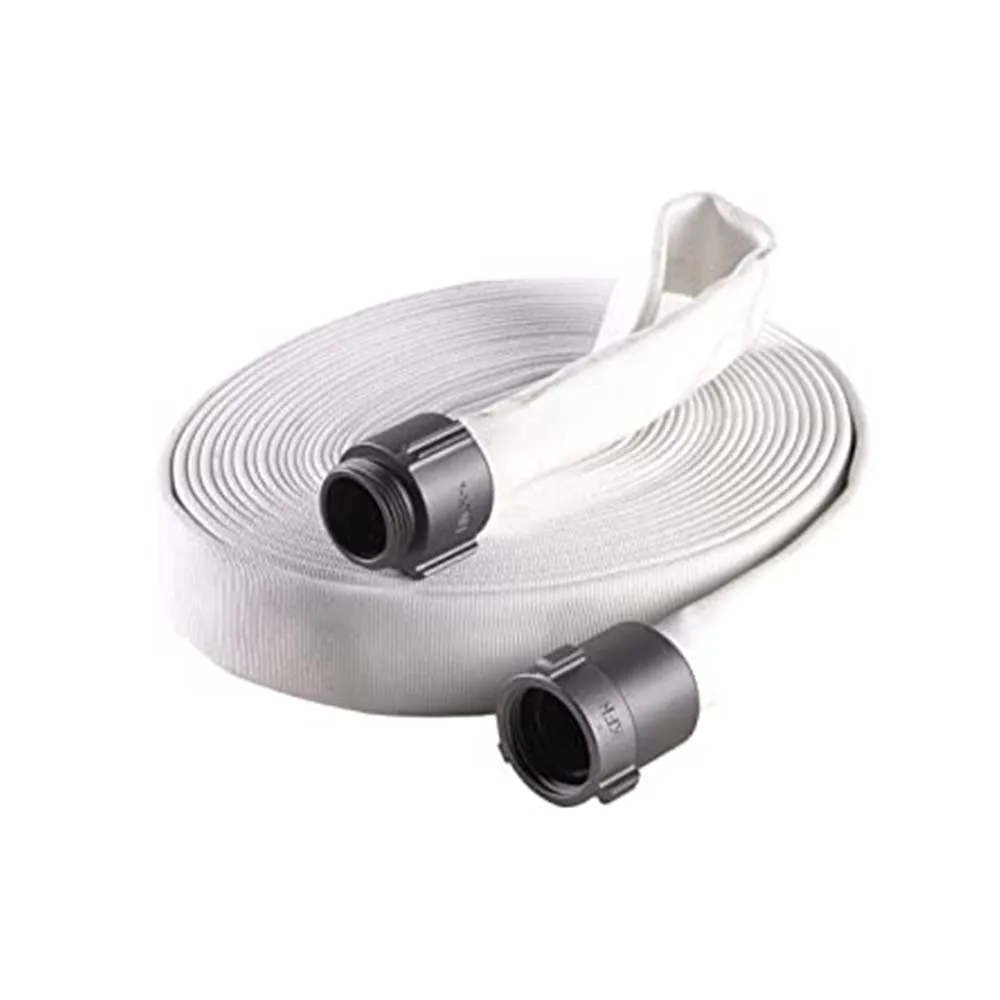

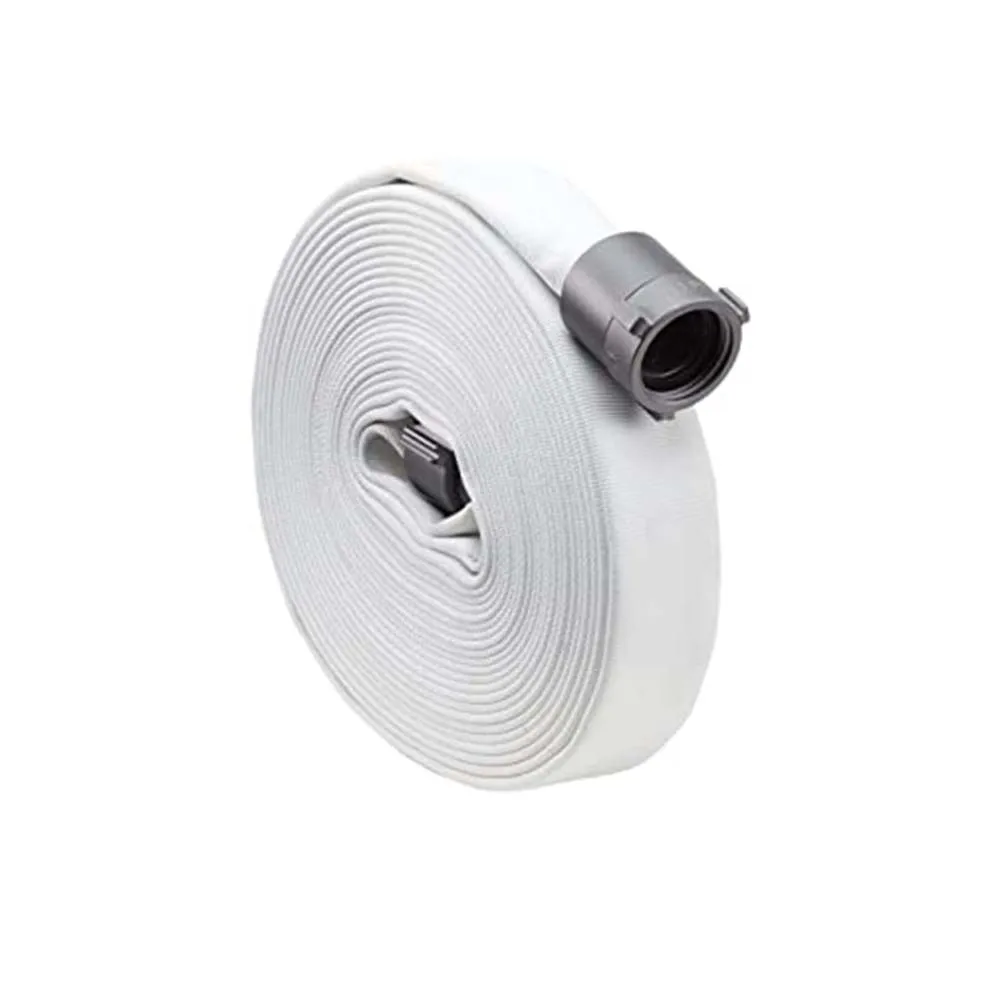

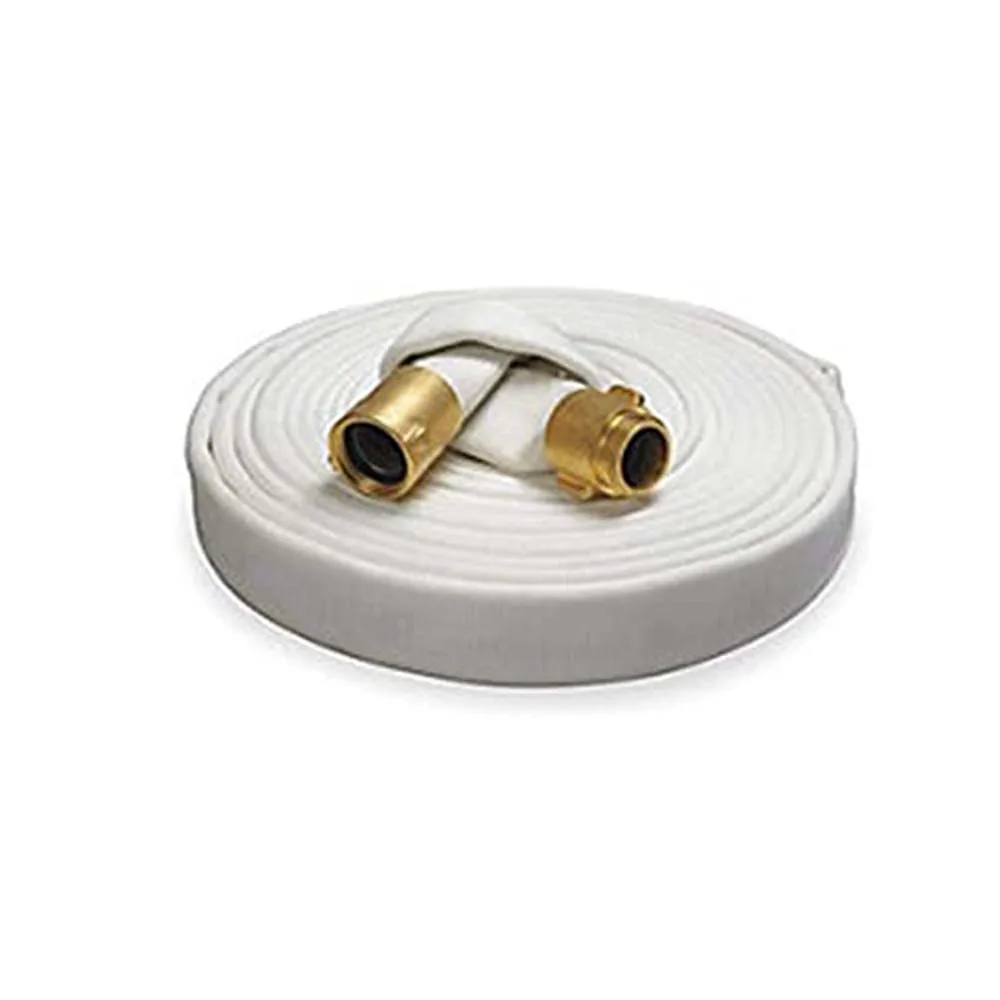

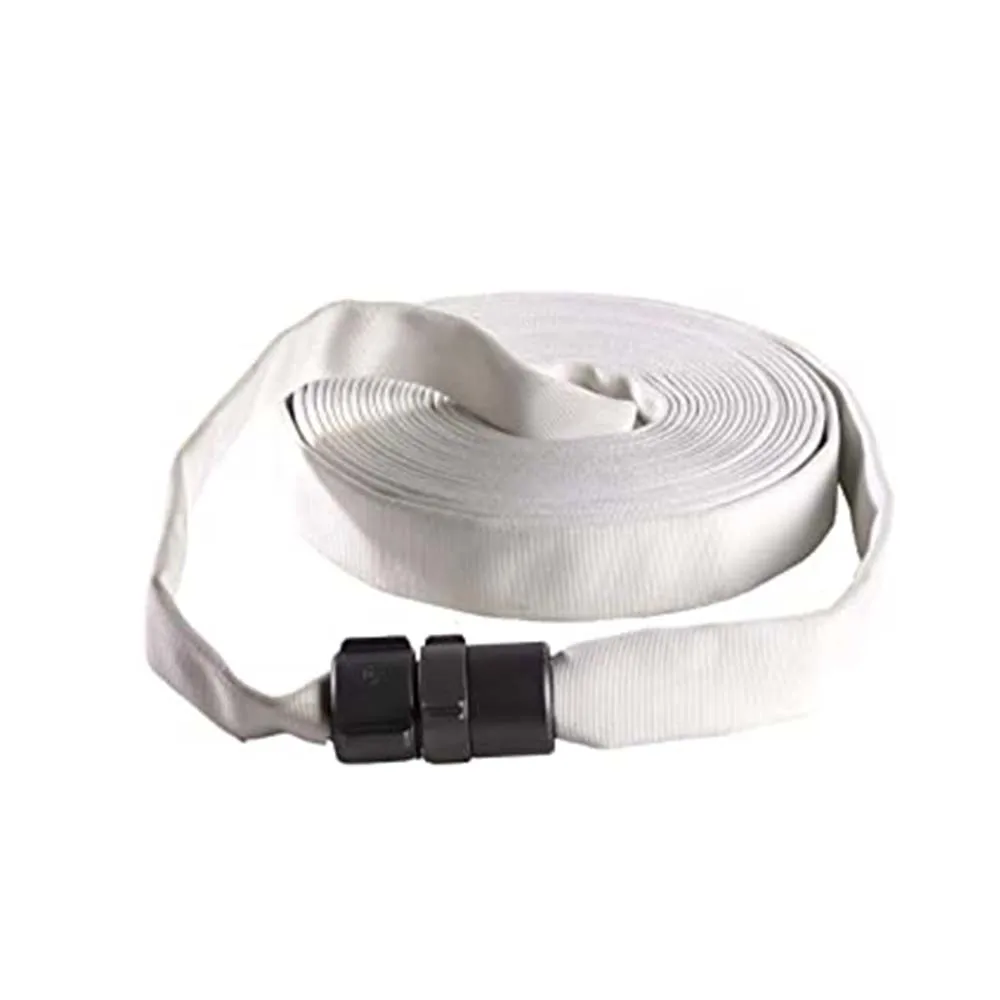

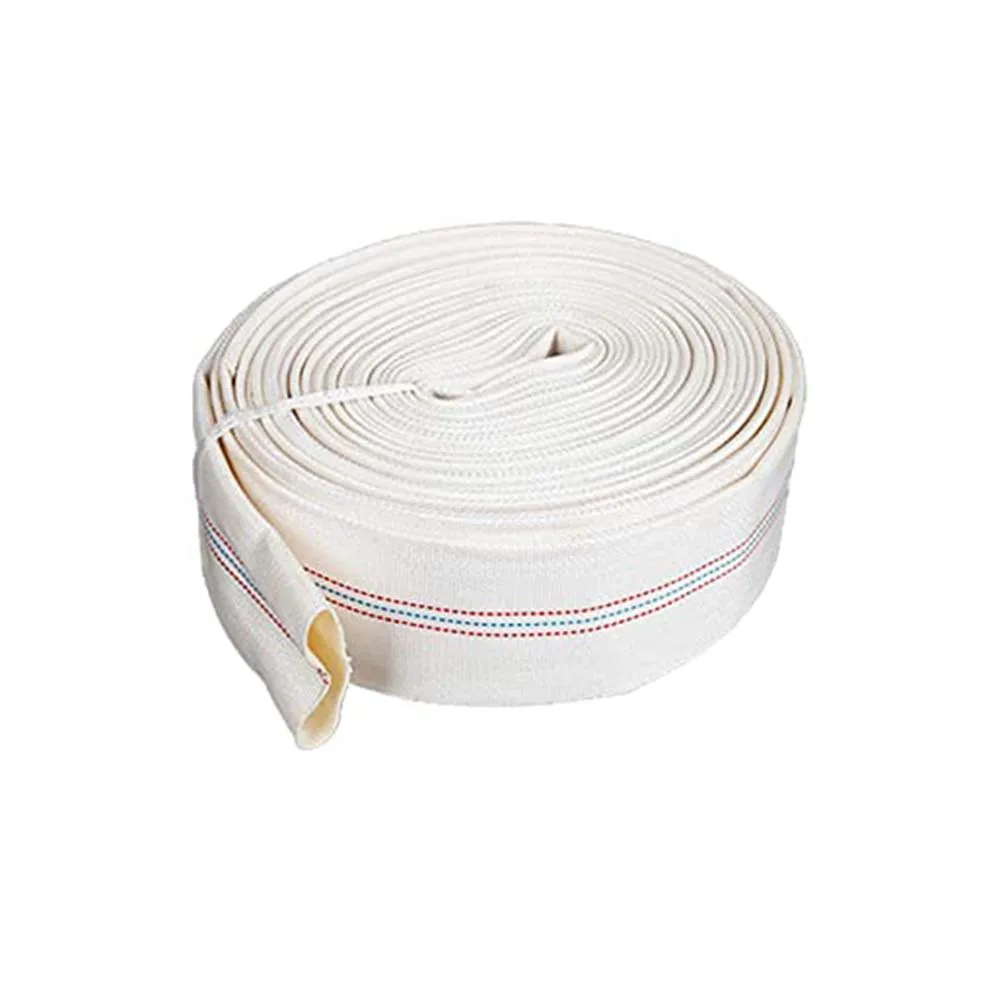

Angus Duraline Fire Hose Fire Hose Brands Fire Hose
- Category: >>>
- Supplier: Jinjiang Newfco Import And Export Co. Ltd.
Share on (1600486354623):
Product Overview
Description
Model Specifications

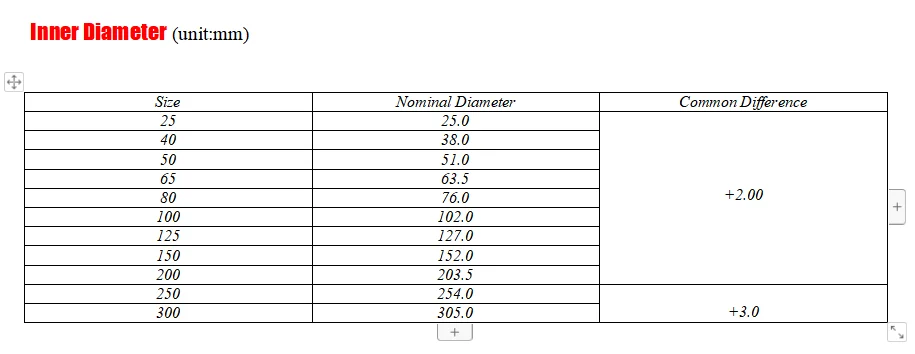

The model specification of fire hose consists of design working pressure, nominal inner diameter, length, braid warp/weft
material, lining material and outer covering material. Example 1 :10-65-25 Example 2: 20-80-40 Example 1: The design working
pressure is 1.0MPa, the nominal inner diameter is 65mm, the length is 25m, the warp material of the braid is polyester yarn, the
weft material is polyester filament, and the lining material is rubber. The model is expressed as: 10-65 -25-Polyester
Yarn/Polyester Filament-Rubber. Example 2: The design working pressure is 2.0MPa, the nominal inner diameter is 80mm, the length
is 40m, the warp thread of the braid is polyester filament, the weft thread is polyester filament, the lining material is
polyurethane, and the outer covering material is plastic. Its model is expressed as: 20-80-40-polyester filament/polyester
filament-polyurethane/plastic.
material, lining material and outer covering material. Example 1 :10-65-25 Example 2: 20-80-40 Example 1: The design working
pressure is 1.0MPa, the nominal inner diameter is 65mm, the length is 25m, the warp material of the braid is polyester yarn, the
weft material is polyester filament, and the lining material is rubber. The model is expressed as: 10-65 -25-Polyester
Yarn/Polyester Filament-Rubber. Example 2: The design working pressure is 2.0MPa, the nominal inner diameter is 80mm, the length
is 40m, the warp thread of the braid is polyester filament, the weft thread is polyester filament, the lining material is
polyurethane, and the outer covering material is plastic. Its model is expressed as: 20-80-40-polyester filament/polyester
filament-polyurethane/plastic.
Performance Requirements
Performance Requirements 1. The fabric layer of the hose should be woven evenly, with a clean surface, without double warp
skipping, broken double warp, skipping weft and scratches. 2. The thickness of the hose lining (or outer cover) should be uniform,
and the surface should be smooth and flat without wrinkles or other defects
skipping, broken double warp, skipping weft and scratches. 2. The thickness of the hose lining (or outer cover) should be uniform,
and the surface should be smooth and flat without wrinkles or other defects
Product Description
Elongation and expansion and twist direction

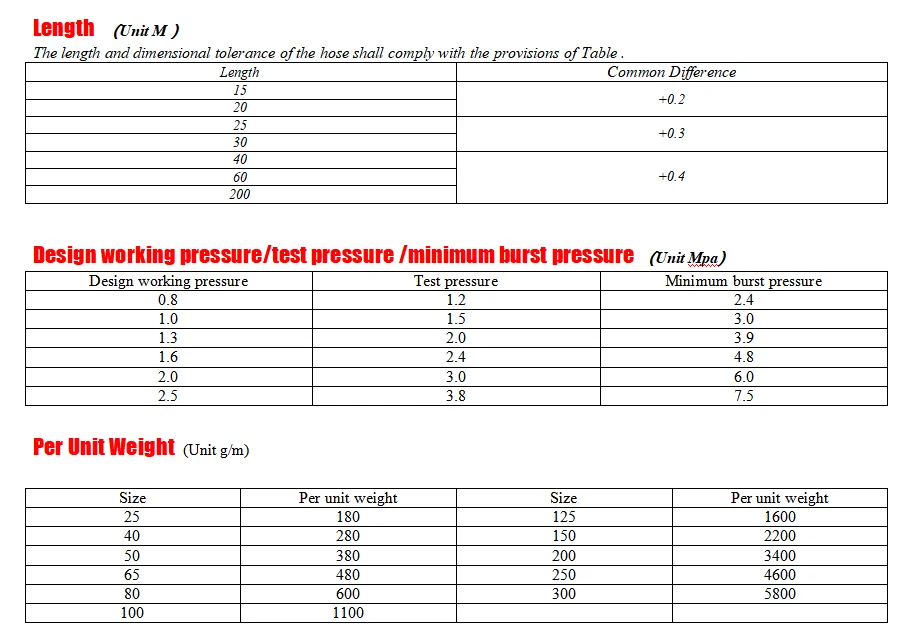

1 For hoses with design working pressures of 0.8MPa, 1.0MPa, 1.3MPa, and 1.6MPa, the axial elongation and diameter expansion rate
should not be greater than 5% under the design working pressure. 2 For hoses with design working pressures of 2.0MPa and 2.5MPa,
the axial elongation and diameter expansion rate should not be greater than 8% under the design working pressure. 3 Under the
action of water pressure, the water belt should not be twisted counterclockwise when viewed along the water flow direction.
Use and Maintenance
1 The hose should be used according to the design working pressure indicated on the hose, to prevent the hose from rupture,
damage or shorten the service life of the hose due to excessive pressure, and cause the danger of personal accident. 2 Sudden
twists and turns should be avoided when laying the hose to prevent the ability of water pressure resistance from being reduced;
twisting should also be avoided to prevent the hose from rotating after being filled with water and disengaging the inner buckle
hose interface. 3 When the water belt is laid vertically, it should be fixed at a distance of about 10m, so as to prevent the
water belt from breaking, causing damage to fighters and injuring personnel. 4 After the hose is filled with water, it should be
avoided forcibly dragging on the ground, and special attention should be paid to avoid the hose coming into contact with sharp
objects such as nails and glass pieces. When you need to change the position, it should be lifted and moved to reduce the wear of
the hose and the ground. The hose should not be dragged in a V shape to avoid breaking the hose. 5 The hose should avoid contact
with corrosive chemicals such as oil, acid and alkali. If necessary, it is advisable to use the water belt of the outer covering.
6 Hard weights should be avoided from pressing on the water belt. When the vehicle needs to pass the water belt being laid, the
water belt protection bridge should be installed in the passing position in advance. 7 When laying through the railway, the hose
should pass under the railway track. 8 When using fire hoses outside buildings in cold areas, the hoses should be prevented from
freezing. 9 The hose should be washed and dried after use, and the coil should be stored in a cool and dry place.
1 For hoses with design working pressures of 0.8MPa, 1.0MPa, 1.3MPa, and 1.6MPa, the axial elongation and diameter expansion rate
should not be greater than 5% under the design working pressure. 2 For hoses with design working pressures of 2.0MPa and 2.5MPa,
the axial elongation and diameter expansion rate should not be greater than 8% under the design working pressure. 3 Under the
action of water pressure, the water belt should not be twisted counterclockwise when viewed along the water flow direction.
Use and Maintenance
1 The hose should be used according to the design working pressure indicated on the hose, to prevent the hose from rupture,
damage or shorten the service life of the hose due to excessive pressure, and cause the danger of personal accident. 2 Sudden
twists and turns should be avoided when laying the hose to prevent the ability of water pressure resistance from being reduced;
twisting should also be avoided to prevent the hose from rotating after being filled with water and disengaging the inner buckle
hose interface. 3 When the water belt is laid vertically, it should be fixed at a distance of about 10m, so as to prevent the
water belt from breaking, causing damage to fighters and injuring personnel. 4 After the hose is filled with water, it should be
avoided forcibly dragging on the ground, and special attention should be paid to avoid the hose coming into contact with sharp
objects such as nails and glass pieces. When you need to change the position, it should be lifted and moved to reduce the wear of
the hose and the ground. The hose should not be dragged in a V shape to avoid breaking the hose. 5 The hose should avoid contact
with corrosive chemicals such as oil, acid and alkali. If necessary, it is advisable to use the water belt of the outer covering.
6 Hard weights should be avoided from pressing on the water belt. When the vehicle needs to pass the water belt being laid, the
water belt protection bridge should be installed in the passing position in advance. 7 When laying through the railway, the hose
should pass under the railway track. 8 When using fire hoses outside buildings in cold areas, the hoses should be prevented from
freezing. 9 The hose should be washed and dried after use, and the coil should be stored in a cool and dry place.
Specification
item | value |
Place of Origin | China |
Fujian | |
Brand Name | NEWFCO |

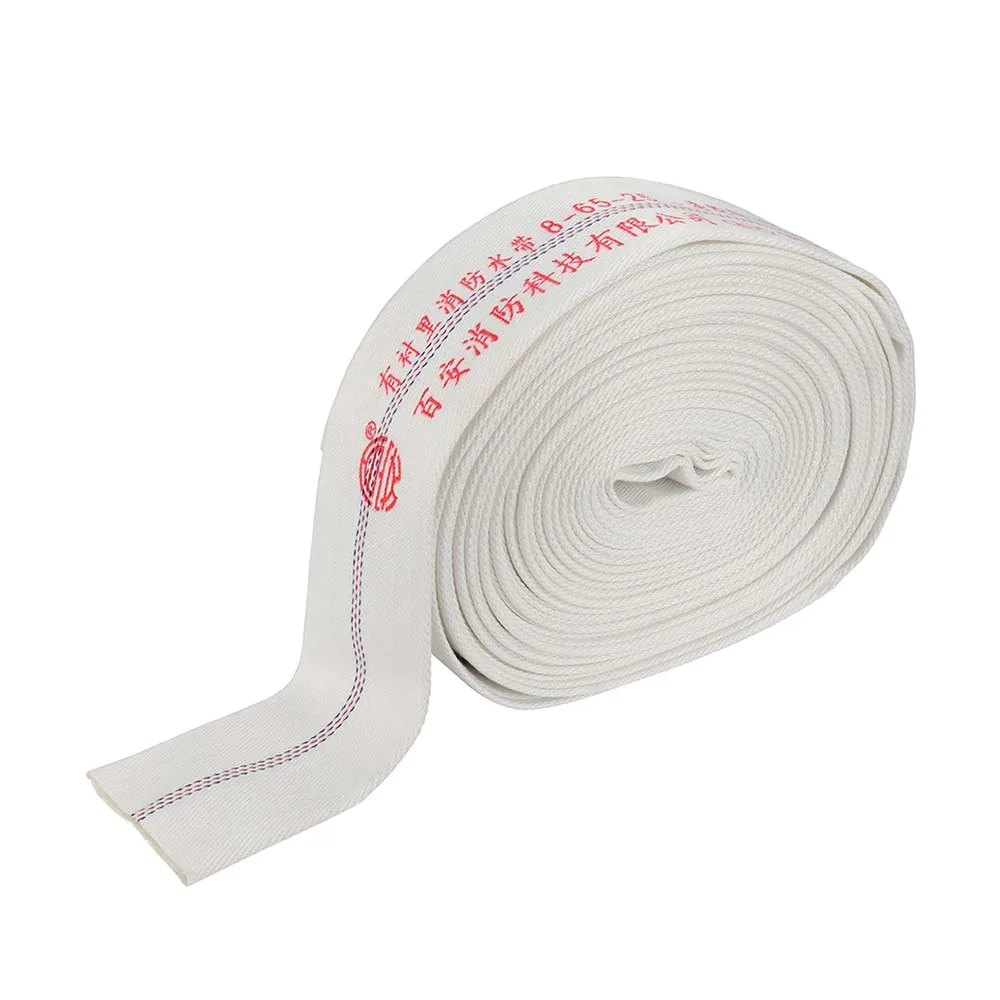

Model Number | 8-65-25 |
Product name | Fire Hose |
Application | Fire Fighting Emergency Rescue |
Material | Polyester |
Color | White /Red |
Working Pressure | 8/10/13/16bar |
Size | 40/50/65/80/100/125/150/200 |

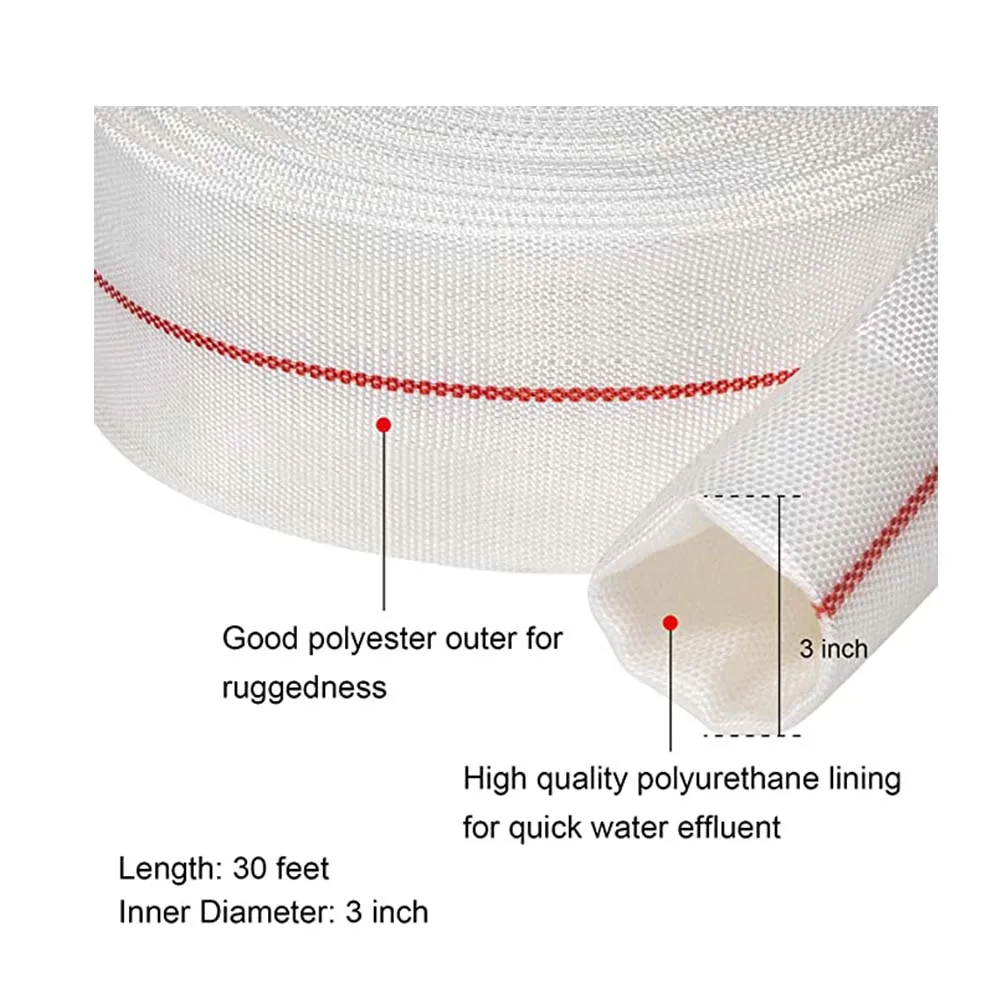

Lining | PVC/PU |
Feature | woven evenly, with a clean surface |
Length | 20/25/30 METERS |
Certificate | CCCF |
Company Profile
JINJIANG NEWFCO IMPORT AND EXPORT CO.,LTD which is a professional fire fighting equipment export company .And have branch in China welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other country .
We have 37 years experience and advantages in this industry .It is able to quickly develop new design and new products according to our customer’s specific requirement and pricing .
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other country .
We have 37 years experience and advantages in this industry .It is able to quickly develop new design and new products according to our customer’s specific requirement and pricing .
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
