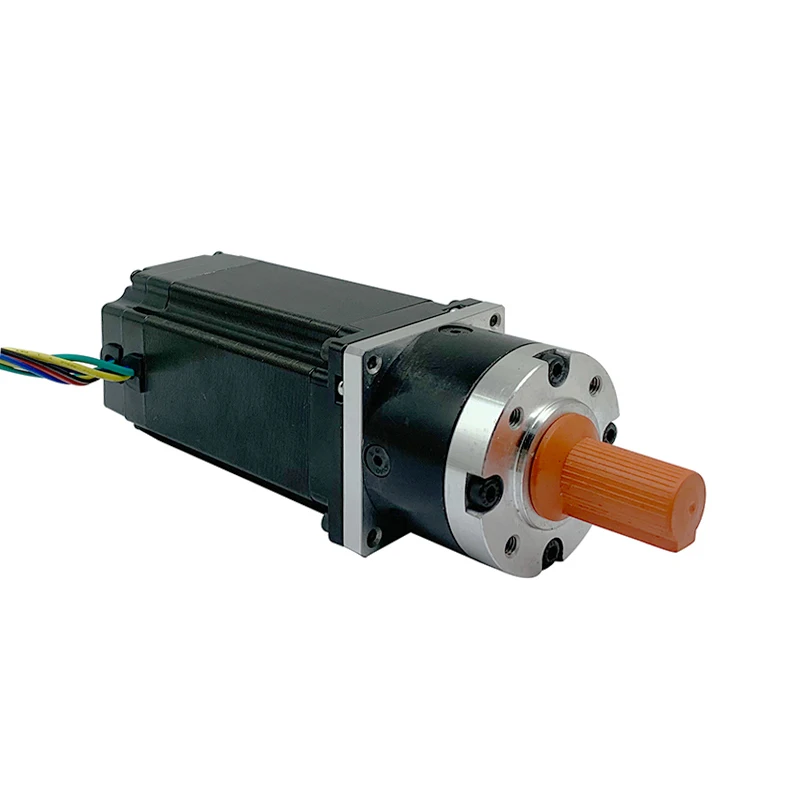

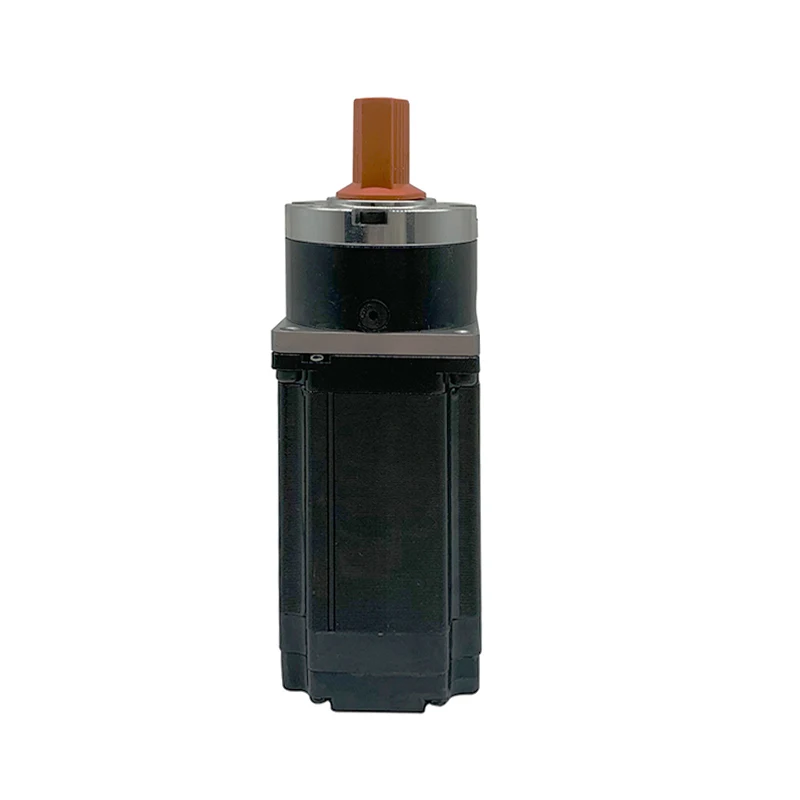

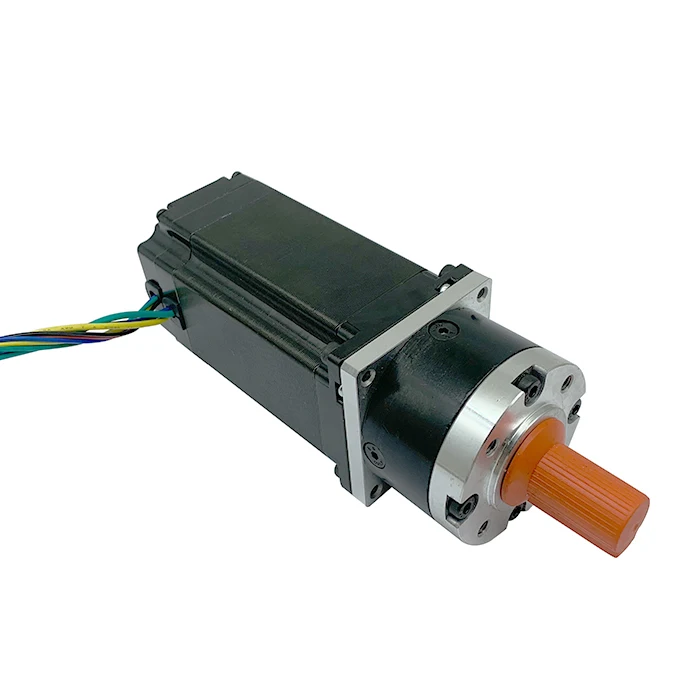

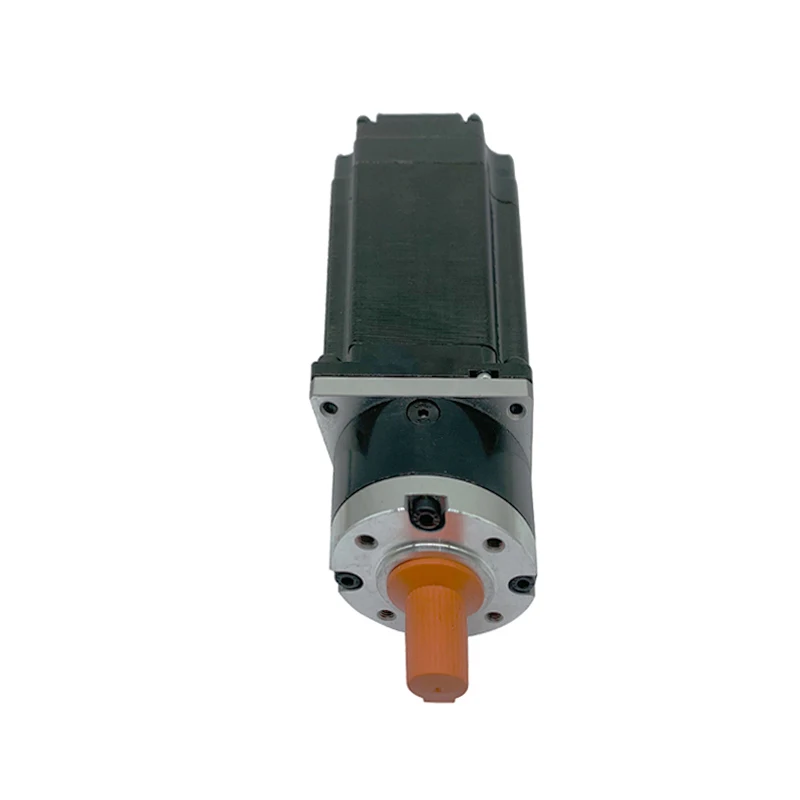

Oem Nema23 Nema34 high rpm bldc geared motor gearbox planetary brushless dc gear motor
- Category: >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (1600486359746):
Product Overview
Description
Oem Nema23 Nema34 high rpm bldc geared motor gearbox planetary brushless dc gear motor
BLDC motors are replacing classic DC motors and stepper motors in more and more applications. The BLDC motors from JSS are three-phase and have digital Hall sensors in the standard version, so that speed control is possible with simple servo controllers.
The most important features of JSS BLDC motors are:
high efficiency
low operating voltage: the windings of JSS BLDC motors are designed for low supply voltages
flange sizes available: Nema 17 (42mm), Nema 23 (57mm) and Nema 34 (86mm), can be customized
customization options: encoder, shaft , flange, insulation, bearing, environmental conditions
The most important features of JSS BLDC motors are:
high efficiency
low operating voltage: the windings of JSS BLDC motors are designed for low supply voltages
flange sizes available: Nema 17 (42mm), Nema 23 (57mm) and Nema 34 (86mm), can be customized
customization options: encoder, shaft , flange, insulation, bearing, environmental conditions
Product Description
Item | Brushless DC Motor |
Certification | CE |

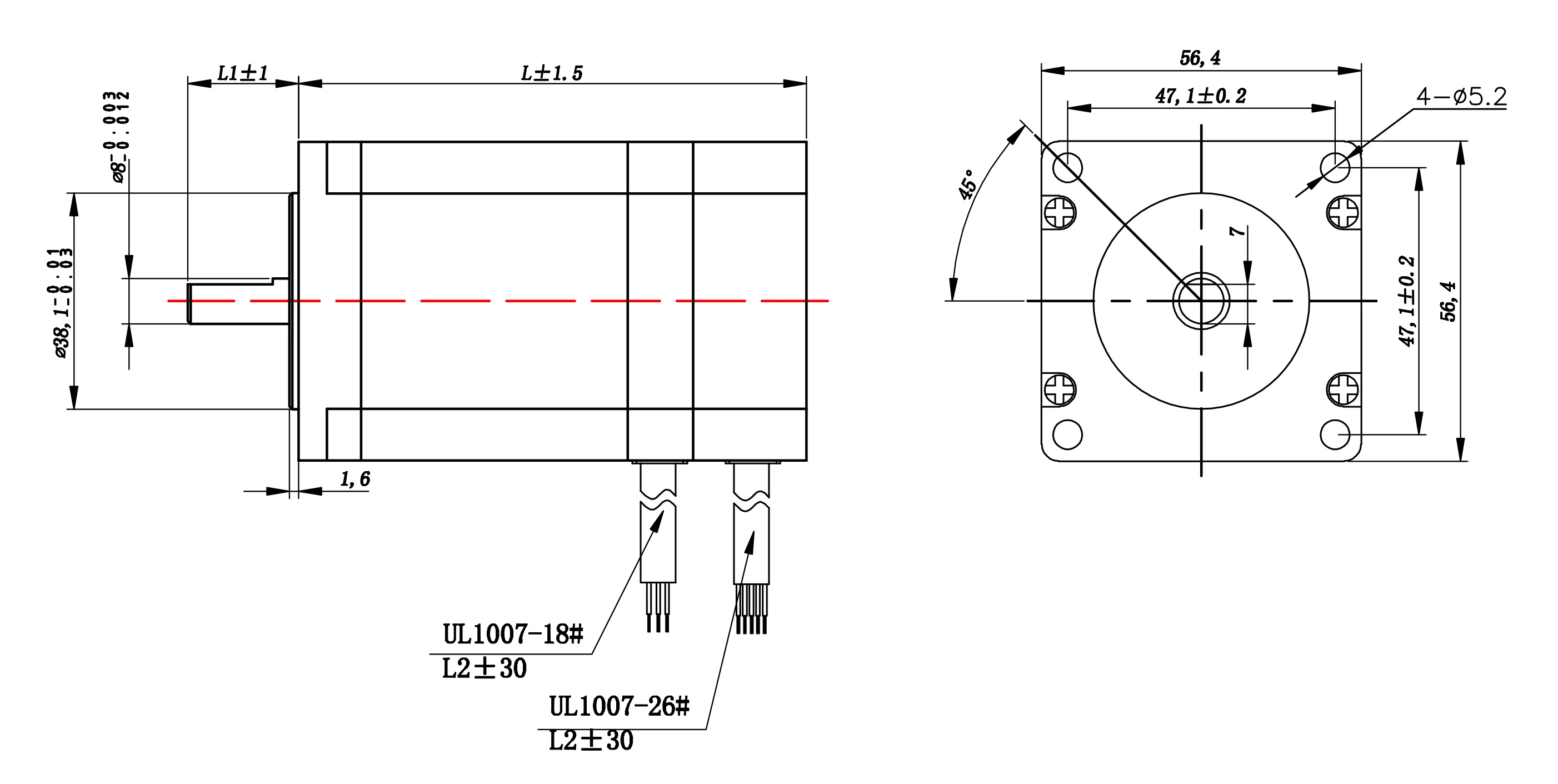

Size | 42mm / 57mm / 86mm |
Shaft diameter | 8.0mm (Or customized) |
Model No. | Rated Voltage (VDC) | Rated Current (A) | Rated Power (W) | Rated Torque (N.m) | Rated Speed (rpm) |
57BL60-230 | 24 | 3.4 | 62 | 0.2 | 3000 |
57BL80-230 | 24 | 6.9 | 125 | 0.4 | 3000 |
57BL100-230 | 24 | 10.4 | 188 | 0.6 | 3000 |
57BL60-340 | 36 | 3.1 | 84 | 0.2 | 4000 |
57BL80-340 | 36 | 6.2 | 167 | 0.4 | 4000 |
57BL100-340 | 36 | 9.3 | 251 | 0.6 | 4000 |
Model No. | Rated Voltage (VDC) | Rated Current (A) | Rated Power (W) | Rated Torque (N.m) | Rated Speed (rpm) |
86BL90-430 | 48 | 6 | 220 | 0.7 | 3000 |
86BL120-430 | 48 | 12 | 440 | 1.4 | 3000 |
86BL140-430 | 48 | 18 | 660 | 2.1 | 3000 |
86BL90-640 | 310 | 1.3 | 293 | 0.7 | 4000 |
86BL120-640 | 310 | 2.5 | 586 | 1.4 | 4000 |
86BL140-640 | 310 | 3.8 | 879 | 2.1 | 4000 |

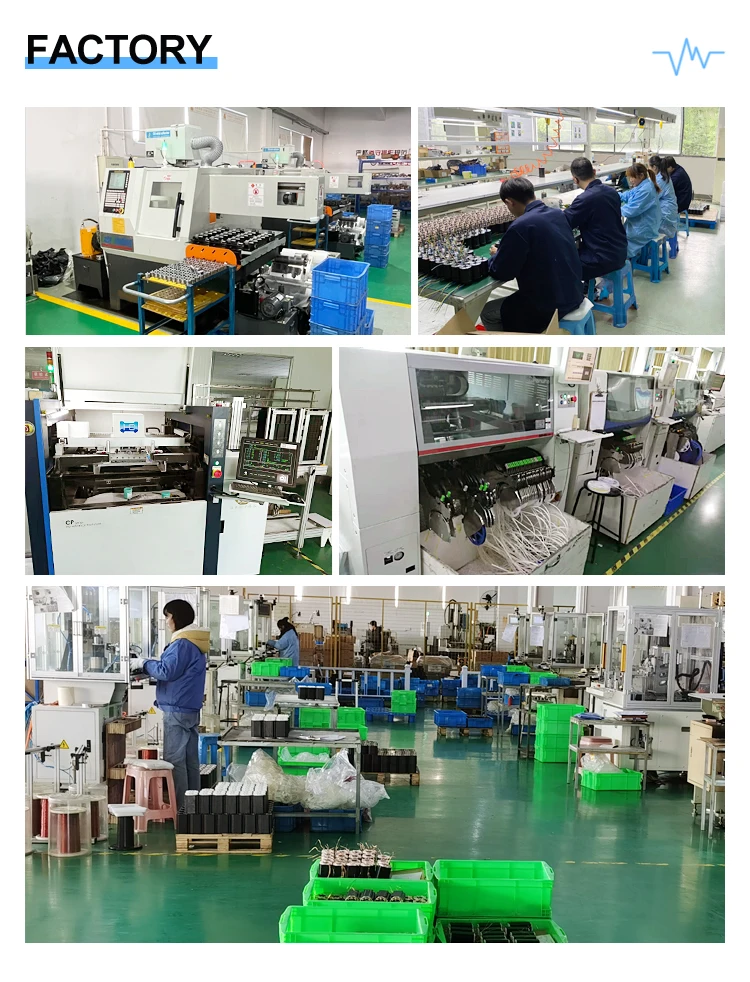

Company Profile
Certifications
Exhibition
Product packaging
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
