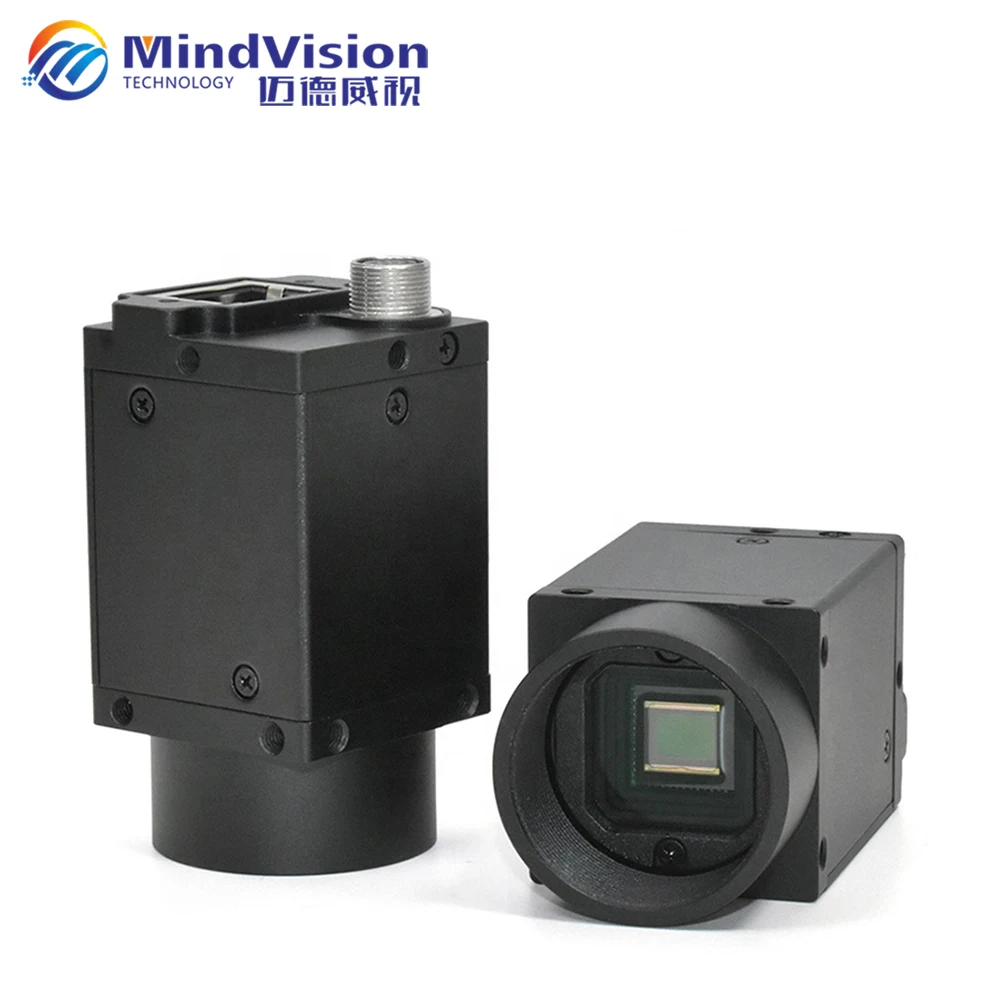

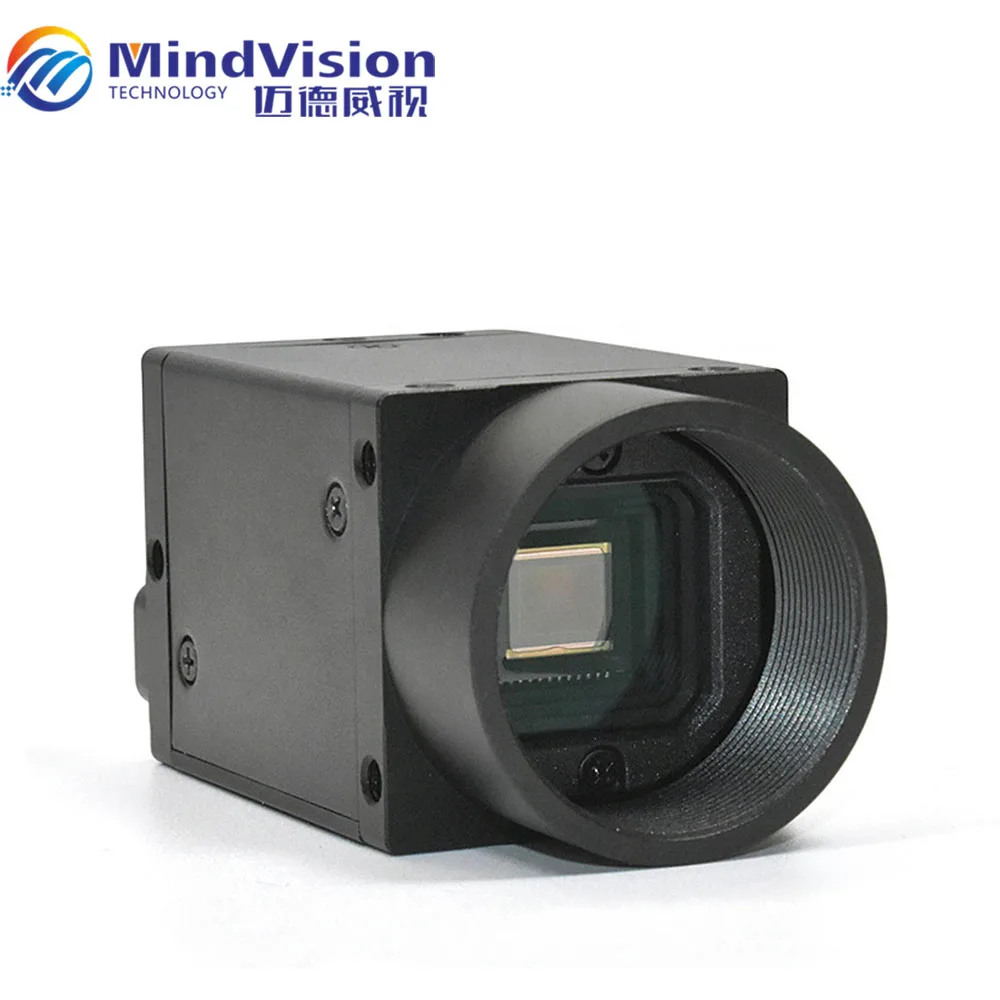

2MP Global Shutter Machine Vision Gige Cmos Sensor Camera 40FPS Machine Vision Camera Industrial
- Category: >>>
- Supplier: Shenzhen MindVision Technology Co. Ltd.
Share on (1600486469786):
Product Overview
Description
GigE Series Features
✔️ Support 100 meters transmission or POE (optional).
✔️Compatible with gige vision standard.
✔️With hardware image processing acceleration.
✔️Support multiple cameras to work at the same time.
✔️Data packet retransmission technology to ensure reliable data transmission.
✔️ Provide SDK, easy to use and convenient.
✔️Support external trigger and flash.
✔️SDK supports Windows and Linux systems.
✔️SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
✔️Compatible with gige vision standard.
✔️With hardware image processing acceleration.
✔️Support multiple cameras to work at the same time.
✔️Data packet retransmission technology to ensure reliable data transmission.
✔️ Provide SDK, easy to use and convenient.
✔️Support external trigger and flash.
✔️SDK supports Windows and Linux systems.
✔️SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
✔️ Camera name can be modified to distinguish multiple cameras easily .
Product Paramenters
Model Optional(Global Shutter&CMOS) | ||||||||||
Model Number | Pixel | Resolution | Frame Rate | Sensor Size | Pixel Size | |||||
MV-GE34GC/M | 0.3MP | 640*480 | 387fps | 1/4" | 4.8μm | |||||
MV-GE134GC/M | 1.3MP | 1280*1024 | 91fps | 1/2" | 4.8μm | |||||
MV-GE200GC/M | 2.0MP | 1600*1200 | 60fps | 1/1.8" | 4.5μm | |||||
MV-GE202GC/M | 2.3MP | 1920*1200 | 51fps | 2/3" | 4.8μm | |||||
MV-GE231GC/M | 2.3MP | 1920*1200 | 40fps | 1/1.2" | 5.86μm | |||||
MV-GE501GC/M | 5.0MP | 2448*2048 | 24fps | 2/3" | 3.45μm | |||||
MV-GE502GC/M | 5.3MP | 2592*2048 | 22fps | 1" | 2.2μm | |||||
Detail Information | ||
Product Item | 2MP Global Shutter Machine Vision Gige Cmos Sensor Camera 40FPS Machine Vision Camera Industrial | |
Model Number | MV-GE231GC/M | |
Color | Monochrome/Color | |
Shutter | Global Shutter | |
Sensor | CMOS | |

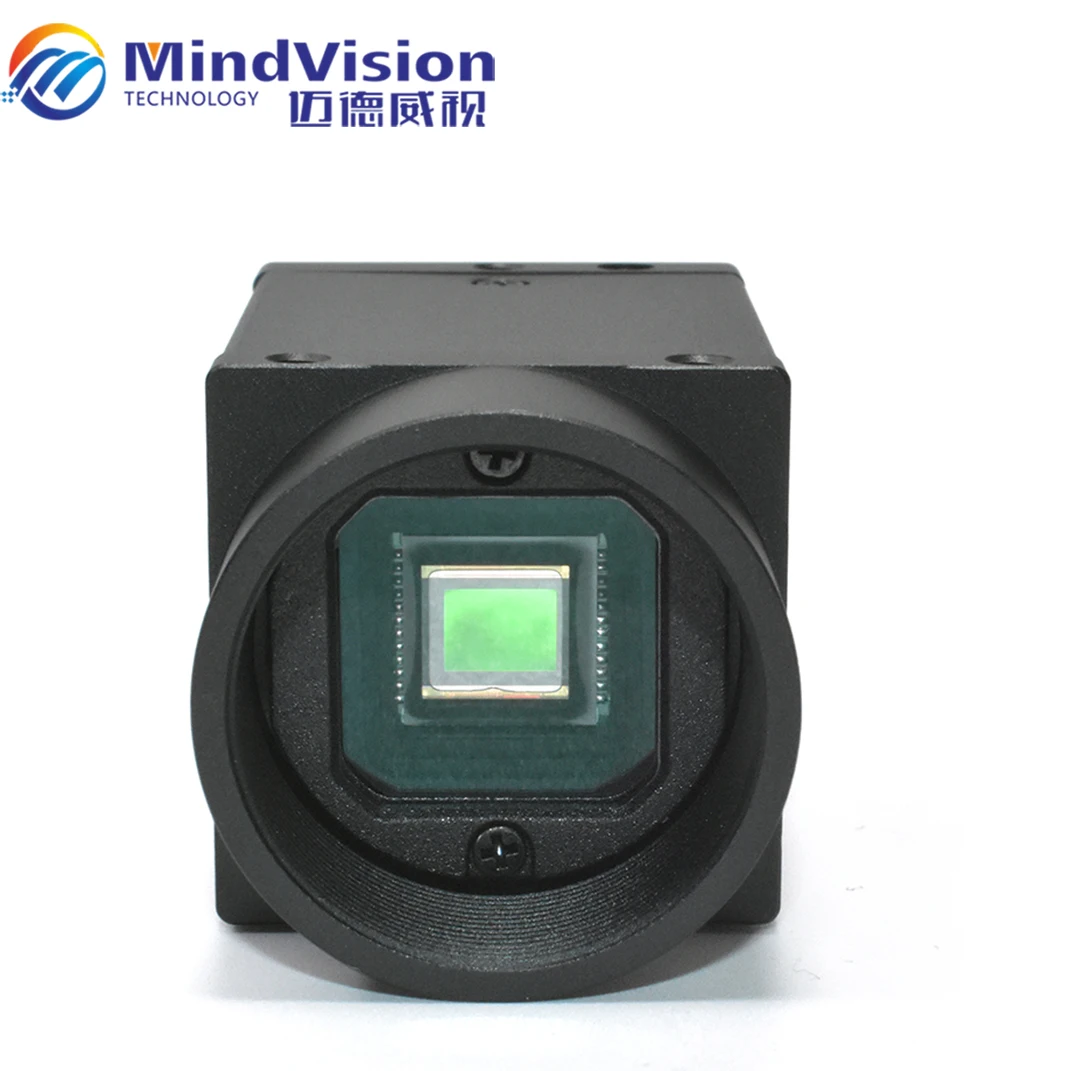

Lens Mount | C Mouth | |
Exposure Time | 0.02ms | |
GPIO | 1 way optical isolation input, one way optical isolation output; Optional 3 input 4 output | |

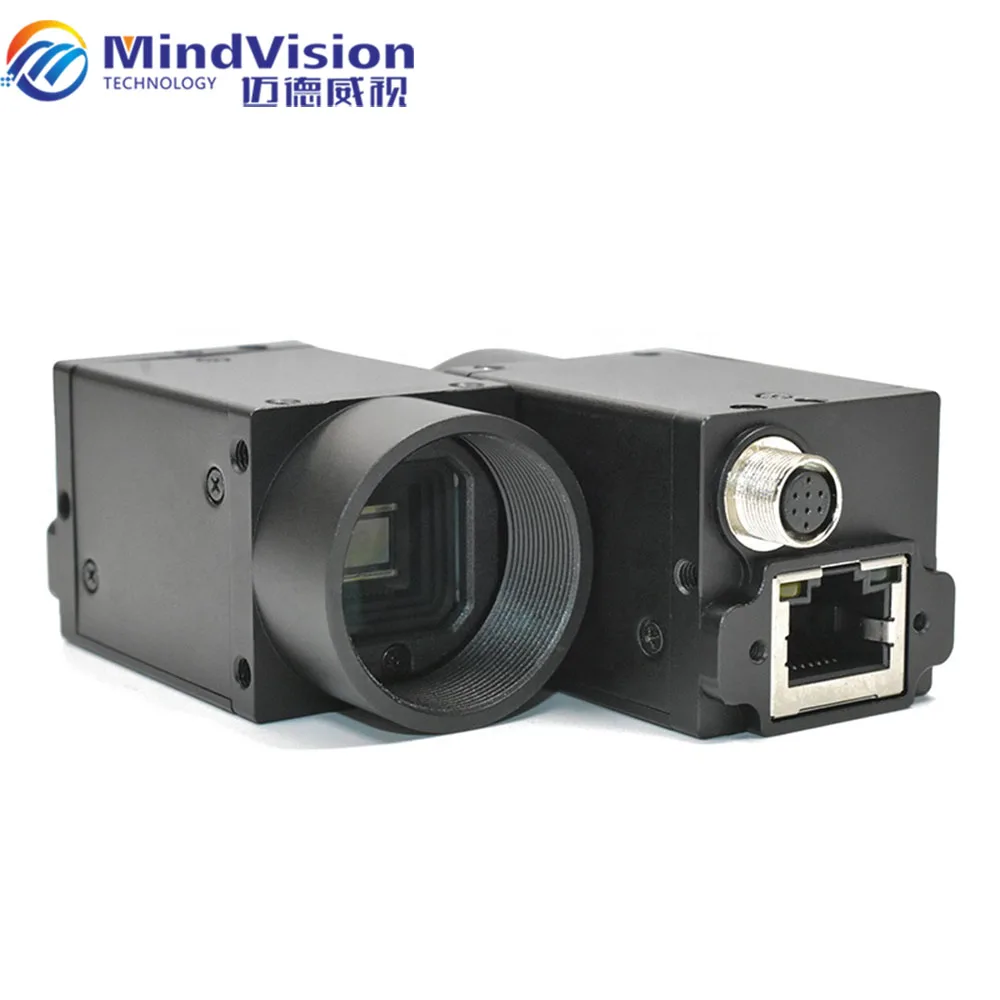

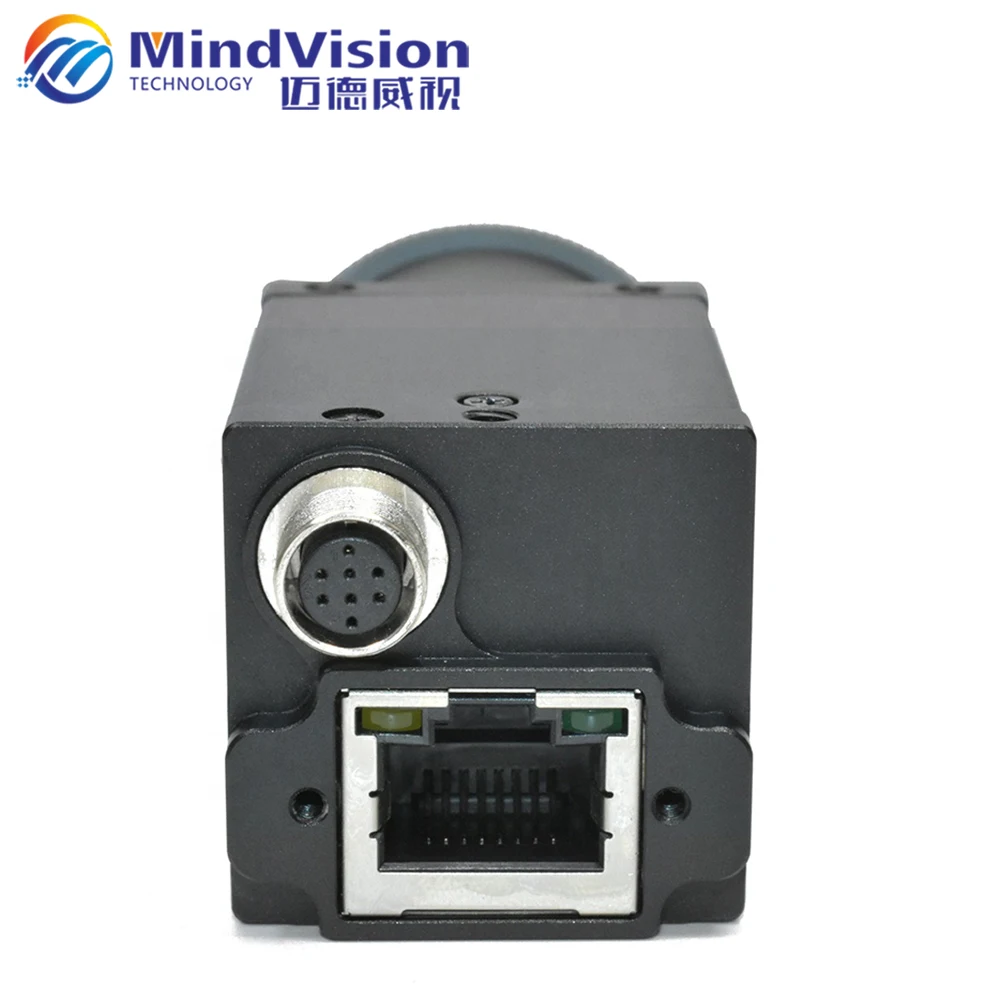

Data interface | RJ45 Gigabit Ethernet interface | |
Frame Buffer | 32M Bytes | |
User-defined data area | 2K Bytes | |
Power Requirements | 9~12V/POE48~57V(POE is optional) | |

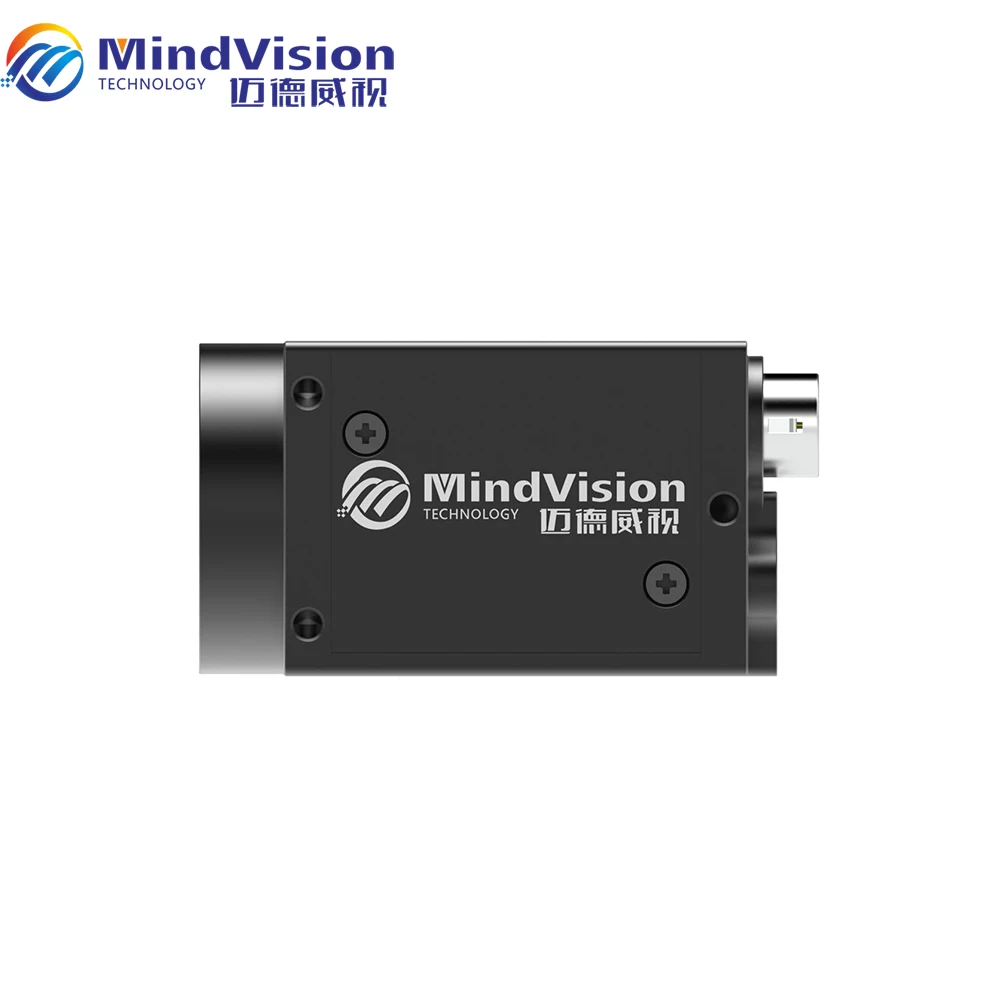

Dimensions | 29*29*40(mm) | |
weight | ＜75g | |
Operating temperature | 0~50℃ | |
Programming Language | C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python | |
Operating System | WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable) | |
Driver | DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components | |
Other Functions | Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control | |
Recommend Products
Case Show
FAQ
Q. Can you provide SDK?
A:Yes,we provide SDK,and it supports secondary development.
Q. How to choose the color of industrial camera?
A:If you do size measurement without detecting the color of the image, you can choose monochrome camera. Monochrome camera transmits a grayscale image, which is more conducive to size measurement.If you need to identify product chromatic aberration, such as comparison, a color camera is suitable for you.
Q. How to choose the shutter of industrial camera?
A:If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you.
Q. How to choose the shutter of industrial camera?
A:If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you.
Q. What is the maximum number of cameras supported to work at the same time?
A:As long as the trigger source is the same, you can take pictures synchronously.
Q. What is the difference about CCD and CMOS?
A:CCD has a better image quality than CMOS, but the price and power is higher.CMOS sensor has the characteristics of high sensitivity and high integration.
Q. Support after-sales?
A:Yes, Any questions about industrial camera can contact us.
