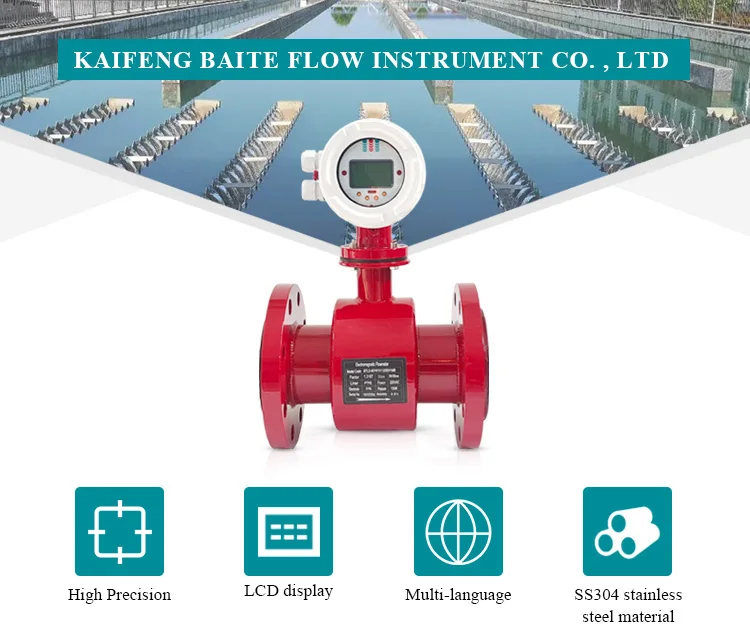

Chemical Cement Grout Flow Meter 6 Inch Integrated Electromagnetic Flowmeter
- Category: >>>
- Supplier: Kaifeng,Baite,Flow,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Chemical Cement Grout Flow Meter 6 Inch Integrated Electromagnetic Flowmeter

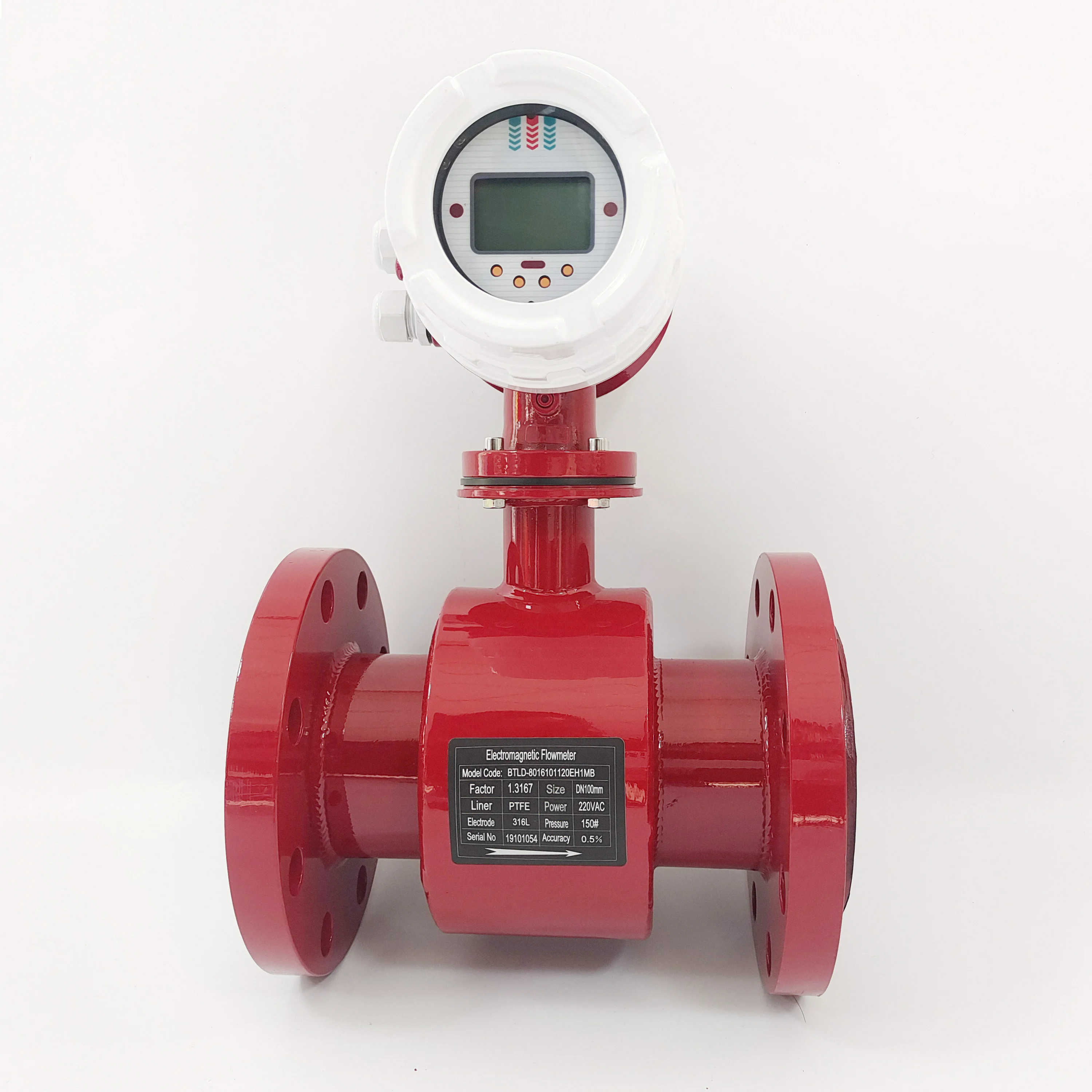

Product show

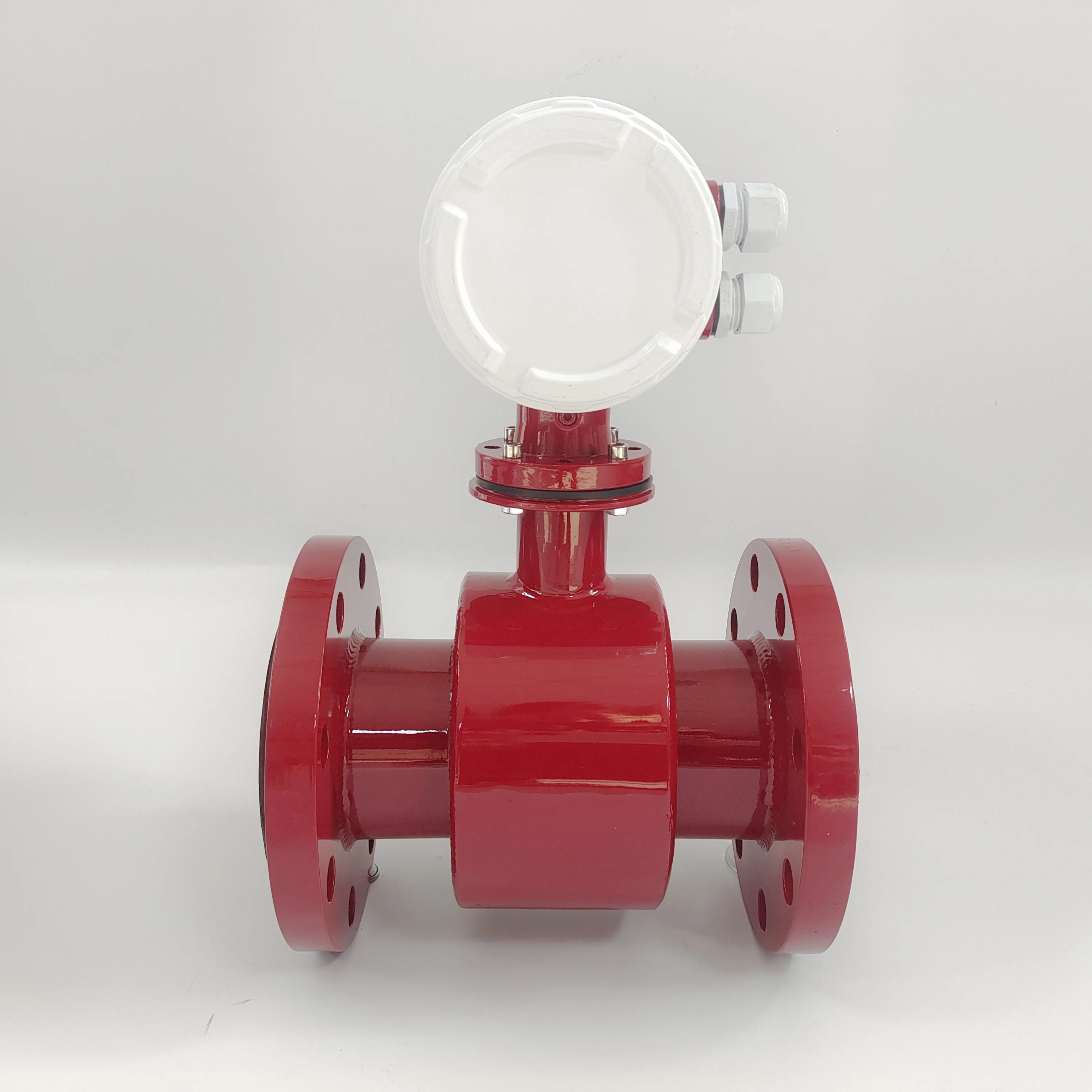

Detail image
Item | 6 Inch Integrated Electromagnetic Flowmeter |
Nominal diameter | DN10-3000mm |
Pressure | 0.6~4.0MPa ( Special pressure customize) |
Flow range | <15m/s |

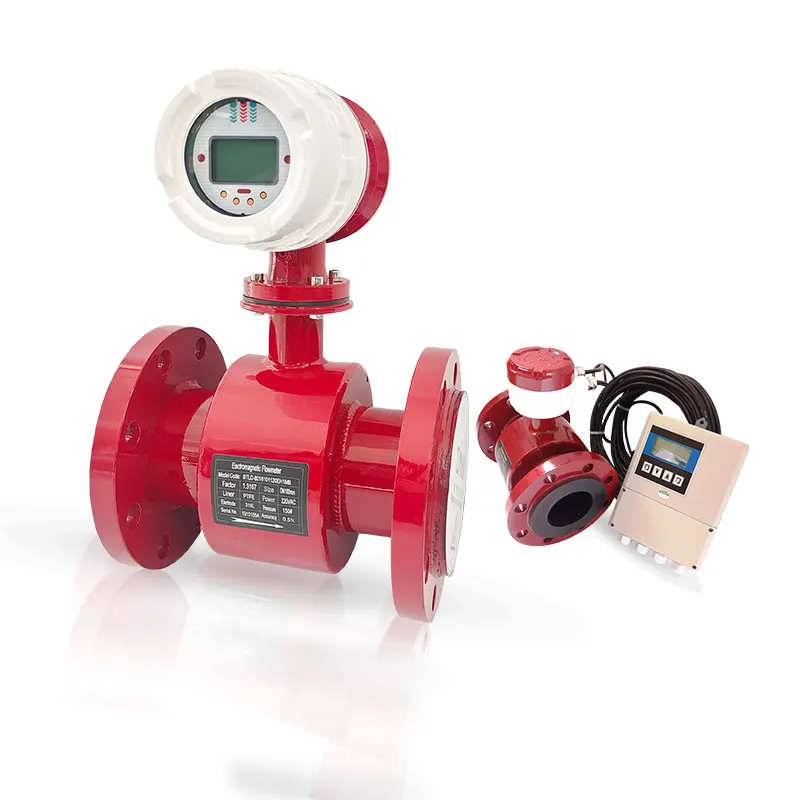

Structural style | Integrated type , Split type , Insert type, Battery type |
Protection Class | IP65, IP68 optional |
Medium Conductivity | ≥20μs/cm |

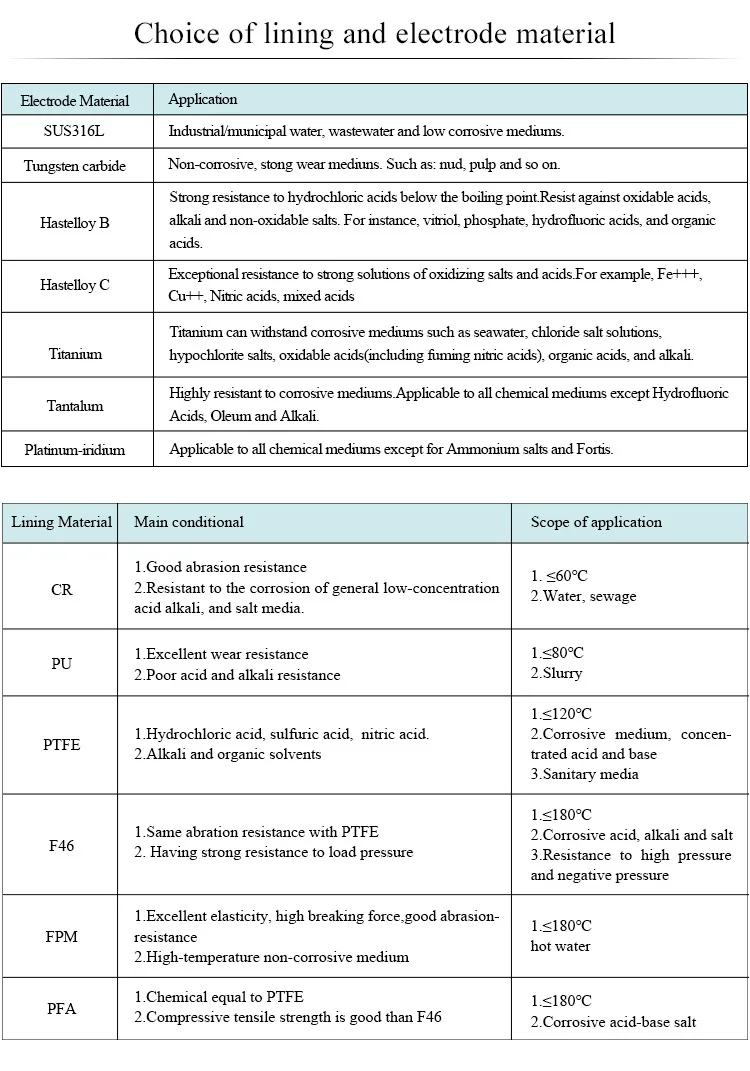

Liner Material | PU、PTFE、CR、FPM、F46、PFA |
Measuring medium | Conductive Liquid |
Accuracy | Indicated value ±0.5%, Optional values ±0.3% |
Electrode material | HB, HC, WC, 316L, Ti, Ta, Pt |
Connection | Flange Clamp Thread |
Power supply | 220VAC/ 24VDC/3.6V |
Certification | CE, ISO，ATEX |
Signal output | Pulse / 4~20mA / RS485 / HART/Modbus |
Application fields
