Product Overview

Description



Towline control cable wire A4 A5 A6 high power servo cable foil resistant water resistant drag chain towline cables for sale


Products Description






Highly flexible power cables are mainly used for control and power transmission systems, and are widely used in sensing technology, computer and instrument control equipment and control engineering; three cores and more have green/yellow protective grounding conductors, and the core wires are twisted into a cable stranded The pitch is short and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is: black, other colors can be selected according to needs.


Product Feature






Technical Parameter


Conductor stranding
Stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6, column 4
Insulation resistance
minimum 100 M Ohm x Km
Insulation material
Modified PVC
Temperature range:
-20°C to +80°C
Core recognition
Color core
Outer sheath
Modified PVC mate
Color
black (other colors can be customized)
Bending radius
Mobile installation 7.5×cable diameter
Fixed installation 6x cable diameter
Nominal voltage
Uo/U 300/500 V
Test voltage
2000 V
Application:
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors,
drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.

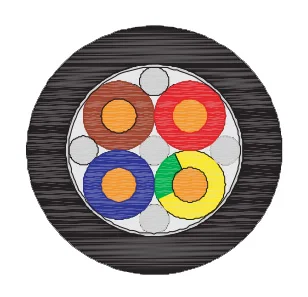

Cable Structure

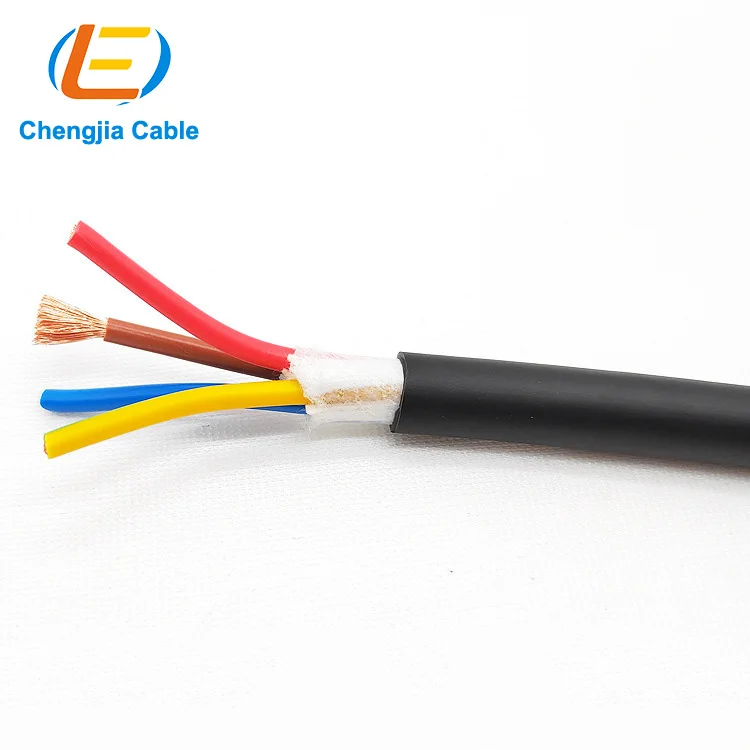

Power Cable Structure
1. Bare copper conductor, thin copper wire
Comply with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core is stranded in layers with the best pitch
5. With yellow and green grounding wire (3 cores and above)
6. Special PVC outer sheath
7. Black (RAL 9005) matte


No.
Product Code
Cores Number and cross-sectional area
(NO.Xm㎡)
Approximate outer diameter （mm)
Outer sheath color
20℃  Conductor DC resistance
Ω/km
1
YY507.02.0050
2x0.5
5.8
Black
39
2
YY507.04.0050
4G0.5
6.8
Black
39
3
YY507.04.0075
4G0.75
7.2
Black
26
4
YY507.04.0100
4G1.0
7.8
Black
19.5
5
YY507.04.0150
4G1.5
8.9
Black
13.3
6
YY507.04.0250
4G2.5
10.8
Black
7.98
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters




One-stop procurement service provider:
complete varieties of ordinary, highly flexible, and ultra-high flexible cables
1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;
2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;
3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;
4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;
5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;
6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;
7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;
8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;
9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;
10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.


Company Profile






Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
