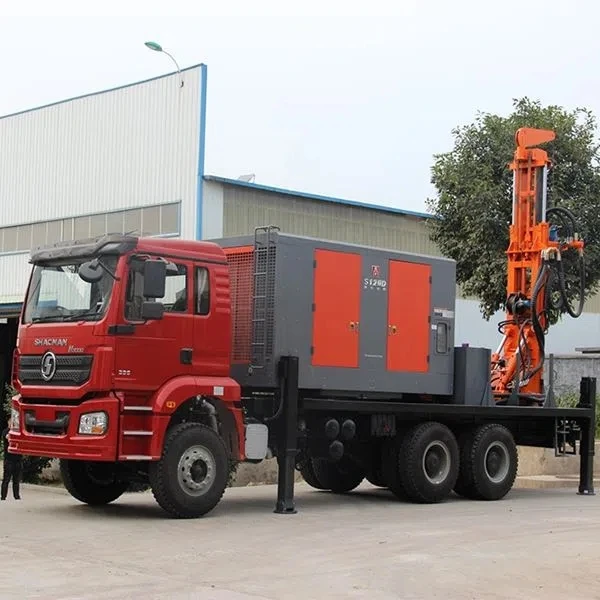

Bore Well Sino Truck Water Drilling Rig 300M Depht Water Boring Machine
- Category: >>>
- Supplier: Henan Chongda Machinery Co. Ltd.
Share on (1600486785249):
Product Overview
Description
Technical Data
Dimension | mm | 10600×2500×3550 | |
Weight | t | 13 | |
Drilling diameter | mm | 140-300 | |
Drilling depth | m | 200 | |
Feed stroke | mm | 3400 | |
Travel speed | km/h | 80 | |
Grade ability | Max. | 30° | |
Wind pressure | Mpa | 1.7-3.0 | |
Air consumption | m³/min | 15-35 | |
Drill pipe diameter | mm | φ89/ 102 | |
Drill pipe length | m | 3 | |
Lifting force | T | 18 | |
Drilling rig Engine power | kw | 70 | |
Rotary speed | rpm | 45-115 | |
Rotation torque | N.m | 6200-9000 | |
Mud pump | 450L/min | BW250 (optional item ) | |
Carrying vehicle | truck | ||
Load vehicle engine | 260HP | ||
Driving form | 6X4 | ||
Steering wheel | Right position | ||
Air compressor | 22/21,21m3/min ,21bar ,238KW Yuchai engine | ||
Product Description
1.Product Description

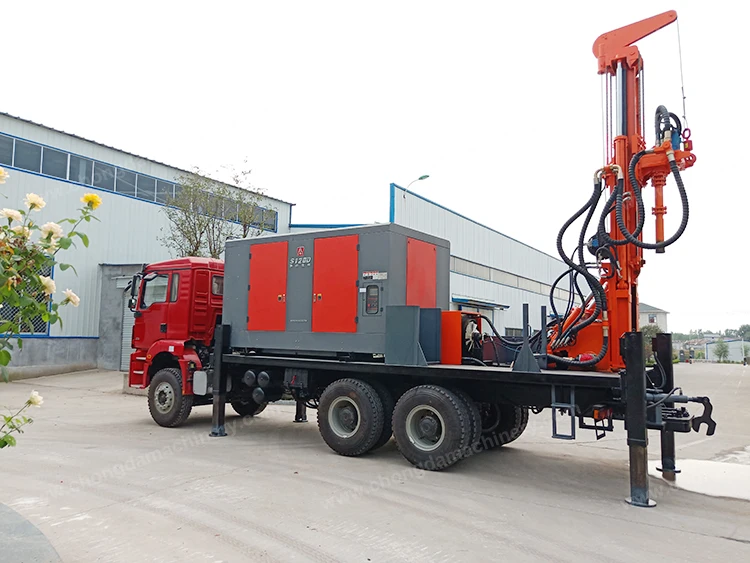

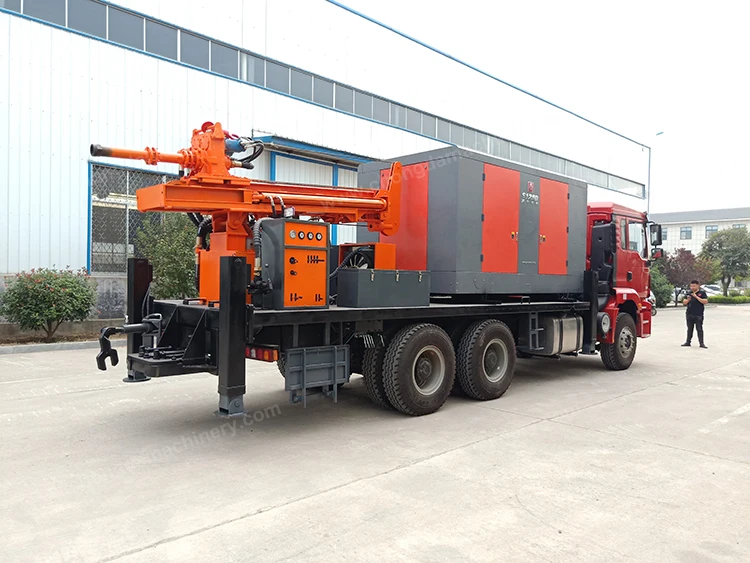

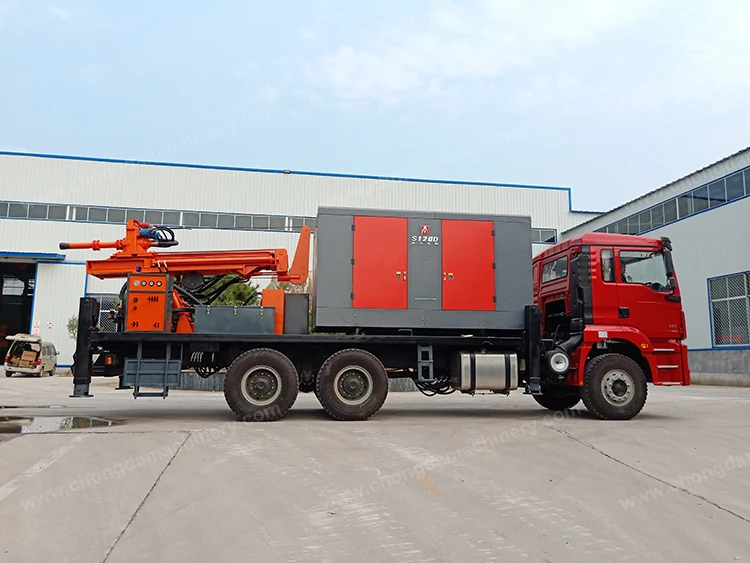

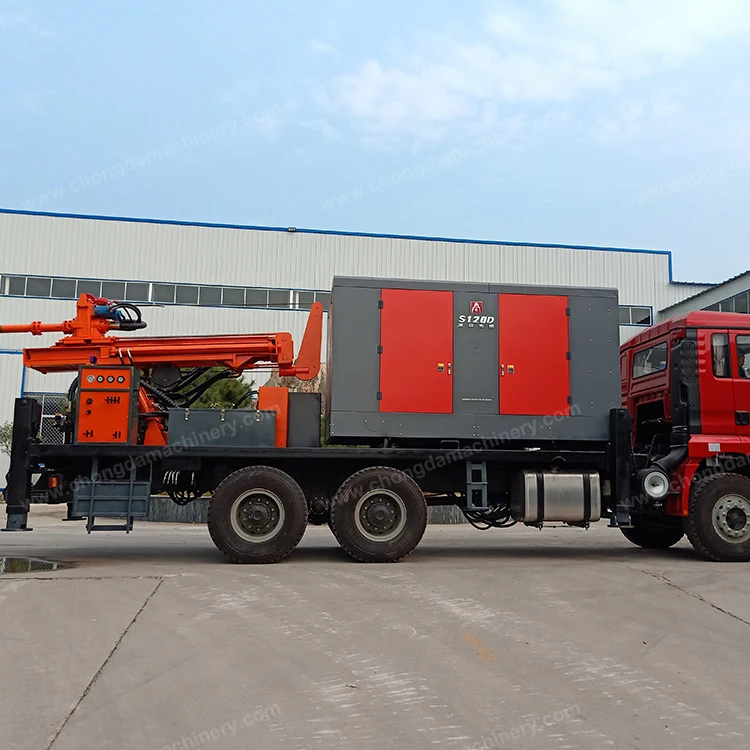

MCDT200 hydraulic truck mounted water well drilling machine is one new design deep well drilling machine, the drilling rig and air compressor and other parts mounted into the truck, convenient to use and transport, it is 6X4 Dongfeng truck-mounted, easy to moving to anyplace, it is top head driving, both mud pump drilling, and air compressor drilling Adopting the newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection, our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation, etc projects.
2.Product Feature
Prodcut Name：
MCDT200 Truck Mounted Water Well Drilling Rig
Function:
Mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation, etc
projects.
projects.
Advantage
1, Easy and flexible full hydraulic control
The water drilling rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be
adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.
2, Top-drive slewing propulsion lift
This borewell rig is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with
the pipe.
3, Multifunctional drilling process
This drilling rig adopts air DTH drilling and mud pump circulation drilling process. it is optional items to install mud pumps,
foam pumps, and generators into the drilling machine chassis
4, High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various
drilling tools, with convenient and flexible control, fast drilling speed, and short auxiliary time, so the operation efficiency
is high.
5, low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.
6, walking device
walking with 6X4 Dongfeng Truck, with 260HP Cummins engine
7, Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
The water drilling rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be
adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.
2, Top-drive slewing propulsion lift
This borewell rig is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with
the pipe.
3, Multifunctional drilling process
This drilling rig adopts air DTH drilling and mud pump circulation drilling process. it is optional items to install mud pumps,
foam pumps, and generators into the drilling machine chassis
4, High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various
drilling tools, with convenient and flexible control, fast drilling speed, and short auxiliary time, so the operation efficiency
is high.
5, low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.
6, walking device
walking with 6X4 Dongfeng Truck, with 260HP Cummins engine
7, Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
8, hydraulic oil pump
parallel gearbox design (patent) oil pump unit separate, the power supply is adequately allocated, a hydraulic system unique design, maintenance, and simple cost;
9, powerhead device
gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
10, lifting force
patent design composite boom, small arm volume, long-stroke, double cylinder lifting, increase tonnage;
11. Each rig is equipped with a stopper to raise the boom to protect the cylinder and ensure work safety;
12. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life.
13.Lifting force
design composite tower, 3.4m long-stroke, double cylinder lift capacity 18 ton.
parallel gearbox design (patent) oil pump unit separate, the power supply is adequately allocated, a hydraulic system unique design, maintenance, and simple cost;
9, powerhead device
gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
10, lifting force
patent design composite boom, small arm volume, long-stroke, double cylinder lifting, increase tonnage;
11. Each rig is equipped with a stopper to raise the boom to protect the cylinder and ensure work safety;
12. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life.
13.Lifting force
design composite tower, 3.4m long-stroke, double cylinder lift capacity 18 ton.
