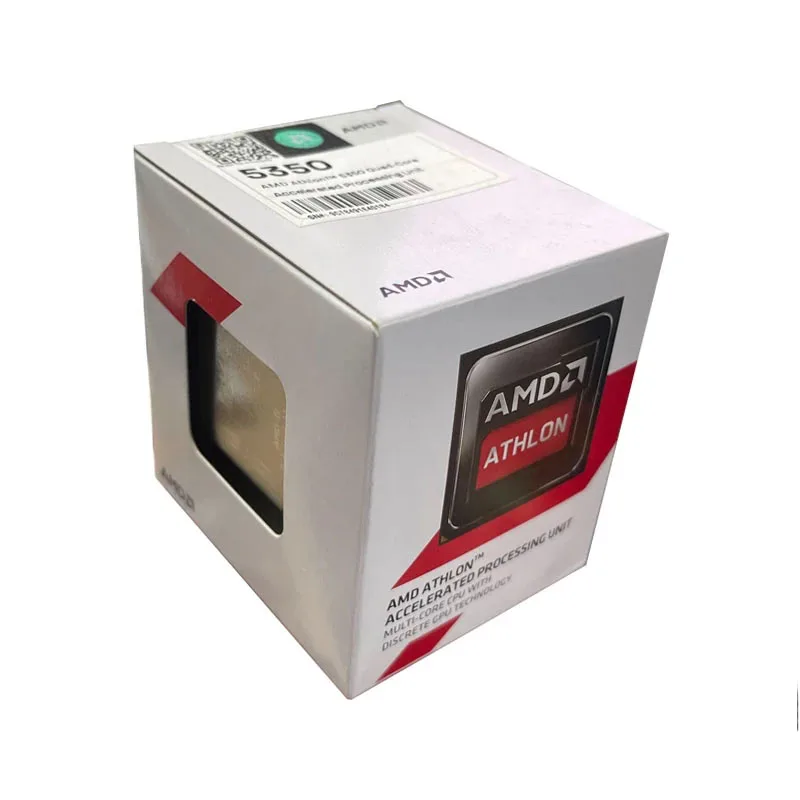

For AMD Athlon 5350 X4 5350 2.05 GHz Quad Core Quad Thread CPU Processor Socket AM1 Sealed New and come with coole

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Model number  ?

5350

CPU part numbers

•


  AD5350JAH44HM is an OEM/tray microprocessor





•


  AD5350JAHMBOX is a boxed microprocessor with fan and heatsink




Frequency ?

2050 MHz

Package

721-pin lidded organic micro Pin Grid Array (UOF721)

Socket

Socket AM1 / FS1b

Size

1.38" x 1.38" / 3.5cm x 3.5cm

Weight

1oz / 29.5g

Introduction date

April 9, 2014

Price at introduction

$55

Architecture / Microarchitecture

Microarchitecture

Jaguar

Processor core  ?

Kabini

Core stepping  ?

KB-A1

CPUID

700F01

Manufacturing process

0.028 micron

Data width

64 bit

The number of CPU cores

4

The number of threads

4

Floating Point Unit

Integrated, 128-bit wide

Level 1 cache size  ?

4 x 32 KB 2-way set associative instruction caches
4 x 32 KB 8-way set associative write-back data caches

Level 2 cache size ?

2 MB 16-way set associative shared inclusive cache

Level 3 cache size

None

Cache latency

3

Physical memory

16 GB

Pipeline

16-stage [1]

Multiprocessing

Uniprocessor

Extensions and Technologies

•


  MMX instructions





•


  Extensions to MMX





•


  SSE / Streaming SIMD Extensions





•


  SSE2 / Streaming SIMD Extensions 2





•


  SSE3 / Streaming SIMD Extensions 3





•


  SSSE3 / Supplemental Streaming SIMD Extensions 3





•



  SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?





•



  SSE4a  ?





•


  AES / Advanced Encryption Standard instructions





•


  AVX / Advanced Vector Extensions





•


  BMI1 / Bit Manipulation instructions 1





•


  F16C / 16-bit Floating-Point conversion instructions





•



  AMD64 / AMD 64-bit technology  ?





•


  AMD-V / AMD Virtualization technology




Security Features

•



  EVP / Enhanced Virus Protection  ?




Low power features

•


  Core C1 and CC6 states





•


  Package PC6 state





•


  S3, S4 and S5 sleep states





•


  PowerNow!




Integrated peripherals / components

Integrated graphics

GPU Type: Radeon R3 series
Microarchitecture: Sea Islands
Shader cores: 128
Base frequency (MHz): 600
The number of supported displays: 2

Memory controller

The number of controllers: 1
Memory channels: 1
Channel width (bits): 64
Supported memory: DDR3-1600, DDR3L-1600
DIMMs per channel: up to 2
Maximum memory bandwidth (GB/s): 12.8
ECC supported: Yes

Other peripherals

•


  PCI Express 2.0 interface (4 lanes)





•


  Universal Video Decoder 4.2





•



  Video Compression Engine 2.0  ?





•


  High Definition Audio





•


  SD controller





•


  USB 3.0 controller





•


  Serial ATA 3.0 controller





•


  LPC bus





•


  General Purpose I/O




Electrical / Thermal parameters

V core  ?

0.5V - 1.4V

Maximum operating temperature  ?

90°C

Thermal Design Power ?

25 Watt
