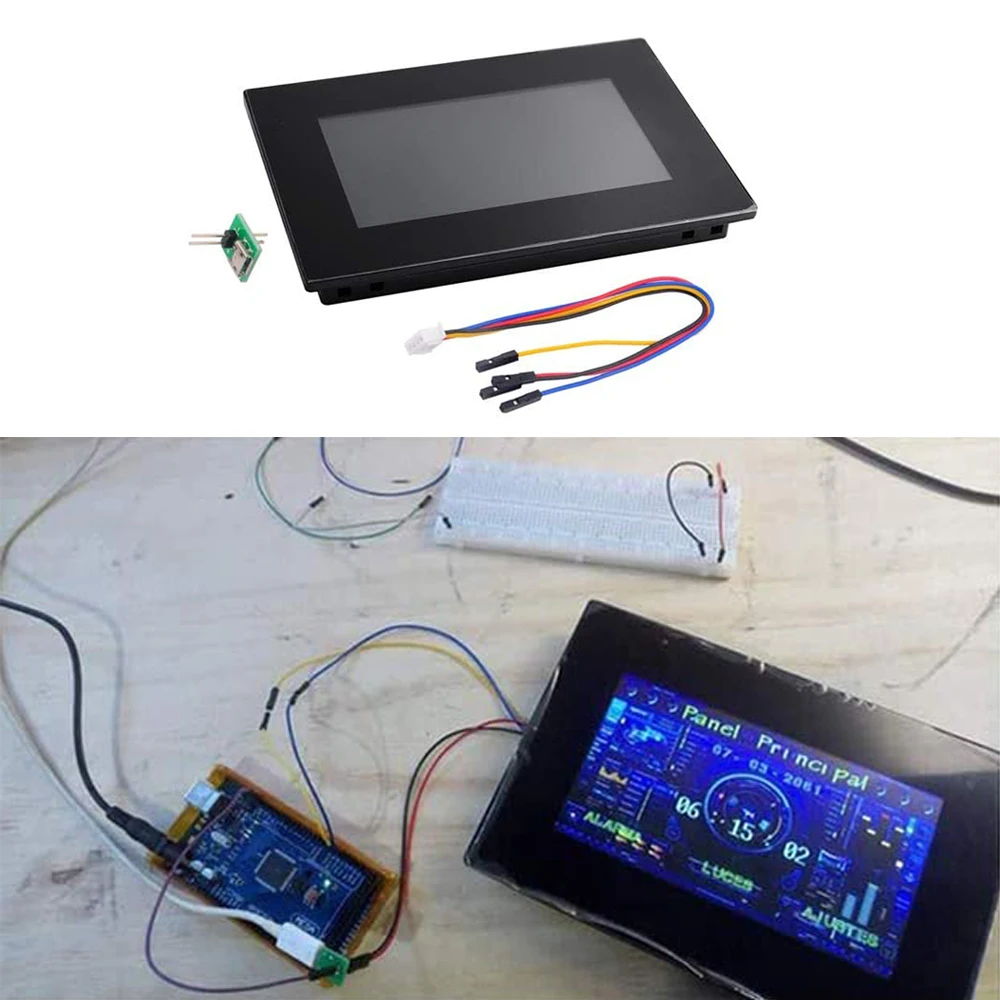

7 inch Enhanced NX8048K070 011C HMI Capacitive Touch Screen TFT LCD Display 800x480 with Enclosure Case for Arduino Raspberry Pi
- Category: >>>
- Supplier: Bofeng intelligent (Shenzhen) Co. Ltd
Share on (1600487125331):
Product Overview
Description
About this item

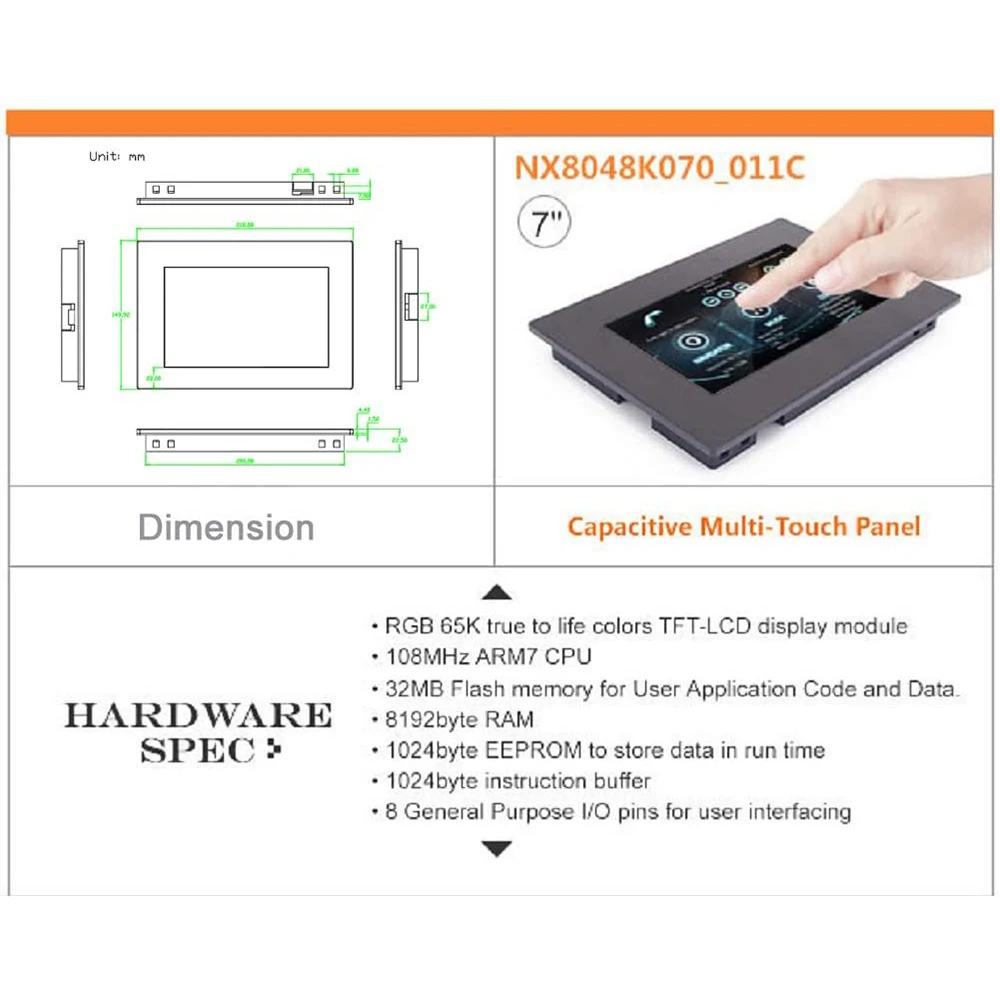

* Nextion Enhanced NX8048K070_011C is a powerful 7.0'' HMI TFT capacitive touch display with a beautiful enlcosure, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM, and GPIO supported.

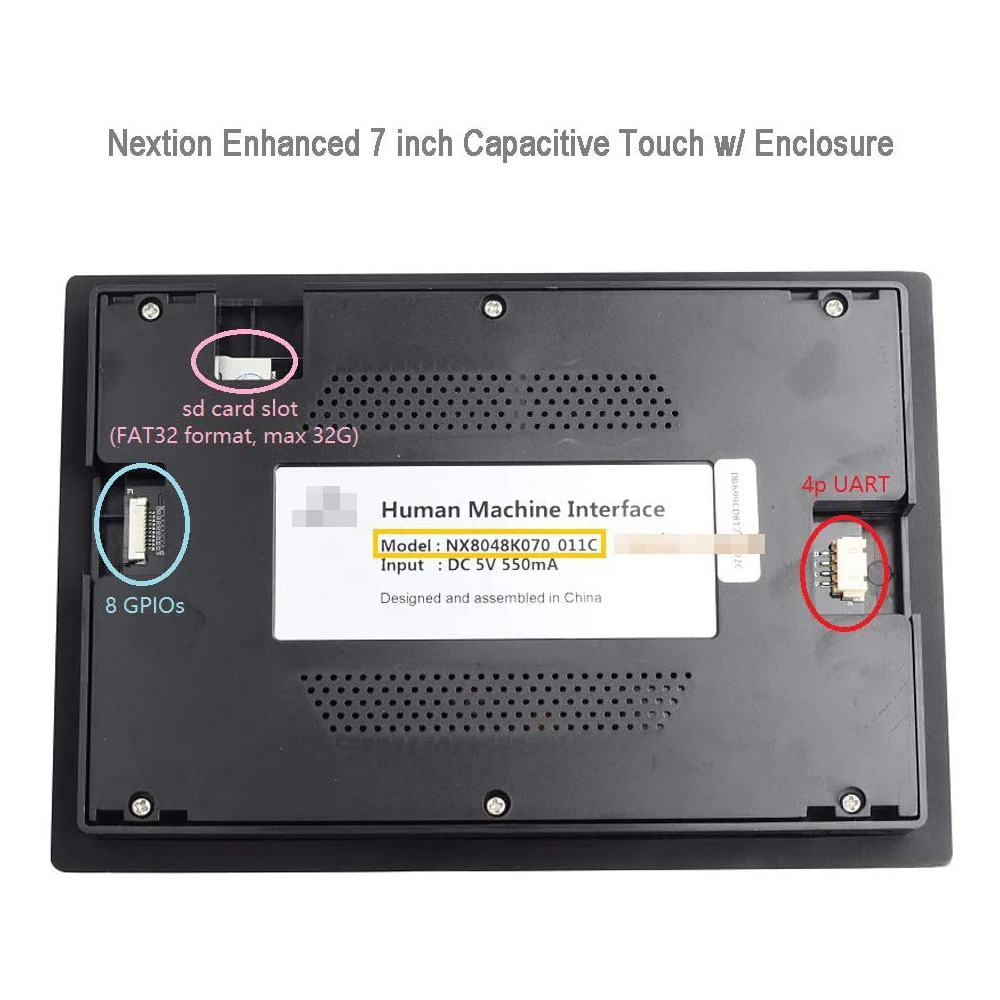

* Nextion 7 enhanced supports built-in RTC, GPIO, max 32G Micro TF/SD card (FAT32 file format)
Product Description
Firstly, Nextion is easy to use. With the Nextion Editor software, you can easily create an intuitive touch user interface even if you are a beginner.
For example, adding a static picture as your background and defining functions by components, you can easily and quickly make a simple GUI in only a few minutes.
With the drag and drop components and simple ASCII text-based instructions, you do not have to spend a huge amount of time on your HMI project development.

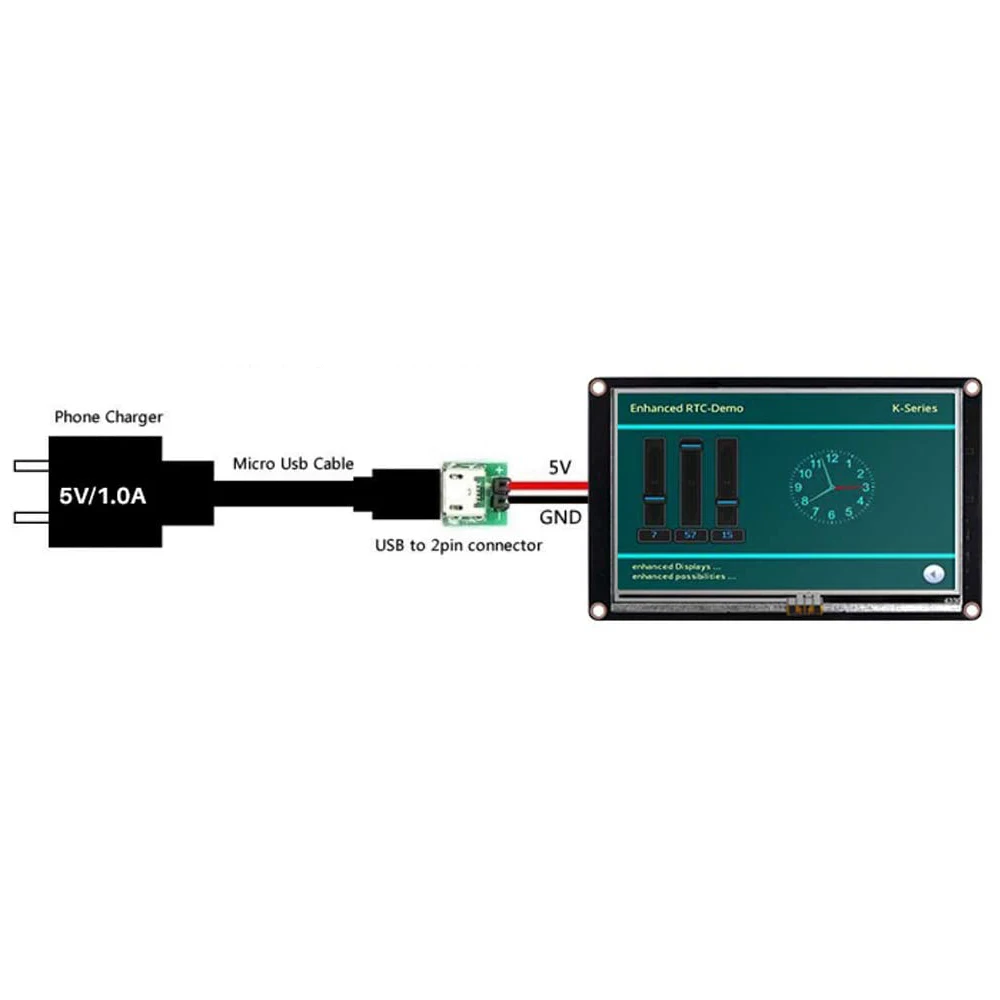

Nextion Display Connection
Nextion display has a built-in ARM microcontroller that controls display, for example it takes care of generating buttons,creating text, store images or change background. Nextion display communicates with any microcontroller using serial at a 9600 baud rate
So, Nextion screen works with any board that has serial capabilities like Raspberry Pi, ESP8266, ESP32 etc.
Upload TFT file to Nextion Display
-Format your card and ensure it's FAT32 format
-Open Nextion Editor,HMI file, check compile,then it will show "Compile Successful!"
-Click "TFT file output", Save this TFT file in your card. Pls make sure there is only one TFT file in your card
-Insert card to Nextion card slot, power Nextion display
-On nextion display, it shows " SD Card Update...." when it start to upload file.
-After file uploaded, nextion display shows "Update Successed!"
Nextion Display Weather Station Kit
Nextion display could be used together with other accessories to assemble DIY kit, for example weather station kit.
