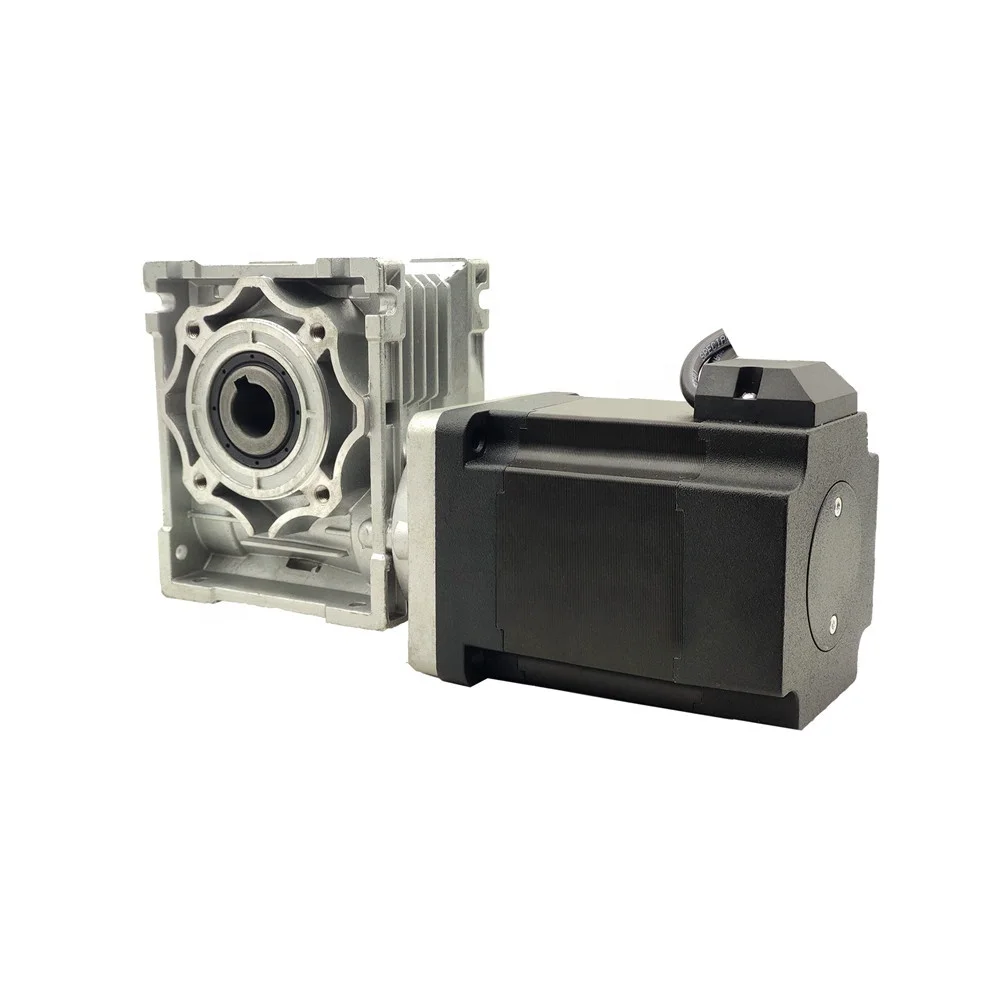

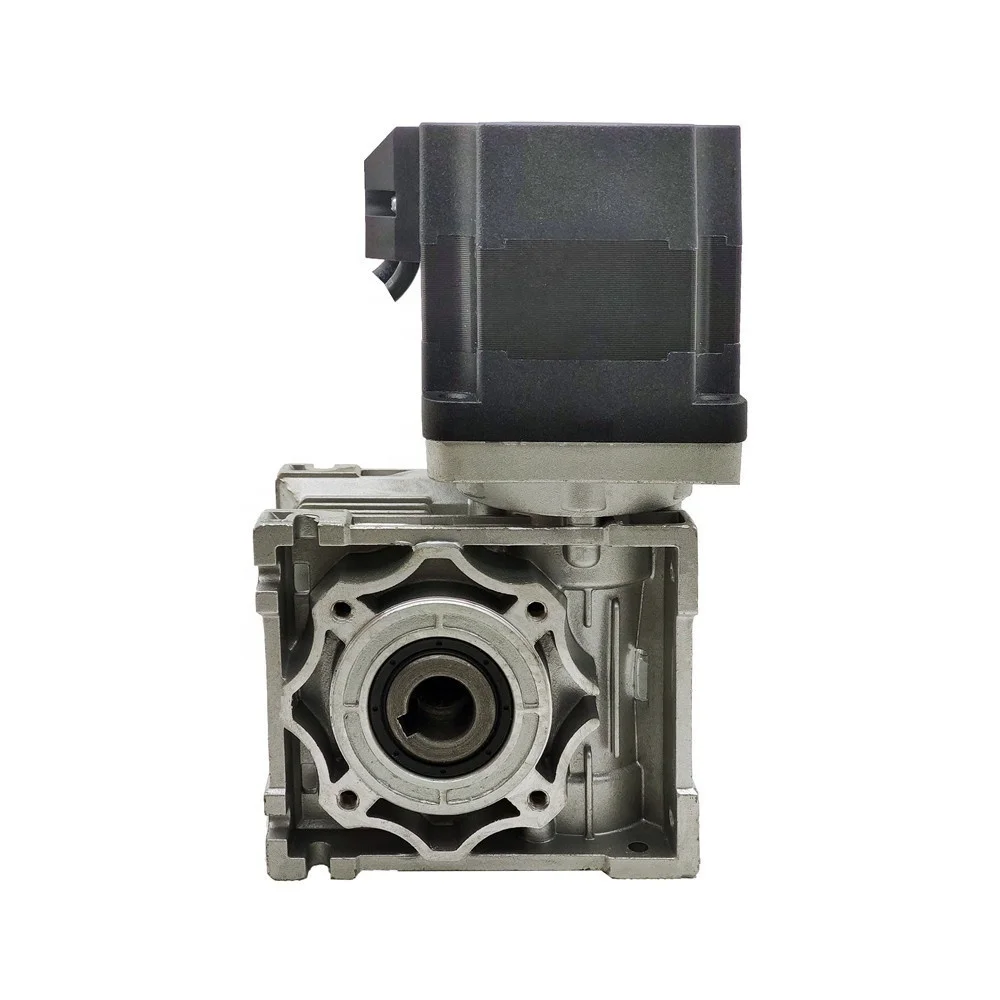

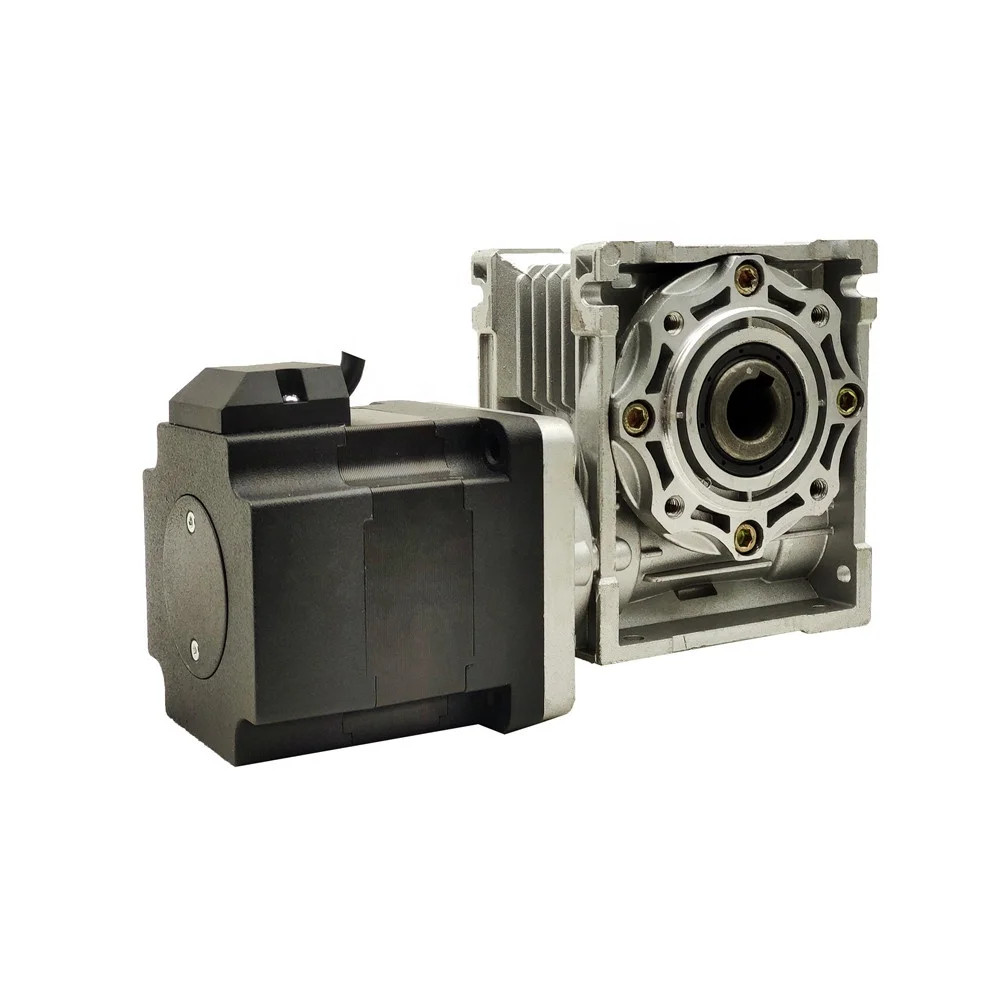

785W 86mm BLDC Motor Worm geared Brushless Dc Motor with worm gear reducer 48V/310V NEMA34 Gearbox
- Category: >>>
- Supplier: Shenzhen Jingbo Mechanical & Electrical Co. Ltd.
Share on (1600487126302):
Product Overview
Description
If you need 3D model of the motor, please give us your email address and we will email you it.
Specification:
Model | Voltage (VDC) | Motor Rated Parameters | Motor Peak Torque (N.m) | Torque Constant (N.m/A) | Back EMF (V/k RPM) | Motor Rotor Inertia (kg.mm2) | Length (L:mm) | Weight (kg) | Gear Ratio | |||
Speed (rpm) | Torque (N.m) | Current (A) | Power (W) | |||||||||
J86BLSWG80-430A | 48 | 3000 | 1.0 | 8.5 | 314 | 3.0 | 0.133 | 9.8 | 120 | 200 | 4.9 | 5:1 7.5:1 10:1 15:1 20:1 25:1 30:1 40:1 50:1 60:1 80:1 100:1 |
J86BLSWG105-430A | 3000 | 1.8 | 14.8 | 565 | 5.4 | 0.133 | 9.8 | 200 | 225 | 6.0 | ||
J86BLSWG115-430A | 3000 | 2.1 | 18 | 659 | 6.3 | 0.133 | 9.7 | 260 | 235 | 6.4 | ||
J86BLSWG130-430A | 3000 | 2.5 | 19.5 | 785 | 7.5 | 0.138 | 10.2 | 320 | 250 | 6.9 | ||
J86BLSWG130-630A | 310 | 3000 | 2.5 | 3.3 | 785 | 7.5 | 0.8 | 62 | 320 | 250 | 6.9 | |

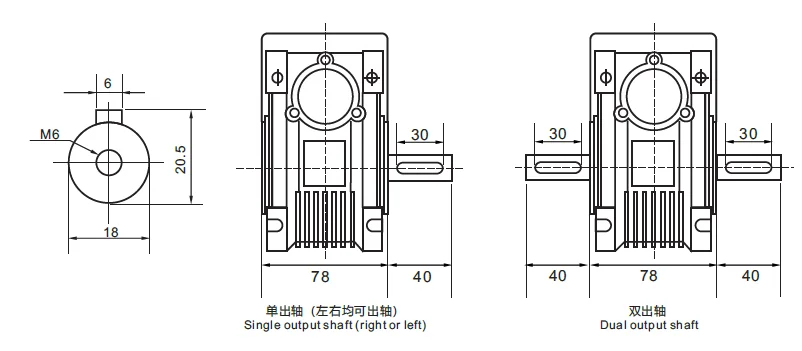

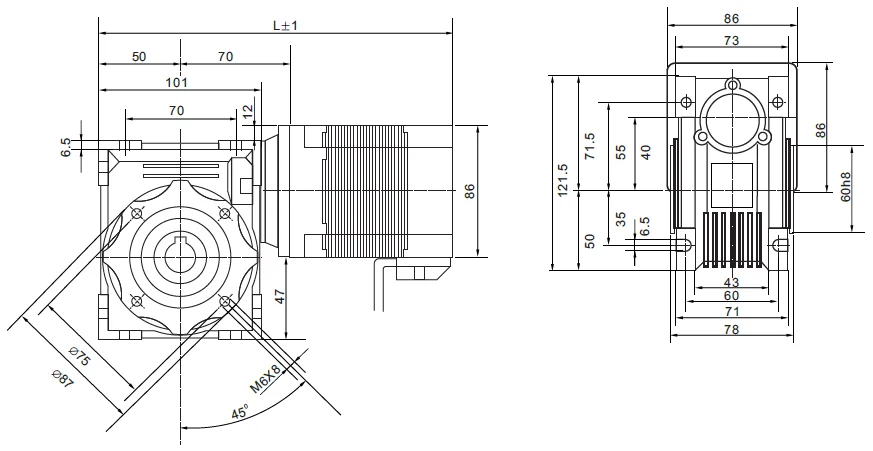

Dimension Unit:mm
Wiring Diagram
