Whipped Cream Ketchup Bottle Chili Sauce Shampoo Jam Servo Filling Machinery automatic filling machine
- Category: >>>
- Supplier: Hephis Intelligence Technology(Fujian) Co. Ltd.
Share on (1600487302901):
Product Overview
Description
Product Description

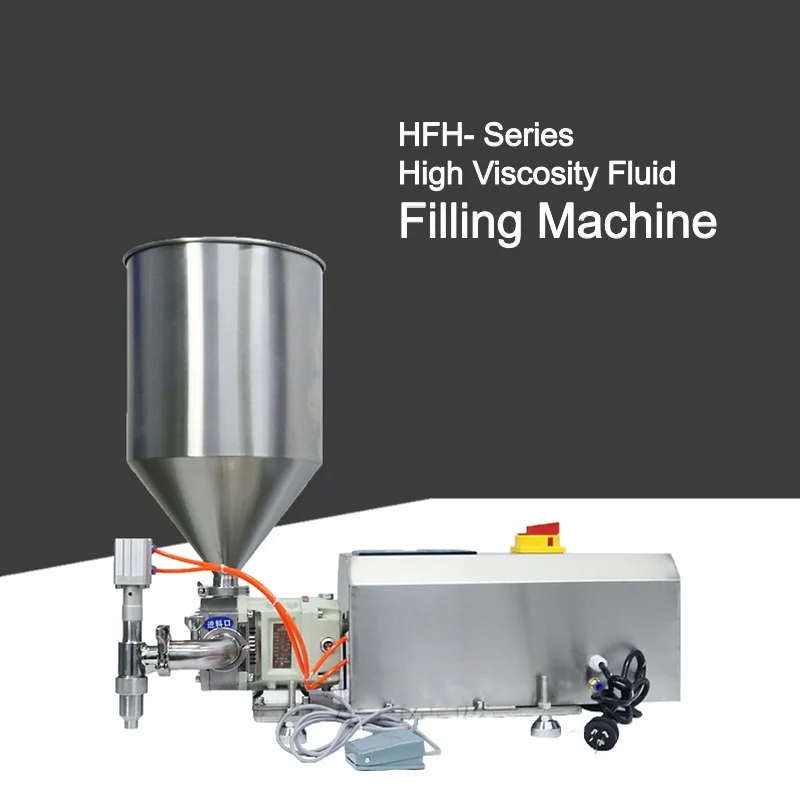

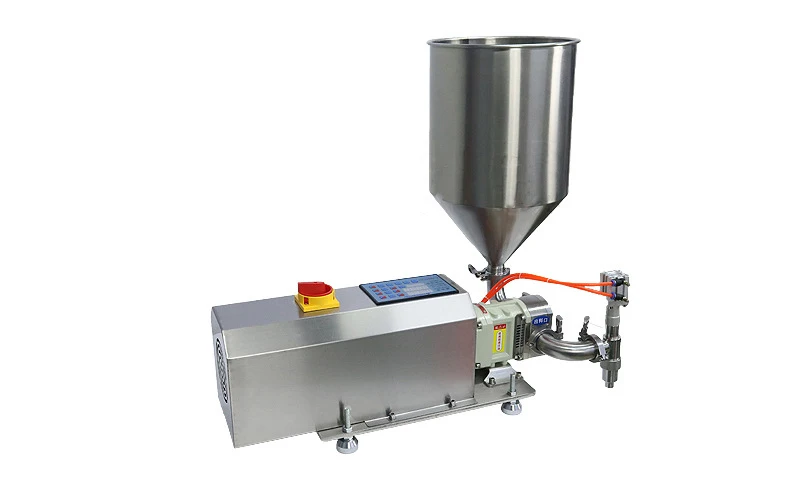

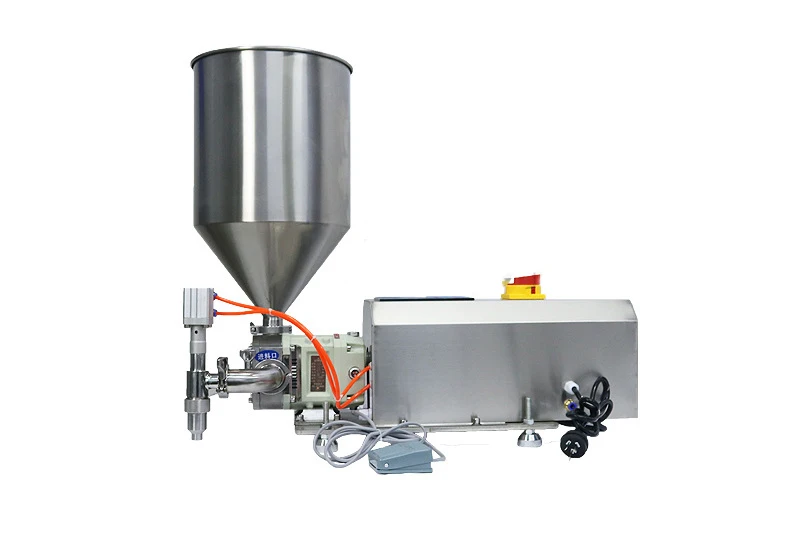

HEPHIS High Viscosity Fluid Filling Machine
HEPHIS HFH-series filling machines are specially designed for the filling of high viscosity fluids.

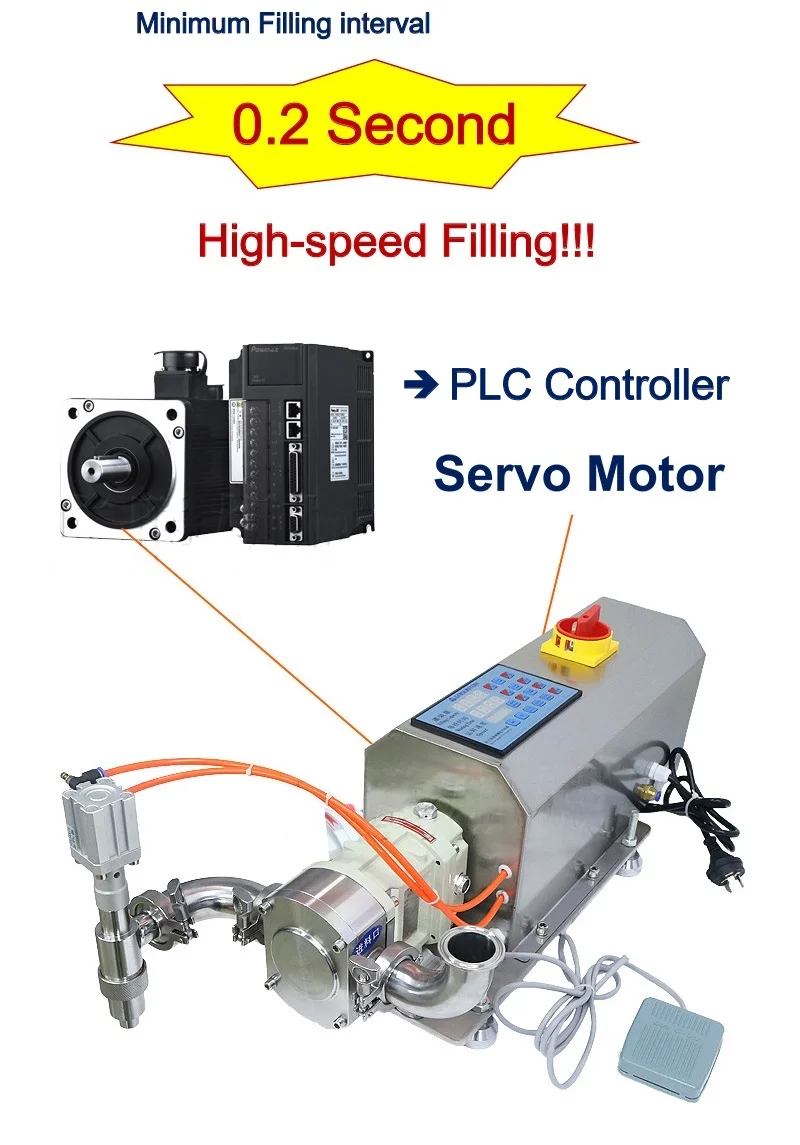

They use Servo Motor + Servo Controller + Cam Rotor Pump + PLC Control System,
which can fill fluids with Maximum Viscosity of 1000000cps.
The Flow Range is 5ml-200L.
They are High Precision Filling Machine, The Precision is ±1ml/1g.

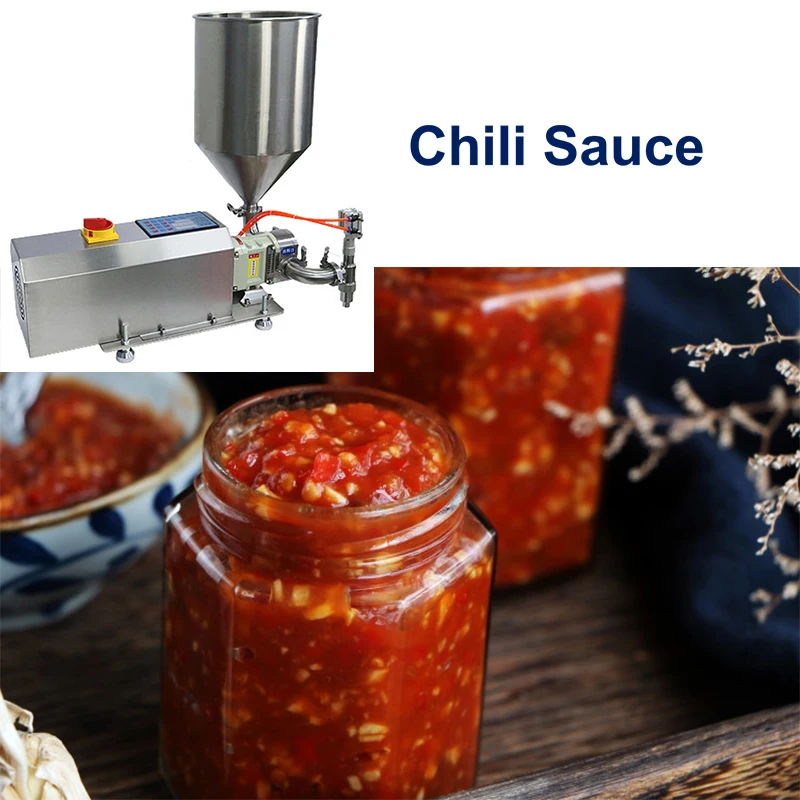

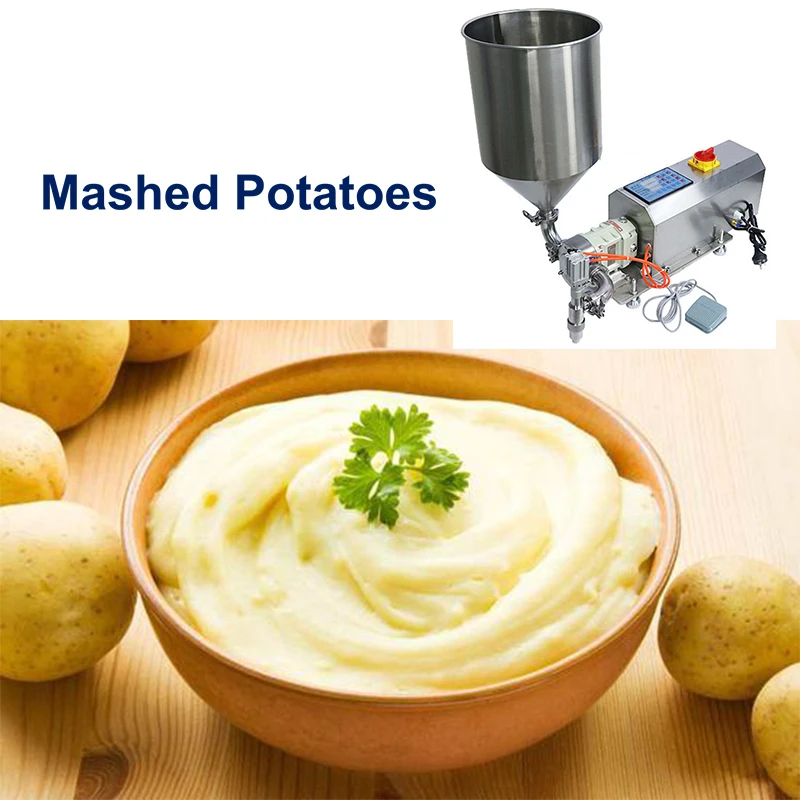

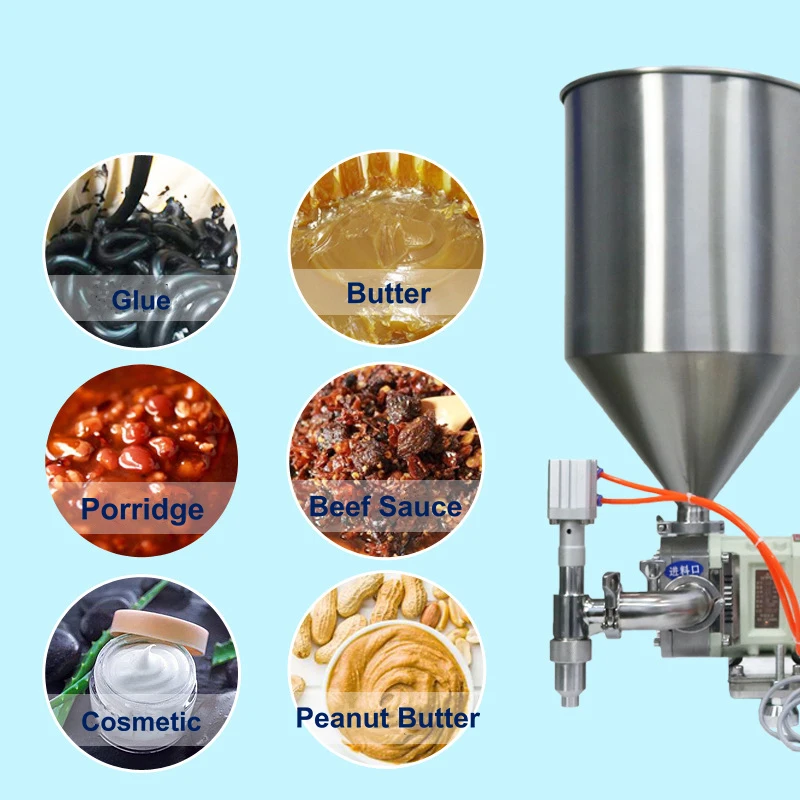

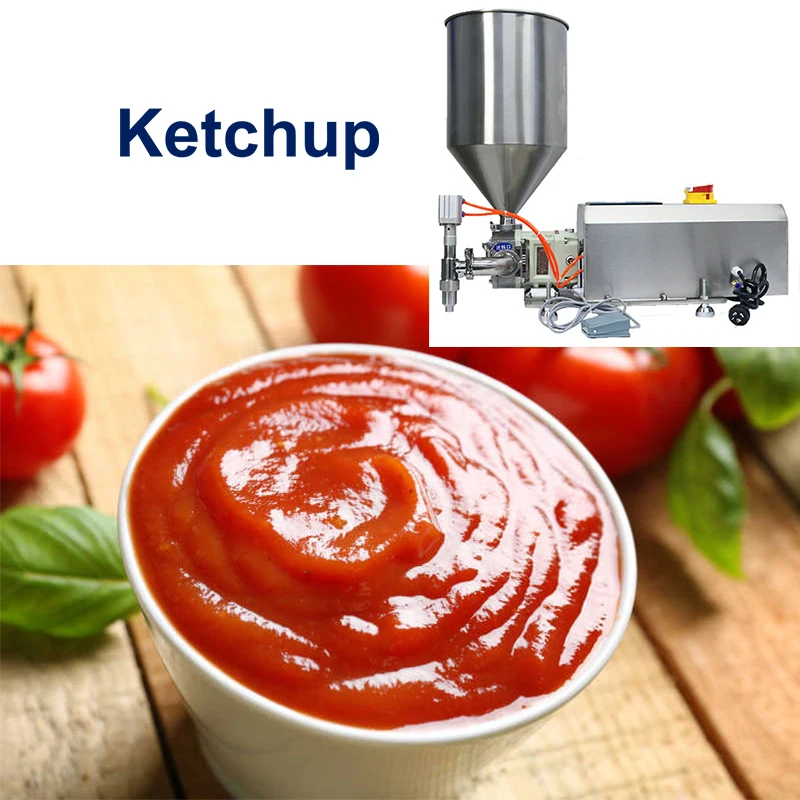

HFH-series filling/bottling machines can be used for food filling, such as ketchup, chili sauce, mashed potatoes, honey, oil, etc.
HFH-series filling/bottling machines can be used for chemical filling, such as paints, viscous agents, glues, etc.
HFH-series filling/bottling machines can be used for food filling, such as ketchup, chili sauce, mashed potatoes, honey, oil, etc.
HFH-series filling/bottling machines can be used for chemical filling, such as paints, viscous agents, glues, etc.
Working Principle
Product Video
Product Paramenters
NAME | Semi-automatic high viscosity fluid filling machine |
Flow Range | 5ml-50000ml One Action |
Filling Accuracy | ±1 g |
Motor Type | Servo Motor & Servo Controller |

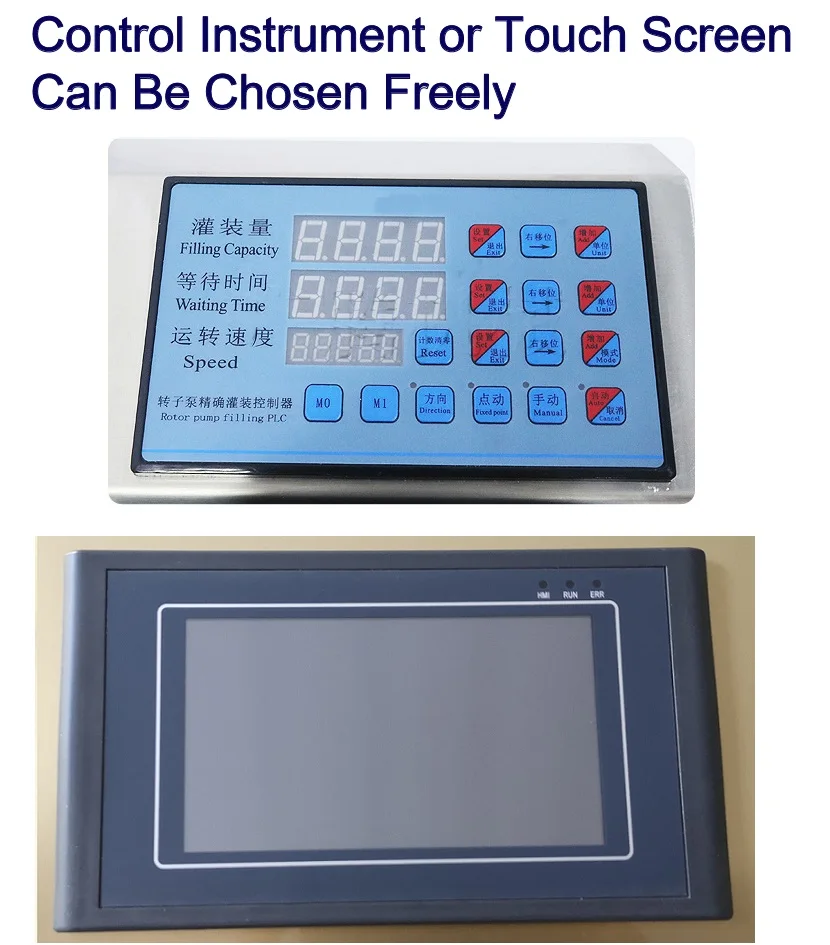

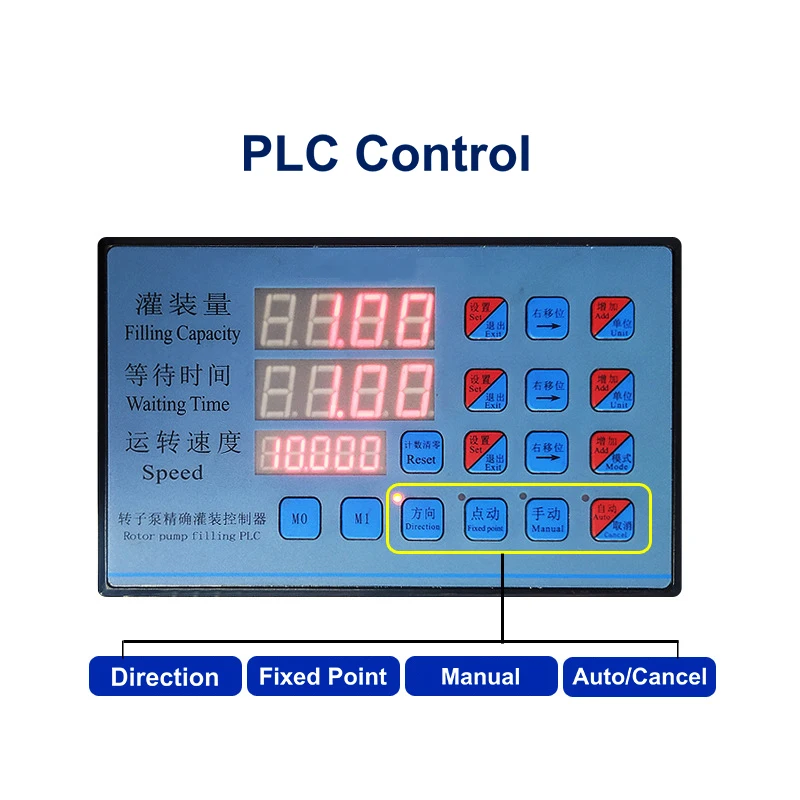

Control Mode | PLC |

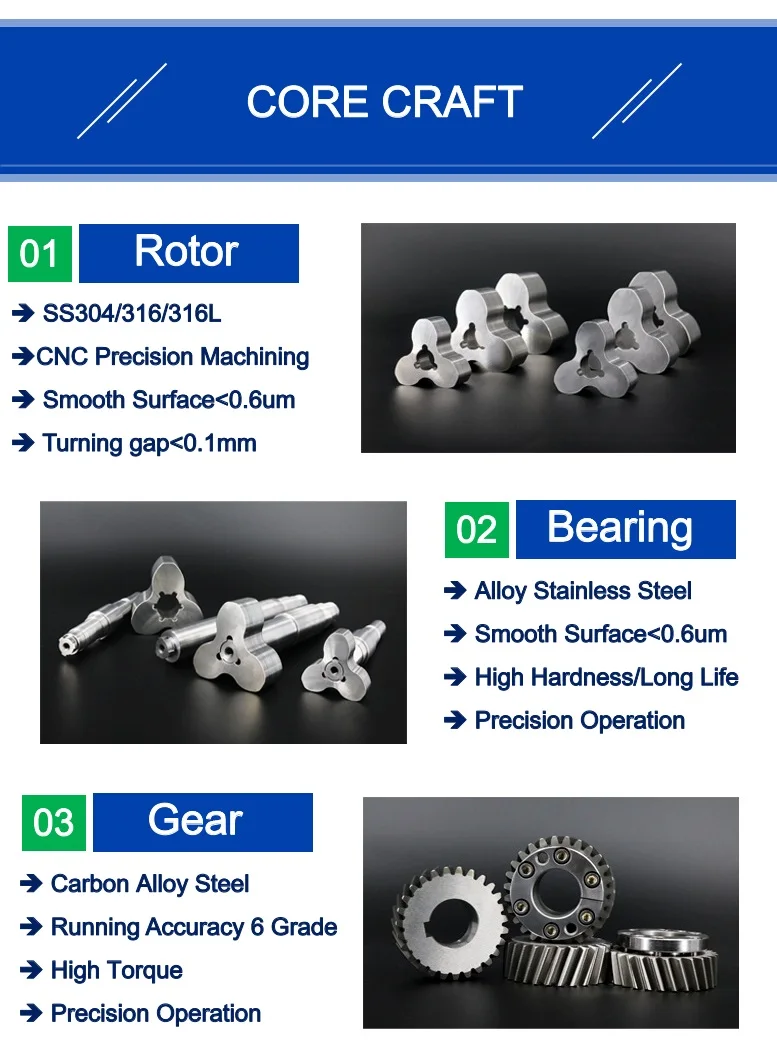

Pump Type | Cam Rotor Pump |
Power | Electricity/0.75KW-2.2KW |
Power Supply | AC110/220/380/410V 50/60Hz |
Compressed Air | Only For ON/OFF Leak Proof Cylinder Valve |
Air Pressure | 0.4-0.8MPa |
Air Consumption | 0.1m3/min |

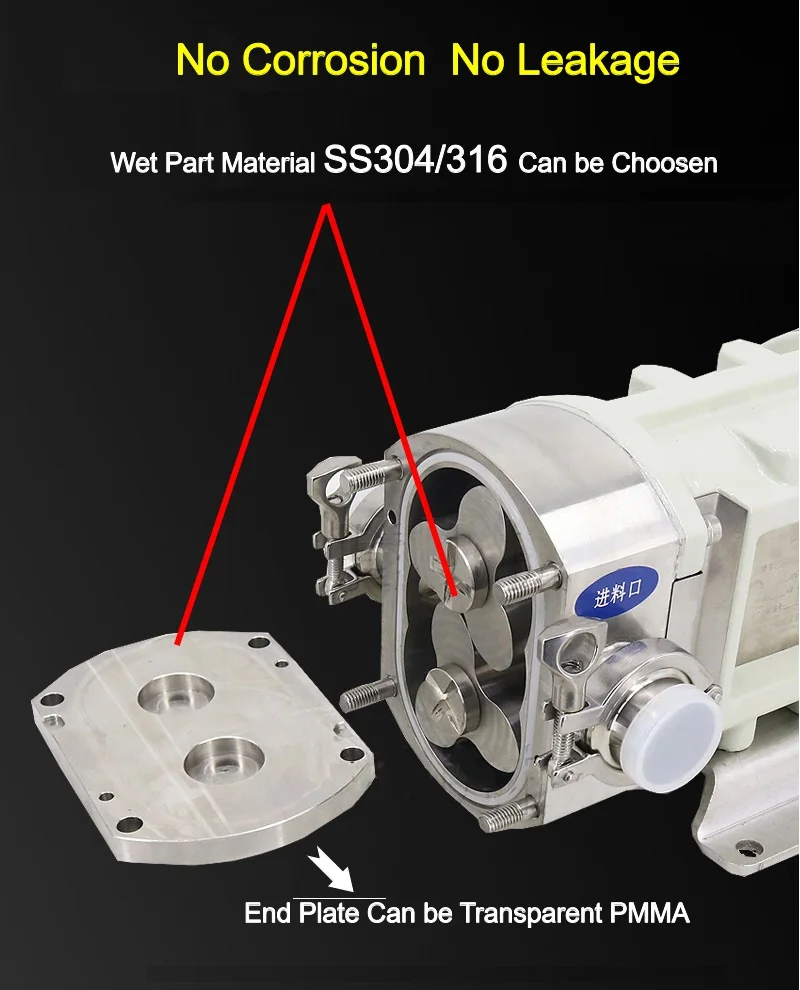

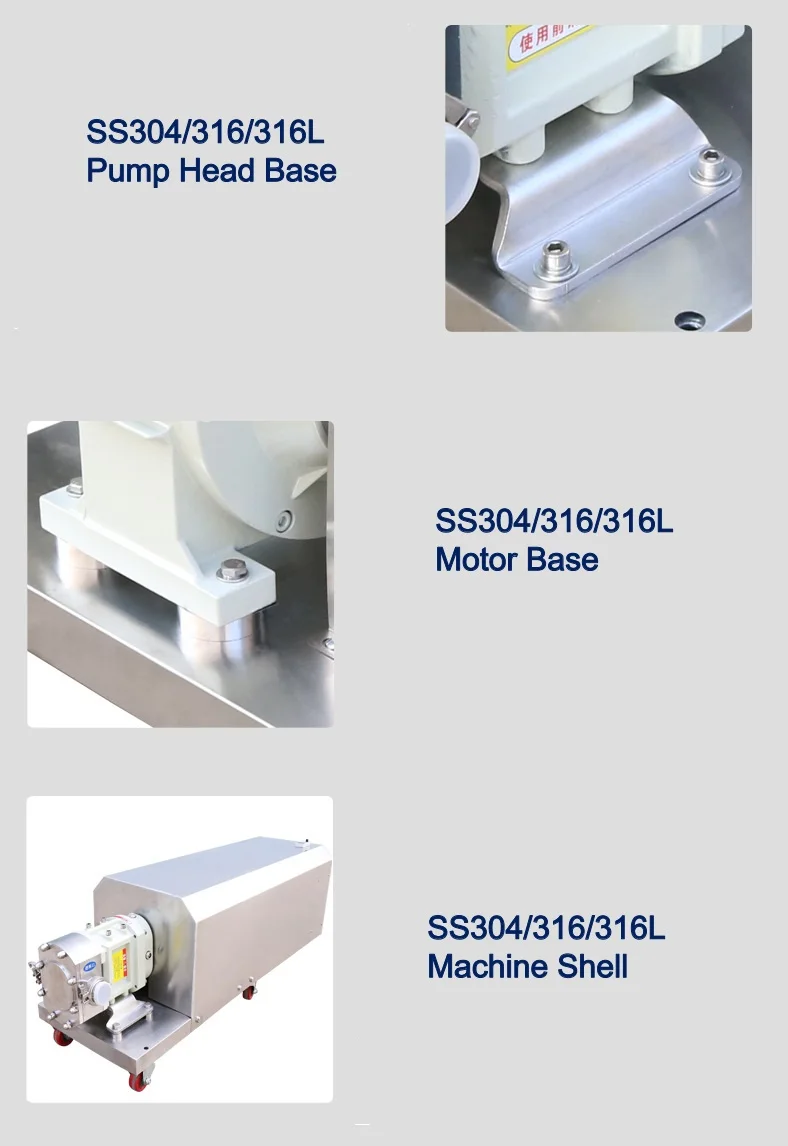

Material of Pump Head | SS304/316/316L |
Filling Speed | 1-100 Bottles/min |
Working Mode | Semi-automatic and Full Automatic can be Customized |
Hopper Volume | 30L and Larger Volume can be Customized. |
>> The SS304/316/316L of Pump Head Material can be Customized.
>> The Working Power Supply Can be Customized.
>> The Filling Speed and Filling Volume Can be Customized.
>> The Power of Filling Machine is Electricity, The Air is just for the Cylinder Valve.
>> The Volume of Hopper can be Customized.
Our Advantages
Detailed Pictures

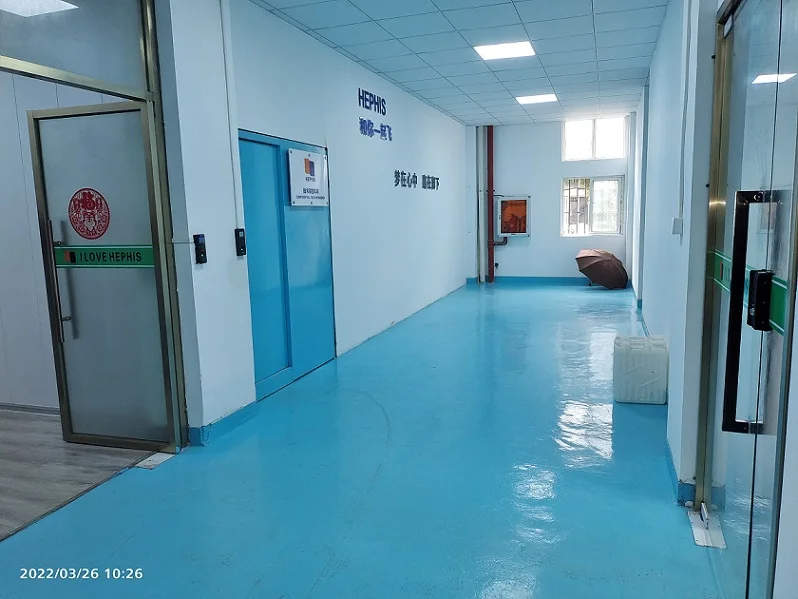

Company Information

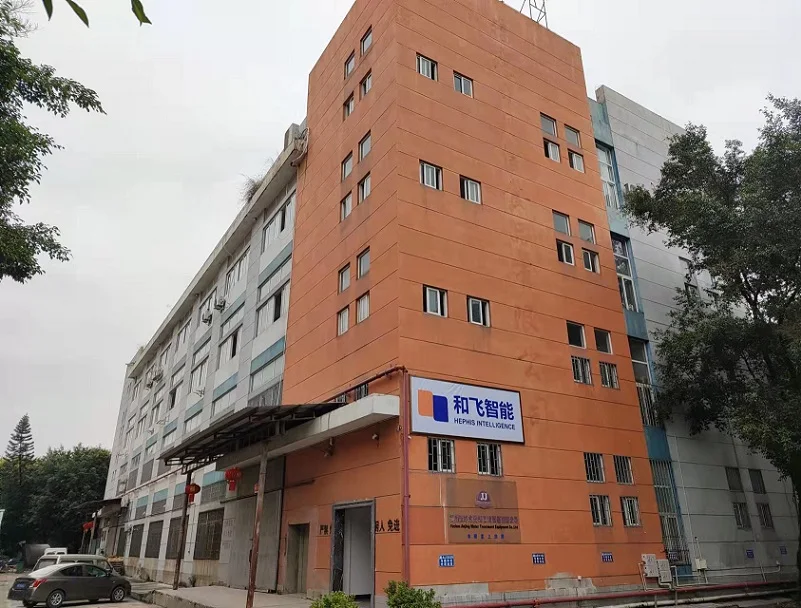

HEPHIS INTELLIGENCE TECHNOLOGY(Fujian) Co.,Ltd.
HEPHIS is Specialized Electrochemical and Fluid Equipment Manufacturer in China.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
The Ordering Process
1. Please tell me your requirements, including: Fluid Viscosity, Temperature, Bottle Volume, Filling Speed, Pump Head Material,Power etc.
2. Quotation.
3. Your company confirm our quotation reasonable.
4. Negotiation details.
5. Orders and pay.
6. Drawing the picture and production.
6. Drawing the picture and production.
FAQ
1. What if I don't know the viscosity of my fluid??
Please tell me what your fluid is and we will assist you.
2.How does the HFH-series filling machine work??

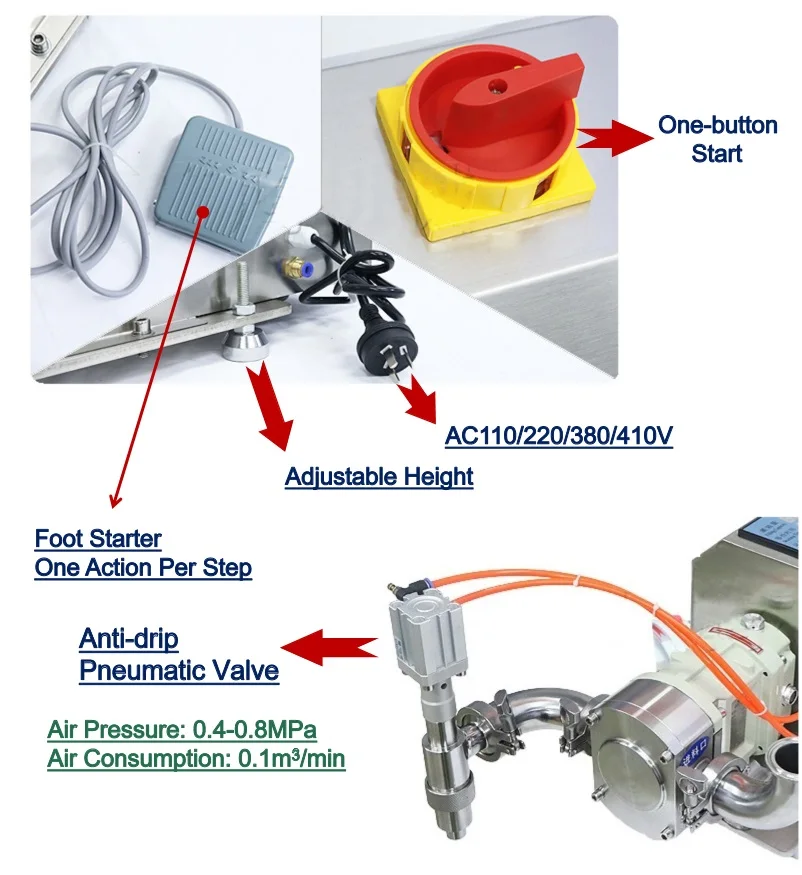

It is semi-automatic, it has a foot switch, step on it to do one action, it will finish filling once..
3.Can it be fully automated?
Yes,We can provide you with automatic transmission production line + infrared detection device to achieve full automation. .
4.HFH-series filling machines use electric or pneumatic.?
It is powered by electricity and the compressed air it needs is just for the pneumatic anti-drip valve.
5.What type of pump does the HFH-series filling machine use.?

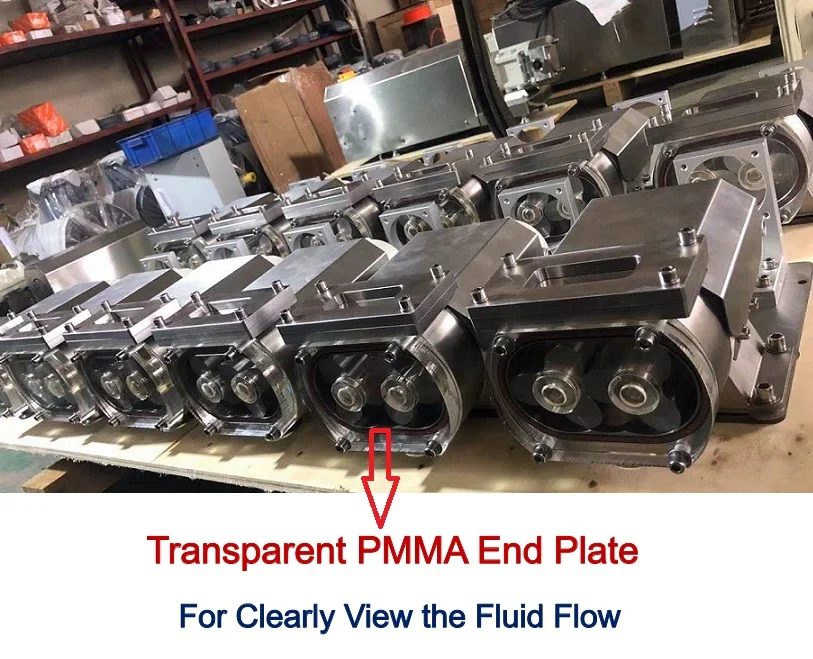

We use stainless steel rotary lobe pumps.
6. What is the maximum fluid viscosity that the HFH-series filling machine can accommodate??
1000000cps is OK.

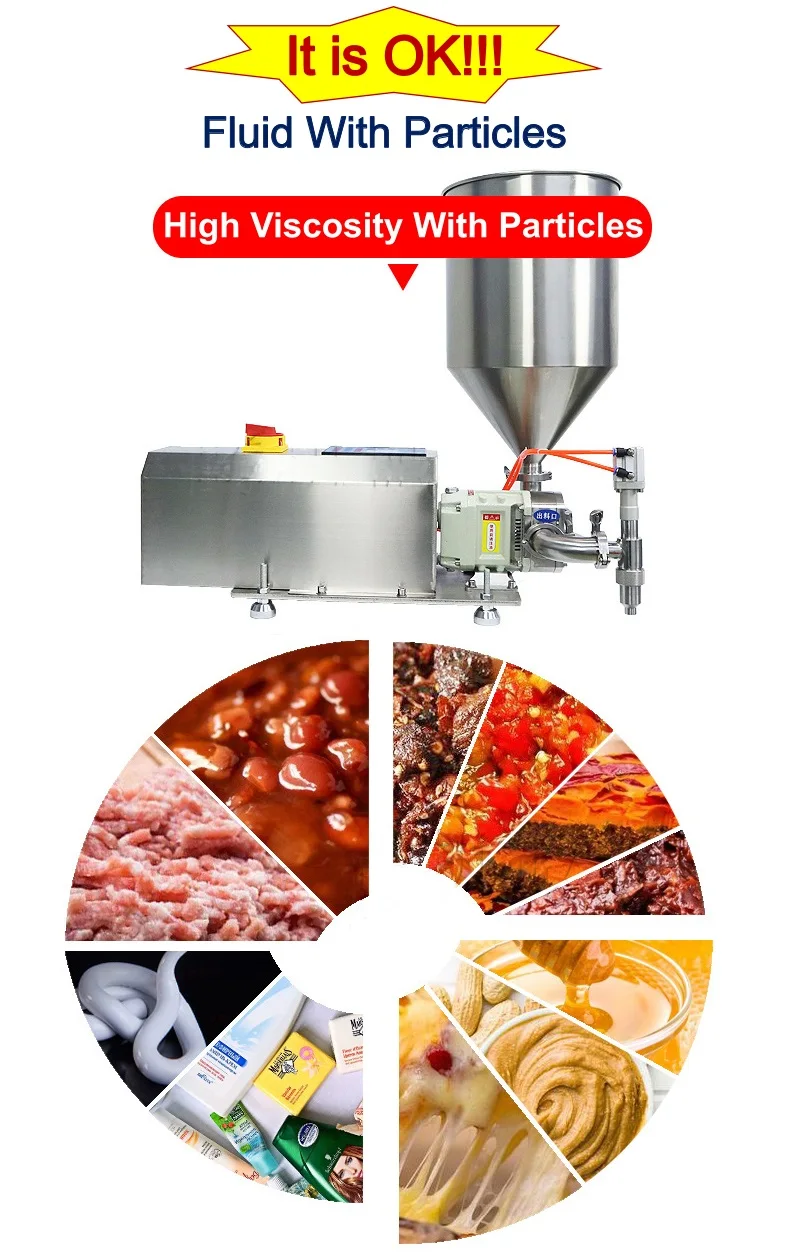

7. Can fluids containing particles be used??
Yes, fluids containing 60% solids can be filled.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings?
Yes, we will provide you with detailed design and installation drawings.
2.How does the HFH-series filling machine work??
It is semi-automatic, it has a foot switch, step on it to do one action, it will finish filling once..
3.Can it be fully automated?
Yes,We can provide you with automatic transmission production line + infrared detection device to achieve full automation. .
4.HFH-series filling machines use electric or pneumatic.?
It is powered by electricity and the compressed air it needs is just for the pneumatic anti-drip valve.
5.What type of pump does the HFH-series filling machine use.?
We use stainless steel rotary lobe pumps.
6. What is the maximum fluid viscosity that the HFH-series filling machine can accommodate??
1000000cps is OK.
7. Can fluids containing particles be used??
Yes, fluids containing 60% solids can be filled.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings?
Yes, we will provide you with detailed design and installation drawings.
