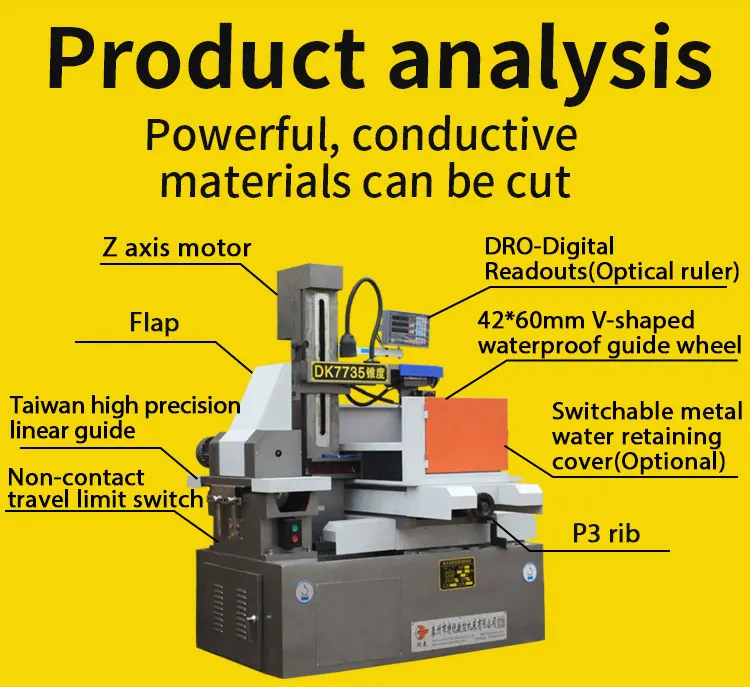

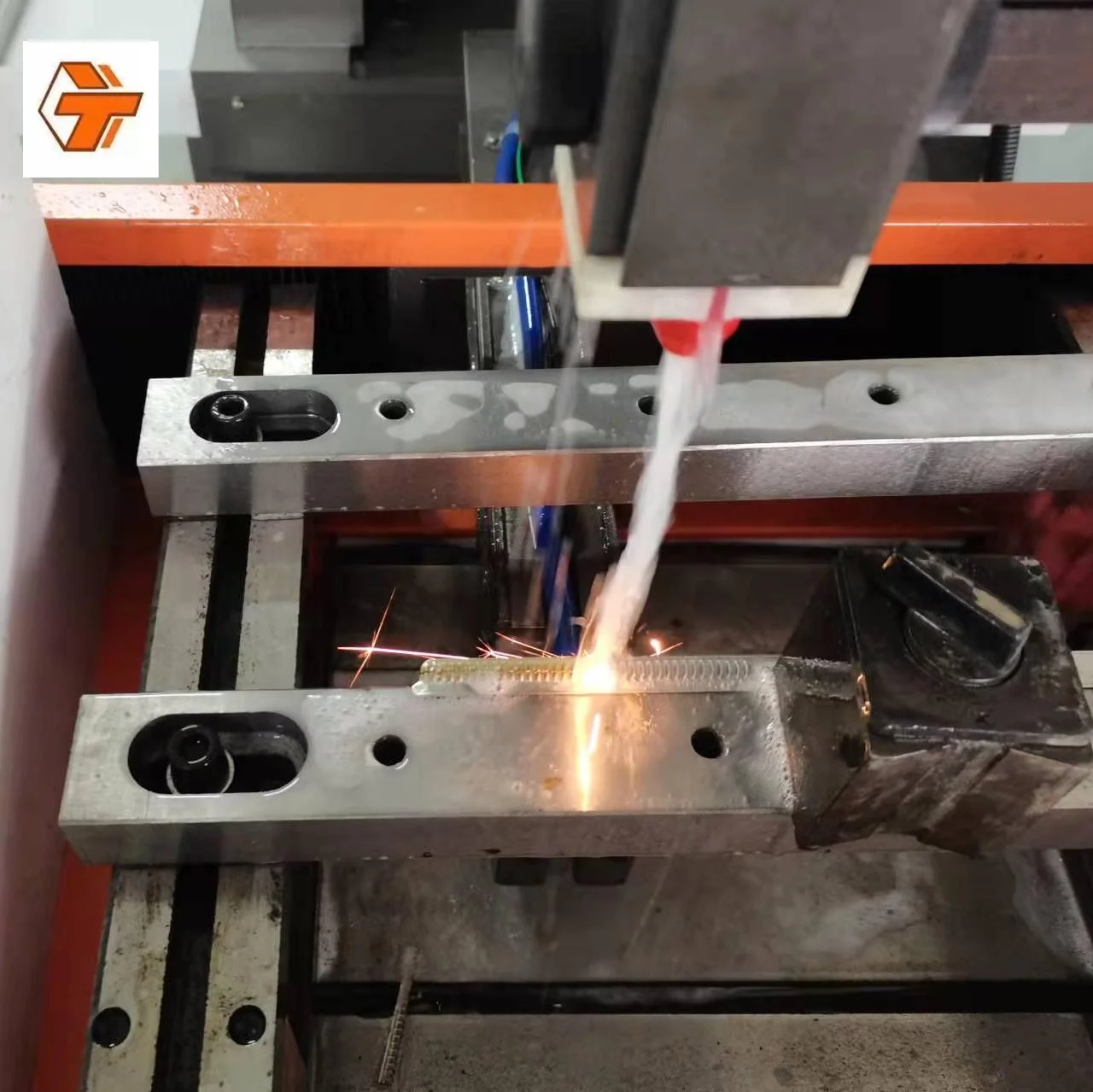

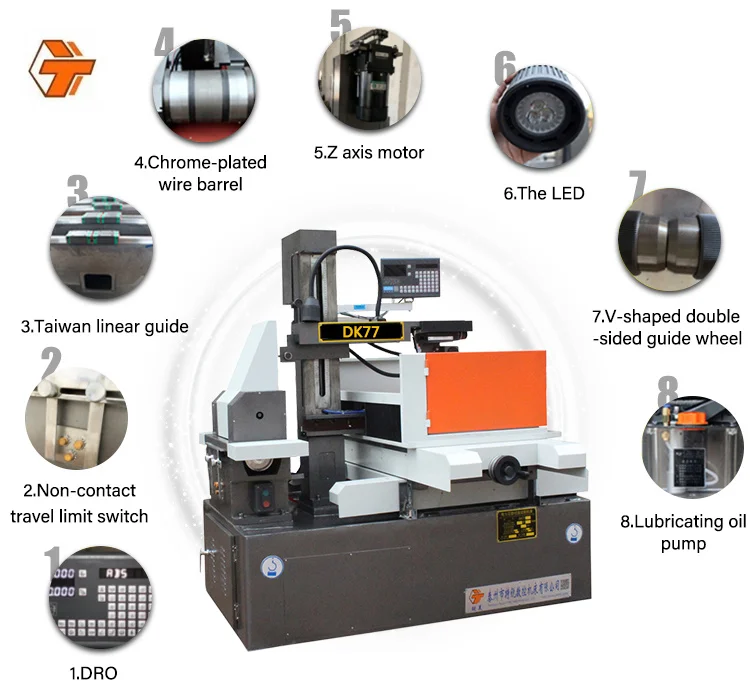

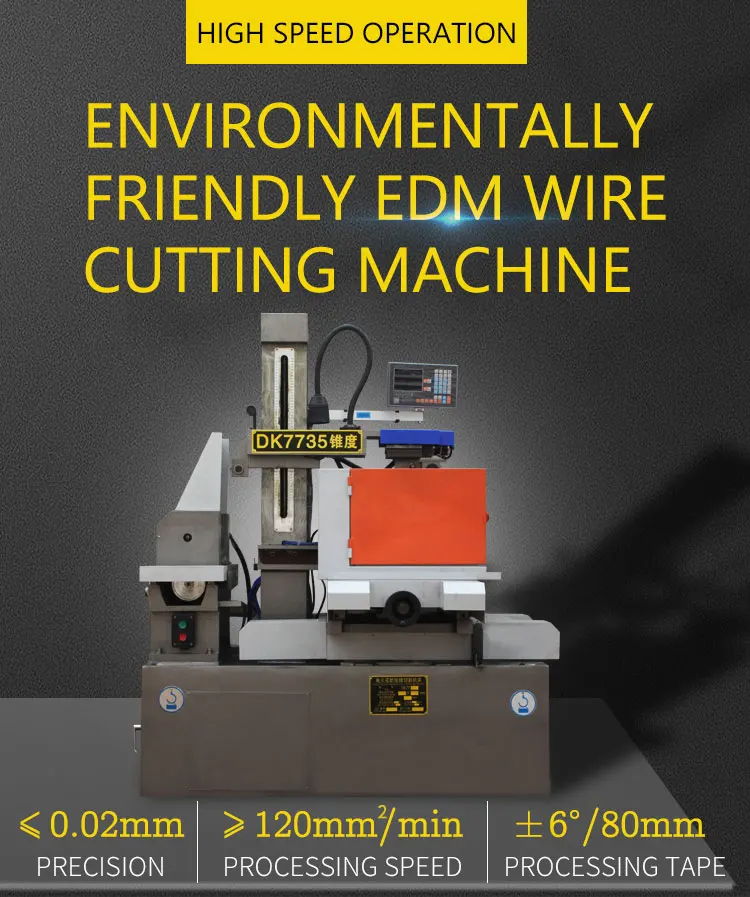

DK7735 Economical 5 Axis fast dk77 cnc Wire cut Edm Machine for Metal
- Category: >>>
- Supplier: Taizhou Tairui Cnc Machine Co. Ltd.
Share on (1600487335124):
Product Overview
Description
Model | Worktable travel(mm) | Worktable size(mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
DK7720 | 200*250 | 420*270 | 200 | 100 | 1250*950*1250 | 800 |
DK7725 | 250*320 | 520*340 | 300 | 200 | 1450*900*1500 | 1000 |
DK7735(32) | 350(320)*450(400) | 710*460 | 400 | 300 | 1400*1100*1600 | 1100 |
DK7745(40) | 450(400)*550(500) | 810*570 | 400 | 500 | 1600*1200*1600 | 1400 |
DK7745F(40F) | 450(400)*630 | 950*600 | 400/600 | 600 | 1600*1580*1600 | 1600 |
DK7755(50) | 550(500)*650(630) | 950*650 | 700 | 700 | 2000*1500*1900 | 1800 |
DK7755F(50F) | 550(500)*800 | 1140*650 | 700 | 700 | 2000*1650*1900 | 2000 |
DK7763 | 630*800 | 1140*750 | 700 | 1000 | 2100*1700*2050 | 2400 |
DK7763F | 630*1000 | 1350*750 | 700 | 1200 | 2250*1850*2050 | 2800 |
DK7780 | 800*1000 | 1350*980 | 900 | 2000 | 2400*1900*2350 | 4000 |
DK77100 | 1000*1200 | 1600*1100 | 1000 | 2600 | 2850*2500*2500 | 5200 |
DK77120 | 1200*1400 | 1800*1350 | 1000 | 3000 | 3050*2750*2500 | 7500 |
DK77160 | 1600*1800 | 2000*1700 | 1000 | 4000 | 3250*3000*2500 | 10000 |

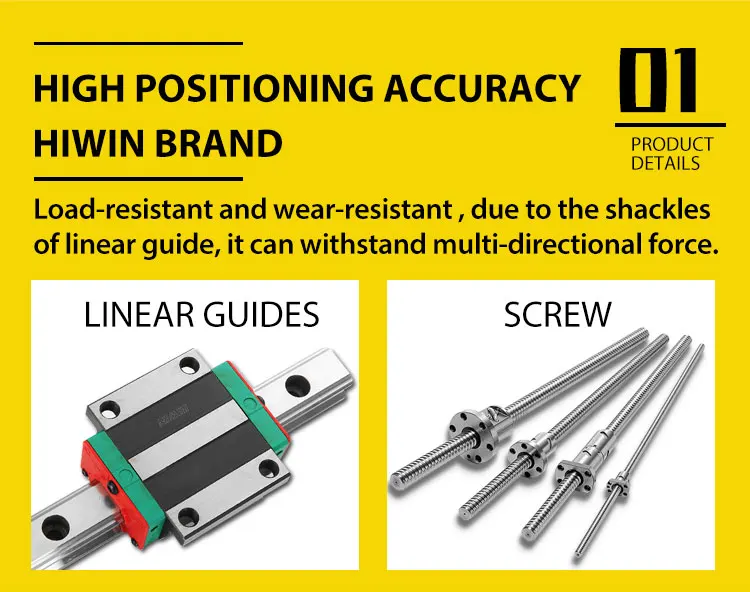

Northern military-grade P3 ball screw is a practical ball screw, with low friction coefficient, clear running track, and long-term accuracy.
The intelligent sensor chip reacts accurately, the shell is nickel-plated, and the threaded design is firm and reliable, waterproof and oil-proof.

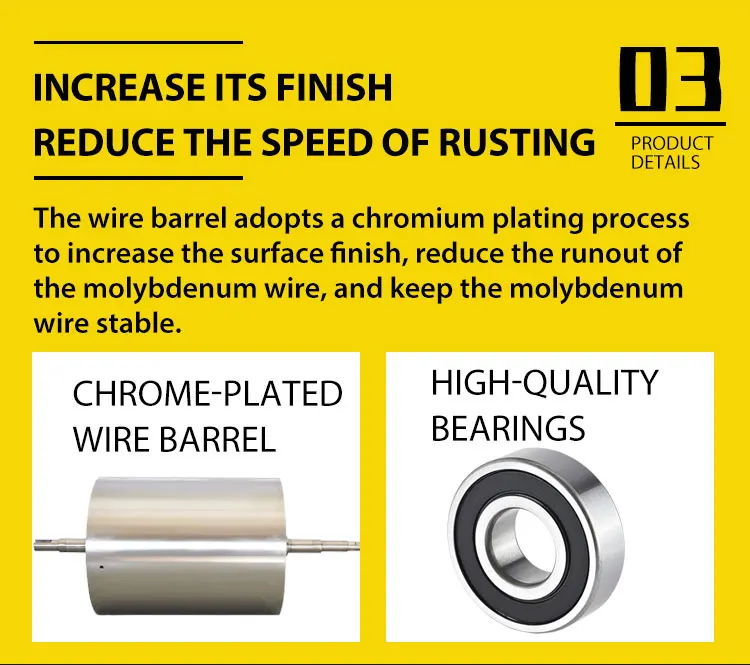

Miniature high-speed precision bearings which are composed of outer ring, inner ring, rolling elements, rolling element retainers, seals (dust cover) and springs, etc., in order to ensure the stable operation of the drive shaft of the rotating equipment with high precision requirements. Precision parts assembled on the load-bearing part.

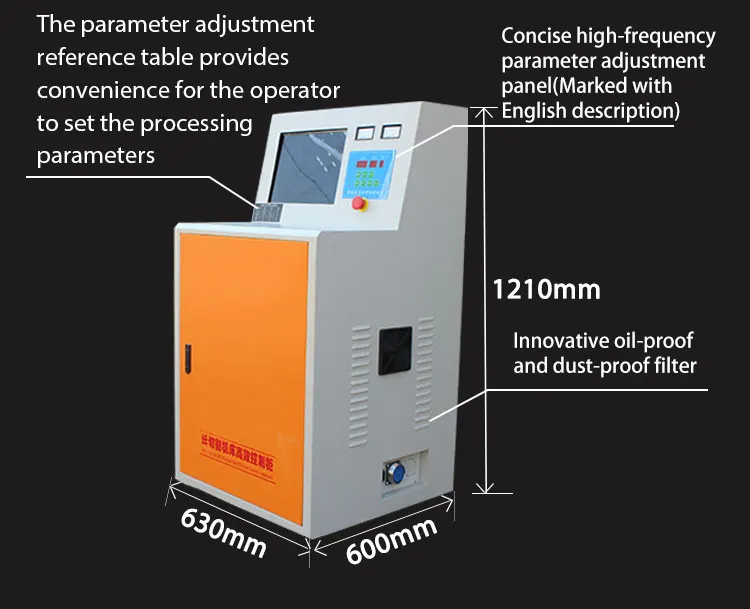

Single-pass(single-cut) controller
Standard system:X8(Support multiple language switching)
Optional system:AutoCut, HL, HF
A variety of software options to meet the different needs of customers
Standard system:X8(Support multiple language switching)
Optional system:AutoCut, HL, HF
A variety of software options to meet the different needs of customers
Semi-intelligent multi-pass(multi-cut) controller
Standard system:AutoCut with AutoCAD
Optional system:X8, HF
Standard system:AutoCut with AutoCAD
Optional system:X8, HF
Fully intelligent multi-pass(multi-cut) controller
Standard system:AutoCut with AutoCAD
Equipped with intelligent expert parameter database and intelligent tracking function, the database can automatically generate cutting parameters
Standard system:AutoCut with AutoCAD
Equipped with intelligent expert parameter database and intelligent tracking function, the database can automatically generate cutting parameters
Equipment selection upgrade area
1.Digital display grating ruler (electronic ruler)
2.Lifting motor
3.All series of Taiwan HIWIN linear guide
4.Taper head (standard machine can cut 6°)
±15° optional for DK7735 and above
±30° optional for DK7745 and above
±45° optional for DK7750 and above
5.Door-type drip tray
1.Digital display grating ruler (electronic ruler)
2.Lifting motor
3.All series of Taiwan HIWIN linear guide
4.Taper head (standard machine can cut 6°)
±15° optional for DK7735 and above
±30° optional for DK7745 and above
±45° optional for DK7750 and above
5.Door-type drip tray
6.Gem eye mask (faucet)

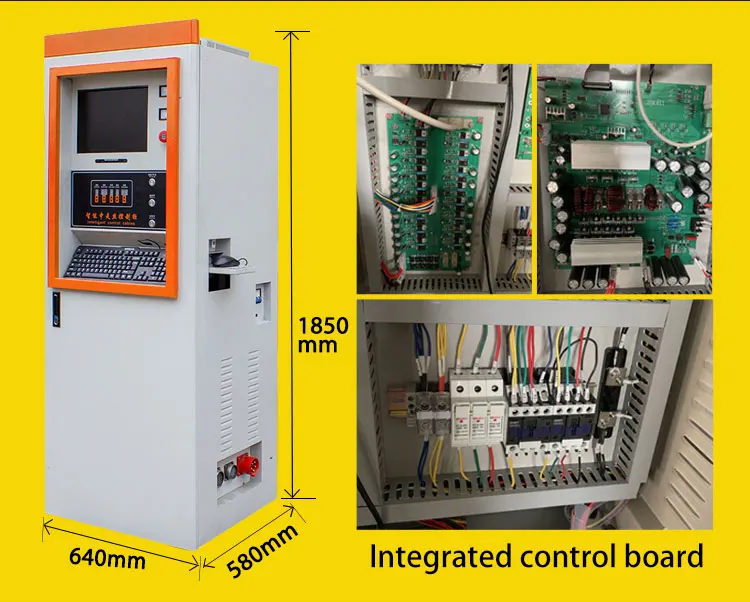

7.Intelligent control cabinet

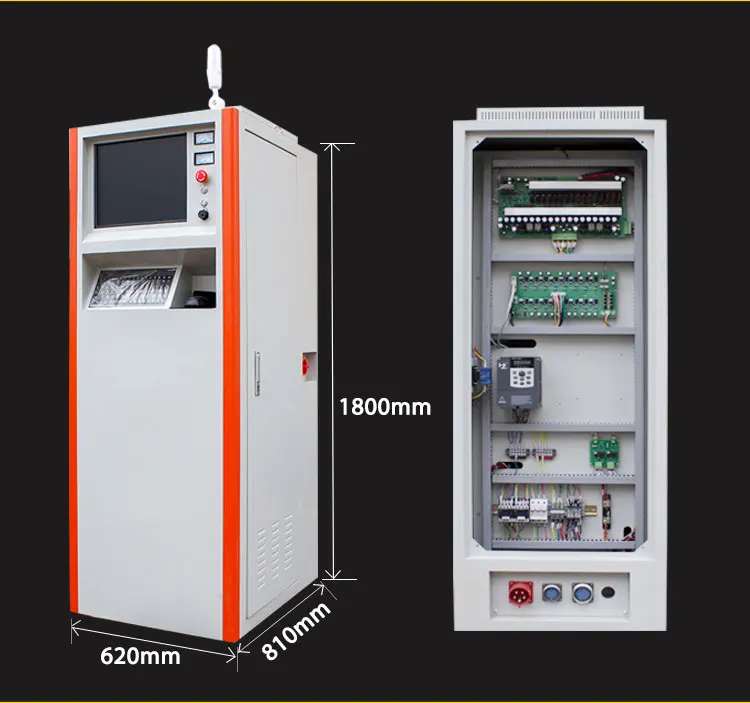

8.Fully intelligent control cabinet
9.High pressure water tank
10.Automatic oil pump
7.Intelligent control cabinet
8.Fully intelligent control cabinet
9.High pressure water tank
10.Automatic oil pump
The consumables are not covered by the warranty. Customers need to buy wearing parts. It is recommended to purchase more consumables when placing an order so that they can be transported to your hand with the equipment.
List of wearing parts (consumables):
1.Molybdenum wire
2.Working fluid
3.Guide wheel
4.Bearing
5.Retaining wire rod
6.Conductive block
List of wearing parts (consumables):
1.Molybdenum wire
2.Working fluid
3.Guide wheel
4.Bearing
5.Retaining wire rod
6.Conductive block

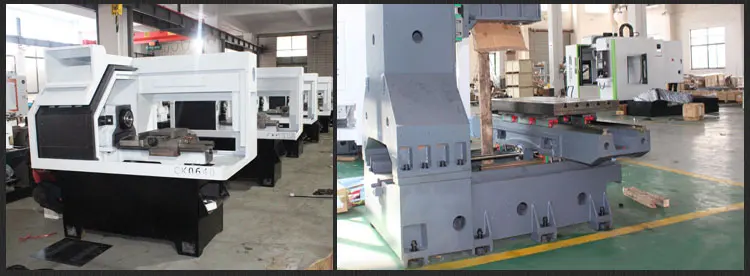

After years of accumulation of CNC machine tool manufacturing technology, Taizhou Tairui
CNC Machine Co.,Ltd. has collected most of the technical expertise of the electroprocessing industry, developed and manufactured high-performance machine tool products with Taiwan, Singapore, European and American technical teams.The major products include EDM wire cutting machine,EDM die sinking machine,EDM drilling machine,CNC milling and engarving machine,CNC lathe,CNC machining center,etc.The company has perfect management and good service,and its products are sold well in China, India, Vietnam, Korea, Ukraine, Russia, America, France, Bulgaria, Egypt, Germany, the UK, Ecuador, Colombia, etc.
CNC Machine Co.,Ltd. has collected most of the technical expertise of the electroprocessing industry, developed and manufactured high-performance machine tool products with Taiwan, Singapore, European and American technical teams.The major products include EDM wire cutting machine,EDM die sinking machine,EDM drilling machine,CNC milling and engarving machine,CNC lathe,CNC machining center,etc.The company has perfect management and good service,and its products are sold well in China, India, Vietnam, Korea, Ukraine, Russia, America, France, Bulgaria, Egypt, Germany, the UK, Ecuador, Colombia, etc.
