Semi automatic 4 Cavities plastic pet bottle blowing machine price

Share on:

Price:$2,800.00 - $4,800.00
Price in USD:Details


Product Overview

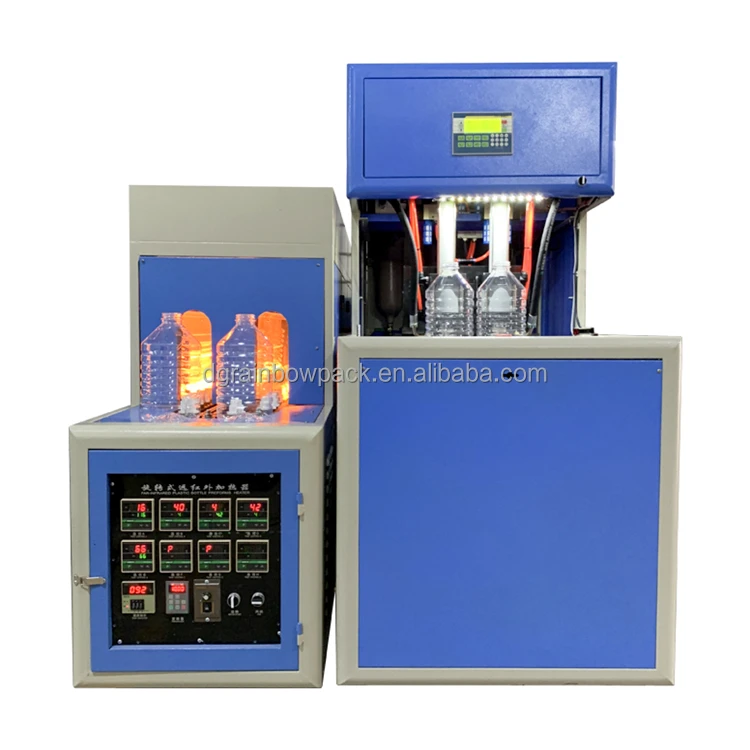

Semi automatic 4 Cavities plastic pet bottle blowing machine price

Product Description

 4 cavity Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100ml-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics etc.


What is the features of our semi automatic 4 cavities pet bottle blowing machine?

1 PLC It is a very popular brand all over the world . It has two big funcations: manual and automatic. Turn it to be Manual . It can help to install mold . Turn it to be automatic . It can produce bottles easy


2 Festo operating valves made by Germany and this three Festo valves control three functions: Mold-closing , Left-stretching, Right-stretching. This valves can work for a long time and quality is stable.


3 Bottle volume RP2000 can produce 100-2000ml PET bottle . It also can produce PC bottle too .Oven has water cooling system and air cooling system both for help machine working for longtime . Machine will let the heating system be stable .


4 Heating lamps and machine has 32 pieces heating lamps can heat the preform tube be longer an longer . And Heating lamps quality is stable and good for use long time.


Machine parameter:

Theoretical Outputpcs/hr800-1000PCS/H
Max.container volumeL2L
Max.neck diametermm90
Max.container diametermm350
Max.container heightmm380
Mould Thicknessmm100-180
Mould Strokemm170
Heat Lamp Amount pcs32
Max.heating powerkw14
Actual power consumptionkw6-8kw
Working PressureMpa0.8
Low pressure consumingLtr/min400
Blowing pressureMpa3
High pressure consuming Ltr/min400
Measurement of Main Blowermm1450*590*1650mm/650kg

More bottle blowing machine pictuer

 (4).jpgbottle blowing  (1).pngbottle blowing  (2).jpgbottle blowing  (7).jpgbottle blowing  (5).jpgbottle blowing  (6).jpgbottle blowing  (4).jpgbottle blowing  (3).jpg

Company Information

factory_.jpgoffice (2)_.jpgwearhours_.jpg


Payment & Shipping


Accept payment by T/T, Western Union,Paypal, MoneyGram, LC and Alibaba Trade Assurance and also accept 50% deposit by T/T balance before shipment.

Packaging & Shipping:


Our Services

1. We will answer your enquiry within 12 hours.


2. Warranty time: 1 year(main part for you freely within 1 year, such as motor).


3.We will send the English instruction manual and operate video of the machine for you.


4.After-sales service: We will follow up our customers all the time after selling out the machine and also can send technician abroad to help you install and adjust the large machine if needed.


5) Accessories: We supply the spare parts with competitive price when you need it.


Welcome to contact with us for more details now !
