Non Pressure Suspension Super fine Dry Powder Auto Fire Extinguishing Equipments
- Category: >>>
- Supplier: Shenzhen Lydian Technology Co. Ltd.
Share on (1600487385679):
Product Overview
Description
Product Description

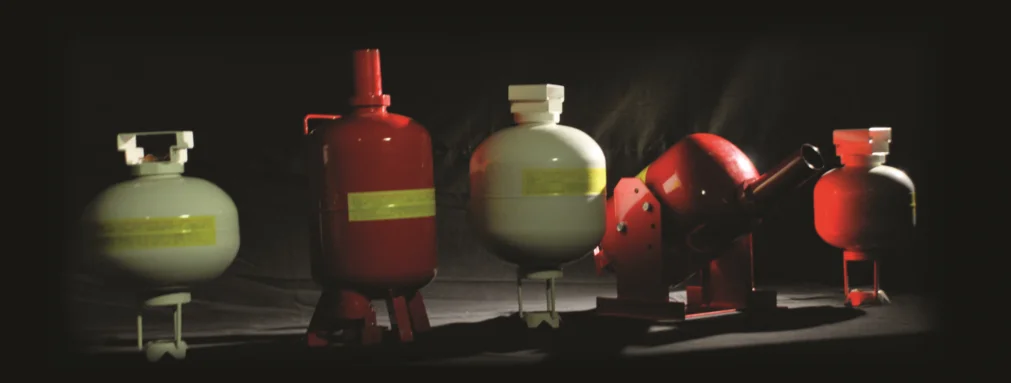

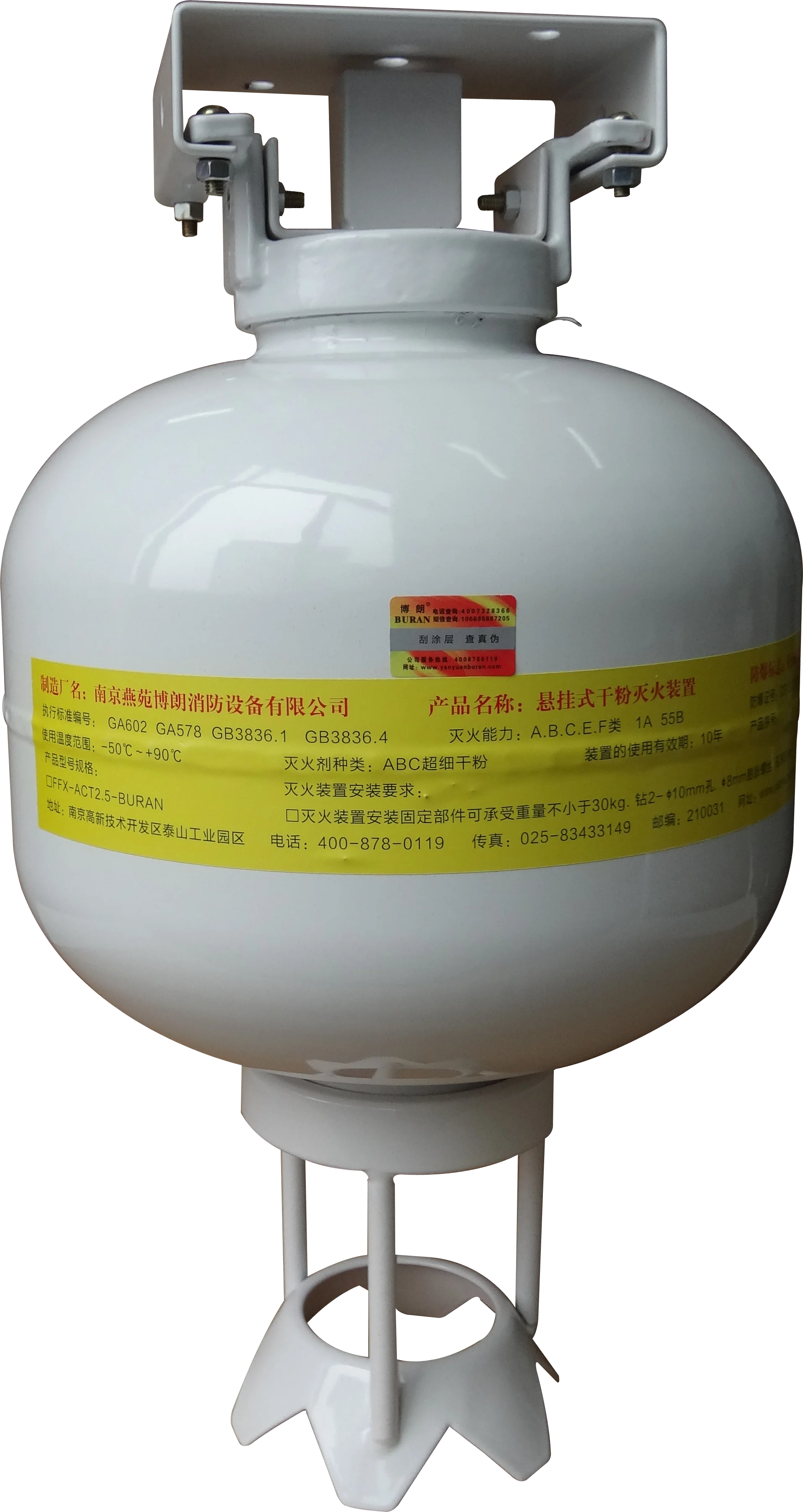

Suspension Dry Powder Fire Extinguisher
This Product can extinguish A,B,C class fire and electric fire rapidly such as workshop, office, storage, communication base station, Switching House, Substation, Garages, Library, Archives, Museum, Historic Buidling, IT center,
Shops and Residence Building.
Specification
Installation Method | Hanging |
Temperature Range | -50℃-90℃ |
Dimension | Diameter: 205mm Height: 375mm |
Extinguishing Agent | A,B,C Class Dry Powder |
Storage Method | Non-Pressure |
Resistance of Electric Ignitor | 2.3-3.3Ω |
Start Current of Electric Ignitor | 330-400mA |
Life Span | 10 Years |
Response Time | 18.8ms |
Main Features
1. Non-Blasting Non-Pressure, The Solid-gas driving technology
2. The technology of linkage start without sources
3. Intelligent: Auto-start up and no mis-operation
4. Instantaneous: Instant fire extinguishing, early restraining
5. Safe: Without corrosion or pollution, able to extinguish electric fire
6. Clean: Easy to clean after extinguishing
7. Economical: Without pipe network or pressure, long maintenance-free period
Product Innovation
1. Jet Driving Technology
The Product Adopts the driving technology of space flight rocket for the automatic fire extinguisher. When extinguishing fire, the equipment produces high-pressure gas with the heat/electricity/smoke/light start-up signal supply and realizing solid-gas transformation to start, and it spreads dry powder fire extinguishing agent at a super velocity of sound and puts the fire down instantly.
2. Special Solid-gas driving Agent
When extinguishing fire, an excellent solid-gas driving agent produces such high pressure gas as CO2, H2O and N2.
3. Effective Super-fine Dry Powder
The product smashes the dry powder again in the moment of extinguishing fire to ensure maximum Physical and cheimical fire extinguishing effects. The text proves that the extinguishing velocity of superfine dry powder is 2.5 times of alkylogen, 4 times of CO2, 20 times of water.
4. Thermo-Sensitive detecting and conducting
This type of conducting boasts fast start-up, being safe and reliable performance and stability for ten years.
5. Advanced Compound Hull Technology
The hull of the automatic fire extinguisher is solid, non-inflammable, water-proof, oil-proof and dust-proof, and the dry powder is spurted out symmetrically by jet-driving technology when fire extinguishing ensuring excellent fire-extinguish effects and making pepole and property safe.
6. Multi-Controlled Automatic Starting
The equipments integrates various types of start up including thermo-sensitive start-up, infrared photosensitive start-up, smoke-sensitive start-up according to pratical situation of protected room and manual electrical start-up, ensuring the reliability of automatic fire extinguishing.
Optional Start Module
Temperature control startup module
Diameter: 99mm; Height: 55mm
Function:
Function:
1. Dual detection, automatic temperature sensing start;
2. Receive external signal to start;
3. No need for peripherals, network linkage.
2. Receive external signal to start;
3. No need for peripherals, network linkage.
Manual Feedback Module-TFD
Size: 99*101mm; Height: 45mm
Features:
1. Output manual start signal;
2. Linkage with the alarm controller to start;
3. Switch feedback start signal;
Features:
1. Output manual start signal;
2. Linkage with the alarm controller to start;
3. Switch feedback start signal;
Manual Delay Module - TFDYS
Size: 195*103mm; Height: 41mm
Features:
1. Delay 30 seconds to output the start signal;
2. Linkage with the alarm controller to start;
3. Switch feedback start signal;
4. Support multi-module synchronous control;
Features:
1. Delay 30 seconds to output the start signal;
2. Linkage with the alarm controller to start;
3. Switch feedback start signal;
4. Support multi-module synchronous control;
Installations and Wiring

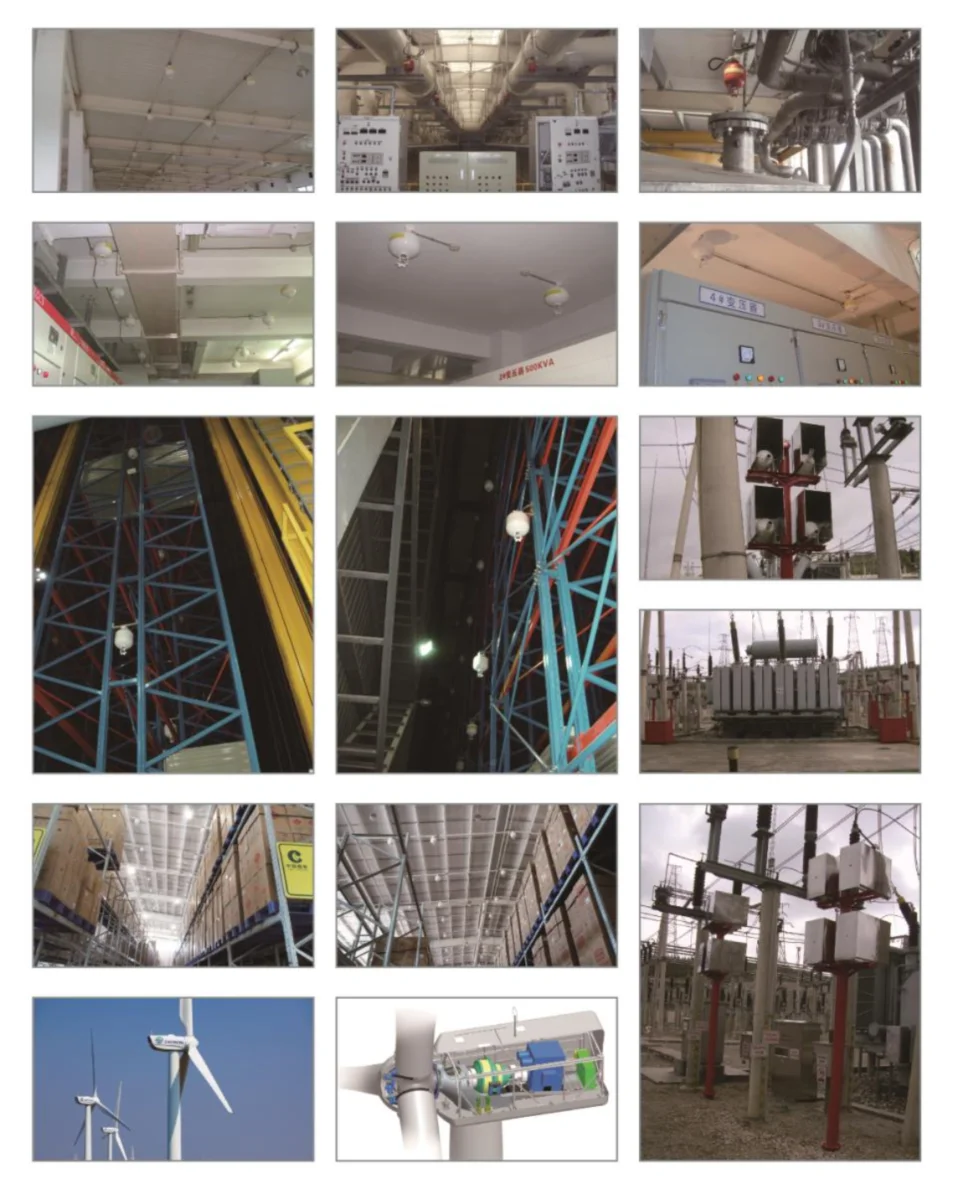

Applications

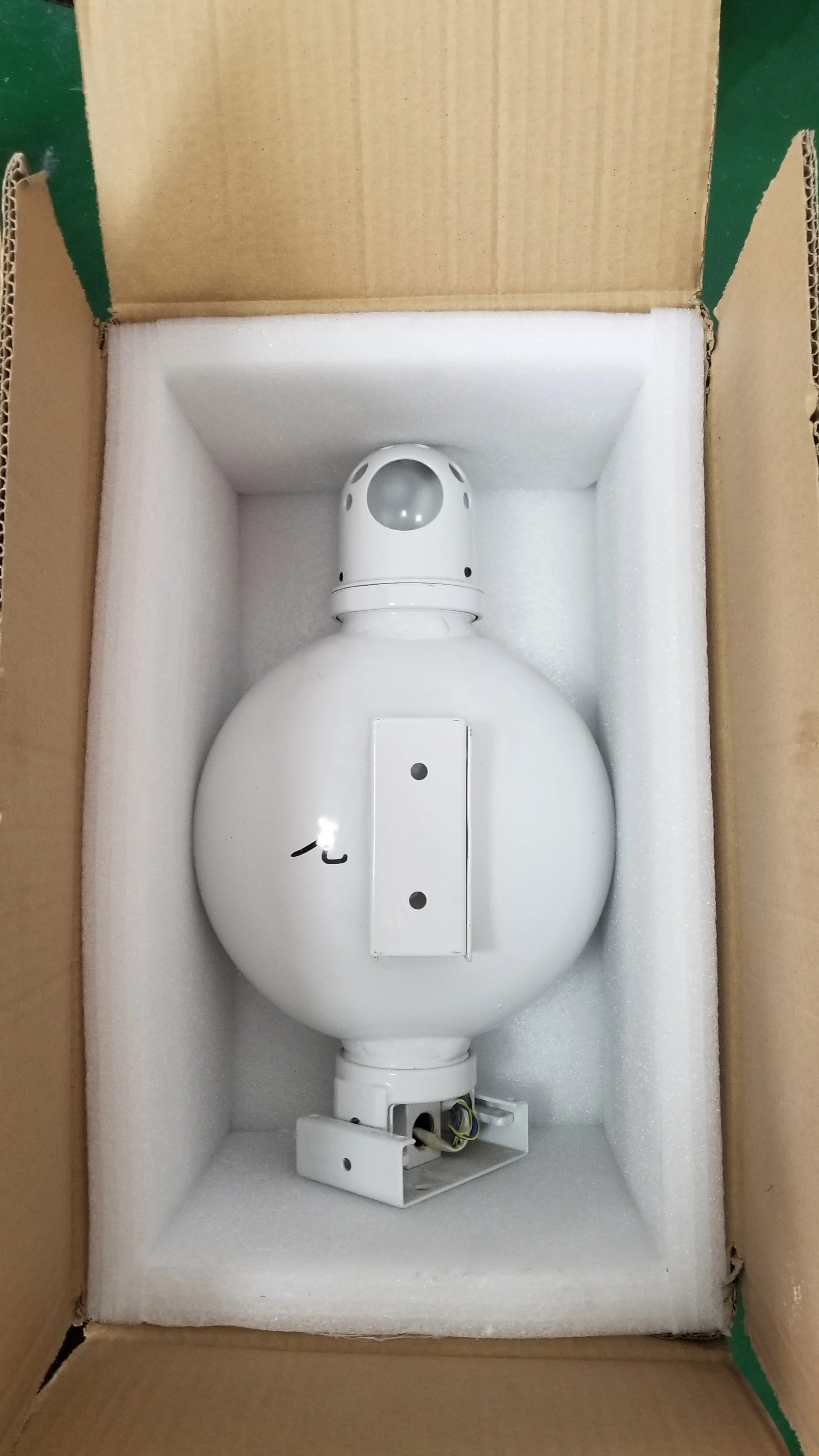

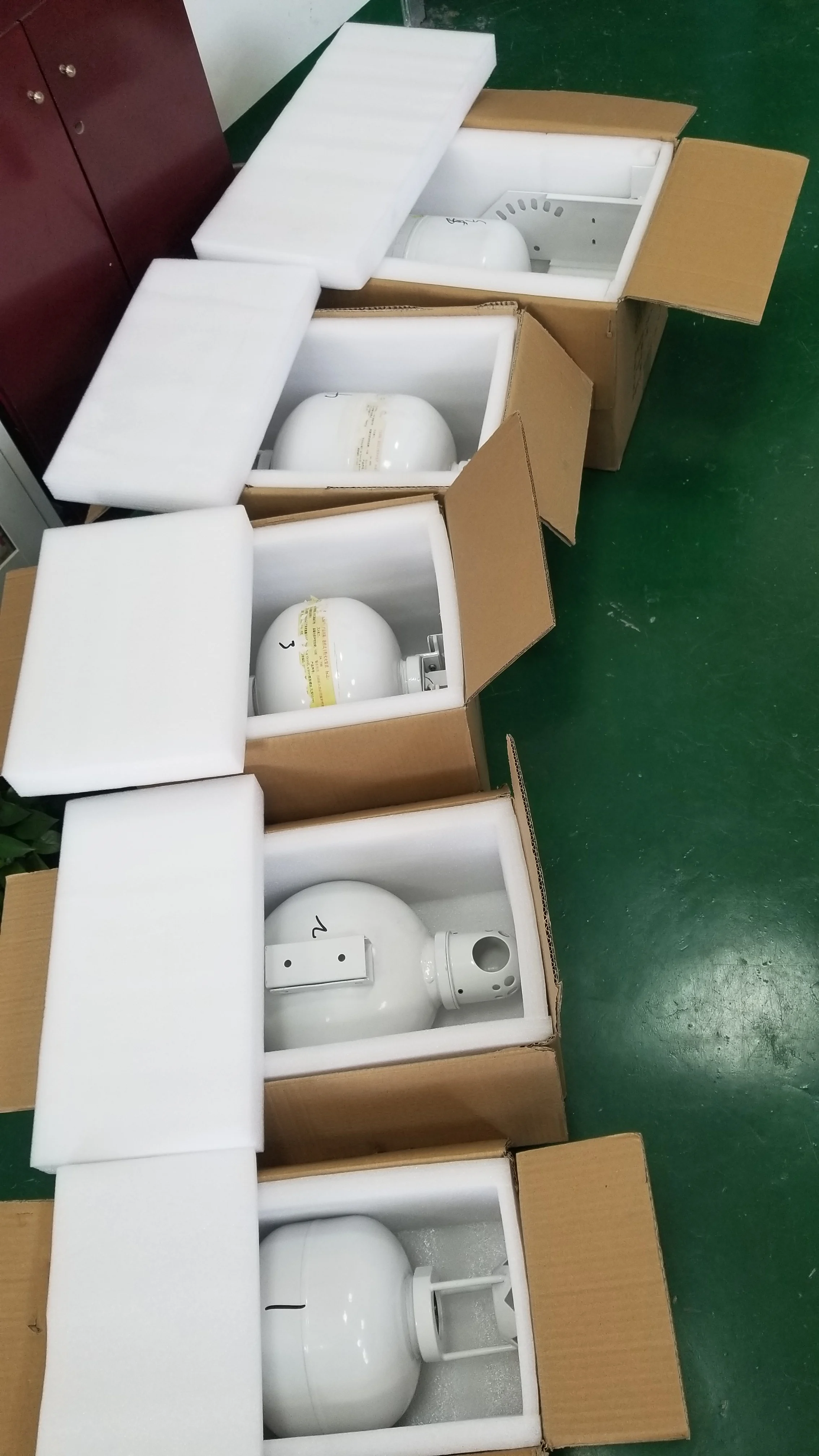

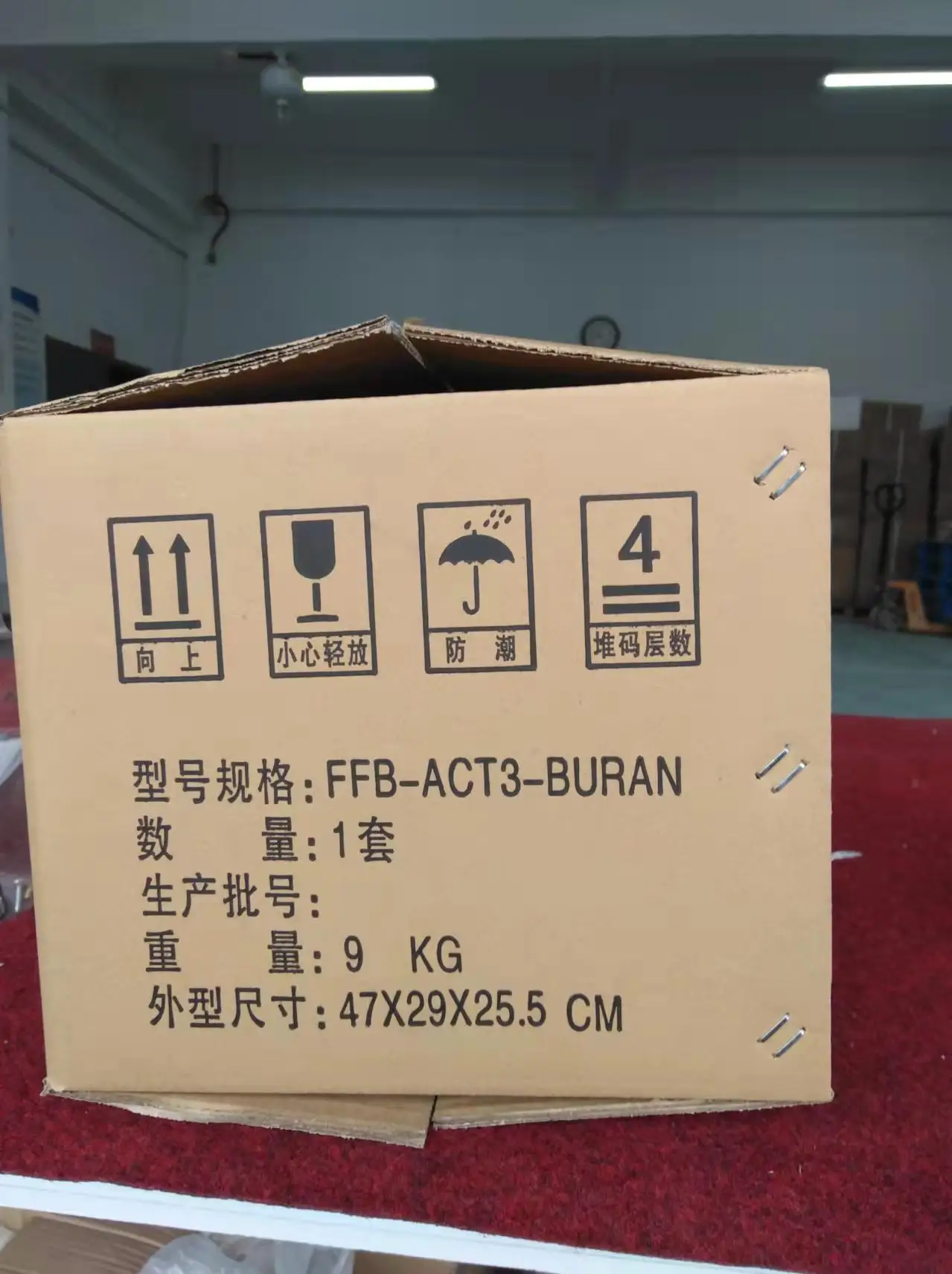

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
