Precision lead free screen printing table 250x400mm pcb Manual solder paste printer smt production stencil printer
- Category: >>>
- Supplier: Zhejiang Huaqi Zhengbang Automation Technology Co. Ltd.
Share on (1600487477571):
Product Overview
Description
Products Description

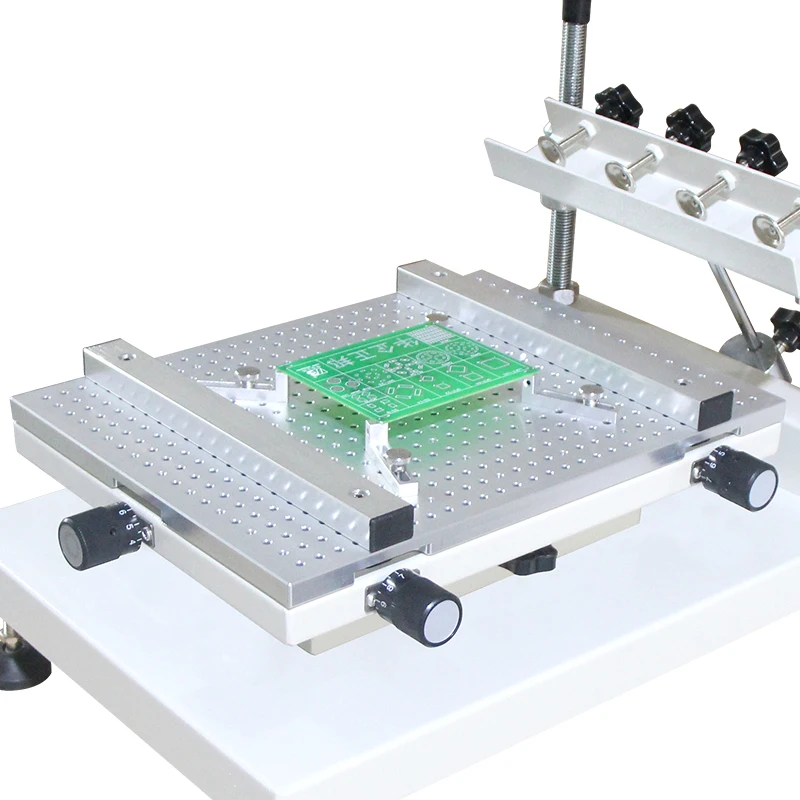

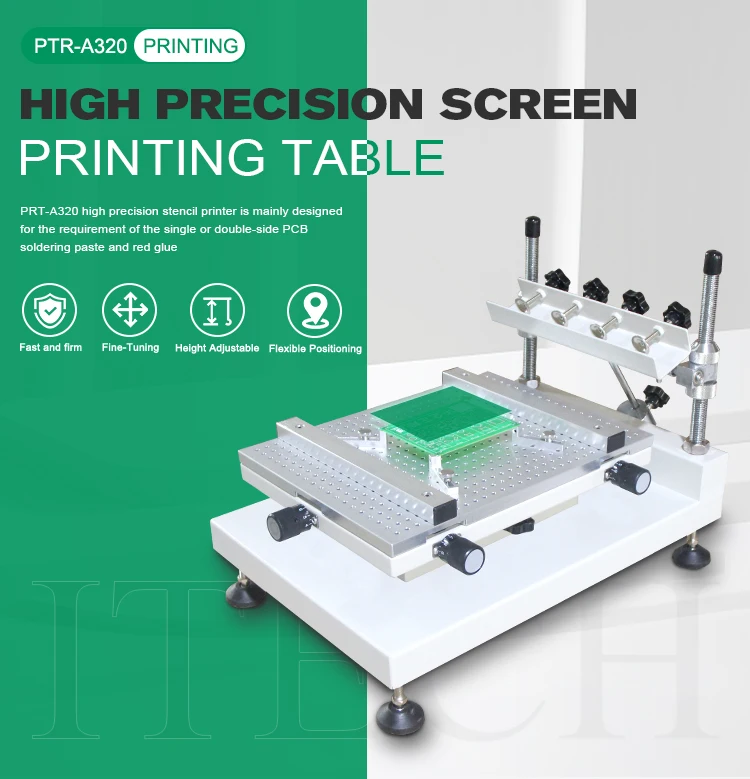

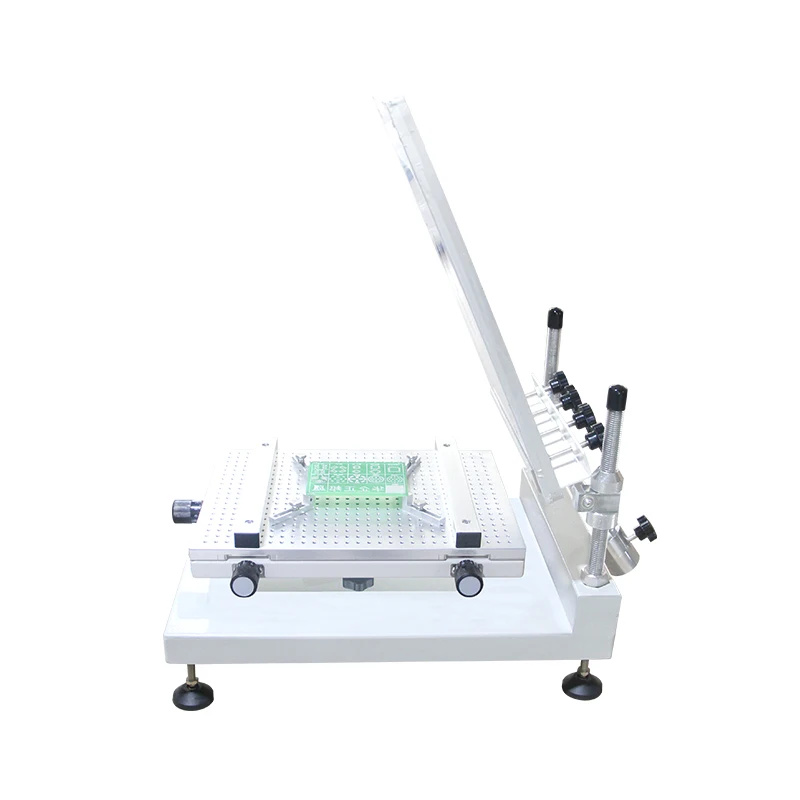

Manual Solder Paste Stencil Printer

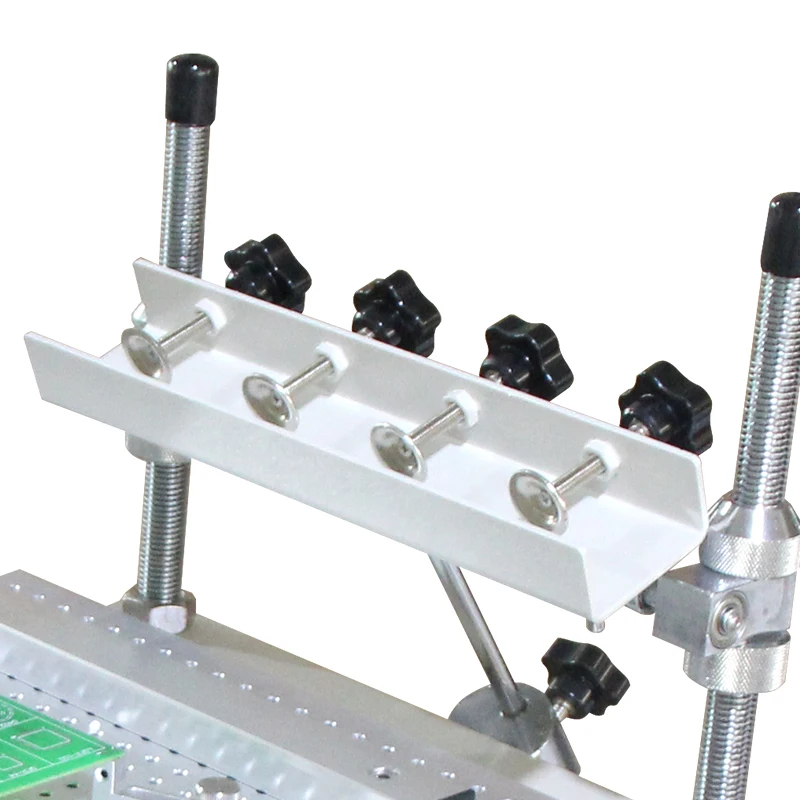

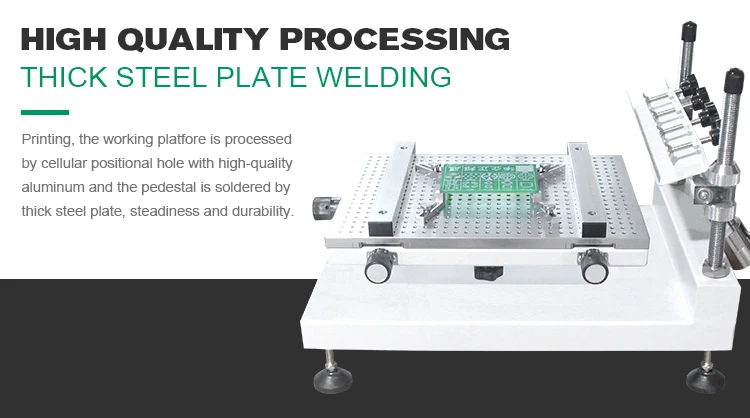

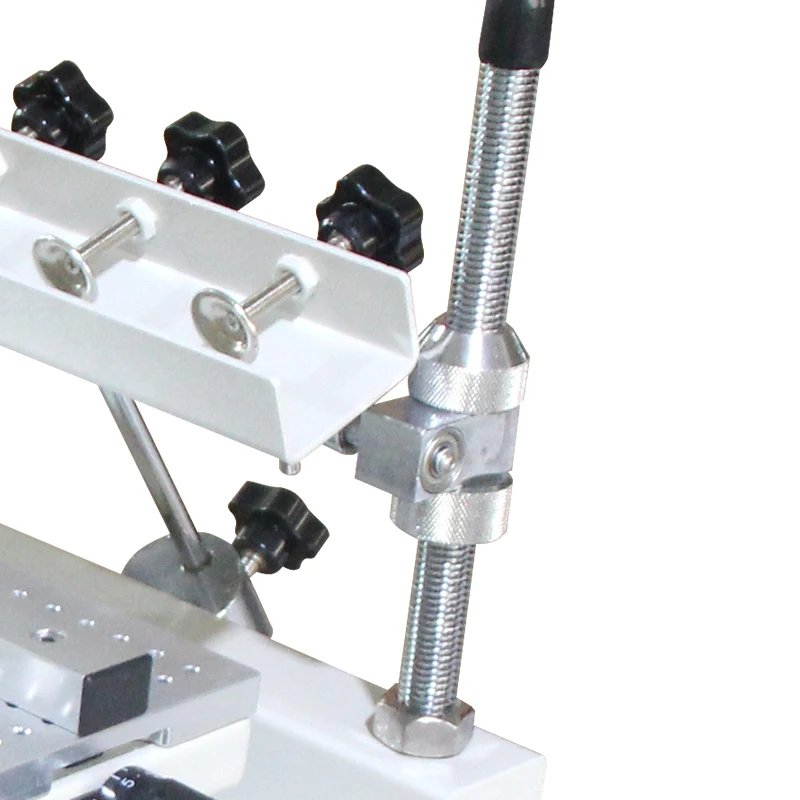

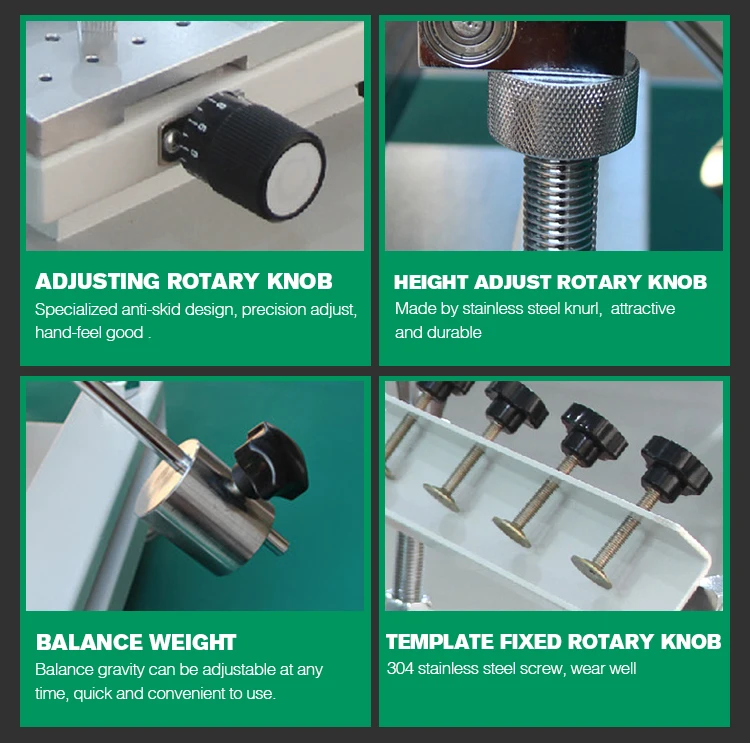

This machine is mainly designed for requirements of single or double-sided circuit board solder cream or red glue printing:Universal honeycomb plate, movable thimble, movable supporting block, flexible positioning PCB, convenient to print double-side PCB. IThe base uses thick plate and forming welding, strong solid and wear well. Circuit board positioning adopts positioning needle, fixed rod and fixed plate for positioning, which can ensure convenient positioning and accuracy of repeated operation. Make ready mode is made through stencils movement and combined with fine adjustment and correction of X and Y axis in printing platform, which is convenient and quick. Steel mesh stent uses spiral screw, can be adjusted up and down, convenient to control PCB thickness and the quantity of printing solder paste. Printing screw board fixed by four rotary knobs with pressure plate..Attachment things: Thimbles 20pcs Positioning pin attachment 4pes.. Fixed plate 2pcs Tool 1pc.
Technical Data | ||||||||
Model | PTR-A320 | |||||||
Max. Printing Size | 250x400mm | |||||||
Printing Speed | Manual Control | |||||||
Vertical and Horizontal Adjustment Volume of Workbench | 10mm | |||||||
Repeatability Precision | ±0.01mm | |||||||
Size of Workbench | 300x400mm | |||||||
Max. Stencil Size | 370x470mm | |||||||
Thickness of Printing Matter | 0-80mm | |||||||
Height of Printing Platform | 220mm | |||||||
Location Mode | Shape or Benchmark Hole | |||||||
Outline Size | L540xW370xH380mm | |||||||
Weight | 22kg | |||||||
