HiYi OS70 Pro Laboratory LCD Digital Overhead Stirrer Used in chemical synthesis
- Category: >>>
- Supplier: Beijing Hiyi Technology Co. Ltd.
Share on (1600487516970):
Product Overview
Description
overview

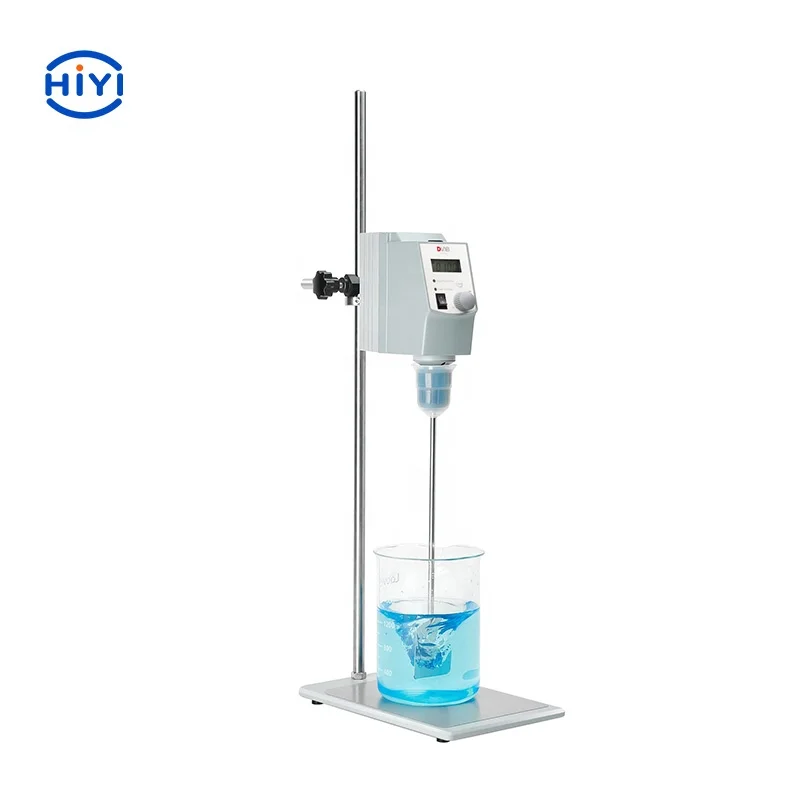

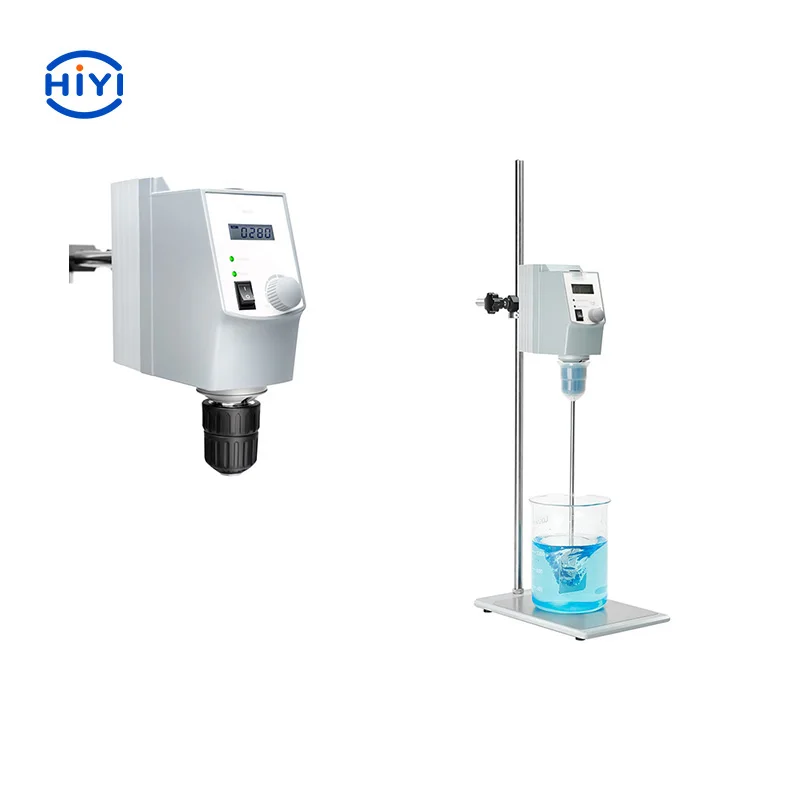

OS70-Pro LCD Digital Overhead Stirrer
Overhead Stirrers are competent for most demanding tasks with guaranteed safety and performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.

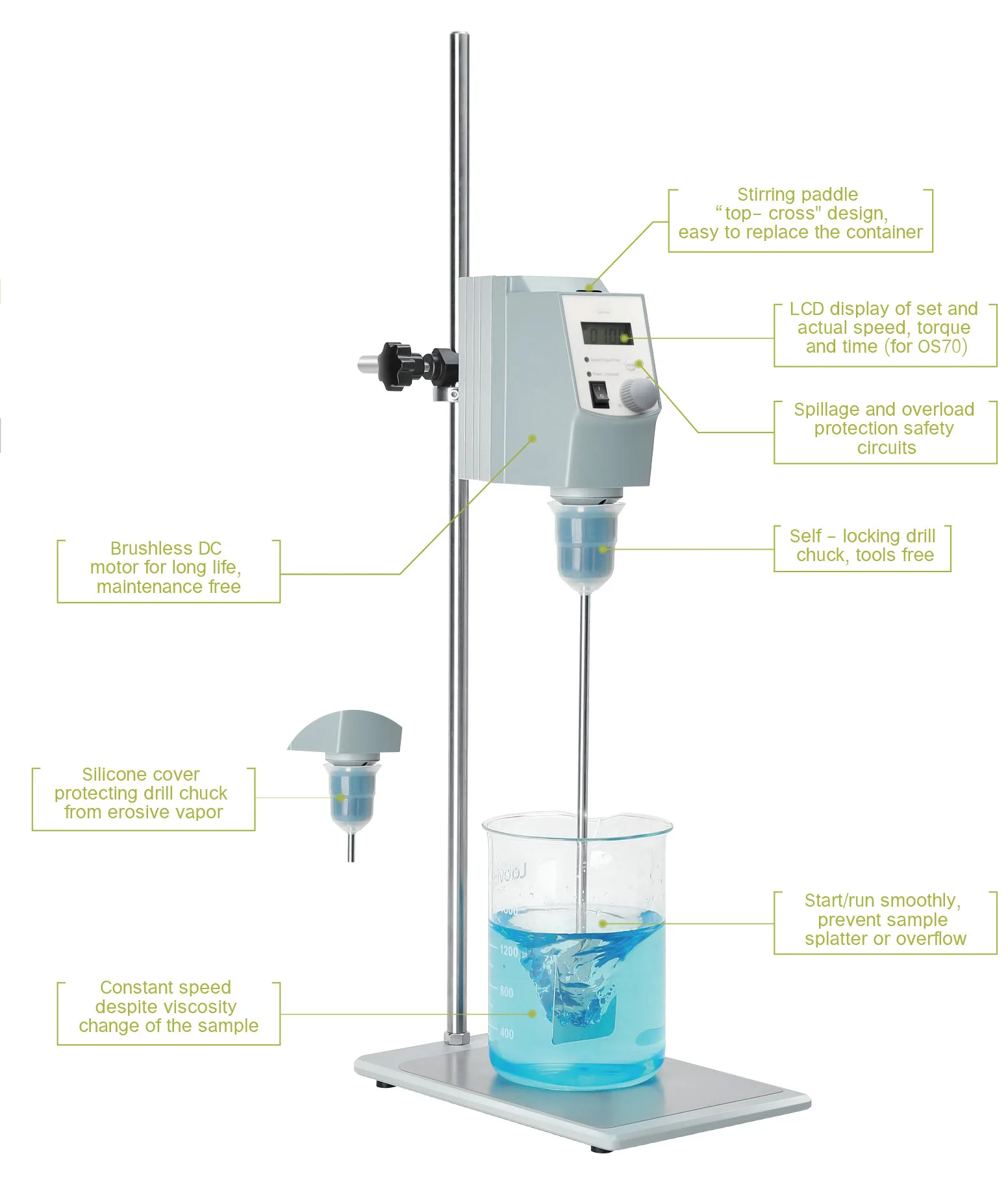

Product Feature
* High reliability and outstanding performance.
* LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of ±3rpm.
* Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
* Safety circuits allow for safe stop function in anti-stall or overload conditions.
* Smooth operation prevents accidental spillage and splashing.
* Provides constant speed even with changes in viscosities of the samples.
* Remote function provide PC control and data transmission.
* Availability of auto-restart function in case of power loss for overnight operations.
* LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of ±3rpm.
* Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
* Safety circuits allow for safe stop function in anti-stall or overload conditions.
* Smooth operation prevents accidental spillage and splashing.
* Provides constant speed even with changes in viscosities of the samples.
* Remote function provide PC control and data transmission.
* Availability of auto-restart function in case of power loss for overnight operations.
Specification
Specifications | OS70-Pro |
Max. stirring quantity[H2O] | 70L |
Motor type | brushless DC motor |
Motor input power | 180W |
Motor output power | 160W |
Voltage | 100-240V, 50/60 Hz |
Power | 200W |
Speed range | 50~1100rpm |
Speed display accuracy | ±10rpm |
Speed display | LCD |
Torque display | LCD |
Time settings range | 0-99h59min |
Overload protection display | LED lights |
Max. torque | 300Ncm |
Viscosity max. | 100000mPas |
Chuck range diameter | 0.5-10mm |
Dimension[WxHxD] | 186 x 83 x 220mm |
Weight | 3.2KG |
Protection class | IP21 |
Permissible ambient temperature and humidity | 5~40℃,80% |
Data connector | RS232 |
Application Scenes
Designed for rapidly homogenize, emulsify, suspend and disrupt biological samples like tissue of animal, bacteria, yeast, plant samples, etc. in liquids.
