steel plate steel pipe h beam shot blasting machine with paint and dry

Item

Specification

Unit

Steel sheet

Width

5000

mm

Thickness

5~60

mm

Length

3000~18000

mm

Steel structure

Width

1200~1500

mm

Height

400

mm

Length

3000~18000

mm

Item

Specification

Unit

Blasting turbine model

1000~1100mm

Q035

Shot blasting speed

70~90

m/s

Shot blasting qty

10*420

Kg/min

power

10*30

kw

Spraying machine

Spraying

high-pressure no gas spray

Chatham pump

model

9GQC

Pressure ratio

33 ¦1

Displacement(Coatings)

13L/min

Inlet pressure

0.4~0.6 Mpa

Qua.

1

Lance

model

206-513

Paint pressure

10~20MPa

Control Pressure

0.4~0.6 MPa

Qua.

1

vehicle

Working speed

30~60 m/min

Reducer¦BWY15-9-2.2

Wind-driven stirrer

S-100 model

G-01type paint filters

25L

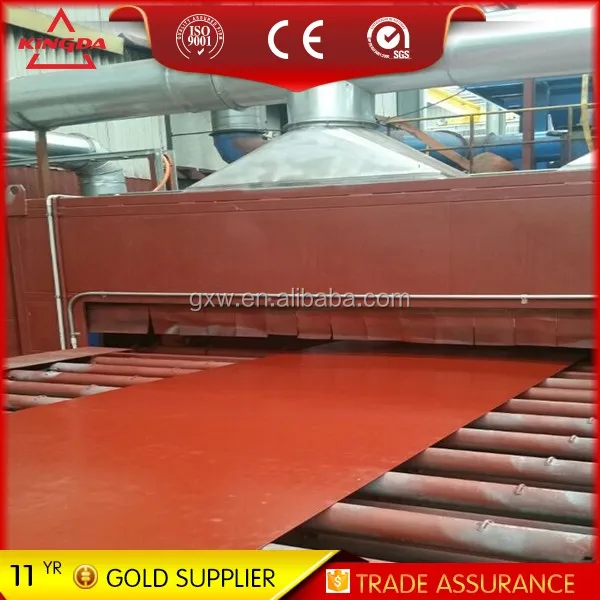

Dryer

Heating Device

Electric Heater

SRK6-36

power

24*12=288 kW

Fans

Air volume

* Pressure

9840m³/h*47mmH₂0

model

30K4-11(No4)

power

3 kW

Plate chain conveyor

Transmission speed

0.8-2m/min

Reducer¦BWY2718-121-4

power

4 kW
