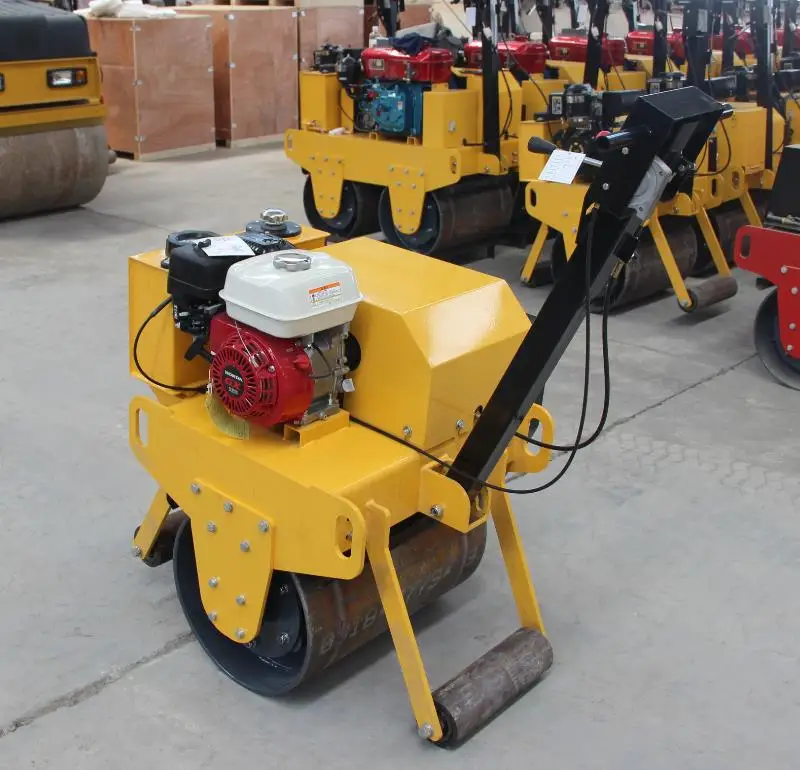

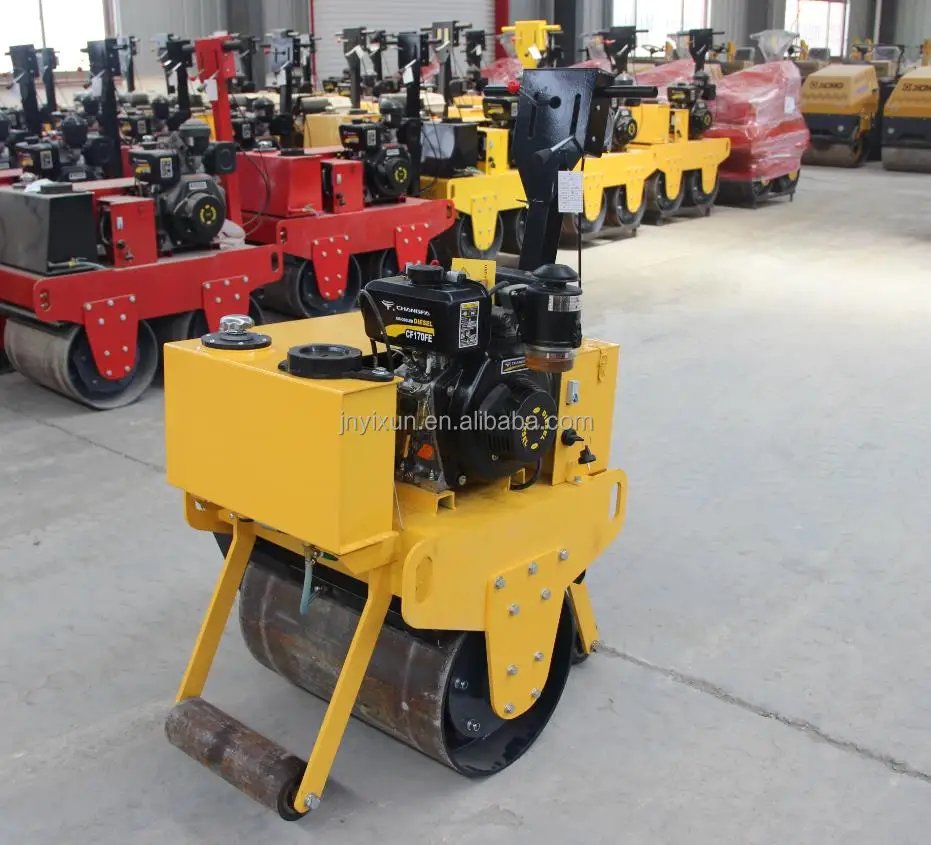

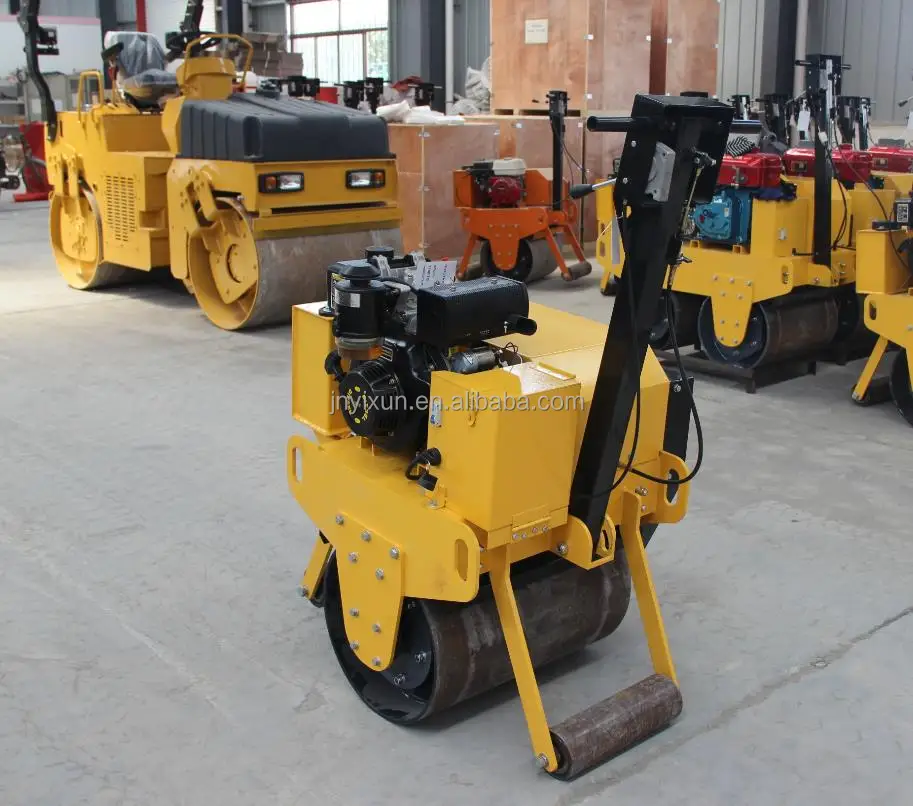

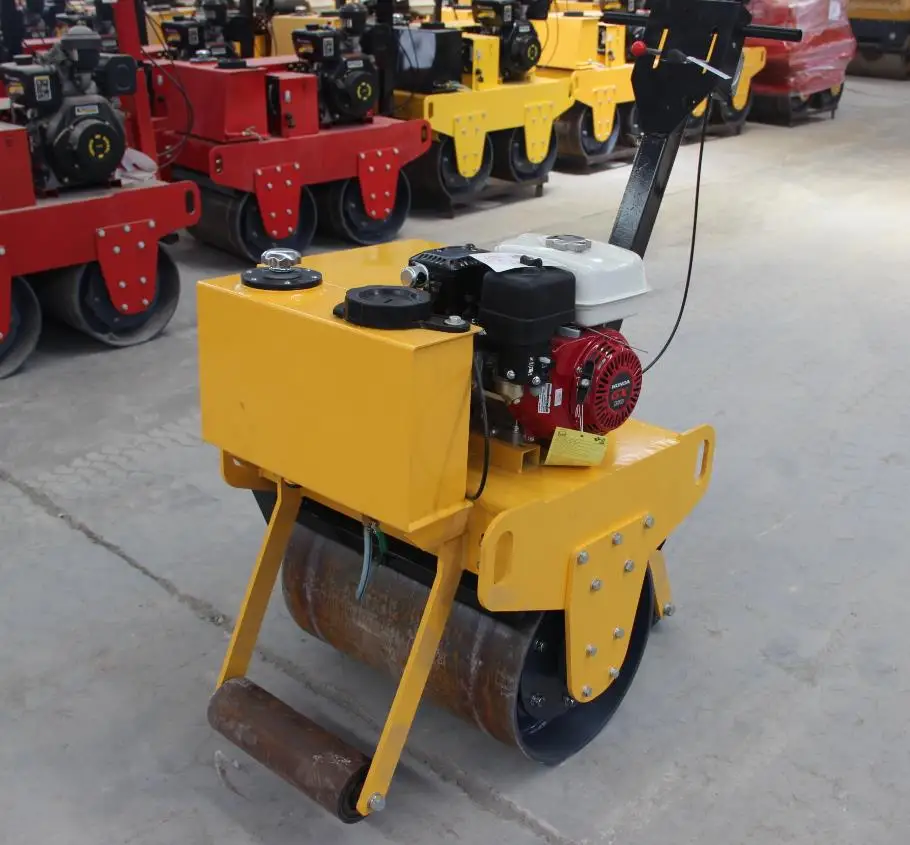

Walk behind New vibrating road rollers 2021 single drum mini soil compactor
- Category: Road Roller >>>
- Supplier: Jining Yixun Machinery Co. Ltd.
Share on (1600487533528):
Product Overview
Description

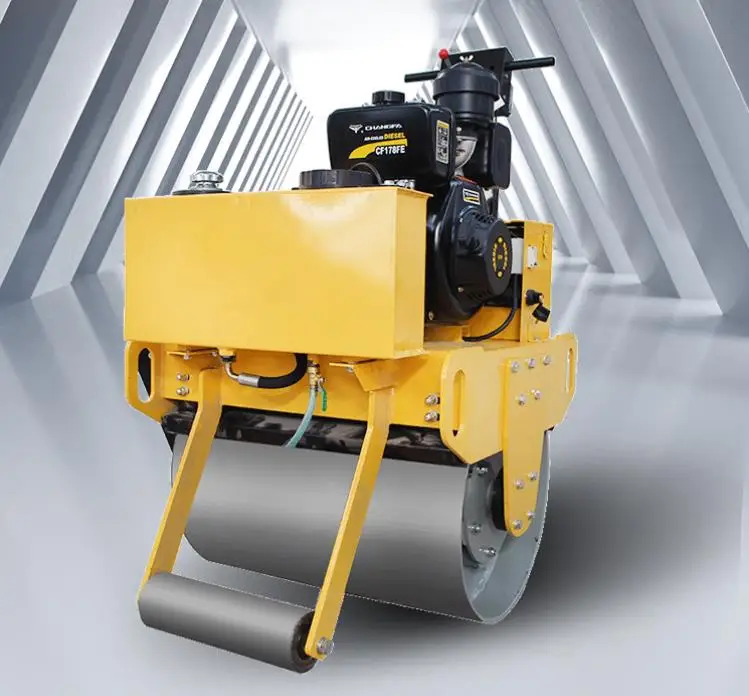

Model | Changfa CF170FE | Honda GX160 | |
Types of | Diesel engine, air-cooled 4-stroke | Gasoline engine, air-cooled 4-stroke | |
Fuel consumption | 280g/kw.h | 395g/kw.h | |
Power | 4.0hp,3600rpm | 5.5hp,3600rpm | |
Working weight | 350Kg | 320Kg | |
Gradeability | 25% | ||
Nominal amplitude | 0.5mm | ||
Vibration frequency | 75HZ | ||
Exciting force | 20KN | ||
Water tank capacity | 20L | ||
drive | Hydraulic pumps and motors | ||
vibration | Automatic vibration | ||
Fuel tank capacity | 3.5L | ||
Steel wheel width | 600mm | ||
Steel wheel diameter | 426mm | ||
Total length(handrails laid flat) | 1650mm | ||
Total width | 760mm | ||
Total height(upright armrest) | 1300mm | ||
Package dimensions | 1150*850*1200mm | ||
1.The small hand-held single-cylinder wheel roller adopts authentic well-known power, and uses domestic well-known hydraulic pumps and motors;
2.The working radius is small, and it can work in a narrow area. The armrest adopts a plane gear adjustment mechanism, which is flexible and convenient. The surface is sprayed with plastic, beautiful and beautiful, anti-corrosion sprayed with plastic.
2.The working radius is small, and it can work in a narrow area. The armrest adopts a plane gear adjustment mechanism, which is flexible and convenient. The surface is sprayed with plastic, beautiful and beautiful, anti-corrosion sprayed with plastic.

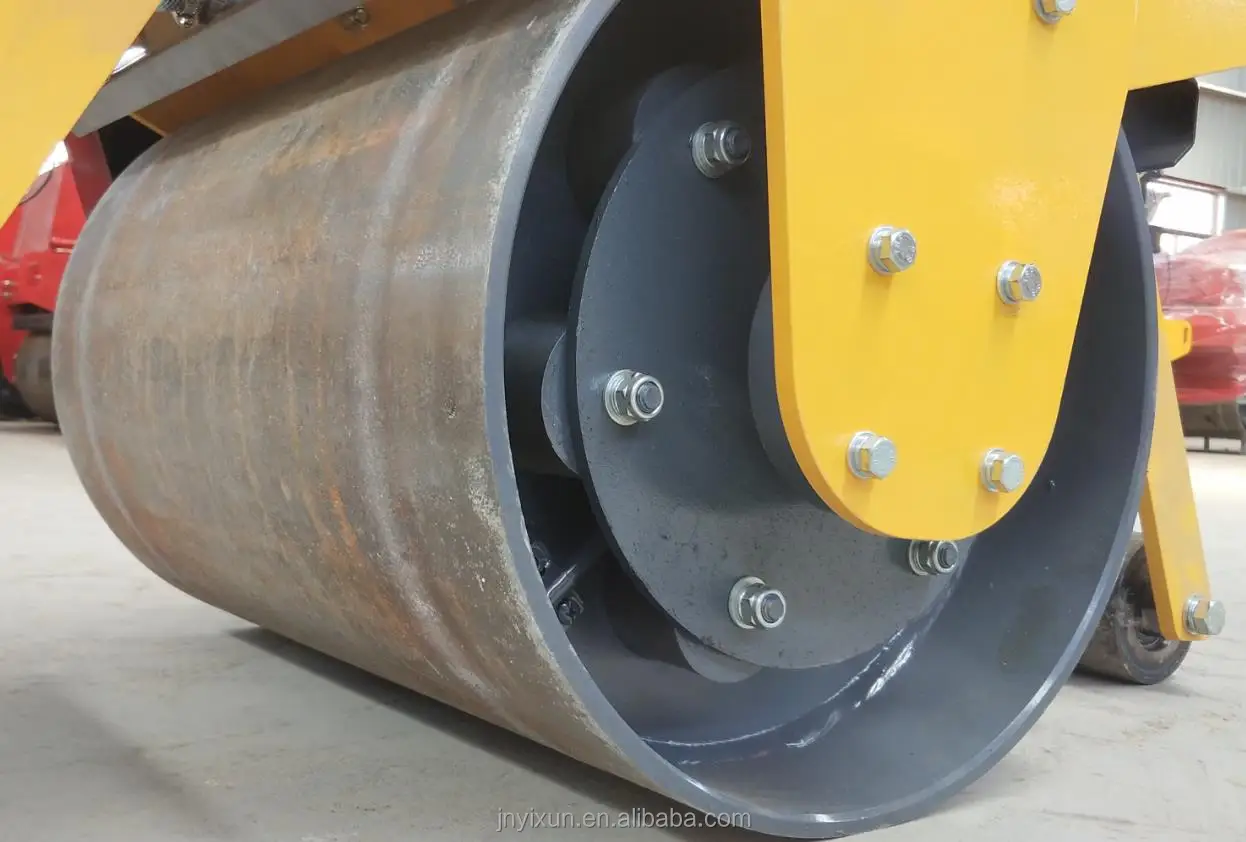

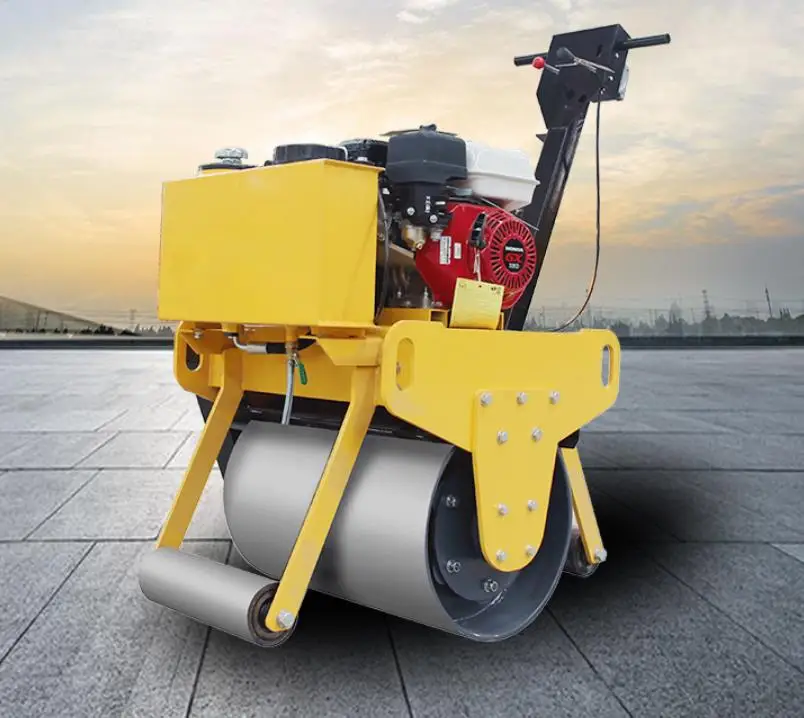

Single wheel vibration
Steel wheel width: 760mm
Exciting force: 20KN
Vibration frequency: 75HZ
Steel wheel width: 760mm
Exciting force: 20KN
Vibration frequency: 75HZ

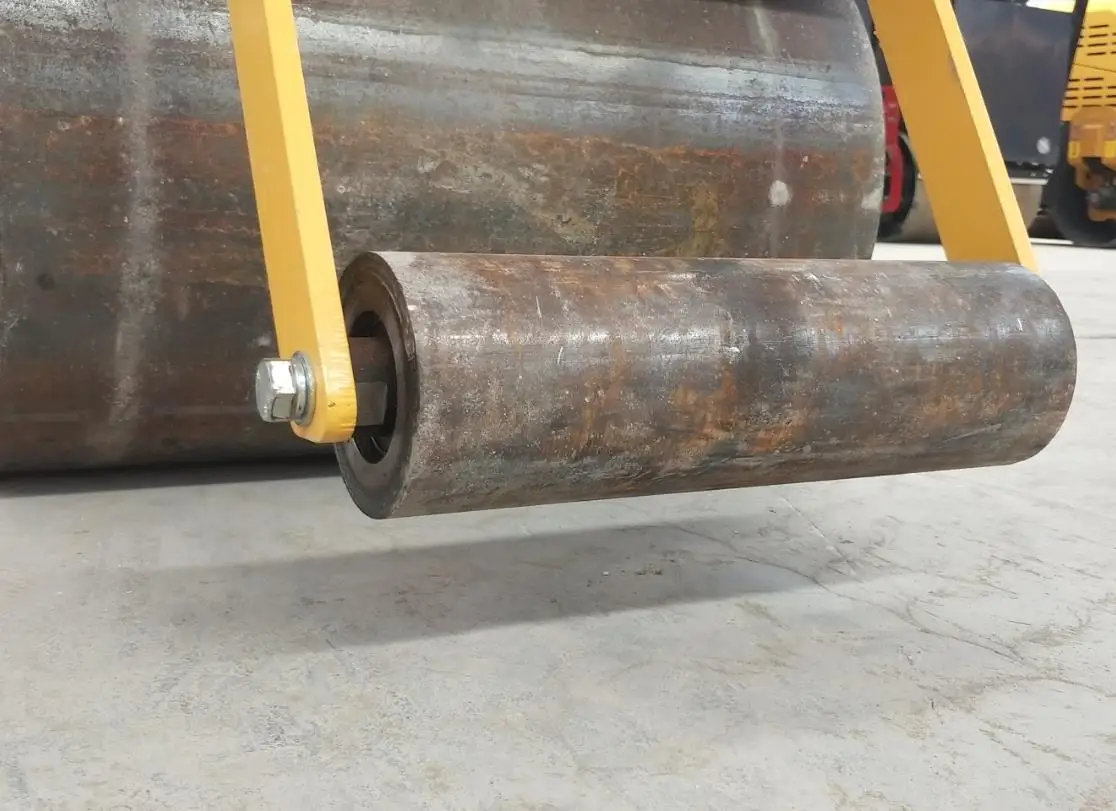

Front and rear support wheels

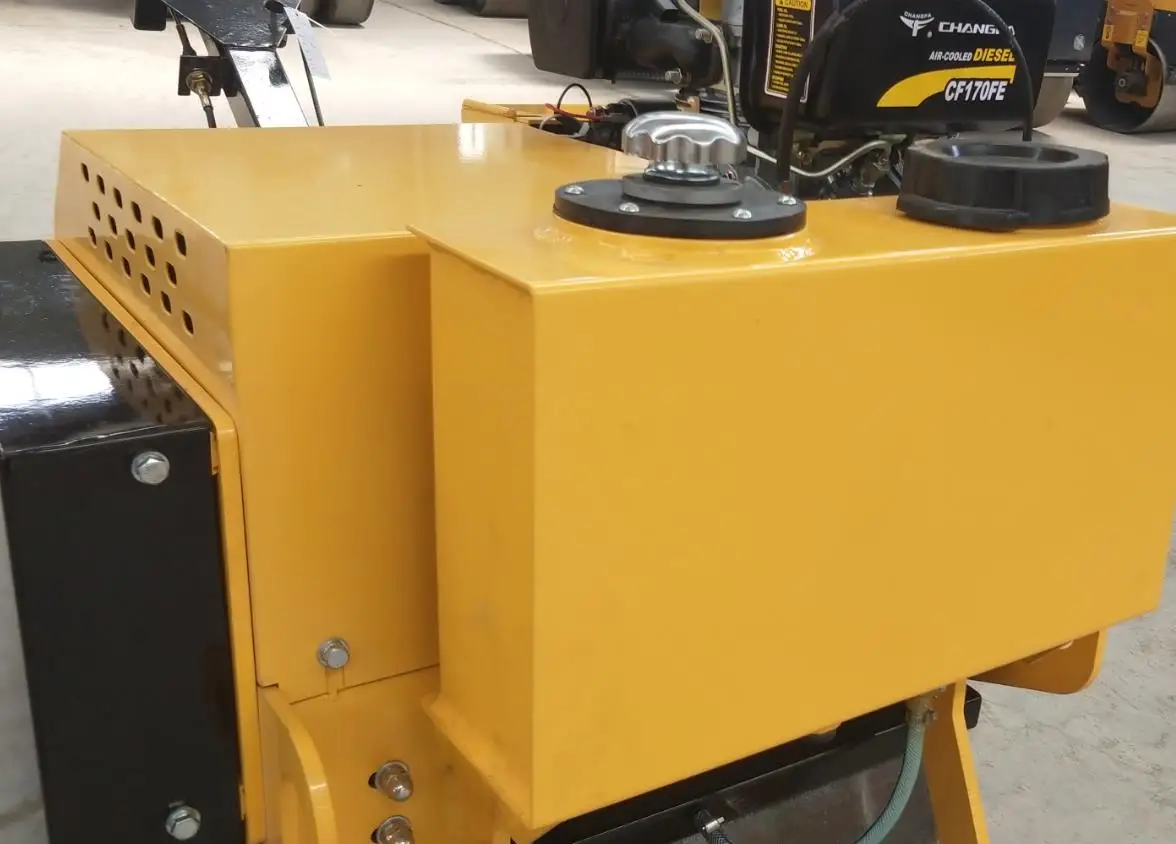

Water tank:
20L in capacity
20L in capacity

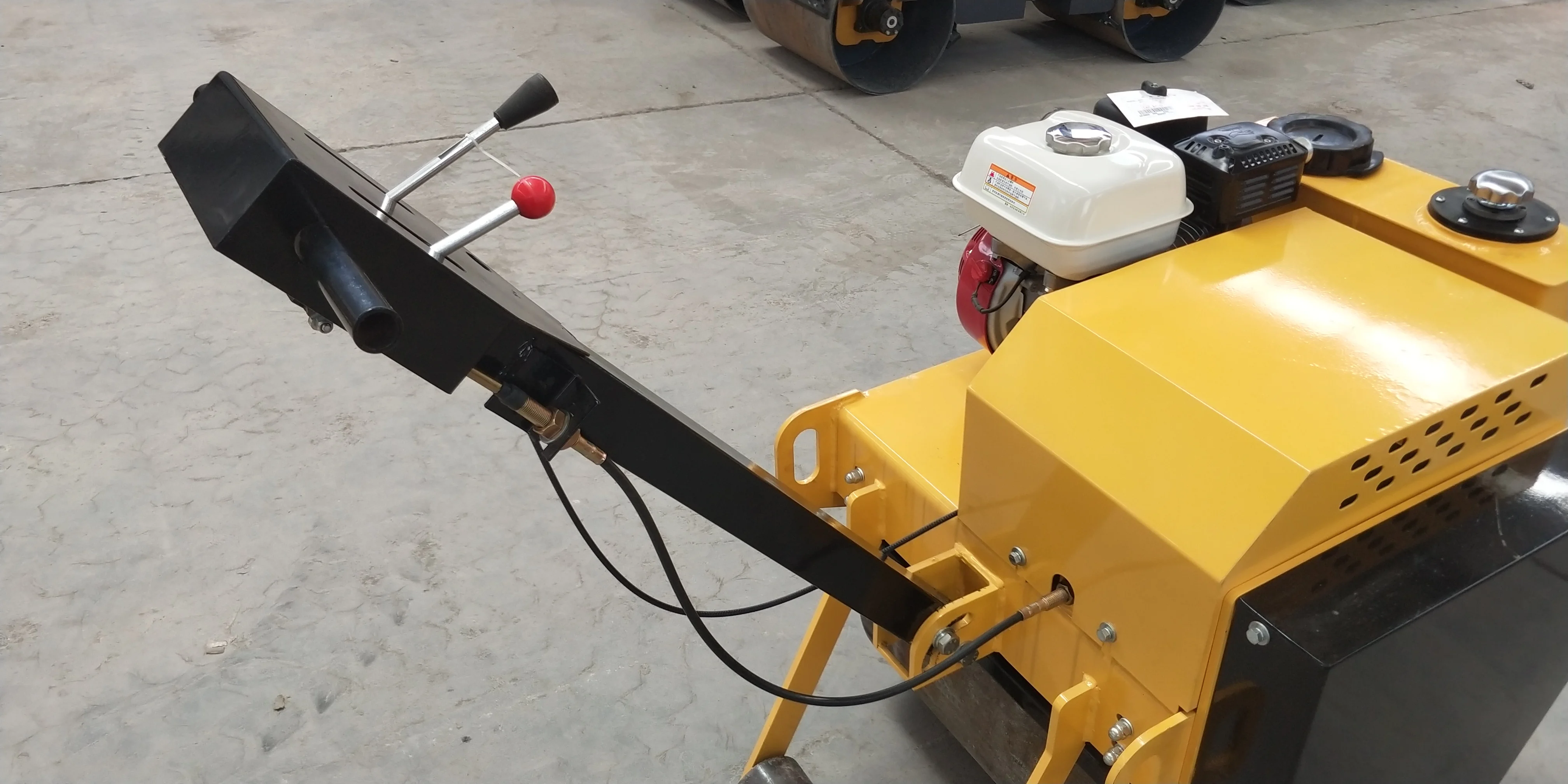

Control Handle:
Go up and down freely, get the right height
Go up and down freely, get the right height

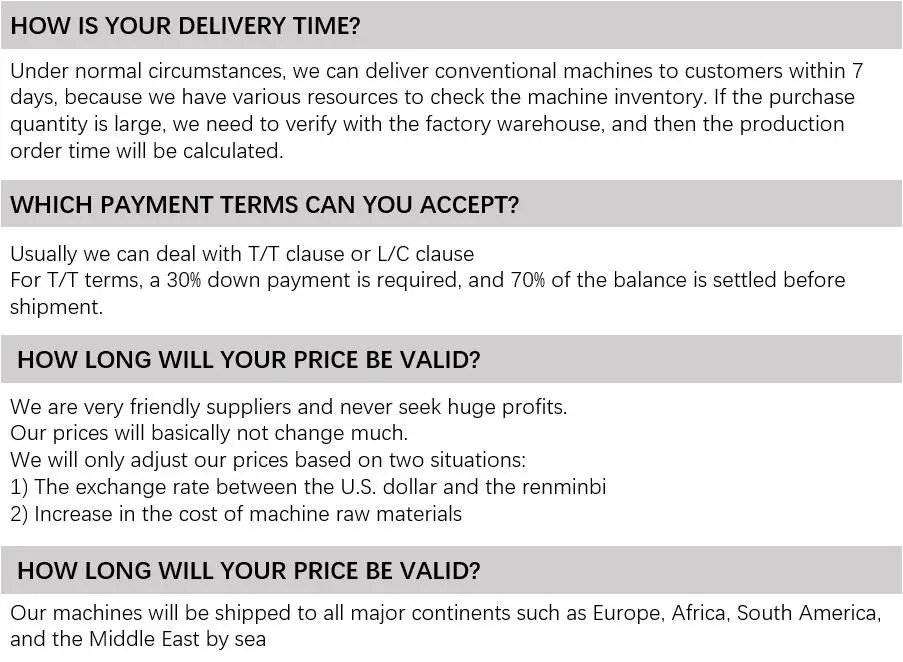

FAQ
