High Pressure Stirred Autoclave CJF 1

Product Overview

Description



Product Description:

CJF series high pressure stainless steel stirring reactor is a gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical raw material of a chemical reaction stirring device. It can make a variety of chemical substances in high pressure, vacuum, temperature conditions are fully stirred to enhance the mass transfer and heat transfer process.



Product Features:

The high pressure autoclave adopts static sealing structure, and the magnetic stirrer is used to connect the stirrer and the motor drive. Because of its non-contact transmission torque, the static seal replaces the dynamic seal, which completely solves the problems of mixing and leakage, and makes the whole medium and stirring components. It is completely in the state of absolute sealing, therefore, it is more suitable for a variety of flammable, explosive, highly toxic, valuable medium and other chemical medium with strong penetrating power for stirring reaction, which is petroleum, chemical, organic synthesis, high It is a non-leakage reaction device with the most ideal reaction such as sulfurization, fluorination, and oxidation in the polymerization of molecular materials and foods.

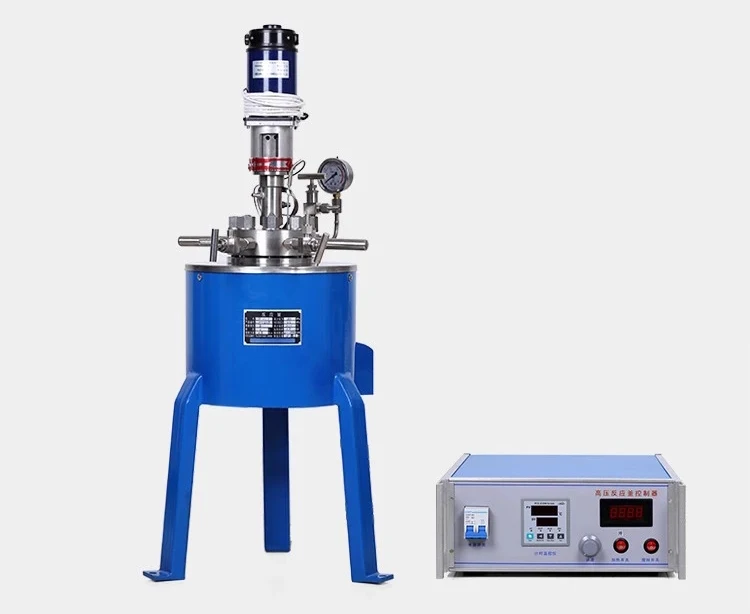

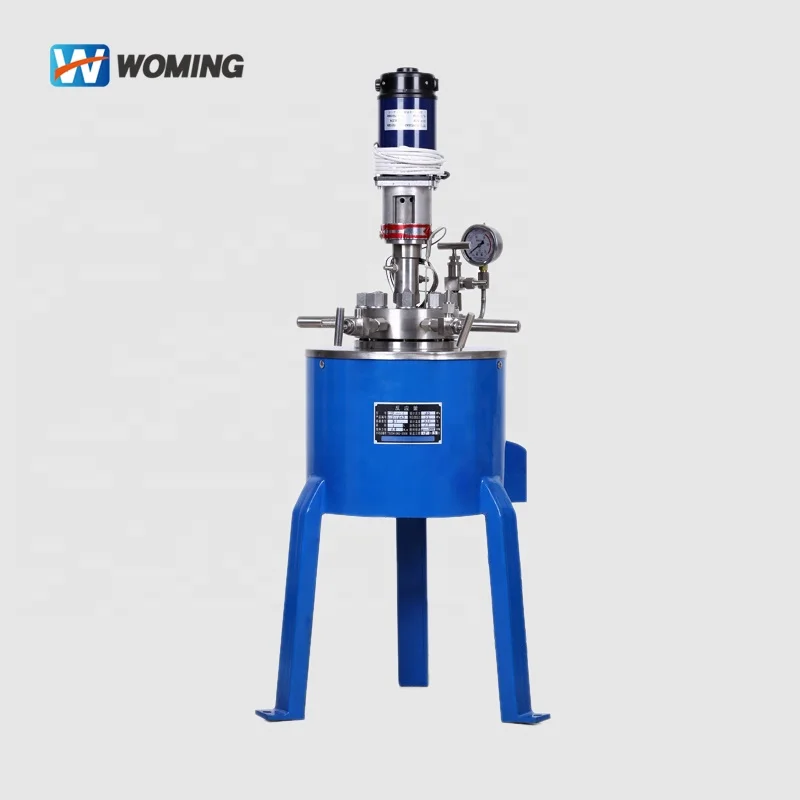

Product Picture:



Product Structure:



Product Details:



Detailed Data:

Name	Teachnical Parameter
Hight Pressure Reactor	Reactor	Model	CJF-0.05	CJF-0.1	CJF-0.25	CJF-0.5	CJF-1	CJF-2	CJF-3	CJF-5
		Volume	0.05L	0.1L	0.25L	0.5L	1L	2L	3L	5L
		Material	Stainless Steel 304 or 316L
		Design Pressure	22MPa
		Design Temperature	350℃
	stirring	Sealing Method	static sealing ,a type hard sealing			magnetic rotation,static sealing		magnetic rotation,a type hard sealing
		Stirring Speed	magnetic mechanical sti
		Stirring Form	magnetic mechanical stirring,frequency control
		Heating Method	electrical machanical stirring,frequency control
		Heating Power	220V 0.6KW	220V 0.8KW	220V 0.6KW	220V 1.8KW	220V 2KW	220V 2.5KW	220V 4KW	220V 5.5KW
		Motor Power	140W
		Temperature Control precision	±1
	control	speed regulation
		temperature control
		temperature Display
		rotary speed display
	Nozzle	gas phase nozzle is equipped with needle valve				gas phase nozzle is equipped with needle valve
		vent nozzle is equipped with needle valve				vent nozzle
		temparature measureing nozzle is equipped with probe				tempareture measure
		N/A				stirring nozzle is equipped with coupling
		N/A				pressure safety anti-explosion nozzle is equipped  with pressure gage and rupure disc
		N/A				liquid phase nozzle is equipped with needle valve with bottom tube(used for sampling or dischaaarging)



Other Products:



Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up  the goods at your local airport,which you can have a local shipping agent to do for you
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port,which you can have a local shipping agent to do for you



Company Information:

Henan Woming Instrument Equipment co.,Ltd is a professional exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 5 years of manufacturing experience with induction rotary evaporators, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europ, India, etc.We attach importance to every customer and every order. 100% customer satisfaction is always our first priority.A strict and complete quality control system is implemented, which ensures that each product can meet quality requirements of customers. Our professional sales team keeps a closet tie with all our clients and always be ready to provide all round services and solutions to our clients purchase and sales.Please feel free to contact us if you would like to learn more of our company and work with our team. Looking forward to a cooperation with you!



Our Services:



FAQ:

1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood case
