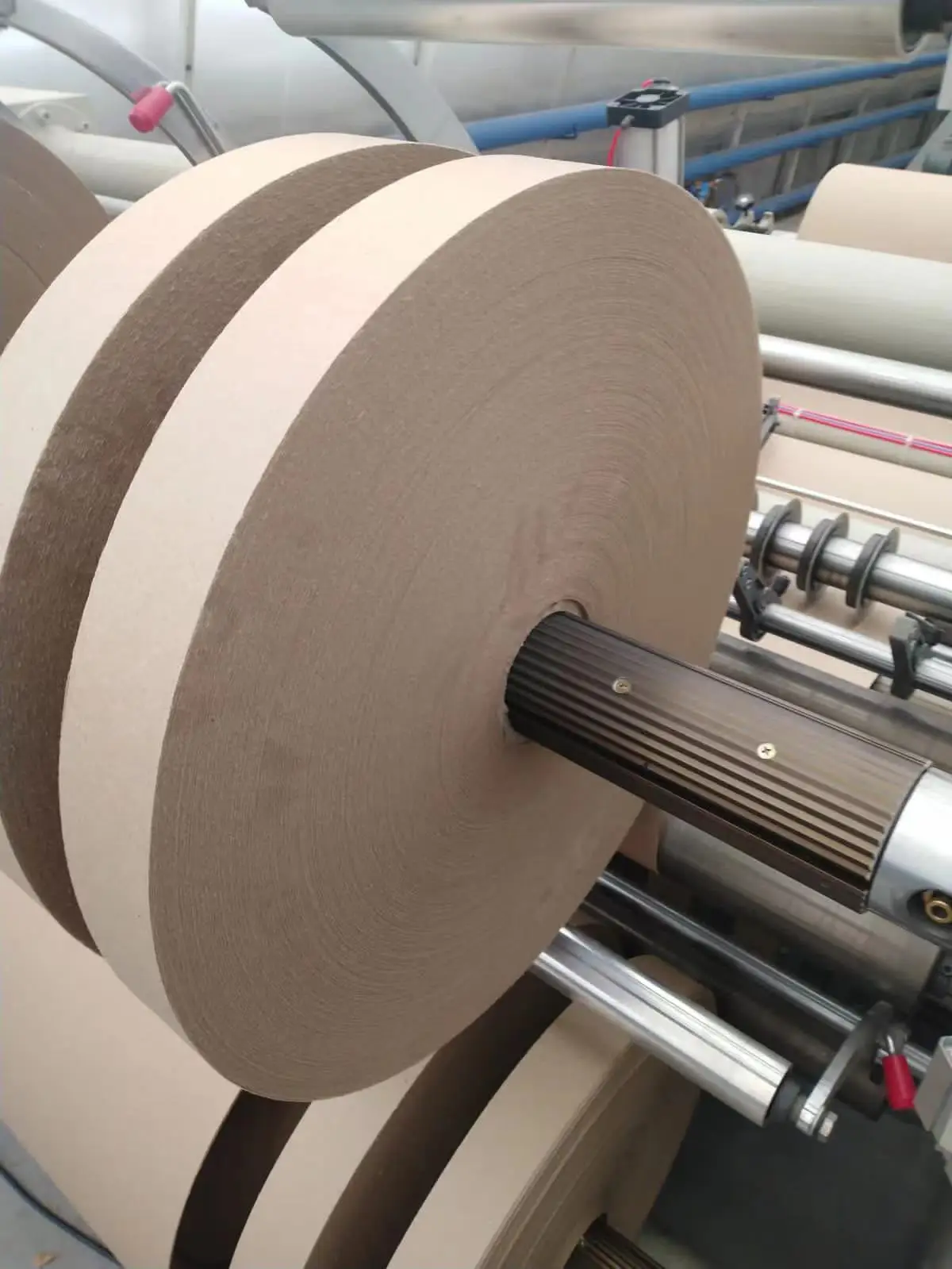

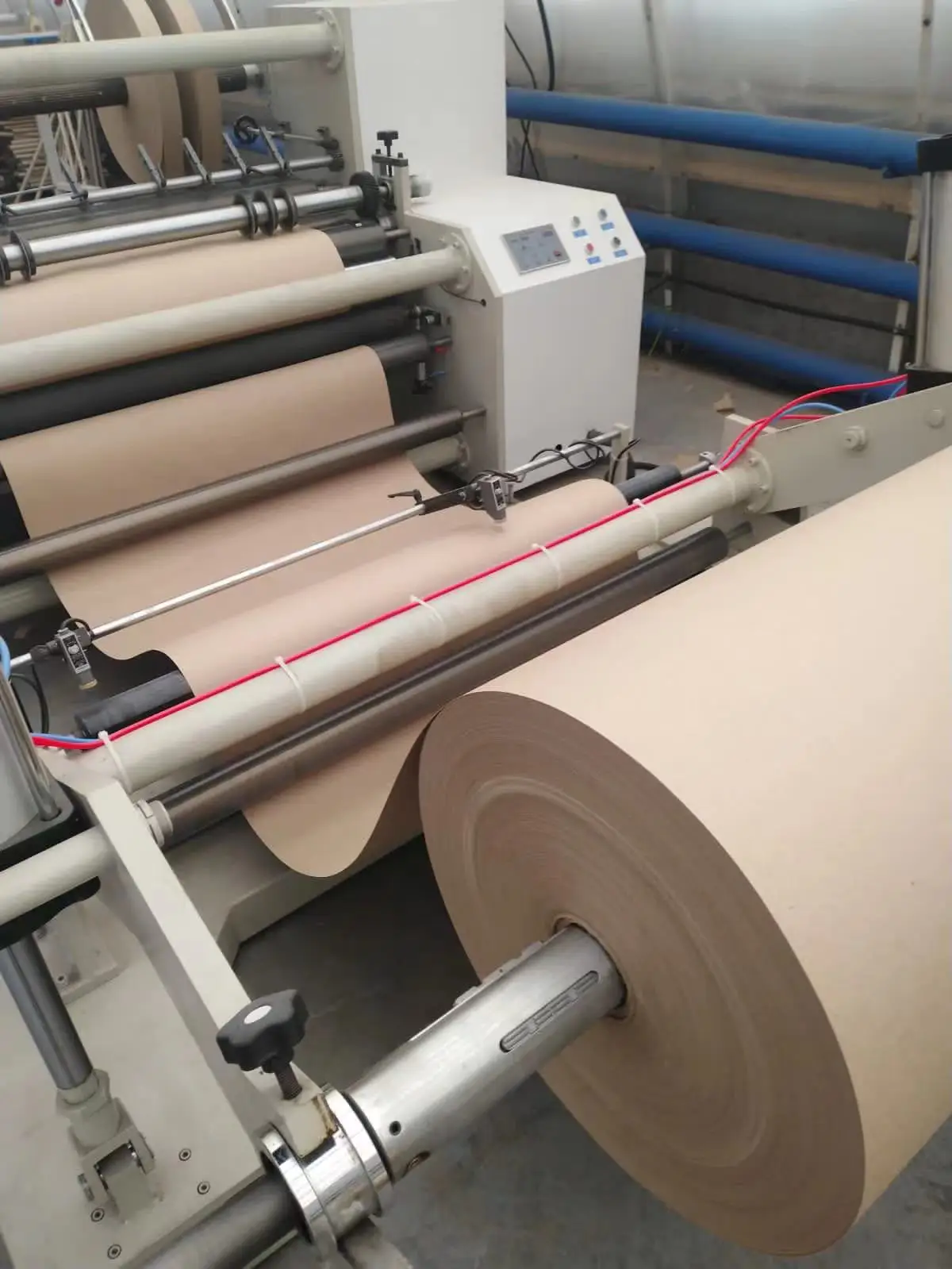

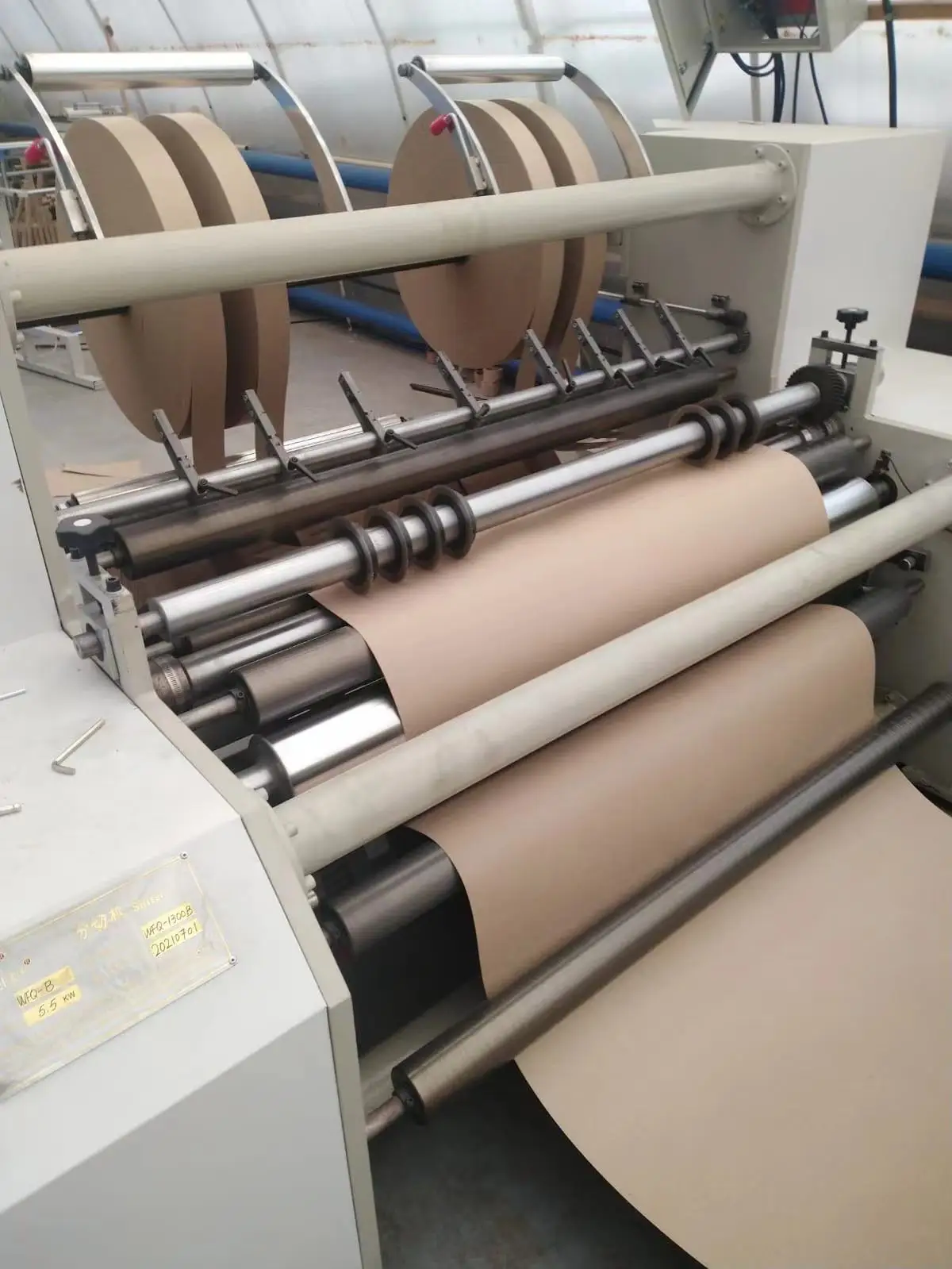

WFQ PLC Jumbo Roll Slitting Machine

Product Overview

Description

GWL-B Guowei PLC Slitter Rewinding Machine Price



Application and Features

The machine is applied to slitting single layer plastic film of PET, OPP, CPP, PE, PS, PVC, etc., multilayer laminated plastic film, paper and other roll materials.



1.      Horizontal structure, with unwinder and rewinder at the same side.

2.      Cast iron body, guarantee the stability at high speed.

3.      Mechanical shaft is fixed by taper sleeve in order to be suitable for roll materials with paper core transformed easily. The full unwinding shaft can be disassembled and has one end rotatable. Double-photoelectric computer E.P.C system is installed at first unwinding

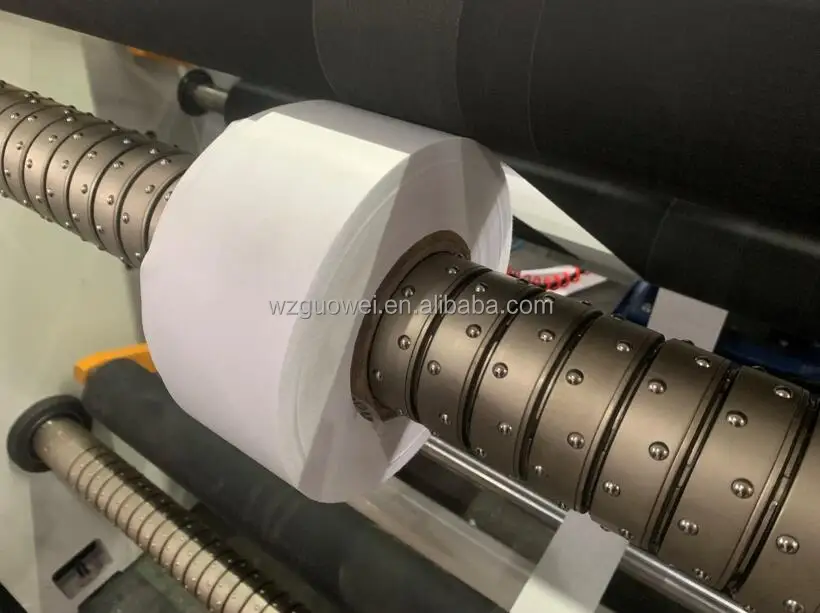

4.      Both up rewinding and down rewinding adopt air-expansion shafts, with pressing rollers. The rewinding shafts have one end rotatable, convenient for unloading, with heavy type rotating structure(not universal joint) that is durable. The shafts are locked by pneumatic.

5.      The tension of unwinding and rewinding is controlled by magnetic powder.

6.      Slitting edge is blown out by high power blower through recycling pipe at the right side of the machine.

7.      Main motor adopts frequency speed adjustment, Japan Yasukawa inverter.

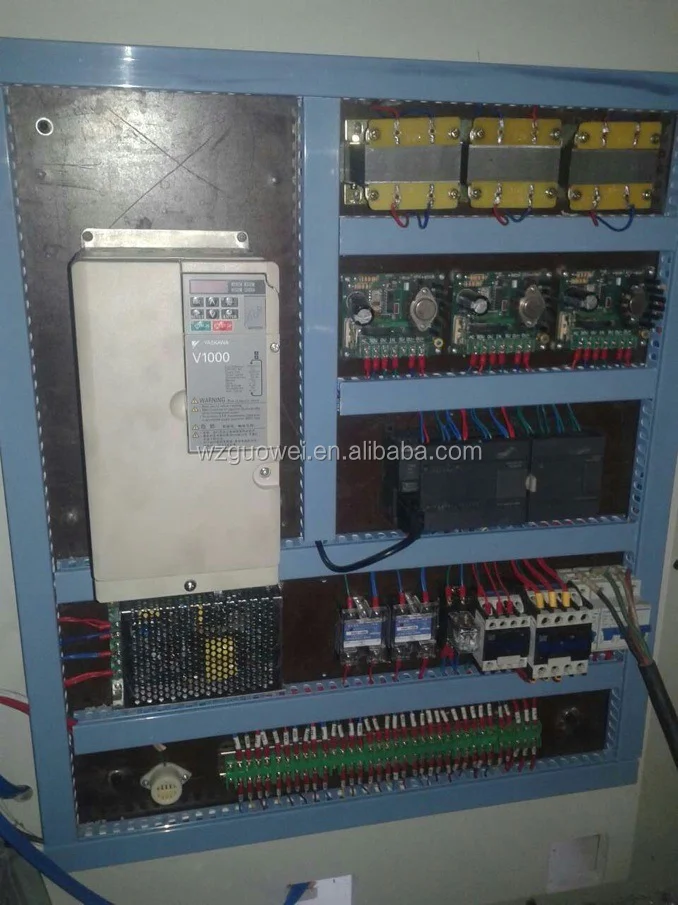

8.      Independent electrical operation box, computer integrated control, meter counting while rewinding, presetting meter for auto stop

9.      All guide rollers are highly hardened aluminum alloys, with static and dynamic equilibrium treatment.



Main Technical Parameters

Model	WFQ800/WFQ1300/ WFQ1600
Max. slitting speed	180m/min
Max. unwinding dia.	850mm
Max. rewinding dia.	450mm
Max. unwinding width	760mm/1260mm/1560mm
Total power	3.8kw/3.8kw/5.2kw
Weight	1500kg/1700kg/2300kg
Dimension	1850*1400*1370mm/2350*1400*1370mm 2650*1400*1370mm

















Wenzhou Guowei Printing Machinery Co.ltd established in 1998,in Wenzhou Ruian city,Zhejiang Privice,China.   We are a manufacturer specializing in the production of Rotogravure Printing Machine ,Laminating Machine ,   Slitting Machine and Flexible packaging machines over 20 years. Good quality and excellent performance in printing crafts with Good after-sales service is our superiority.   Taking every project as unique,customized manufacturing and service total solutions is our production principle. Choose us, choose best machine for you!
