CZJB 135C 48v 750w 1000w electric bicycle hub gear motor for city mtb e bike
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (1600487548871):
Product Overview
Description
1000W Bike Motor Paramenters
135T electric bike motor | ||
Rated Voltage(V) | 24/36/48 | |
Rated Power(W) | 800-1000W | |
Rated Speed(km/h) | 45 | |
Temperature(℃) | -20～45 | |
Rated Efficiency(%) | ≥82 | |
Hall Sensor | Optional | |
Integrate Speed Sensor | Optional | |
Color | Shining/Black/Silver | |
Wheel Size | 16"-28" | |
Redution Ration | 1:5.83 | |
Weight（kg） | 4.0 | |
Open Size(mm) | 140mm | |
Cable Location | Shaft Center Right | |
Spoke Specification | 36H*/12g/13g | |
Brake Type | V /Disc Brake | |
Noise(db) | <55db | |
Waterproof Grade | IP65 | |

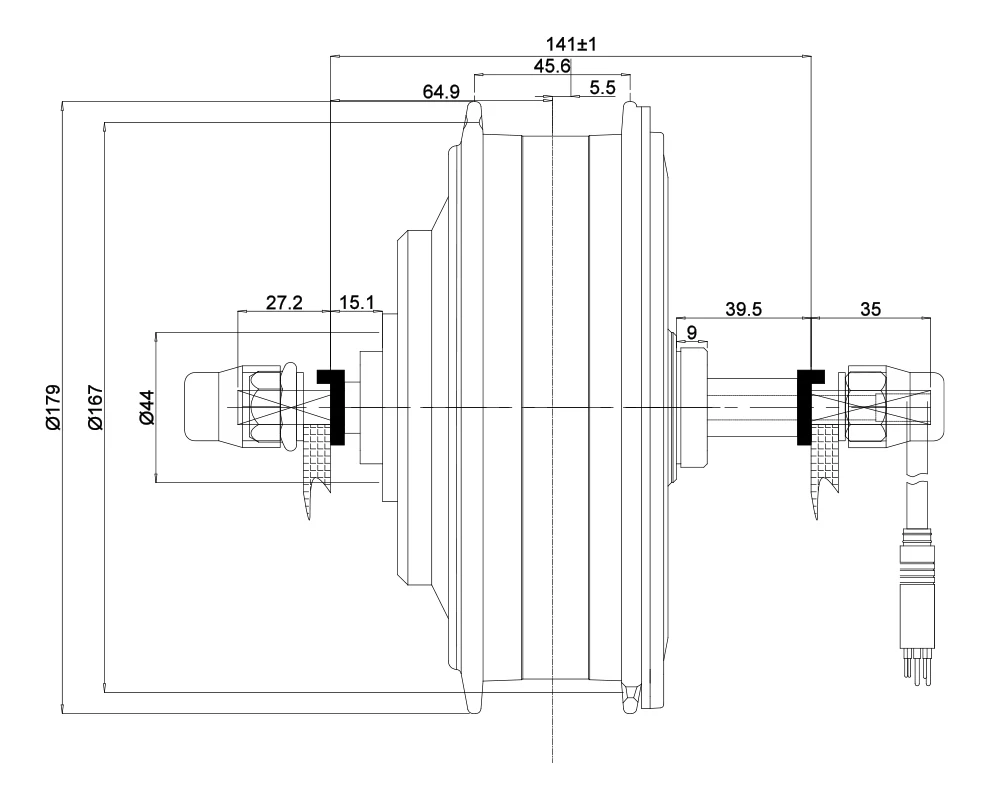

Motor structure drawing

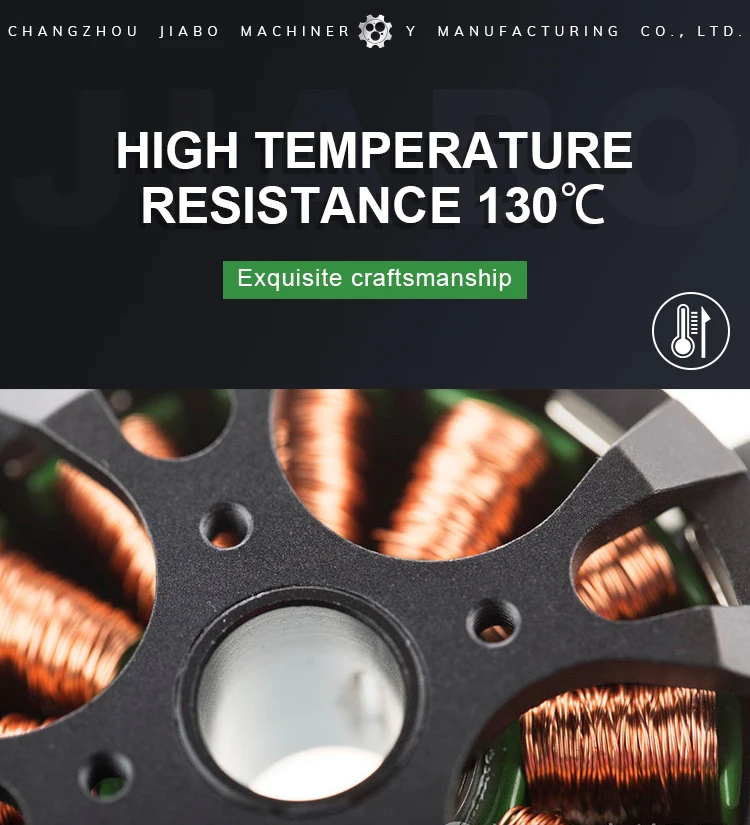

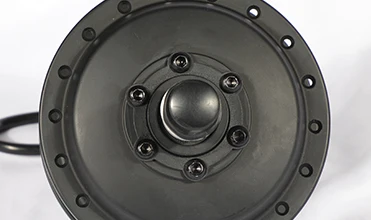

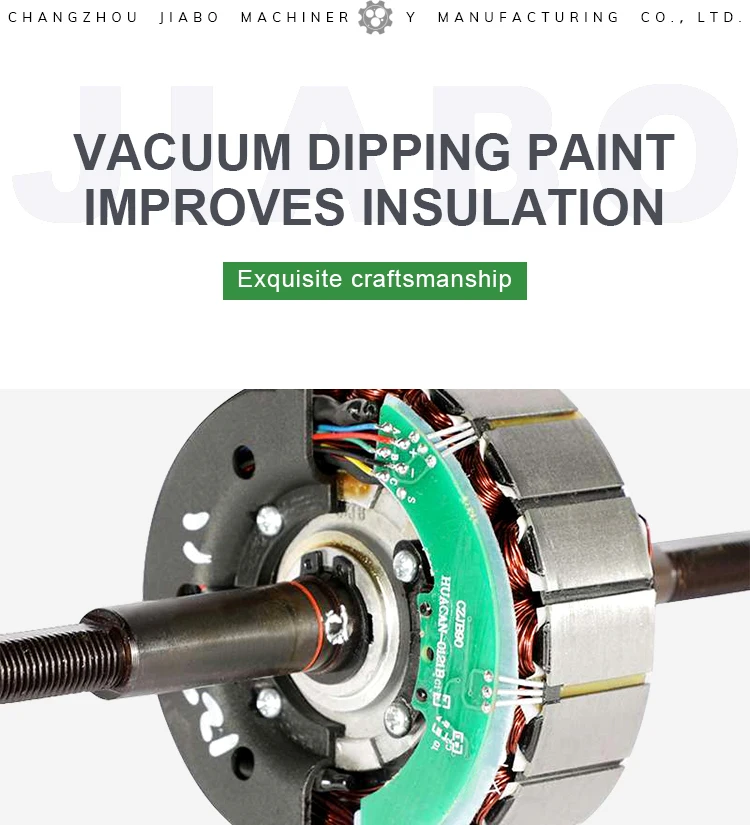

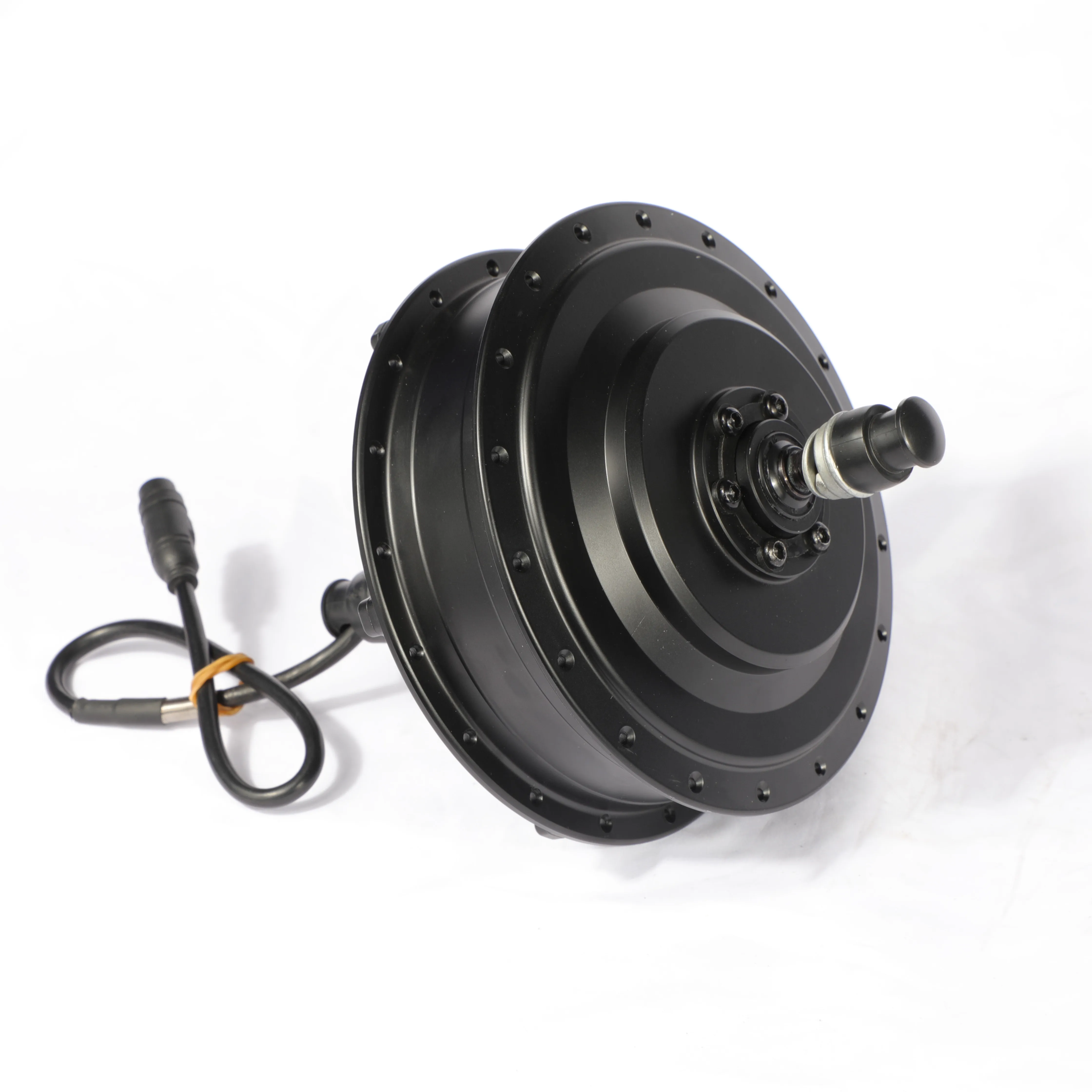

Motor Details Images
Product packaging

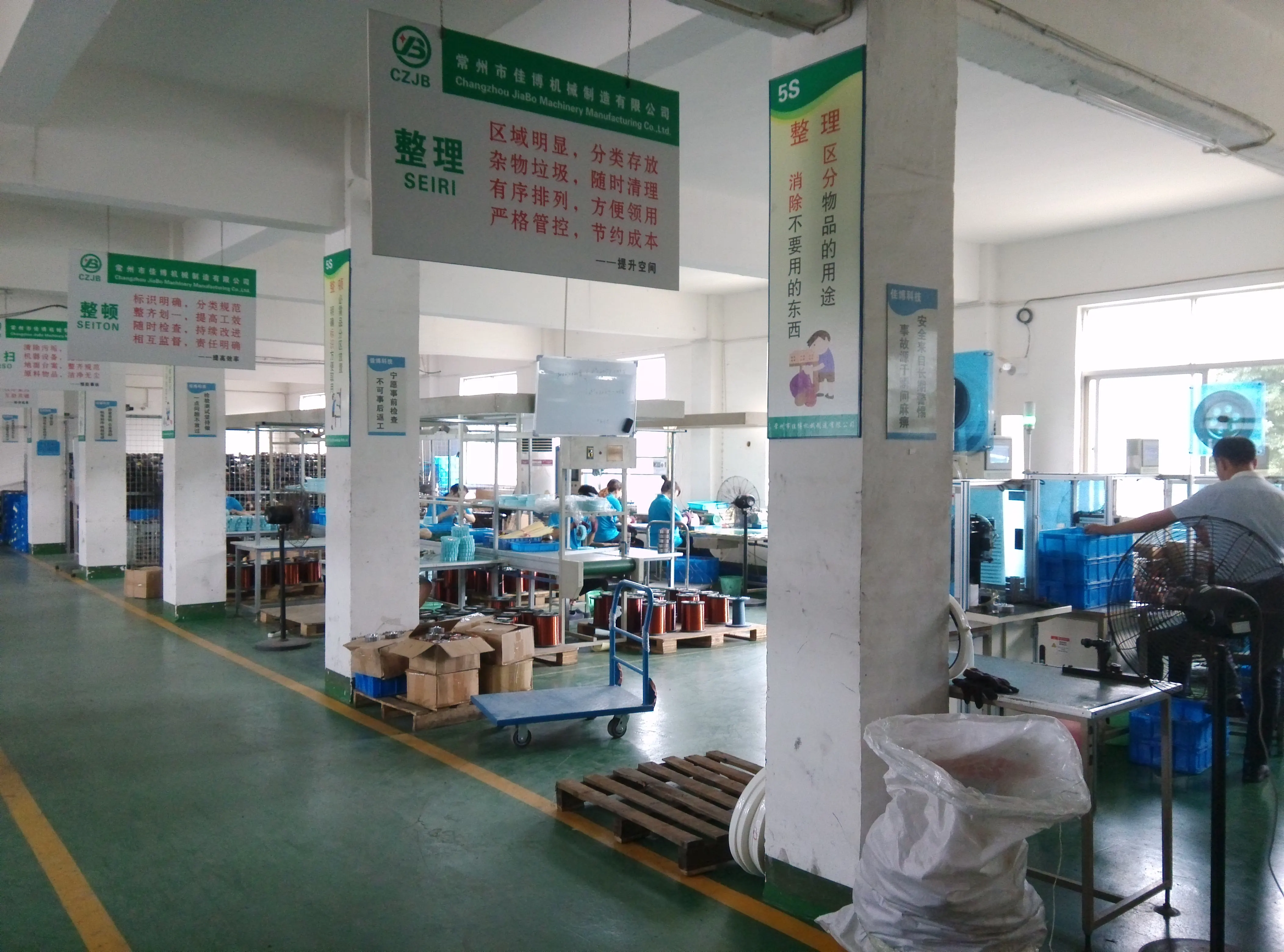

About us
JIABO founded in 2008, concentrates on researching and developing ebikes, lithium electric bike motors, electric bicycle conversion kits and so on. With more than 10 years experience in price and quality. LANGYAN has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers. JIABO which is a factory with complete after-sale service system. We promise 2 years' warranty.
First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
Certifications
FAQ
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
