High Quality Lpg Gas Vertical Storage Tanks 1000 Litre Lpg Gas Storage Tank Gas Lpg Storage Tank
- Category: >>>
- Supplier: Beijing Double Dragon International Industrial & Mining Machinery Co. Ltd.
Share on (1600487560397):
Product Overview
Description

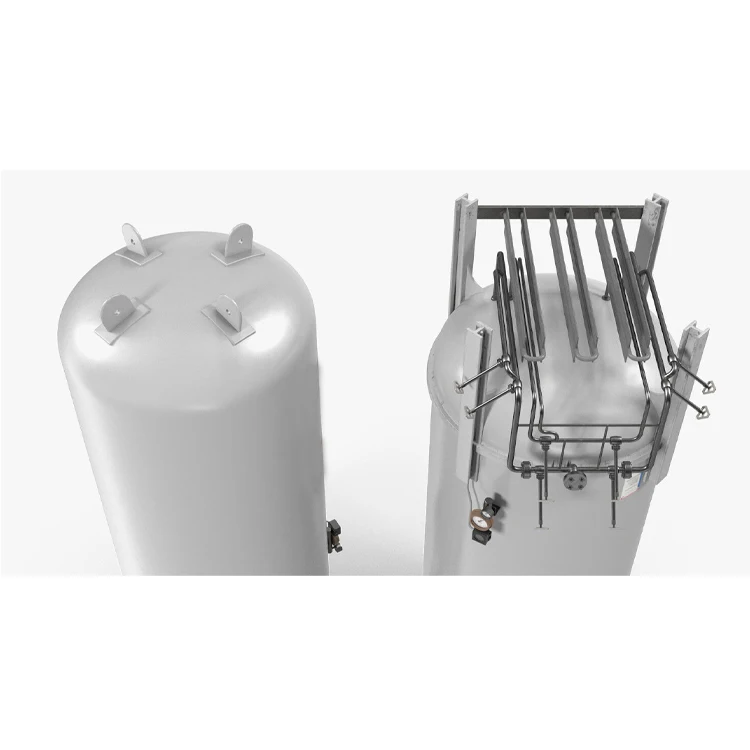

High Quality Lpg-Gas Vertical Storage Tanks 1000 Litre Lpg Gas Storage Tank Gas Lpg Storage Tank
Product Description
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame.
Includes transfer equipment to allow the supply of gas in liquid phase to vehicles with the maximum guarantee of safety.
Simplified installation: only requires connection of power supply to the unit and anchoring to the ground (with earth connection).
Product Application
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame.
Includes transfer equipment to allow the supply of gas in liquid.
phase to vehicles, with the maximum guarantee of safety.
Simplified installation: only requires connection of power
supply to the unit and anchoring to the ground (with earth connection).
Technical Advantage
Compared to conventional manual welding, mechanical automatic welding is a method in which an electric arcis burned under the flux layer for welding. Mechanical automatic welding is one of the most efficient mechanizedwelding methods available today. stable welding quality, high welding productivity, there is no arc and smokedust and so on, so that our products are neat, smooth and beautiful, also extend the service life.
LPG tank| lpg storage tank|lpg storage tanks manufacturers
LPG Storage Tank Product Parameter:
No. | Model | Inner/outer tank size(mm) | Material | N.W.(kg) | Total length(mm) | Foundation bolt specifications(mm) | Center distance of liquid level gauge(mm) |
1 | BG 1.77-1200-5 | DN1200×3980 | Q345R | 1595 | 4663 | 4×M20/3200/720 | 1400 |
2 | BG 1.77-1400-5 | DN1400×2740 | Q345R | 1780 | 3535 | 4×M20/1950/840 | 1600 |
3 | BG 1.77-1400-10 | DN1400×5980 | Q345R | 2925 | 6775 | 4×M20/5180/840 | 1600 |
4 | BG 1.77-1600-10 | DN1600×4400 | Q345R | 2760 | 5295 | 4×M24/3400/960 | 1800 |
5 | BG 1.77-1800-15 | DN1800×5250 | Q345R | 4230 | 6247 | 4×M24/4300/1120 | 2000 |
6 | BG 1.77-2000-20 | DN2000×5650 | Q345R | 5025 | 6747 | 4×M24/4730/1260 | 2200 |
7 | BG 1.77-2000-25 | DN2000×7250 | Q345R | 5980 | 8347 | 4×M24/6330/1260 | 2200 |
8 | BG1.77-2200-25 | DN2200×5770 | Q345R | 5910 | 6999 | 4×M30/4600/1380 | 2400 |
9 |
| DN2000×8840 | Q345R | 6935 | 9937 | 4×M24/7900/1260 | 2200 |
10 |
| DN2200×7080 | Q345R | 6760 | 8314 | 4×M30/5900/1380 | 2400 |
Please Contact Me For Customized Parameters

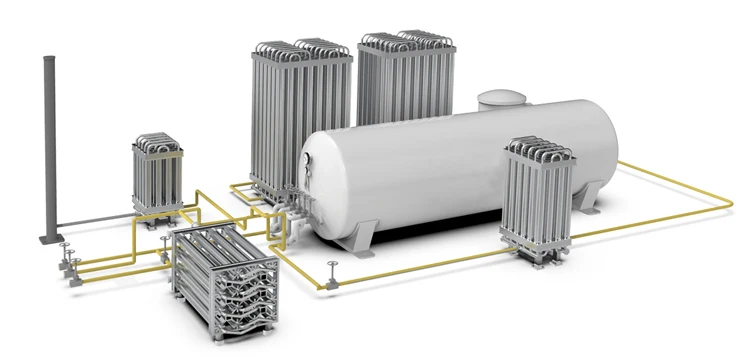

LPG Station System

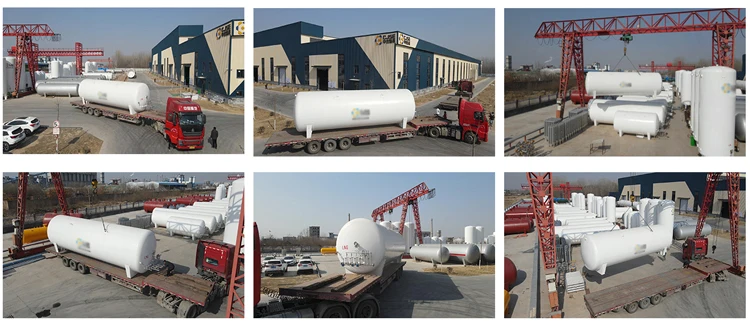

Packaging & Shipping
About Bidragon
Bidragon Group is engaged in boiler for many years and we mainly supply hot water boiler, steam boiler, thermal oil heater, etc., boilers. We have our own technical team, R&D team, sales team, and cooperative factories. Our factory was established in 1980, covering an area of 80,000 square meters, with more than 20 patented technologies. Take thermal oil heater for example, our technical team designs coil tube on boiler top and which design increases the thermal oil heaters thermal efficiency higher more than two points than the common oil gas fired thermal oil heater, which technical update is highly appreciated by customer at home and oversea because it saves fuel many consumption costs for customers.
