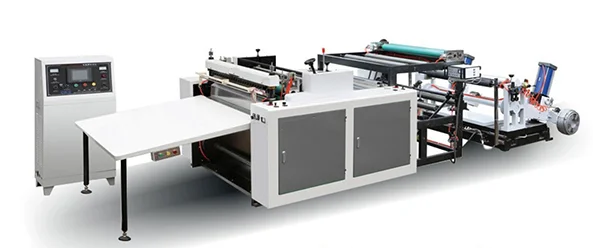

HQ1300D Plastic Film And Paper Sheet Cutting Machine

 Application:
This machine can cut plastic film and paper in sheet type

Feature:
1. Main motor inverter motor
2. Step motor to control the cutting length
3. Unwind magnetic powder brake with air shaft, EPC device
4. Unwind pneumatic loading

5. Photo eye tracking

6. Cirular blade for vertical slitting is optional

7. Whole machine PLC control with touch screen

 Specification:

Model	HQ1300D
Max cutting width	1300mm
Cutting length	20-1200mm
Min width of vertical slitting	30mm
Speed	150m/min
Max unwind diameter	1200mm
Paper core diameter	3 inch
Power	5.5kw
Dimension	5500*2200*1200mm
Weight	2100kg



Cutting Sample:

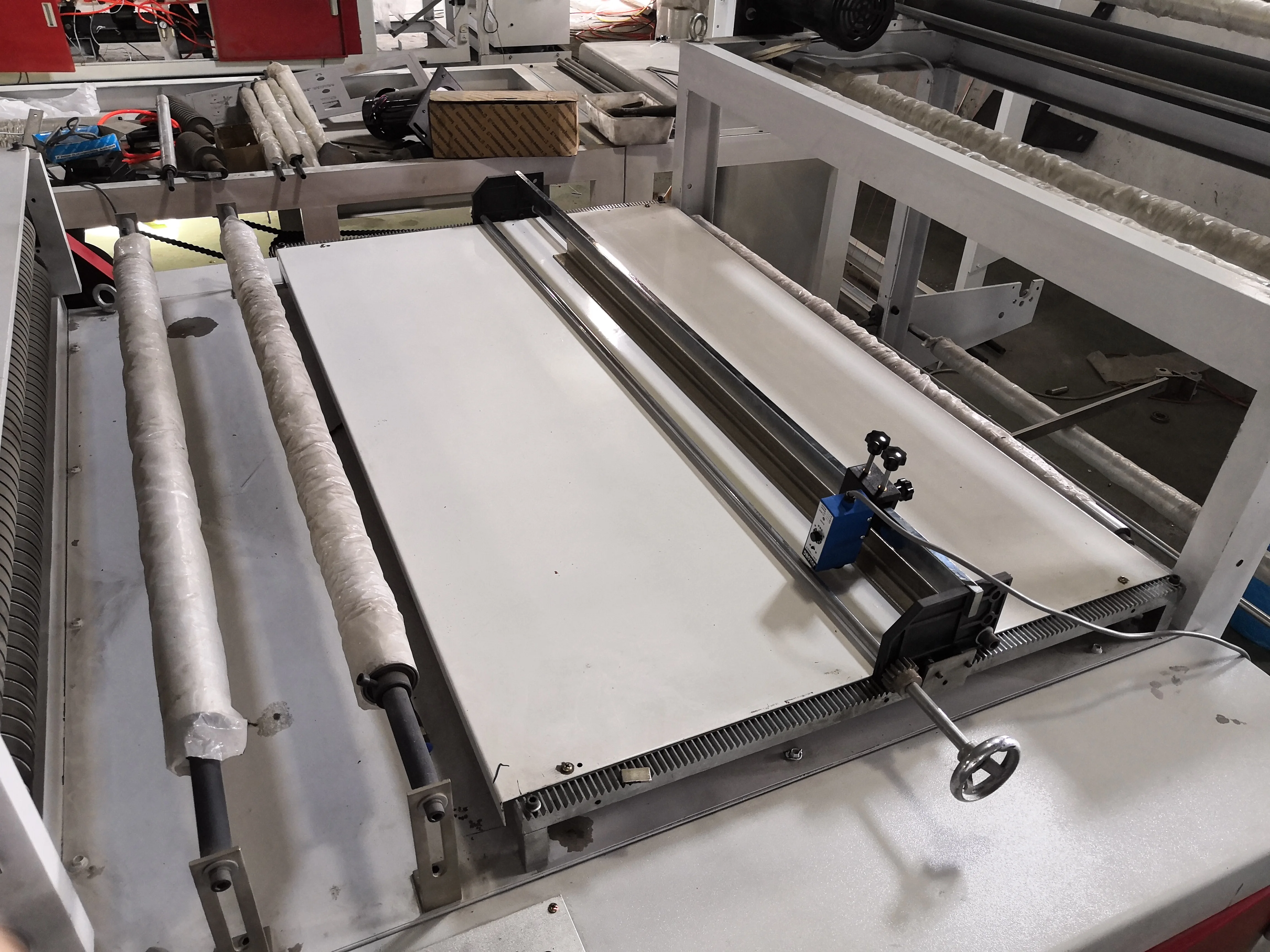

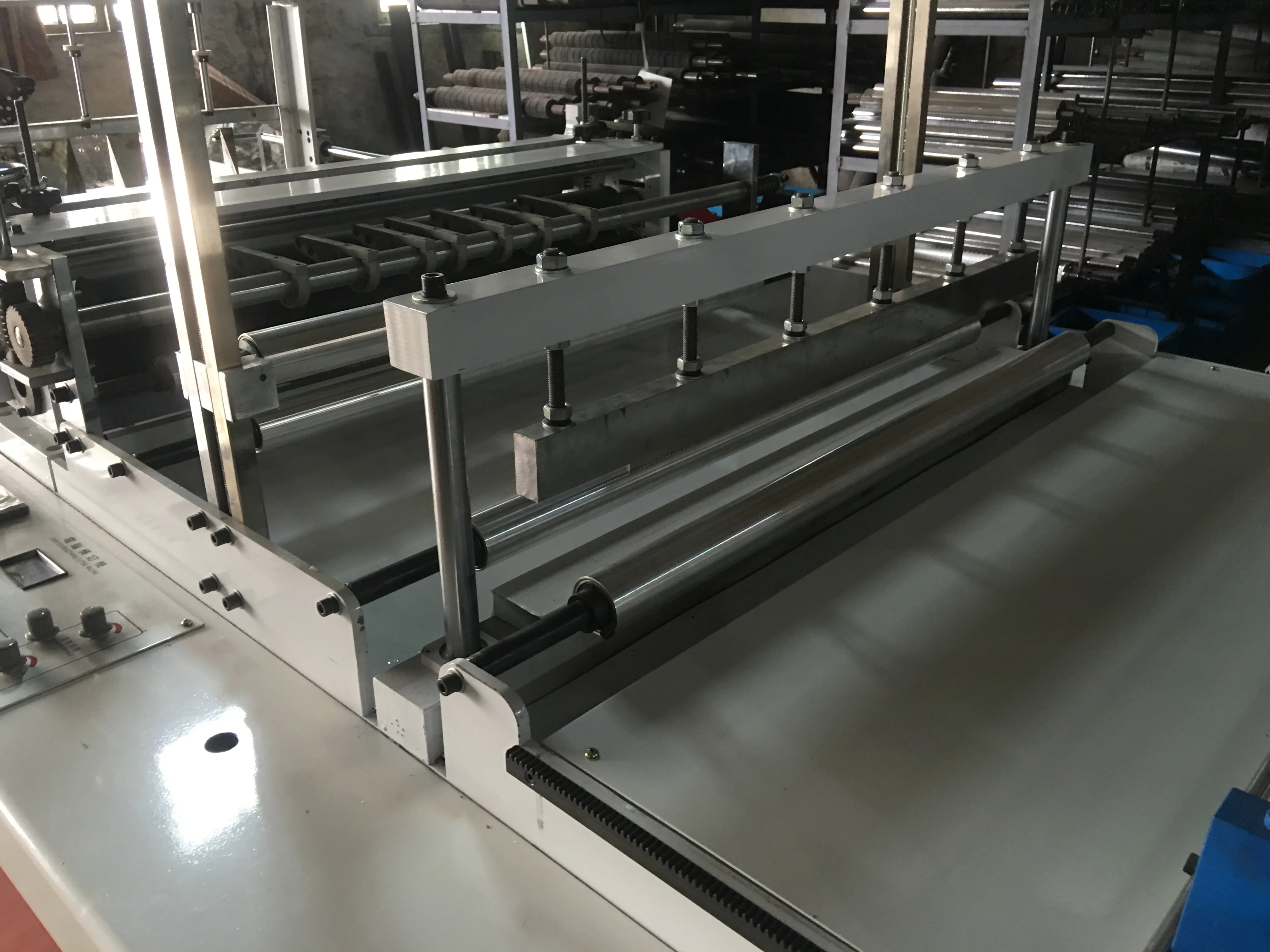

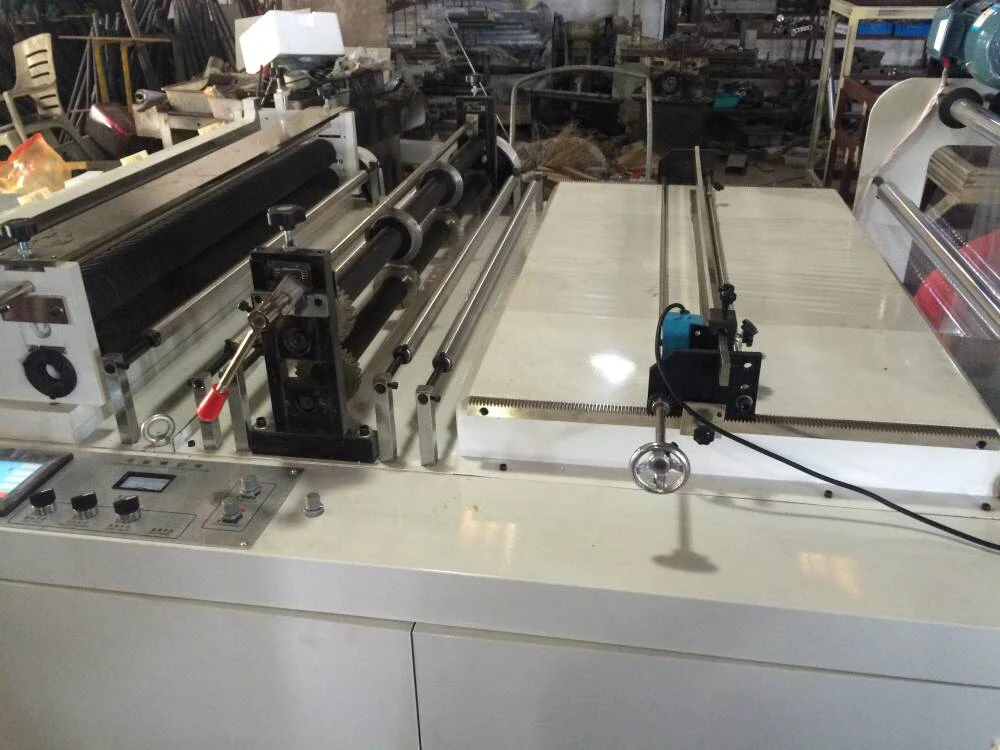

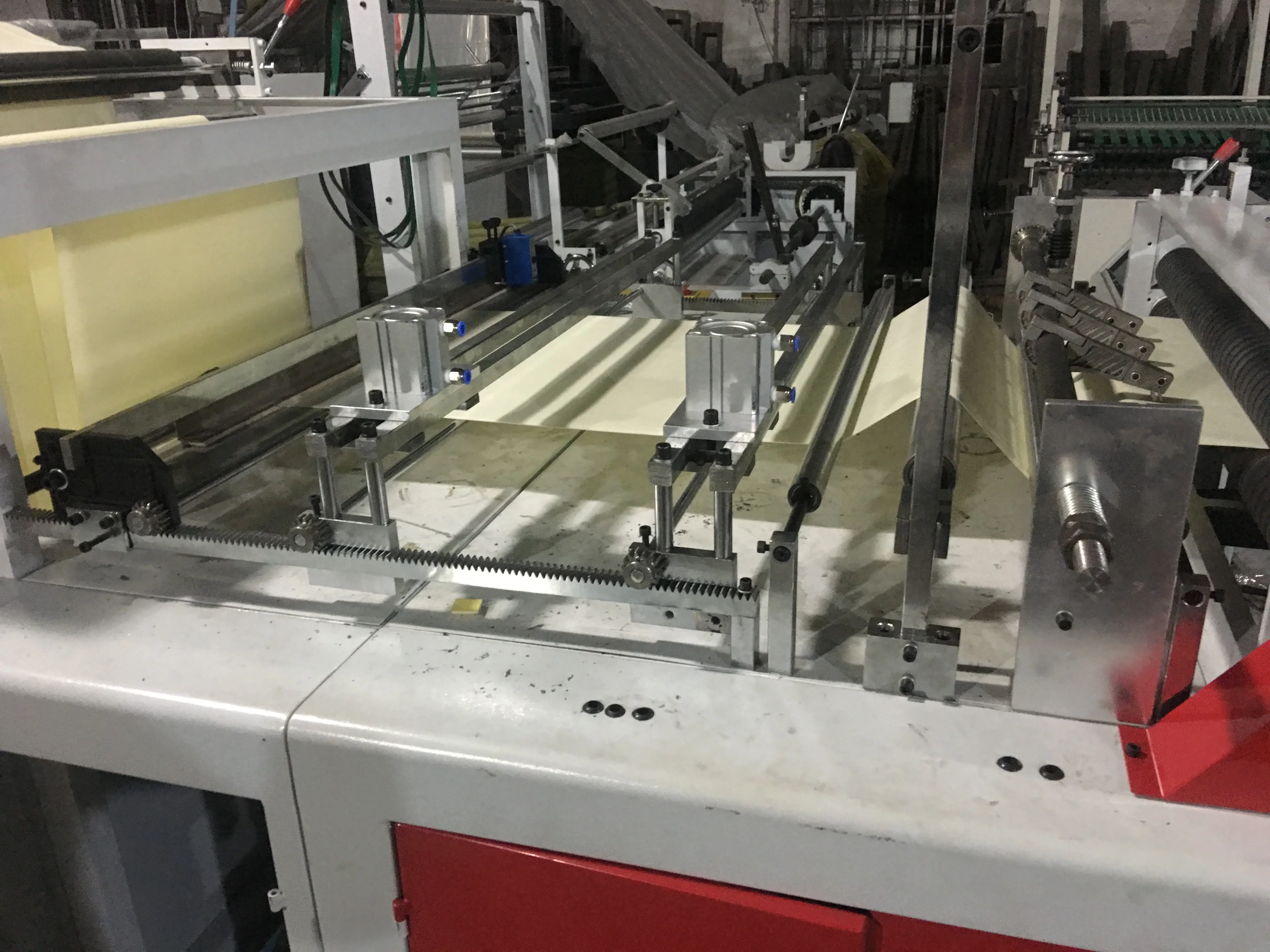

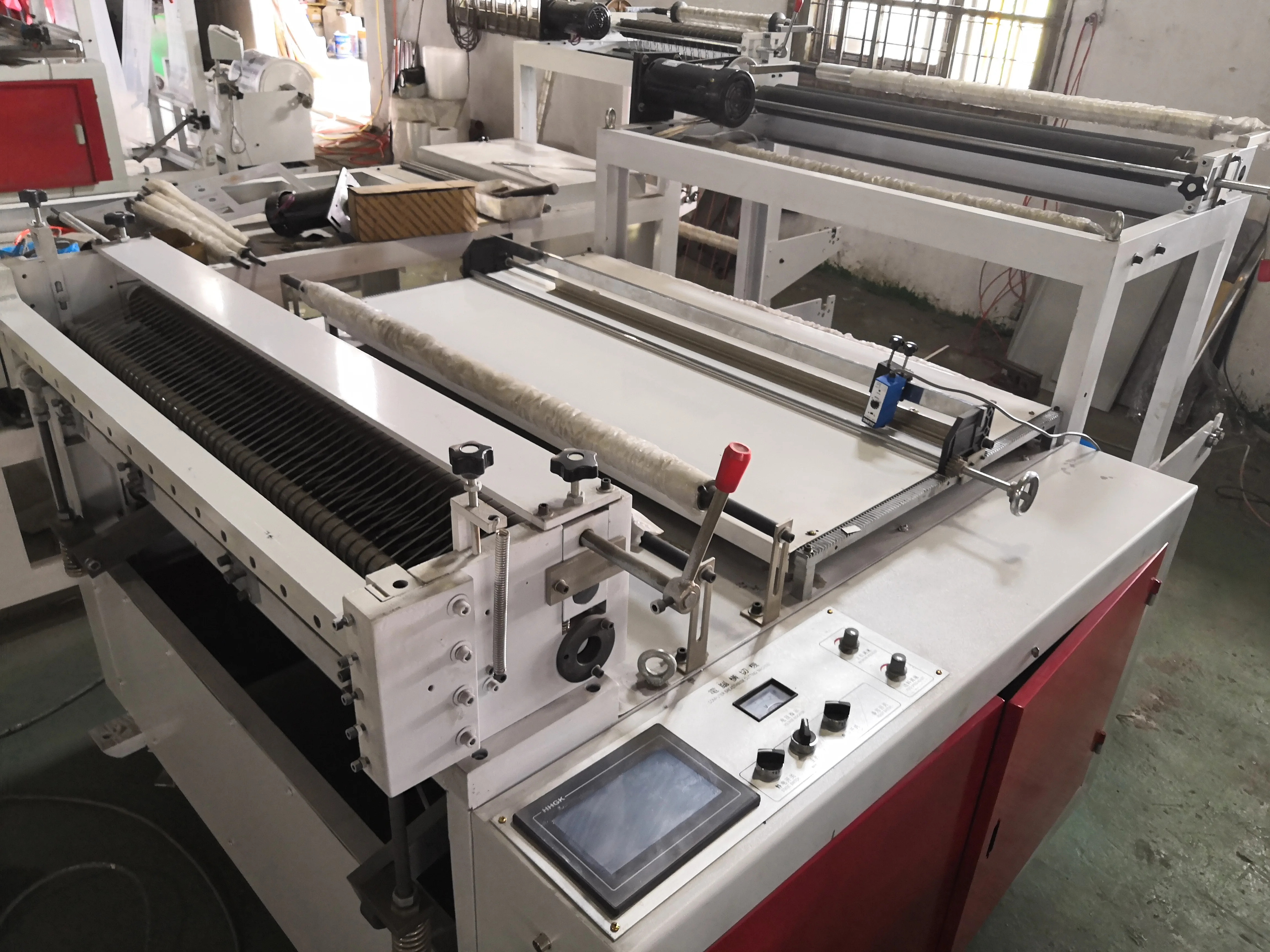

Machine Detailes







Certification:



Our company:



Workshop:



CNC facility:



Packing and shipping:



Exhibition:
