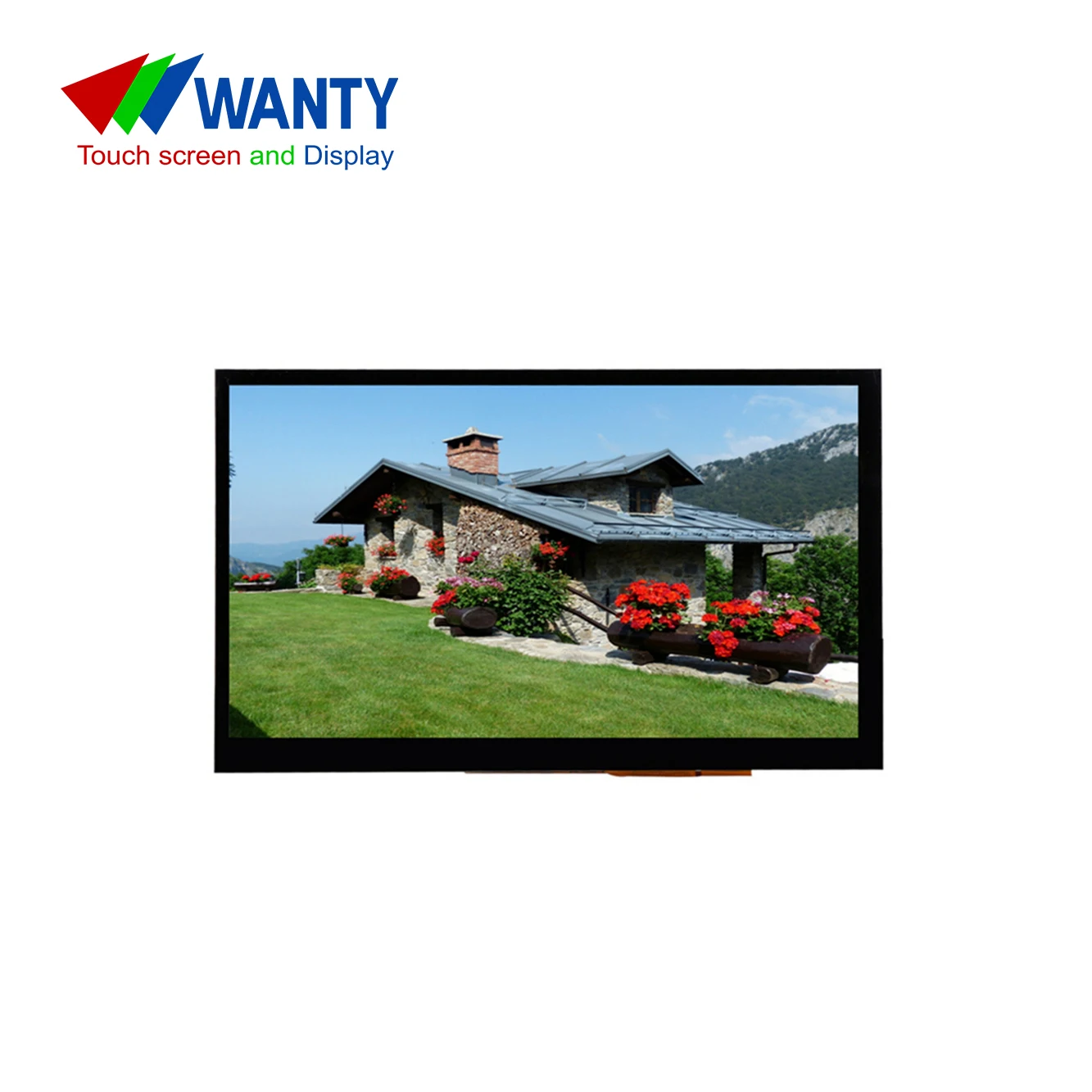

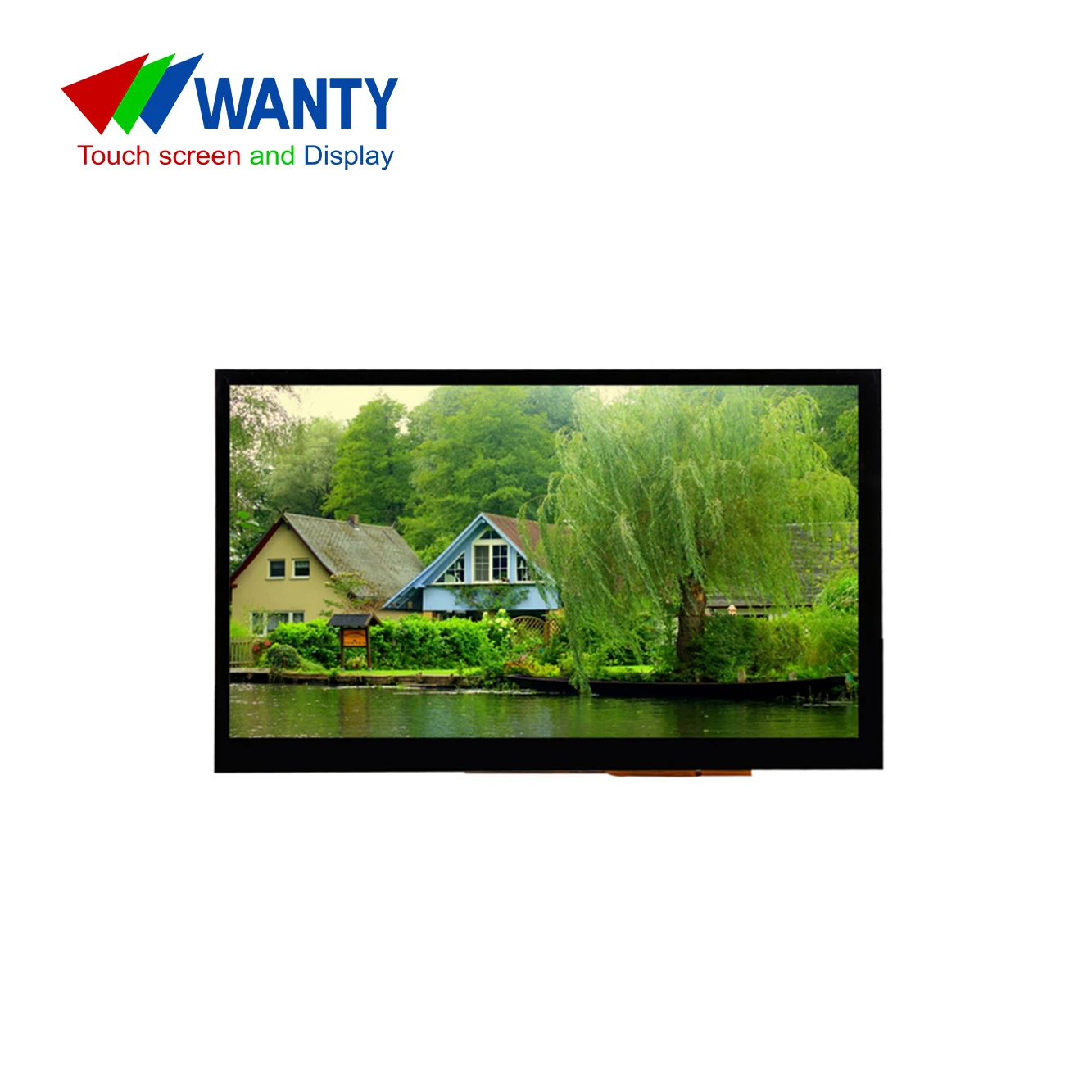

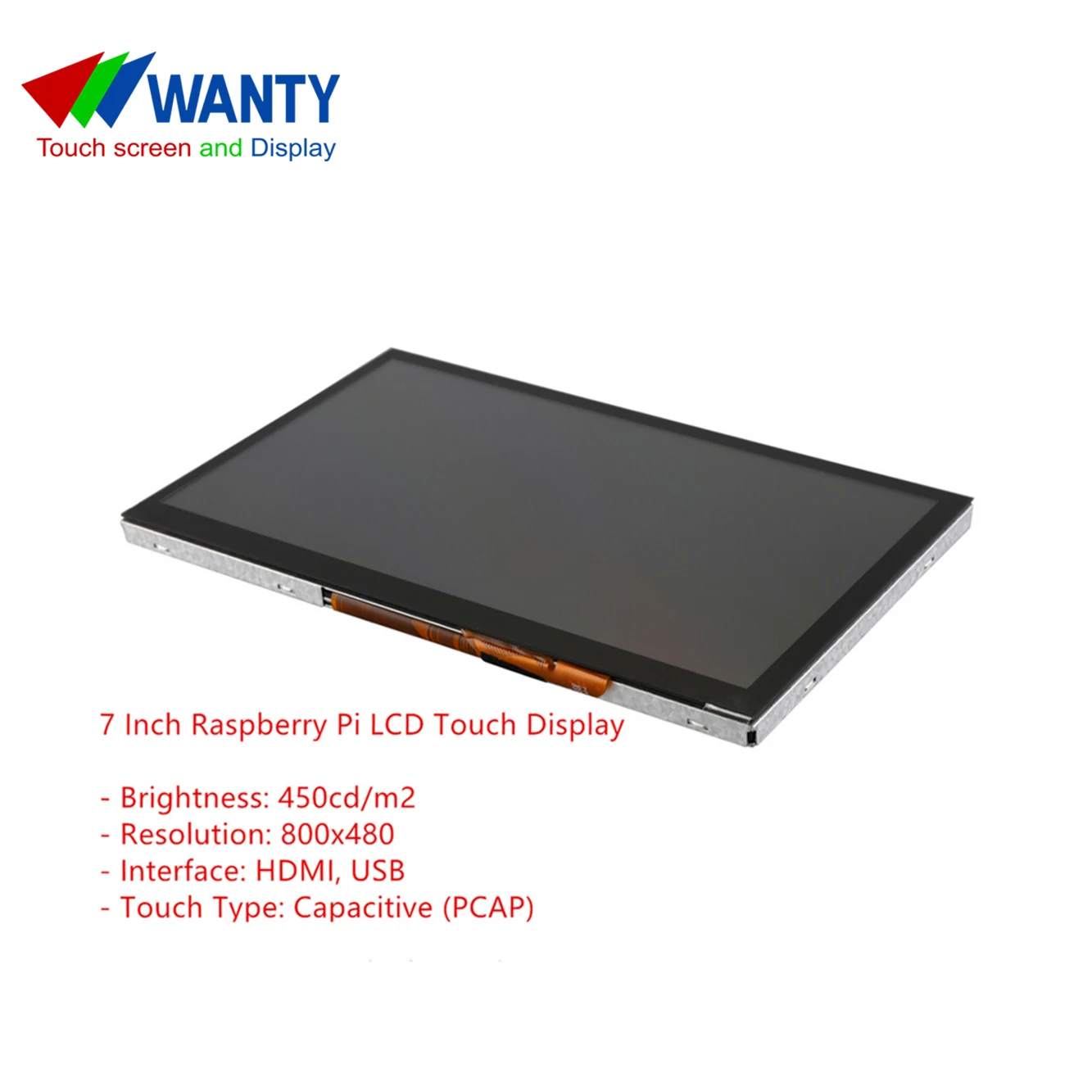

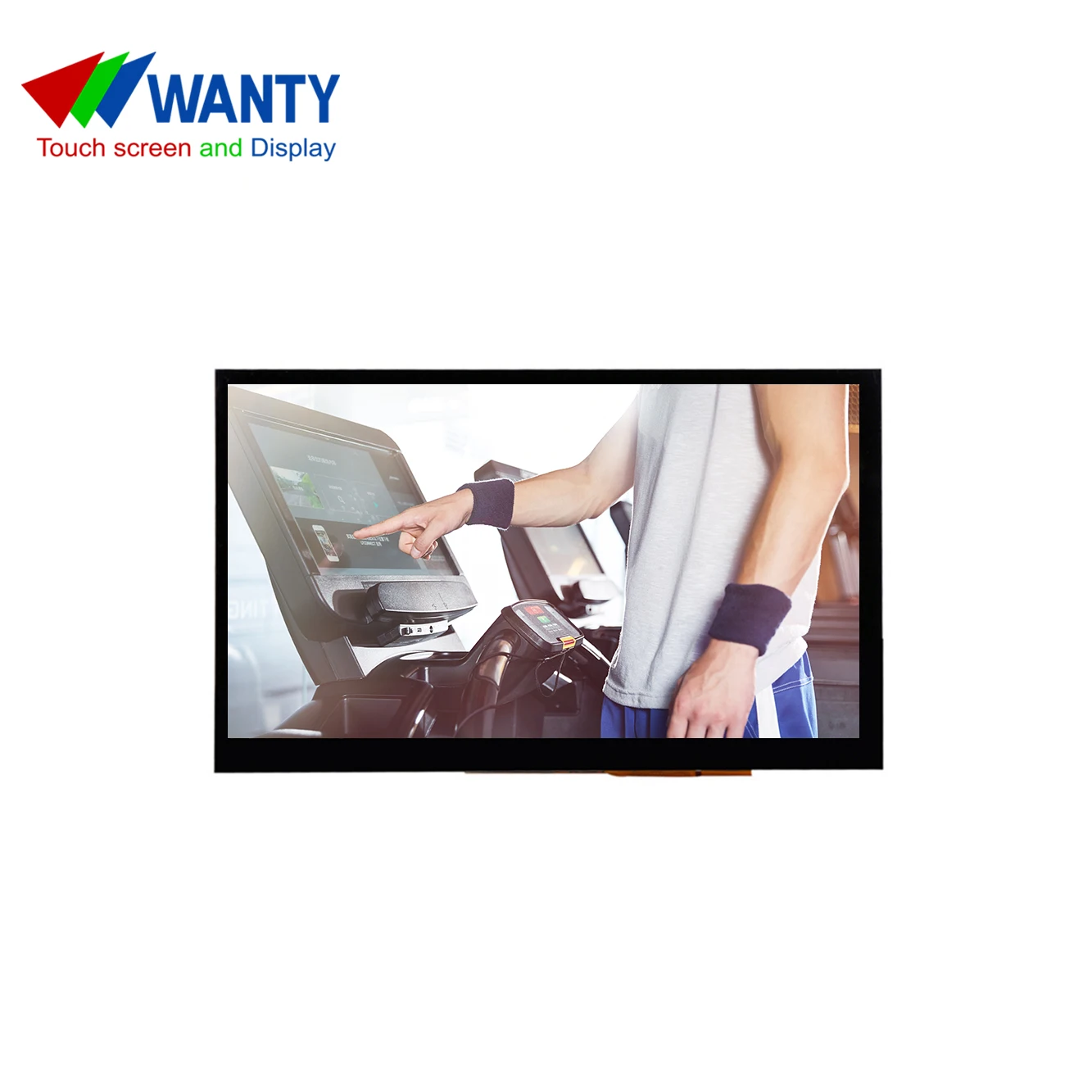

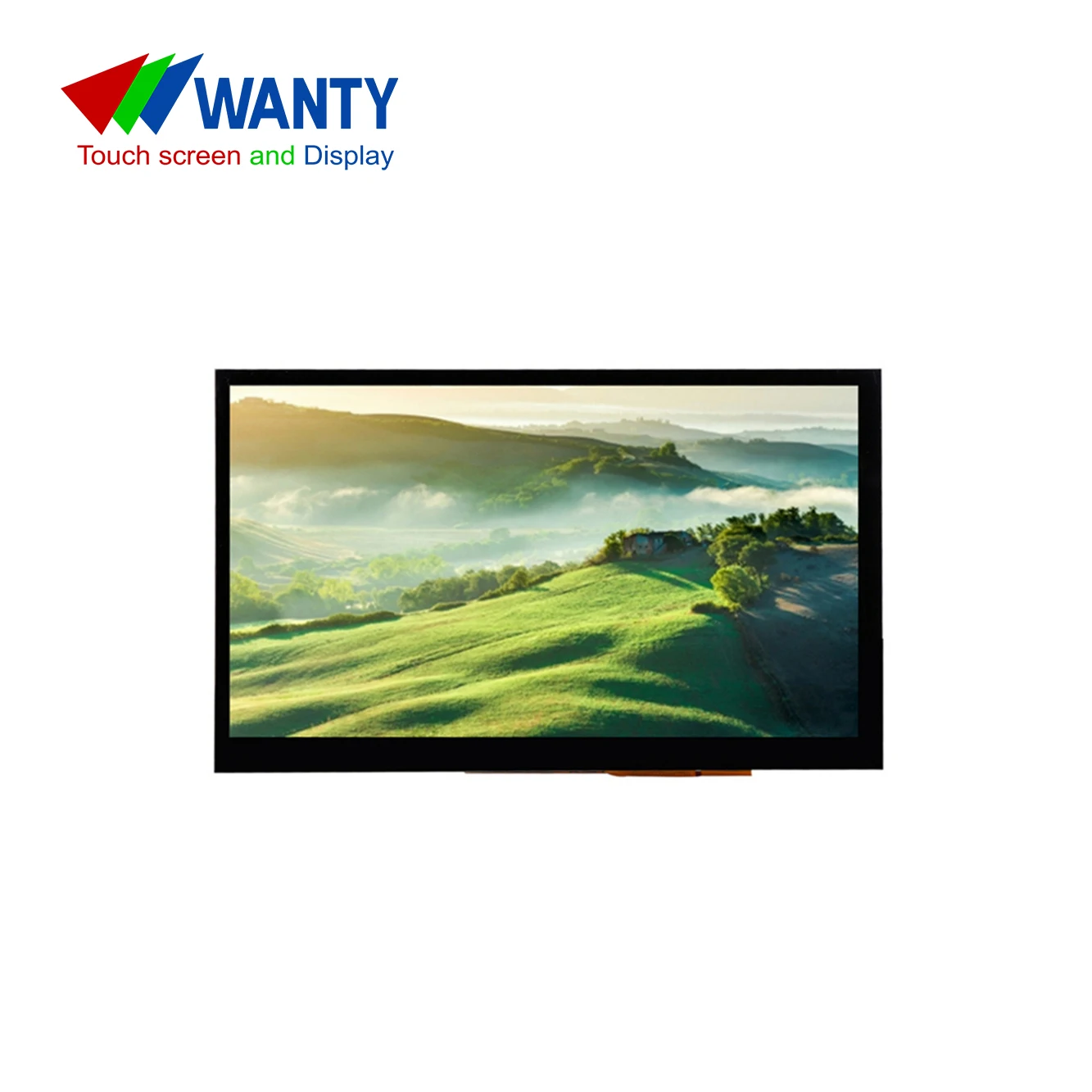

450 Nits 7 Inch Capacitive Touch Panel 800*480 TFT LCD HD MI USB Touch Screen Display
- Category: >>>
- Supplier: Shenzhen Wanty Photoelectric Co. Ltd.
Share on (1600487599351):
Product Overview
Description
Product Paramenters
The 7 inchh HD-MI & USB Touch Display (Model No. T070GBP001) is composed of a TFT LCD Display and a PCAP Capacitive Touch Panel and a HD-MI USB PCB, which supports 5V power consumption. The model is compatible with different kinds of O.S., such as Raspbian, for Windows, for Android, for Lunux, for Arch Linux etc.
Size: | 7 Inch，Accept custom size |
LCD Type: | TFT |
Display Type: | TN |
Interface： | RGB |
Pin No.： | 50Pin |
Operating Temperature： | -10ºC~+50ºC |
Storage Temperature | -20ºC~+60ºC |
Resolution: | 800x480 |
Anti-Glare/Anti-Reflection/Anti-Fingerprints: | Available，Accept customized functions |
Application Fields： | Industrial Control, Home Automation, Medical Device, Self-service Terminal etc |
Product Description
The color tft lcd display is be with 800×480 resolution and standard 40pin RGB interface, which support sunlight-readable, TN technology, optical bonding/tape bonding.
The touch panel is of a G+G structure capacitive touch panel, which is composed of a cover glass, sensor glass, driver IC and FPC. It is driven by a GOODIX IC Chip GT911, which utilizes an I2C interface and supports 5 points of touch.
Wanty Recommend:
Welcome please contact wanty sales to get free samples to match your industrial projects(Click “contact suppier”)
Product Size: 0.91-23.8 inch
Touch Interface: USB, I2C
Touch Interface: USB, I2C
Display Interface: RGB, LVDS, MIPI, EDP, SPI, TTL, MCU
Bonding Method:
Air Bonding (Tape Bonding);
Optical Bonding (OCA / Direct Bonding)
Bonding Method:
Air Bonding (Tape Bonding);
Optical Bonding (OCA / Direct Bonding)
Product Size: 0.91-23.8 inch
Interface: USB, I2C
Interface: USB, I2C
Customization Services: Touch Customization- Anti Glare, Anti Reflection, Anti Explosion, Anti Fingerprints, Anti Static, IK Anti Impact, Waterproof, Logo Printnig, Shape, Interface type, Interface position and direction, Outline Dimensions, Thickness etc
Product Size: 3.5-15.6 inch
Structure Type:Capacitive Touch Screen & TFT LCD Display & PCB
Interface Type:HD-MI , USB
Resolution:
800*480,1024*600,1280*800,1920*1080
Touch Points:5-10 Points
Structure Type:Capacitive Touch Screen & TFT LCD Display & PCB
Interface Type:HD-MI , USB
Resolution:
800*480,1024*600,1280*800,1920*1080
Touch Points:5-10 Points
ONCELL / TN & IPS
Brightness can be designed per customer’s requirement
Brightness can be designed per customer’s requirement
Customized Outline Dimension BL
Frame Material:Meta/Plastic
Integrated Lifetime up to 50K Hours
High Brightness up to 1000cd/m2
Frame Material:Meta/Plastic
Integrated Lifetime up to 50K Hours
High Brightness up to 1000cd/m2
Applications
Reviews
Company Profile
Shenzhen Wanty Photoelectric Co., Ltd is a factory manufacturer and one stop customization solution provider specializing in R&D and producing Capacitive Touch Screen and TFT LCD Display up to 23.8 inch since established in 2012.
In 2016, to integrate the better resources and provide customers with the most advantageous products, WANTY expanded a much larger scale of production lines in Yongzhou city, Hunan province.
At present, Shenzhen factory and Hunan factory have a total of more than 500 workers, with more than 20,000 square meters of standard clean workshop.
As an one stop customization solution provider, we mainly provide domestic and overseas customers with the customization services on regular or irregular PCAP capacitive touch panel, TFT LCD Display with different brightness, Touch display with HD-MI & USB interface which compatible with raspberry pi etc from 0.91 inch to 23.8 inch.
In 2016, to integrate the better resources and provide customers with the most advantageous products, WANTY expanded a much larger scale of production lines in Yongzhou city, Hunan province.
At present, Shenzhen factory and Hunan factory have a total of more than 500 workers, with more than 20,000 square meters of standard clean workshop.
As an one stop customization solution provider, we mainly provide domestic and overseas customers with the customization services on regular or irregular PCAP capacitive touch panel, TFT LCD Display with different brightness, Touch display with HD-MI & USB interface which compatible with raspberry pi etc from 0.91 inch to 23.8 inch.
Exhibition
FAQ
Q1: What are your main sizes of Capacitive Touch Screen?
A1: Our main sizes are from 0.91 inch to 23.8 inch.
Q2: Do you support customization?
A2: Yes. We are a factory manufacturer and customization solution provider for capacitive touch screen and
TFT LCD Display.
The customization solution for capacitive touch screen includes customizing sizes, structure, cover glass,
thickness, outline dimensions, interface type, interface position and direction, shape, color, logo printing etc..
In conclusion, we can customize a new capacitive touch screen completely as your required.
The customization solution for TFT LCD Display mainly involves to the brightness.
Q3: What are you special treatments?
A3: Anti-Glare, Anti-reflection (sun-readable), Anti-Fingerprints, Anti-Explosion,
Anti-Blue Ray, Waterproof, Anti-Bacterial etc..
Q4: What are your bonding methods of TFT LCD Display and Capacitive Touch Panel?
A4: OCA Bonding (or Optical Bonding) and Air Bonding.
OCA/Direct Bondage is gluing touch panel and LCD together in a seamless manner.
Air Bondage is attaching capaitive touch panel and the four sides of the LCD, there is an air gap between
touch panel and LCD.
Q5: What are the product application areas?
A5: Our products are mainly used in Smart home, Banking Terminals, Security Monitoring,
Vehicle Navigation, POS / Advertising Display, Medical Equipment, handhold devices etc...
Q6: Can I purchase a sample before placing a mass order?
A6: Yes. Placing a sample order is available before a formal mass order. No MOQ for sample but it needs to
be charged. For standard sample, the lead time is 3 days in working days. For customized sample,
the lead time is about 15 days in working days.
Q7: What’s the MOQ?
A7: No MOQ for sample order. MOQ 100pcs for mass order.
Q8: What is your warranty policy ?
A8: 12 months warranty under normal uses.
Q9: Can you provide the product mechanical drawing and specification datasheet?
A9: According to customers’ detailed requirements, we will provide the corresponding proposals and technical
datasheet accordingly.
A1: Our main sizes are from 0.91 inch to 23.8 inch.
Q2: Do you support customization?
A2: Yes. We are a factory manufacturer and customization solution provider for capacitive touch screen and
TFT LCD Display.
The customization solution for capacitive touch screen includes customizing sizes, structure, cover glass,
thickness, outline dimensions, interface type, interface position and direction, shape, color, logo printing etc..
In conclusion, we can customize a new capacitive touch screen completely as your required.
The customization solution for TFT LCD Display mainly involves to the brightness.
Q3: What are you special treatments?
A3: Anti-Glare, Anti-reflection (sun-readable), Anti-Fingerprints, Anti-Explosion,
Anti-Blue Ray, Waterproof, Anti-Bacterial etc..
Q4: What are your bonding methods of TFT LCD Display and Capacitive Touch Panel?
A4: OCA Bonding (or Optical Bonding) and Air Bonding.
OCA/Direct Bondage is gluing touch panel and LCD together in a seamless manner.
Air Bondage is attaching capaitive touch panel and the four sides of the LCD, there is an air gap between
touch panel and LCD.
Q5: What are the product application areas?
A5: Our products are mainly used in Smart home, Banking Terminals, Security Monitoring,
Vehicle Navigation, POS / Advertising Display, Medical Equipment, handhold devices etc...
Q6: Can I purchase a sample before placing a mass order?
A6: Yes. Placing a sample order is available before a formal mass order. No MOQ for sample but it needs to
be charged. For standard sample, the lead time is 3 days in working days. For customized sample,
the lead time is about 15 days in working days.
Q7: What’s the MOQ?
A7: No MOQ for sample order. MOQ 100pcs for mass order.
Q8: What is your warranty policy ?
A8: 12 months warranty under normal uses.
Q9: Can you provide the product mechanical drawing and specification datasheet?
A9: According to customers’ detailed requirements, we will provide the corresponding proposals and technical
datasheet accordingly.
