FEATURES AT A GLANCE








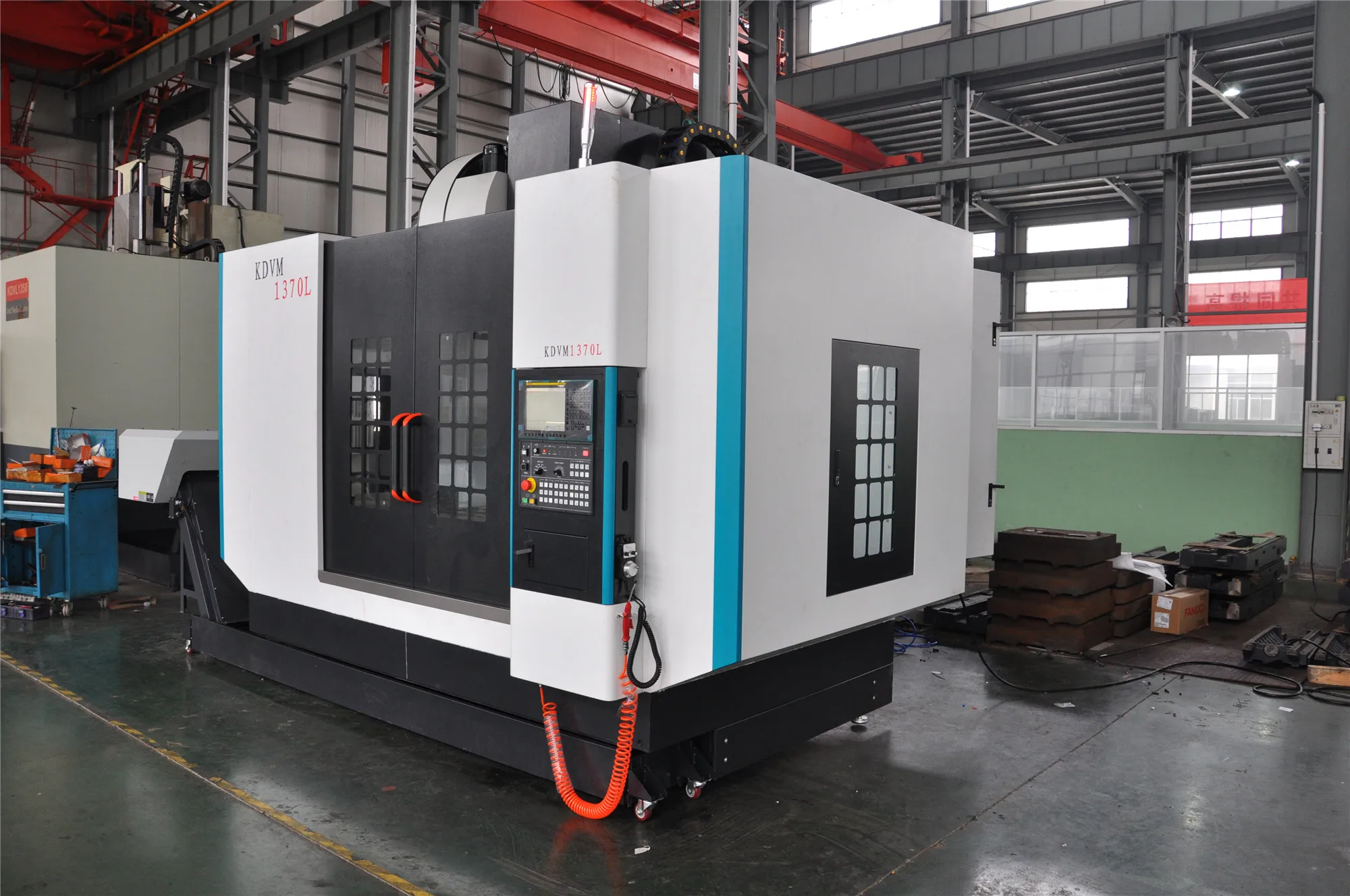

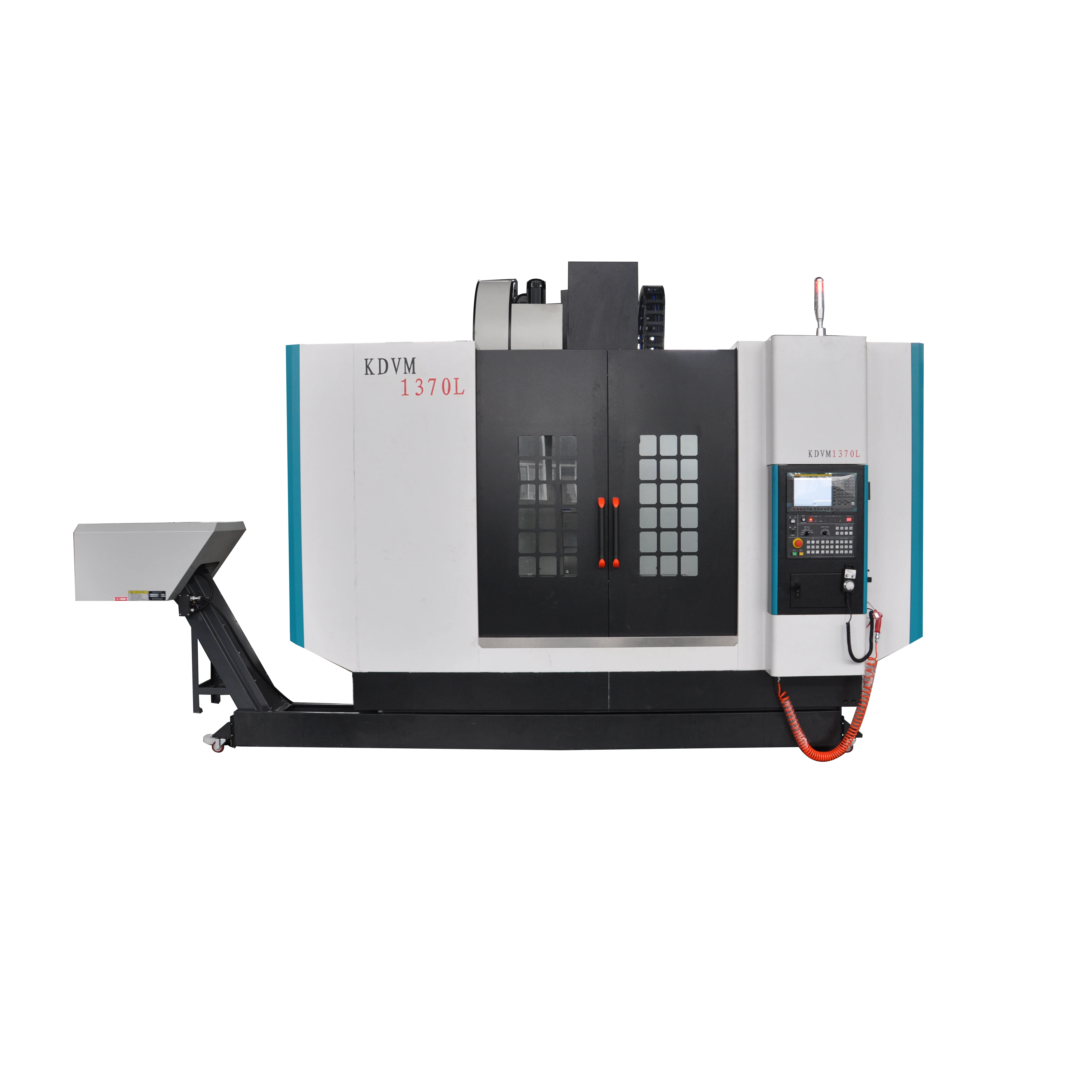

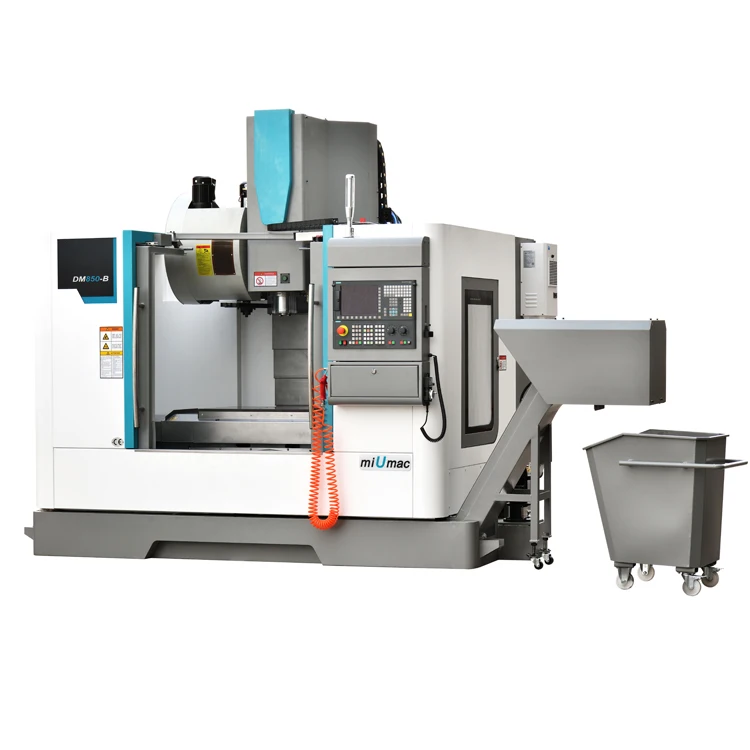

Product Features

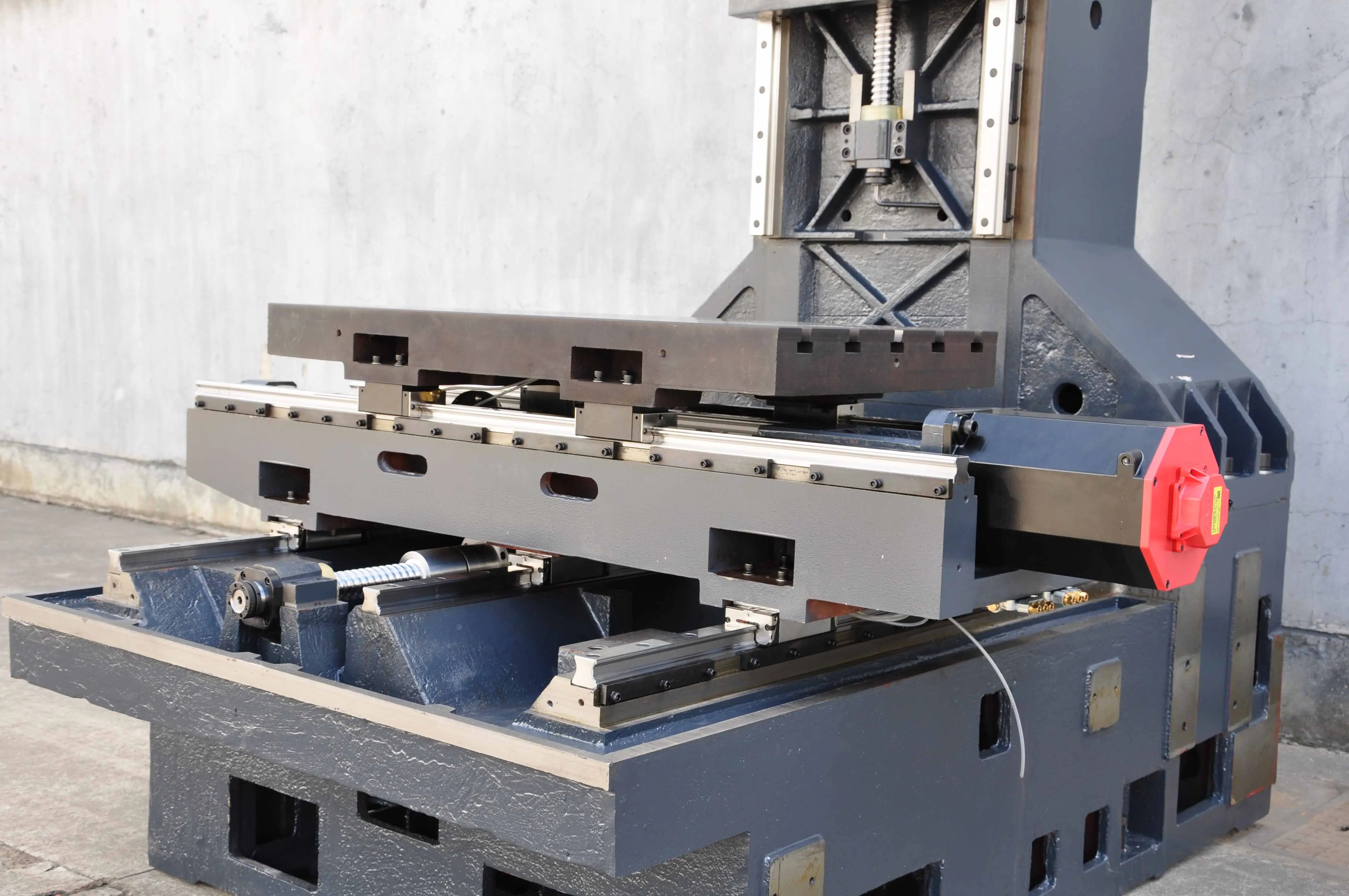

1. Aseismatic capability, high strength and good quality cast iron.

2. Wide base and Y-type column structure.

3. Taiwan high precision linear guide ways.

4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

5. Adopting Japan NSK special screws angular contact ball bearing group.






















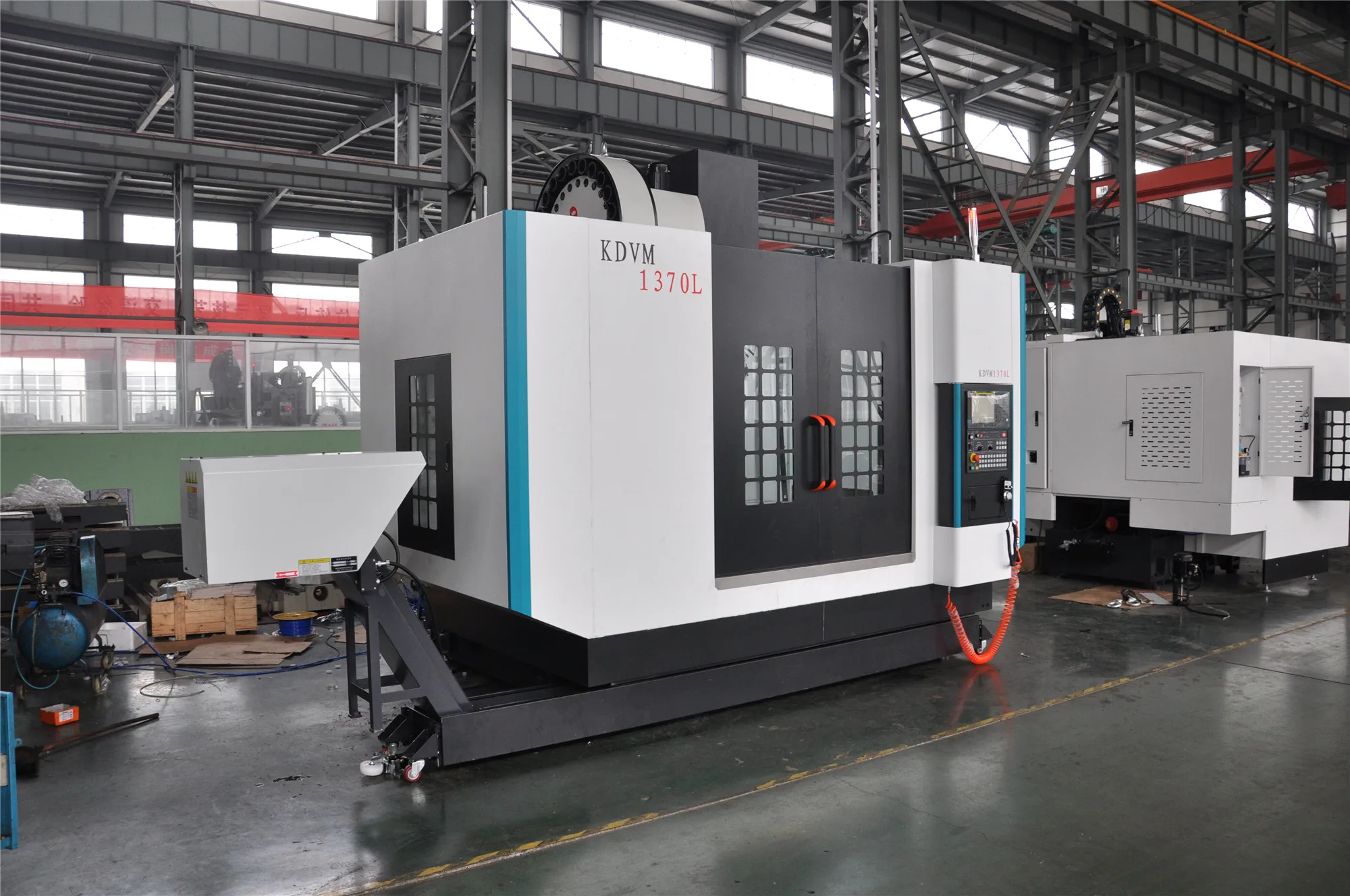

Right elevation










Left elevation










Back elevation










PRODUCT SPECIFICATIONS






























































































































































MODELS

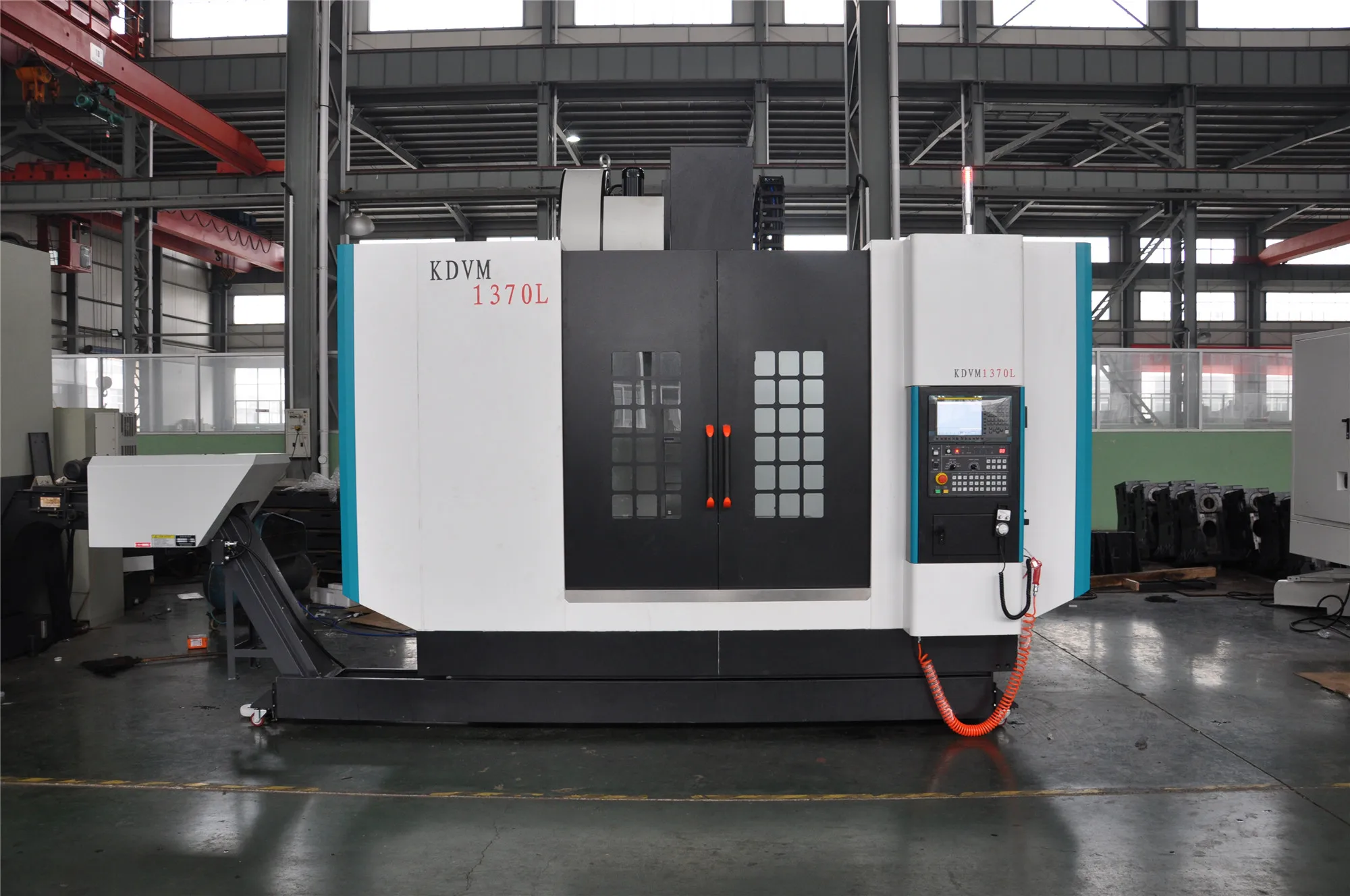

KDVM1160L


KDVM1270L


KDVM1370L


TRAVEL



Table travel (X axis)


1100mm


1200mm


1300mm


Saddle travel (Y axis)


600mm


700mm


700mm


Spindle travel (Z axis)


600mm


700mm


700mm


Spindle center to column


650mm


762mm


760mm


Spindle end to table


120-720mm


150-850mm


150-850mm


TABLE



Table size


600×1200mm


700×1400mm


700×1500mm


T-slot(width×number×space)


18×5×100mm


18×5×125mm


18×5×125mm


Max. table loading


800kg


900kg


1000kg


SPINDLE



Taper bore of spindle


BT40


BT40


BT40


Spindle power


11/15kw


11/15kw


11/15kw


Spindle speed


8000rpm


8000rpm


8000rpm


FEED



X/Y/Z axis fast feed


36/ 36/ 30m/min


36/ 36/ 30m/min


24/ 24/ 24m/min


X/Y/Z axis fast feed


20/20/20Nm


20/20/20Nm


27/27/27Nm


ATC



Tool number


Bt40/24 tools


Bt40/24 tools


Bt40/24 tools


ACCURACY



Repeatability(X/Y/Z)(ISO)


≤0.006/≤0.005/≤0.005mm


≤0.006/≤0.005/≤0.005mm


≤0.006/≤0.005/≤0.005mm


OTHERS



Overall dimension (LxWxH) (with chip conveyor )


4400x2550x2600mm


4670x2830x3200mm


4310x2830x3200mm


Net weight


6400kg


8500kg


9500kg





PRODUCT CONFIGURATION










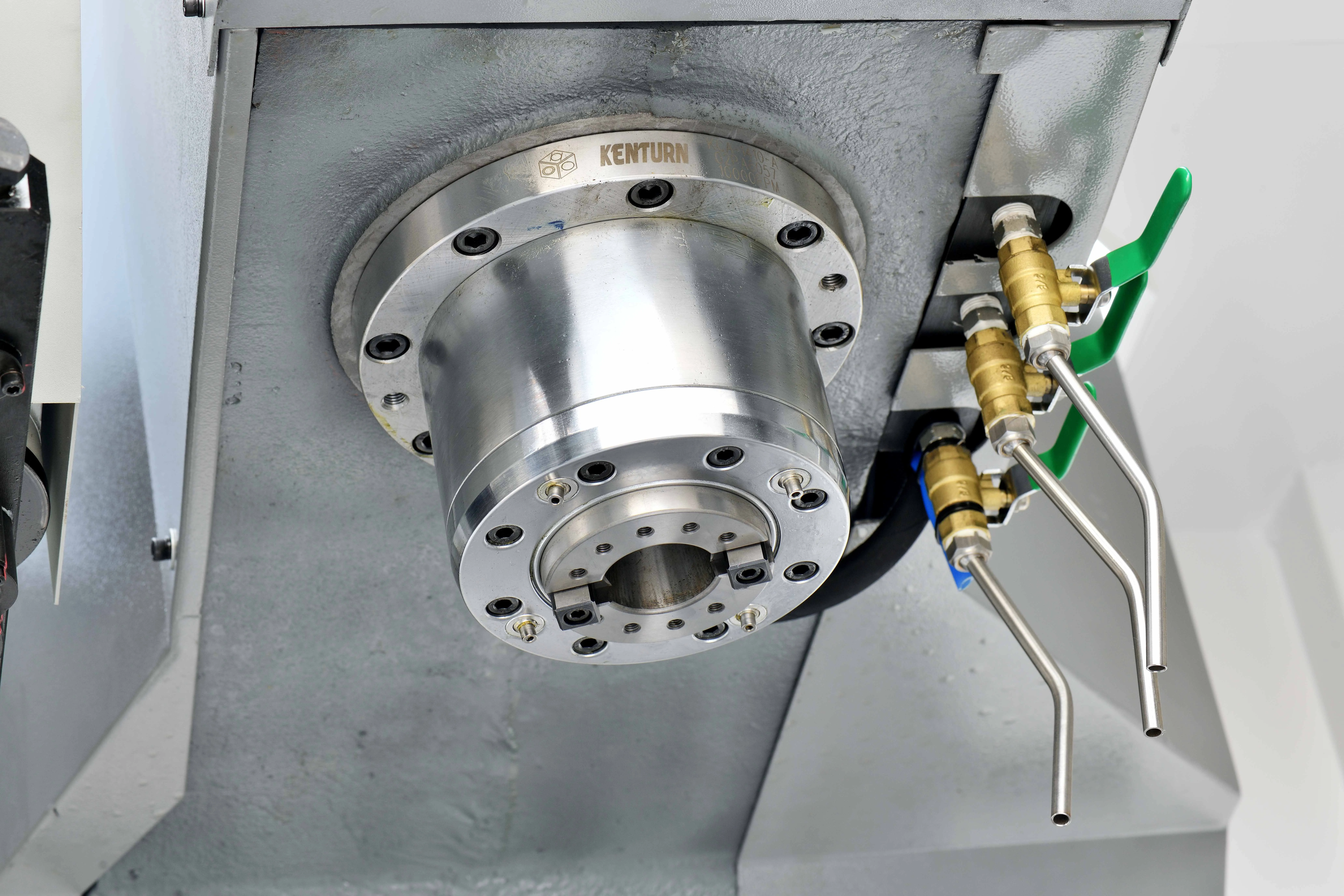

Taiwan spindle BT40/BT50








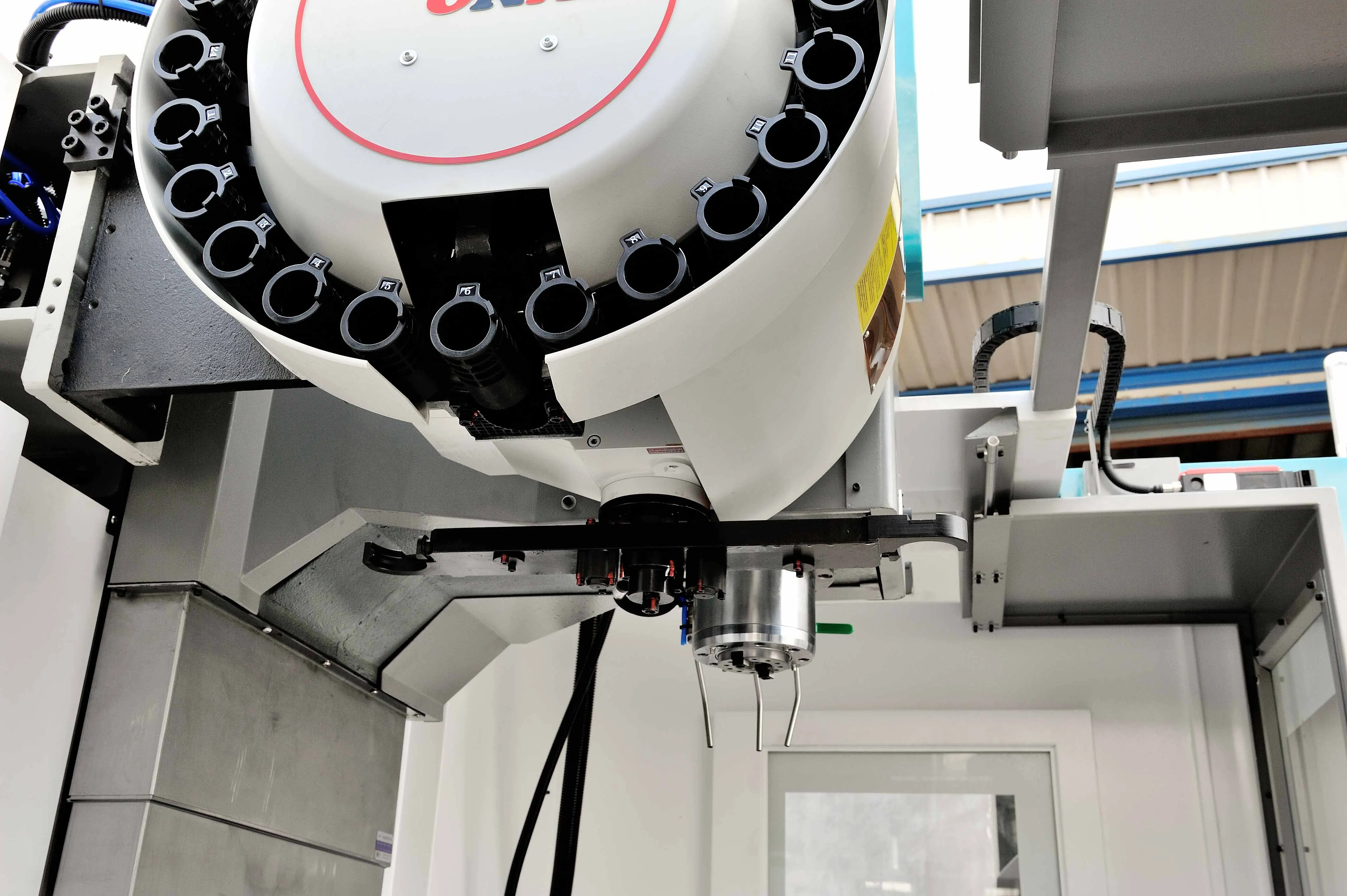

Taiwan 24T arm type auto tool changer








Schneider or Siemens main electrical components.














Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.








Auto chip conveyor.








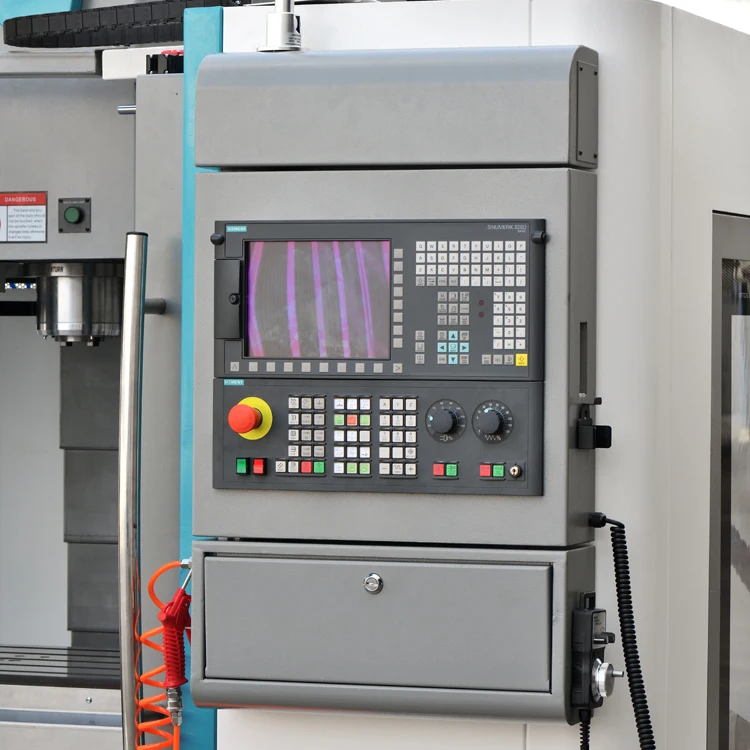

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.














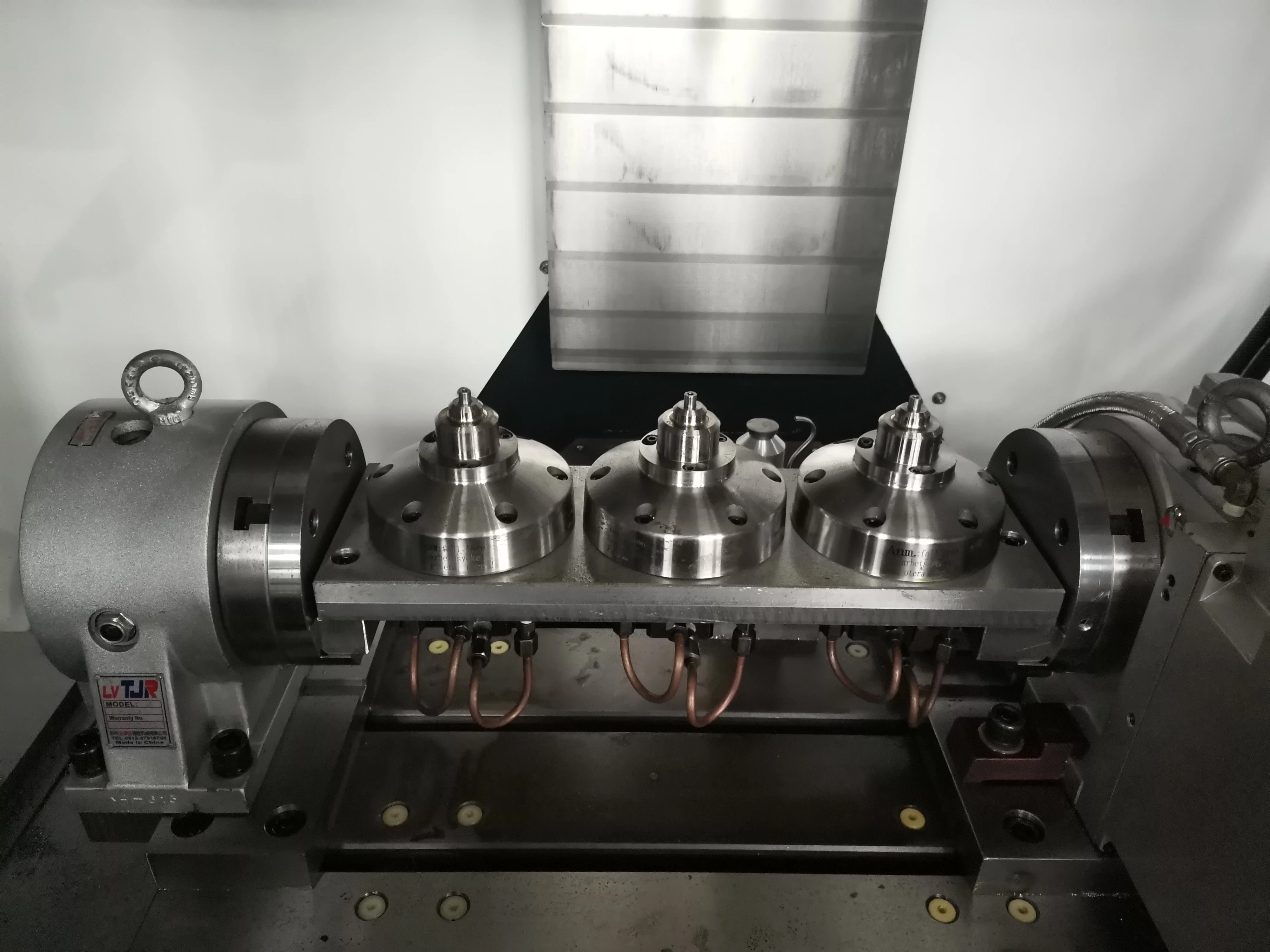

Taiwan 4th or 5th axes rotary table is optional.








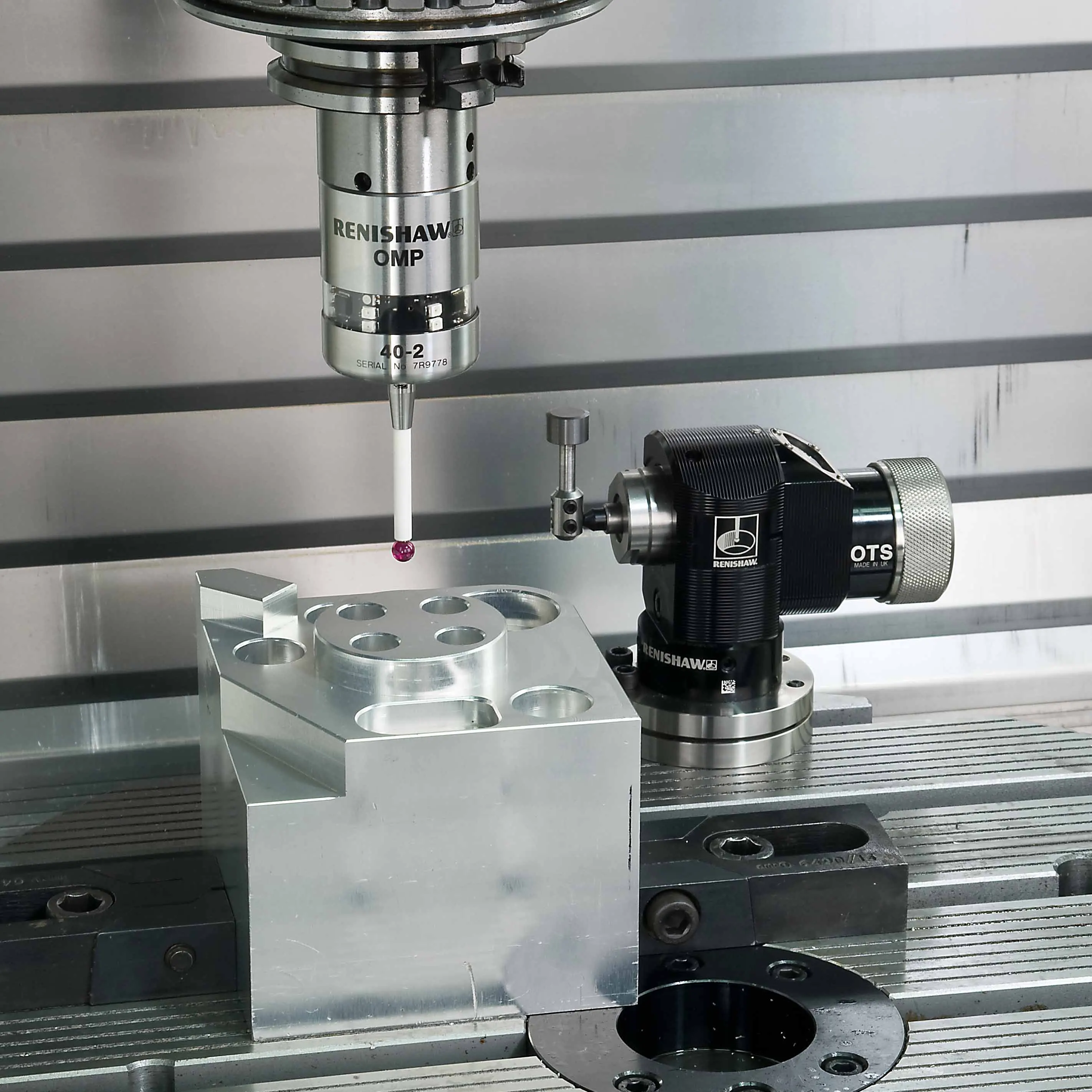

Tools and workpiece measuring instrument are optional.








30 bar high pressure filtering system and oil cooler are optional.
