22 Inch 220V Planetary Terrazzo Concrete Floor Polishing Grinding Polisher Grinder Machine
- Category: >>>
- Supplier: Dongguan Merrock Industry Co. Ltd.
Share on (1600487968720):
Product Overview
Description
Product Paramenters
Model | S9-X-550 4KW | S9-X-550 4KW | S9-X-550 5.5KW | S9-X-550 5.5KW |
Phase | 1 | 3 | 1 | 3 |
Voltage | 220V-240V | 380V-440V | S9-X-550 5.5KW | 380V-440V |
Power | 5.5HP/4KW | 5.5HP/4KW | 7.5HP/5.5KW | 7.5HP/5.5KW |
Inverter | 5.5HP/4KW | 5.5HP/4KW | 7.5HP/5.5KW | 7.5HP/5.5KW |
Autorotation rate | 0-1250rpm | 0-1250rpm | 0-1250rpm | 0-1250rpm |
Revolution speed | 0-320 rpm | 0-320 rpm | 0-320 rpm | 0-320 rpm |
Work width | 550mm | 550mm | 550mm | 550mm |
Heads | 9 pieces | 9 pieces | 9 pieces | 9 pieces |
Grinding plate | 3 pieces | 3 pieces | 3 pieces | 3 pieces |
Water tank | 10.6 L | 10.6 L | 10.6 L | 10.6 L |
NW (KG) | 220 | 220 | 232 | 232 |
Packing size(CM) | 98*63*94 | 98*63*94 | 98*63*94 | 98*63*94 |
22 Inch 220V Planetary Terrazzo Concrete Floor Polishing Grinding Polisher Grinder Machine
Function:
1. It's used to all kinds of floor, such as marble, granite, quartz, terrazzo, epoxy and concrete floor etc..
2. For leveling, grinding, polishing or removing.
3. With unique and patented planetary 9-heads driving system, which achieve the innovation of low maintenance gear driving planetary head rotation system.
Marble floor
Granite floor
Terrazzo floor
Derusting floor
Old paint floor
Epoxy floor
Concrete floor before grinding
Concrete floor after polishing

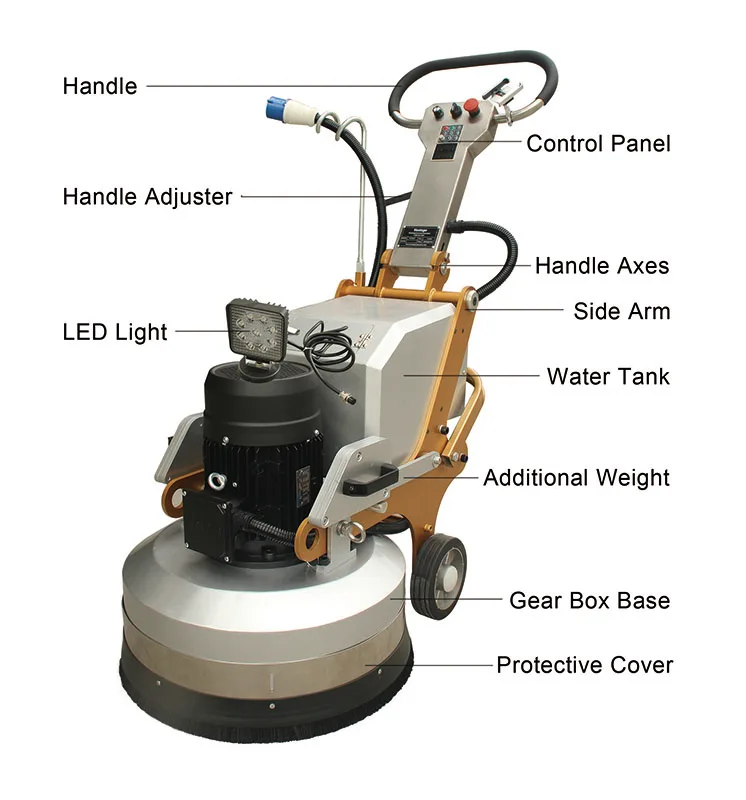

Feature:
1. S9-X-550 with the multi-functional plate which with magnets, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades).
2. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades).
With pad holder can fix the resin polishing pad
Take off the pad holder can fix the metal diamond grinding blade
Two kinds of pad holder for option:
1. Back side picture-with a pole, front side is velcro.
2. Back side picture-without a pole, front side is velcro.
3. With planetary three-plate driving system, S9-X-550 use aluminum alloy die-casts gearbox, processing by CNC machine, it's hard and won't be out of shape.
4. Fold handle can save space.
5. Dismantled body and chassis can put in a car.
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with stainless steel water tank can wet and dry grinding.
8. With led light can work at night.
7. It with stainless steel water tank can wet and dry grinding.
8. With led light can work at night.
Related Products
Packing&Shipping
Packing in free fumigation wooden box.
Packing size: 98*63*94 cm
Port: Shenzhen/Guangzhou (The nearest port)
Company Introduction
Dongguan Merrock Industry Co., Ltd are the manufacturer of floor grinding and polishing machine, polishing pads, marble polishing powder and concrete sealer.
Our company set up in 2007, our products sell to more than one hundred countries, and we have distributor in America, Thailand, Vietnam and Colombia etc.
Our company set up in 2007, our products sell to more than one hundred countries, and we have distributor in America, Thailand, Vietnam and Colombia etc.
2007 - Dongguan Merrock Industry Co., Ltd was set up, our goal is to grow into an excellent brand in the surface grinding
industry.
2009 - Merrock started to produce large grinding equipment.
2011 - Merrock began producing chemicals, we became to Chinese stone and concrete surface chemistry important supplier.
2012 - Merrock has become the largest manufacturer of large grinding equipment in China.
2013 - Merrock took over a Canadian companies: Guangzhou Dangsing Abrasive Co., Ltd - An overseas-funded company of theearliest abrasive manufacturer in China, it has the famous brand of Apollo, little bear, Dangsing etc., attended the Brasil concrete show in St. Paul.
2014 - Merrock became the only one manufacturer which can research and produce the grinding equipment, chemical and abrasive in China.
2015 - Merrock had develop some agents and partners in United States and European Countries etc.
2016 - Merrock attended the exhibition of WOC in Las Vegas, attended the exhibition of Vietnam Vietbuild in Hochiminh, and got a good reputation from the customers.
industry.
2009 - Merrock started to produce large grinding equipment.
2011 - Merrock began producing chemicals, we became to Chinese stone and concrete surface chemistry important supplier.
2012 - Merrock has become the largest manufacturer of large grinding equipment in China.
2013 - Merrock took over a Canadian companies: Guangzhou Dangsing Abrasive Co., Ltd - An overseas-funded company of theearliest abrasive manufacturer in China, it has the famous brand of Apollo, little bear, Dangsing etc., attended the Brasil concrete show in St. Paul.
2014 - Merrock became the only one manufacturer which can research and produce the grinding equipment, chemical and abrasive in China.
2015 - Merrock had develop some agents and partners in United States and European Countries etc.
2016 - Merrock attended the exhibition of WOC in Las Vegas, attended the exhibition of Vietnam Vietbuild in Hochiminh, and got a good reputation from the customers.
2017- Merrock attended the exhibition of WOC in Las Vegas.
2018-Merrock attended the exhibition of WOC in Las Vegas, attended the India Concrete show in Mumbai, attended the Indonesia Concrete show in Jakarta, attended the exhibition of Vietnam Vietbuild in Hochiminh.
OEM Customer Case
Fair
FAQ
Q1:Are you trading company or manufacturer?
A1:We are manufacturer and we have our own factories. specializes in floor grinder products for about 12 years. Welcome to visit
our factory, we can also provide the best suitable flooring construction solution for you. Our factory is located in Dongguan
City, China, which is near Guangzhou and Shenzhen.
Q2:What are the advantages of your products compared with other products?
A2:Our products are excellent in terms of productivity, handling, reliability and construction results.Laser cutting and aluminum
casing gear box make the machine parts more accurate. We make the machine, polishing pads and chemical, so we can offer you the
full set of product you need for the floor.
Q3.What is the payment?
A3. T/T, Western Union, Wechat, Cash.
Q4: How long your product's warranty ?
A4: One year warranty .
Q5: What is your MOQ ?
A6: 1 set
Q7: What is your packaging ?
A7: We package in carton with iron frame.
Q8 :Can you customize the machine for the customer?
A8:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
Q9: What is your delivery time ?
A9: 7~20 days ( according to the total quantity)
