Manufacture Brinell, Rockwell, Vicker All In One Digital Universal Hardness Tester Price

Product Features / Uses:

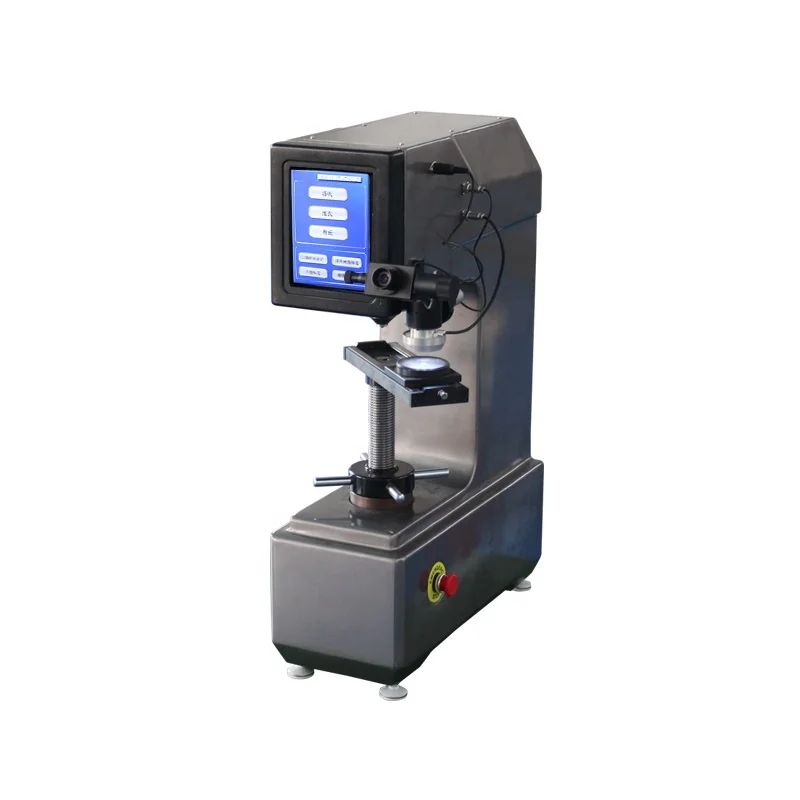

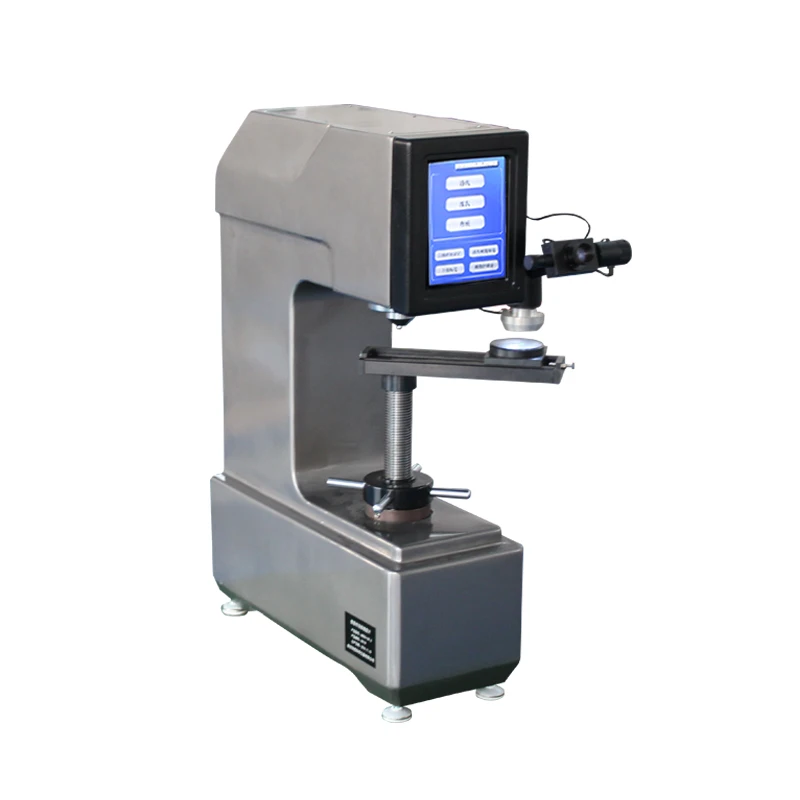

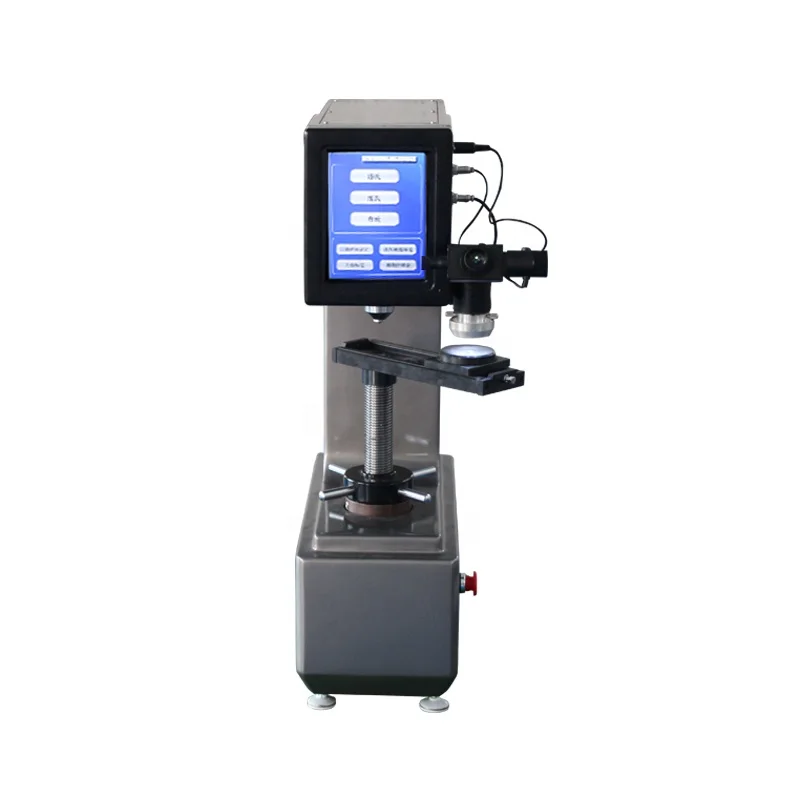

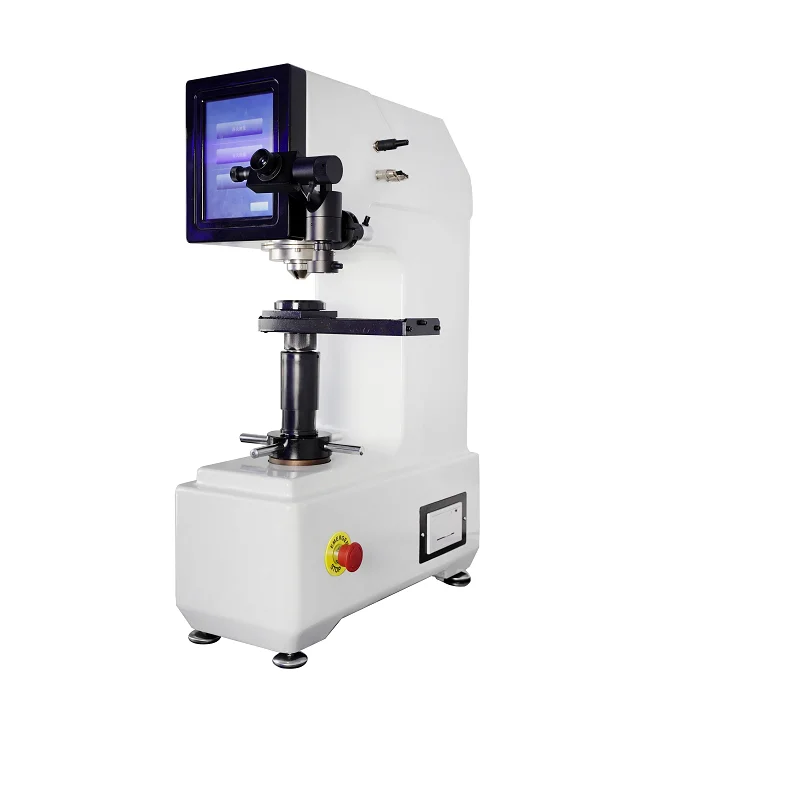

HBRVS-187.5 Digital display Brinell,Rockwell,Vickers hardness tester

HBRVS-187.5 digital display Blowell hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance. It is a high-tech product integrating light, machine and electricity. It can be used for Brinell, Rockwell and Vickers. Three test methods are tested, and a multi-function hardness tester with seven levels of test force can meet a variety of hardness test needs. It has high test accuracy, simple operation, high sensitivity, convenient use and stable indication. Equipped with a built-in printer and optional RS232 data cable to connect to the computer via HyperTerminal.

Product Feature:

l The fuselage part of the product is formed by the casting process once and has been treated for a long time. Compared with the jigsaw process, the long-term use of the deformation variable is extremely small, and can be effectively adapted to various harsh environments;

l Car paint process, high quality paint, strong scratch resistance, and still bright and new for many years;

l Boot and use, no need to install weights;

l Large-screen touch LCD display interface, rich display content and convenient operation;

l It has three test methods: Brinell, Rockwell and Vickers. The test force of seven grades can meet various hardness test requirements.

l It can convert each other by measuring the hardness value of each scale;

l The electronic closed-loop control applies the test force, and the precision reaches 5 ‰ force value sensor to control the experimental force, which fully realizes the automatic operation of the application, maintenance and removal of the test force;

l The body is equipped with a microscope and equipped with a high-definition optical system to make the observation readings clearer and reduce errors

l Equipped with built-in micro-printer, and you can purchase RS232 data cable to connect with the computer through HyperTerminal to export measurement reports.

Application Range

Brinell, Vickers,Rockwell hardness.Determaination of ferrous, non-ferrous hard alloys and non-metallic

Wide range of applications, can be widely used in the determination:
a, Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;
b, Rockwell hardness of heat-treated materials such as quenching and quenching;
c. Vickers hardness of nitrided layer, ceramic, sheet, foil, plated layer, and minute parts.

1.Test Force:

Rockwell:60,100,150Kgf(588,980,1471N)

Brinell:15.625,31.25,62.5,125,187.5Kgf(153.2,306.5,612.9,1226,1839N)

Vickers:5,10,20,30,50,100Kgf(49.03,98.07,196.1,294.2,490.3,980.7N)

2. Scale Range:

Rockwell:HRA,HRB,HRC,HRD,HRF,HRG

Brinell:HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5 ,HBW5/125,HBW2.5/187.5

Vickers:HV5,HV10,HV20,HV30,HV50,HV100

3.Testing Range:

Rockwell:20-88HRA,20-100HRB,20-70HRC

Brinell:5-650HBW

Vickers:5-3000HV

4. Size and power voltage:

Distance from center indenter to the wall: 160mm

Max. height of sample:Rockwell 180mm,Brinell and Vickers 165mm

Size of hardness tester:550×230×780mm

Power voltage:AC220V/50Hz

Weight about :80kg

Stanard Accessories:

Rockwell diamond indentor,1/16”ball indentror:1 each; 1/8”,1/4” Brinell ball indentor:1 each;

Vickers diamond indentor:1;

Big flat bench,small flat bench,V bench:1 each;

Standard rockwell hardness block:5;

Standard briness hardness block,Standard vickers hardness block; 1 each;

product brand

Maetall

Product parameters

product name

Universal hardness tester

Measuring range

Rockwell:20-88HRA,20-100HRB,20-70HRC

Brinell:5-650HBW

Vickers:5-3000HV

roductcolor

Gray color

Model

HBRVS-187.5

Test force

Rockwell:60,100,150Kgf(588,980,1471N)

Brinell:15.625,31.25,62.5,125,187.5Kgf

(153.2,306.5,612.9,1226,1839N)

Vickers:5,10,20,30,50,100Kgf

(49.03,98.07,196.1,294.2,490.3,980.7N)

Max. height of test piece

Rockwell 180mm,Brinell and Vickers 165mm

Distance from center of inditention to wall

160mm

Weight

Feature

100% Eco-friendly/Soft/Lovely

Dimension

550*230*780mm

Quality Control

Advanced equipment and experienced QC team will check materials

Delivery Term

10-20 working days after receiving T/T 100% deposit
