WZUMER HDC 16A Heavy Duty 3 4 6 10 16 24 32 48 Pin Cable Connector Replace Harting Connector
- Category: Connectors & Terminals >>>
- Supplier: Wenzhou,Yumao,Electricity,Technology,Co.,Ltd.
Share on:
Product Overview
Description
You are here:Home>>Heavy Duty Connectors>>
Click "Catalogue" To Know More About The Heavy Duty Connectors
Male insert:
Male insert with screw terminal, crimp terminal ( order contacts separately ) or cage-clamp terminal.
Female insert:
Female insert with screw terminal, crimp terminal ( order contacts separately ) or cage-clamp terminal.

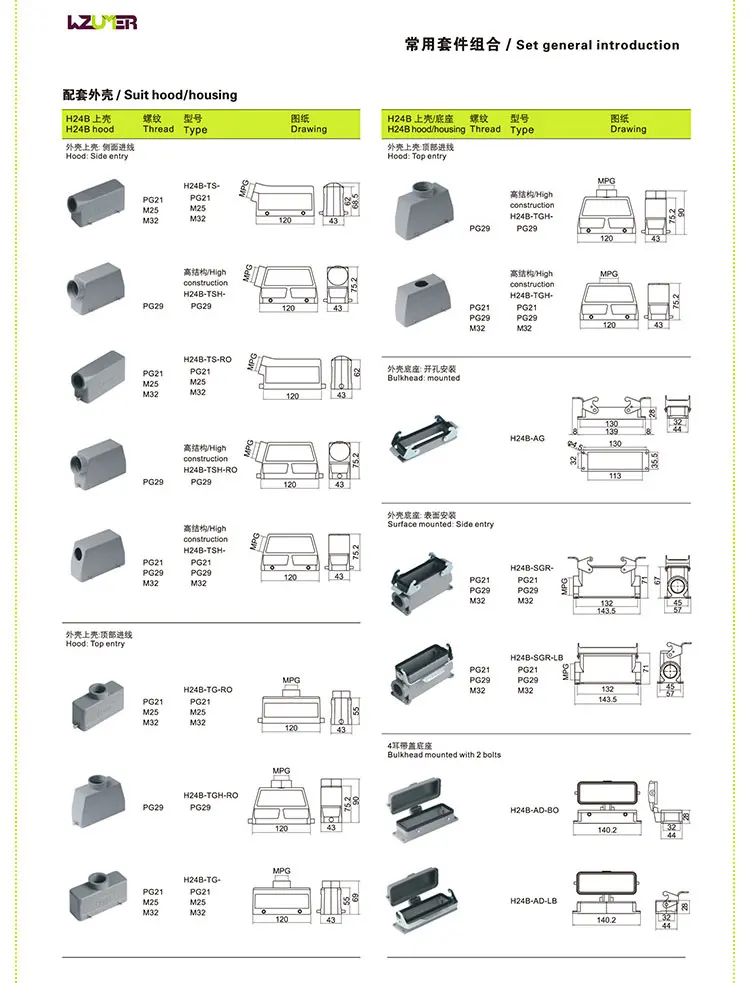

Hoods:
Hoods with low or high construction, side or top cable entry, 2 or 4 bolts, 1 or 2 locking levers.
Housings:
Bulkhead mounting housing with or without protection cover, 1 or 2 locking levers.
Surface mounting housings with low or high construction with or without protection cover, 2 or 4 bolts, 1 or 2 locking levers, 1 or 2 cable entries.
Cable entry protection:
Cable glands with normal or multiple sealing.
Metal or plastic cable glands.
Special cable entry protection or extensive range of accessories.

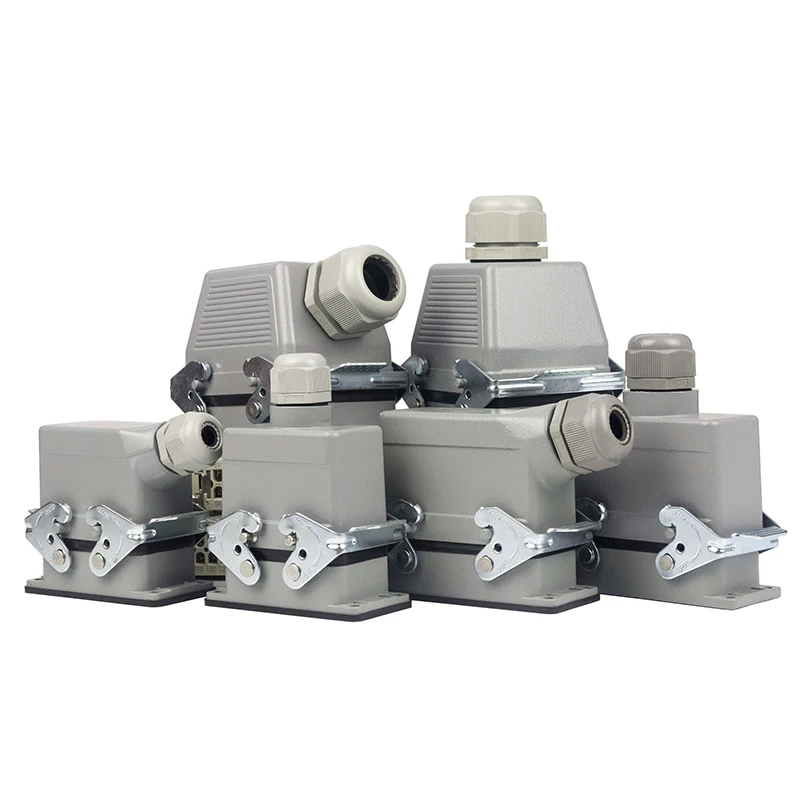

Details Images
Products Description
Technical Characteristics:
| Number of Contacts | 24 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6KV |
| Pollution Degree | 3 |
| Flammability Acc.to (UL94) | V0 |
| Insulation Resistance | ≥1010Ω |
| Material | Polycarbonate |
| Limiting Temperature | -40℃~+125℃ |
| Mechanical Working Life | ≥500 |
| Rated Voltage Acc.To UL/CSA | 600V |
Contacts:
| Material | Copper Alloy |
| Surface | Hard-silver,Hard Gold Plated |
| Contact Resistance | ≤1mΩ |
| Crimp Teminal | |
- Wire Gauge -AWG -Stripping Length | 0.14-4.0mm2 26-12 7.5mm |
Screw Teminal | |
-Wire Gauge -AWG -Tightening Torque -Stripping Length | 0.14-2.5mm2 26-14 0.5Nm 7.0mm |
Cage Clamp |
|
-Wire Gauge -AWG -Stripping Length | 0.14-2.5mm2 26-14 7.0-9.0mm |
