Product Overview
Description
Product Overview

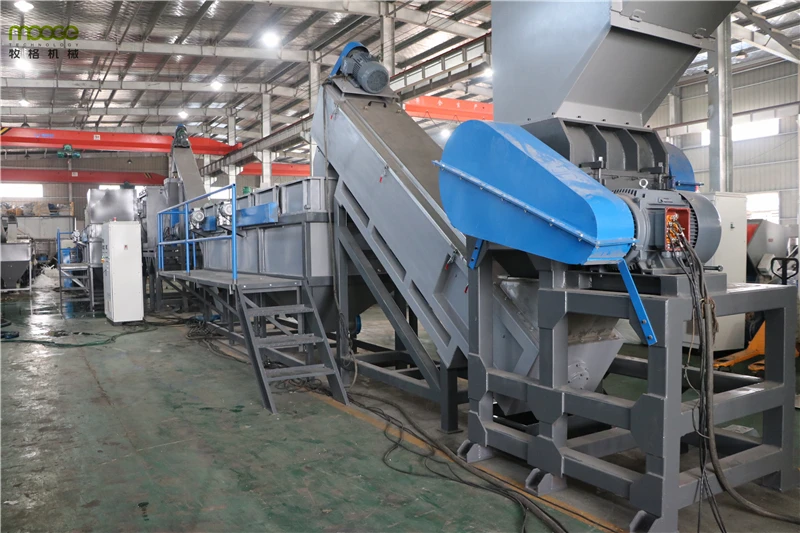

This plastic recycling waste pe pp woven bags washing line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, cold washing, dewatering, hot air drying process will turn to be clean pieces for pelletizing.

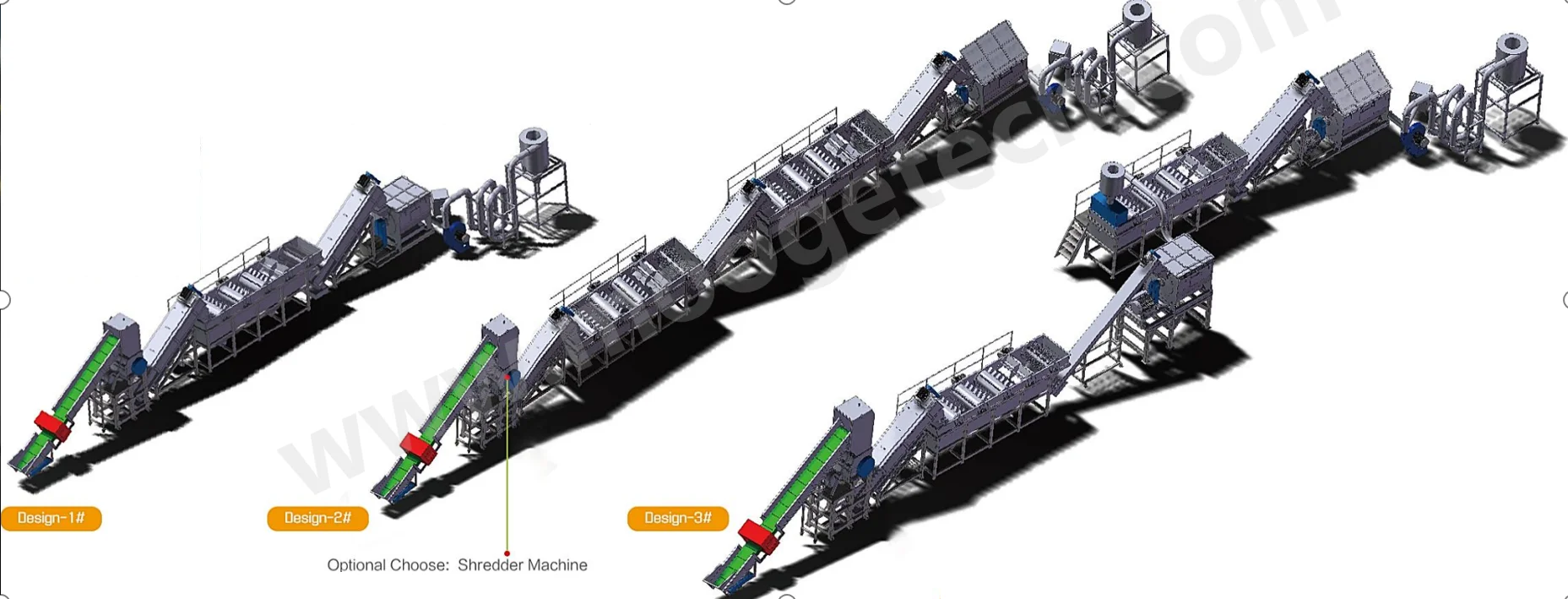

The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
The waste dirty material go through crushing, friction washing, cold washing, dewatering, hot air drying process will turn to be clean pieces for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
waste raw material--pp pe film, woven bags ...
clean pp pe film pieces, woven bags pieces ...
Products Description
We have the ME Series efficient plastic recycling machine with capacity 300-1000kg/h and we can design the layout according to your requirements .
Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
ME-300 | 300 kg/hr | 190 KW | 6-8 m3/hr | 2 Person | 40*5*5 M |
ME-500 | 500 kg/hr | 260 KW | 8-10 m3/hr | 2 Person | 40*5*5 M |
ME-1000 | 1000 kg/hr | 500 KW | 10-15 m3/hr | 2-3 Person | 50*8*5 M |
Features At-A-Glance

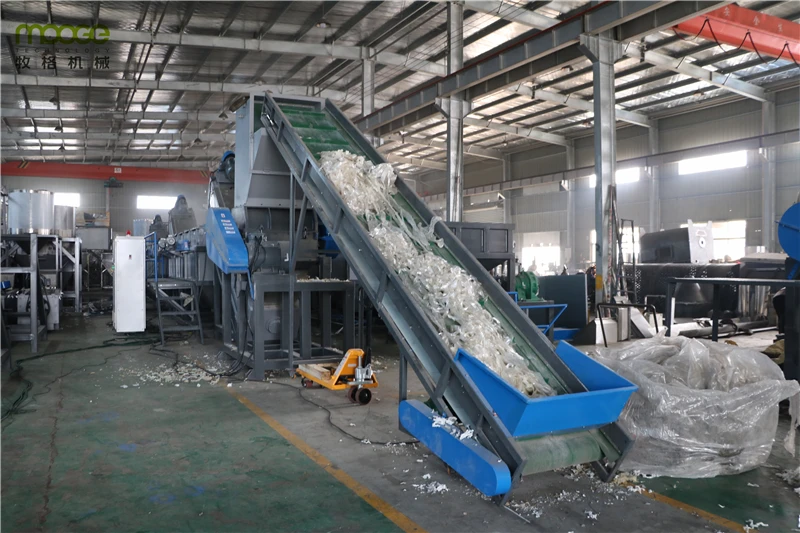

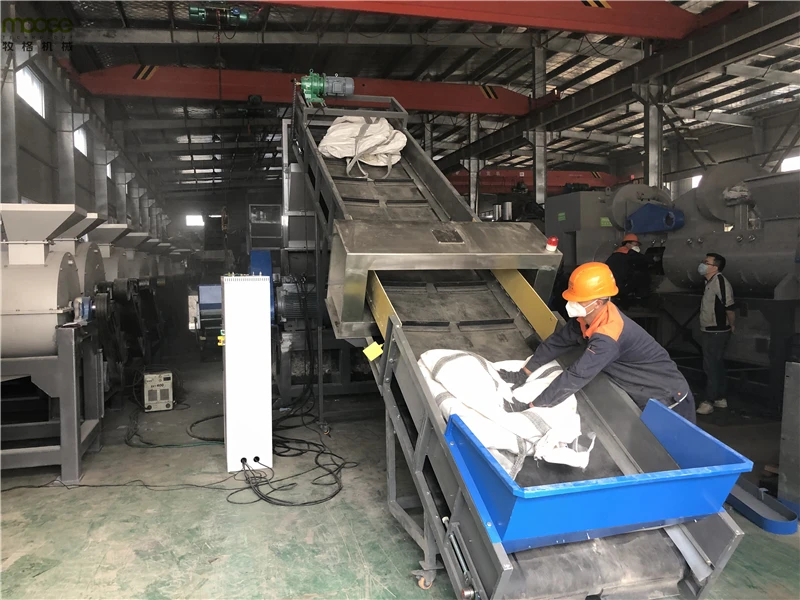

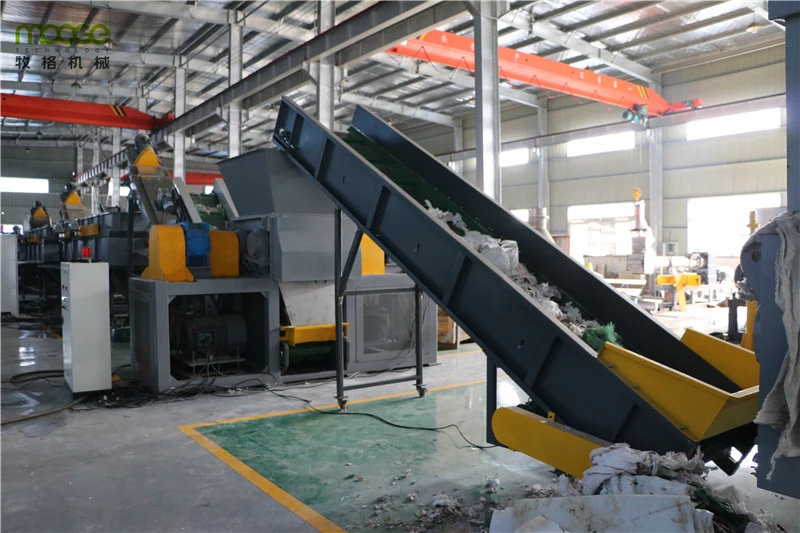

Conveyor Belt with Metal Detector
Function :Feeding material and detection the metal out from material
--Belt feeding speed is adjustable
--The belt can be made with PVC or rubber
--Semi-Automatic model for ferrous and non-ferrous>8mm
--Semi-Automatic model for ferrous and non-ferrous>8mm
--Once there is metal passing it, it will alarm and stop the sorting conveyor, after worker pick out the metal then start it again

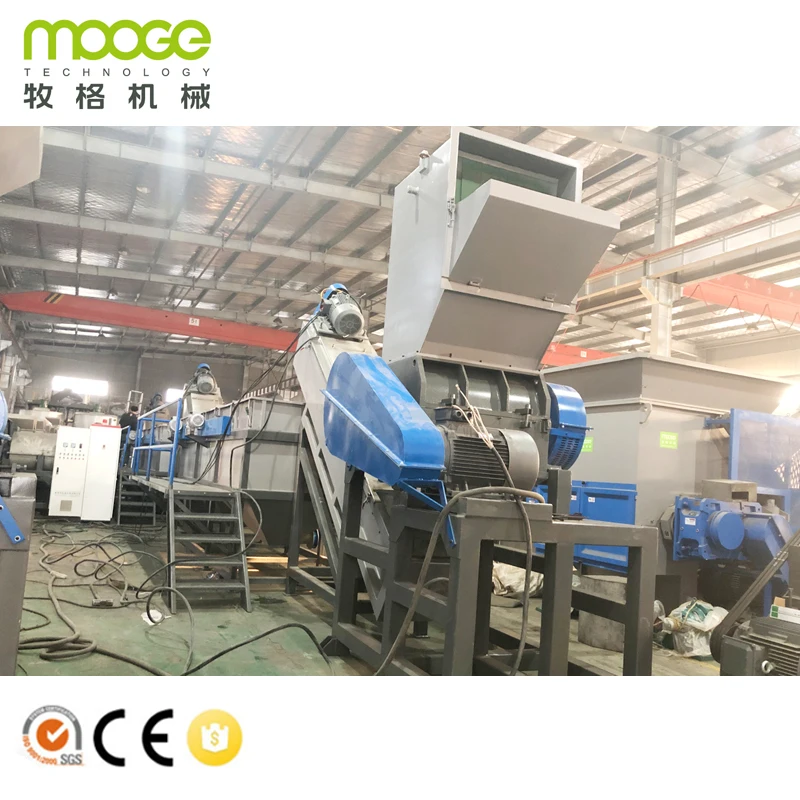

Plastic Crusher Machine
Function :crushing the material into small pieces
--With water inlet do wet crushing
--Use the big roller bearing ensure its long time
--Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use
--Machine up chamber is higher and covered by shelter so no flakes pop out

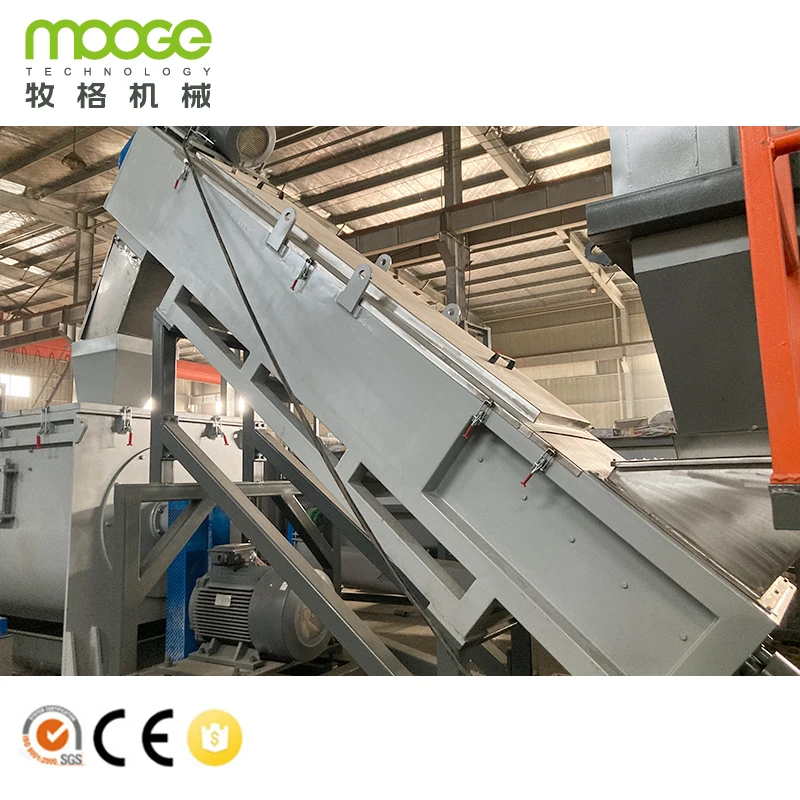

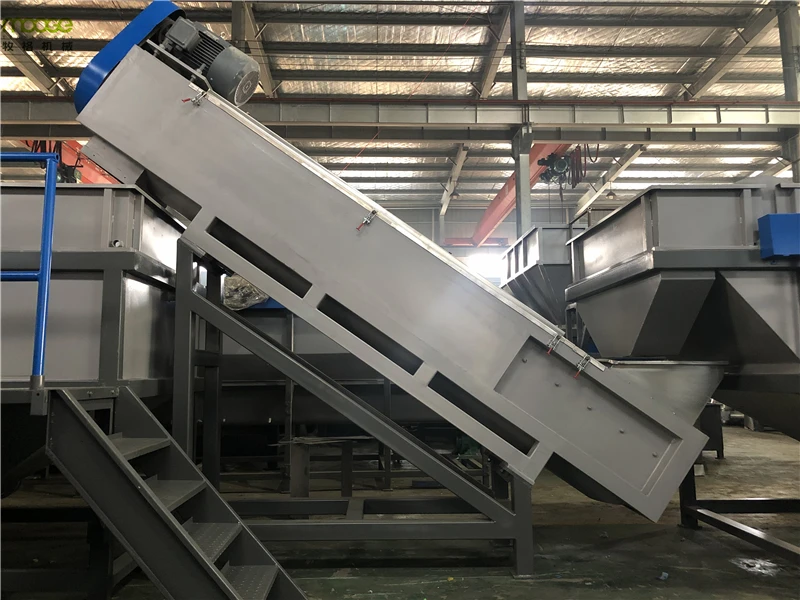

Friction Washing Loader
Function: Friction washing with water to remove out the dirty and loading up the material to next machine
--Up and down both mounted with bearing design
--With water injection system to cleaning the screen
--Bottom with water drain system
--Screw and screen are all made with stainless steel 304
--Up and down both mounted with bearing design
--With water injection system to cleaning the screen
--Bottom with water drain system
--Screw and screen are all made with stainless steel 304

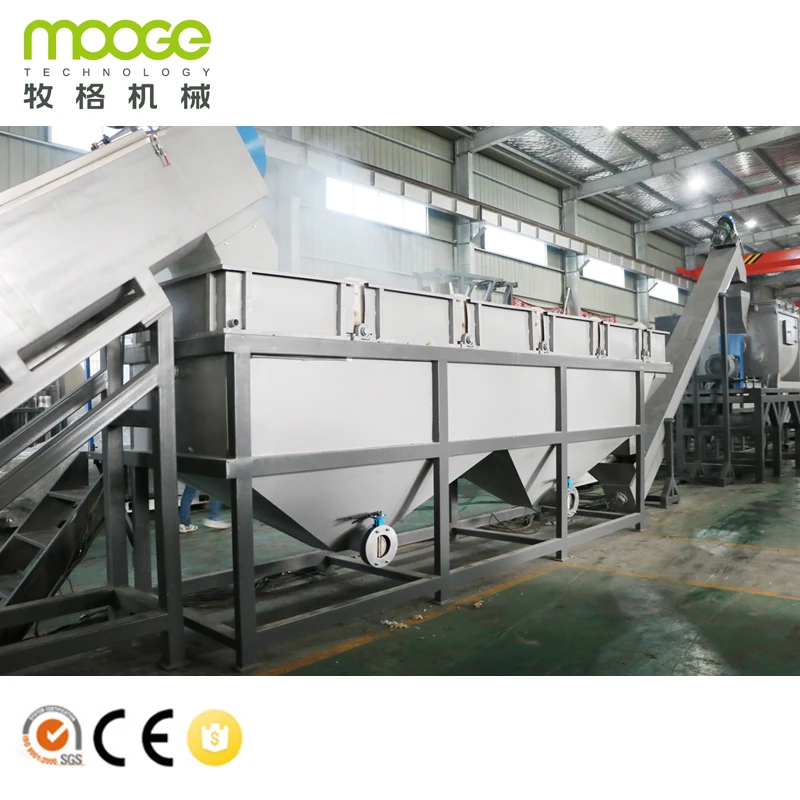

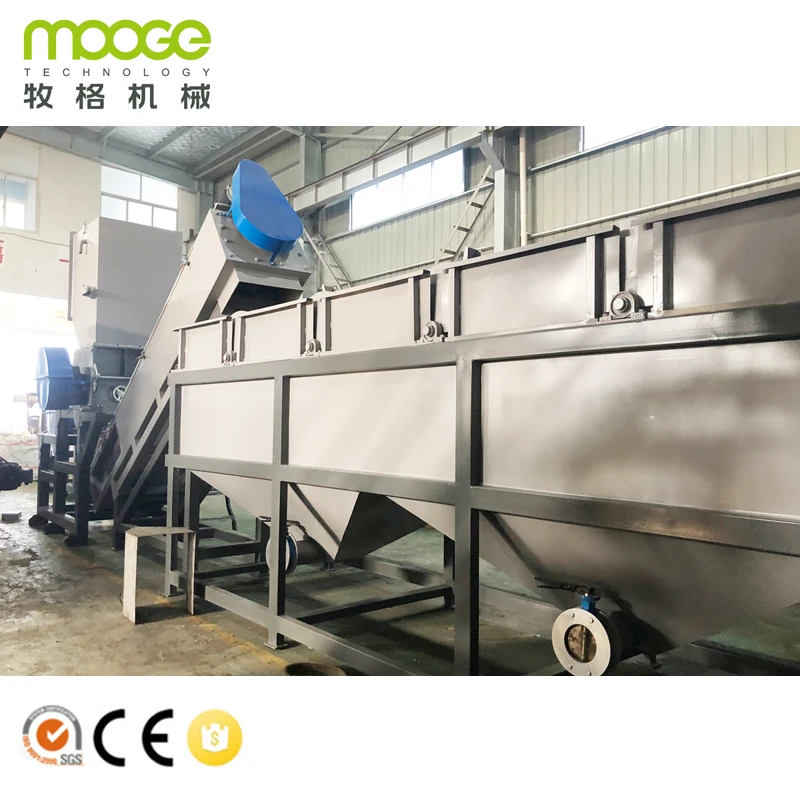

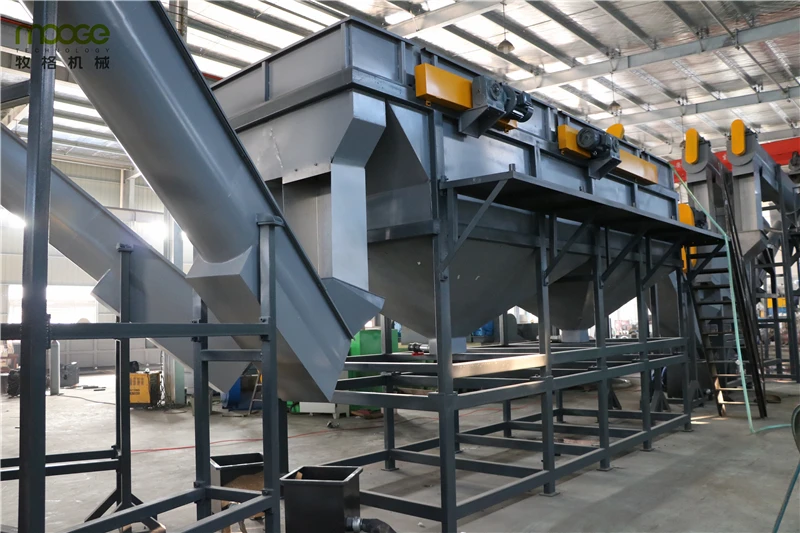

Floating Washing Tank
Function: Floating washing separate the sand, soil and other dirty
--The roller is specially made can have more washing for material but less water take out
--Roller speed adjust by inverter
--Bottom with conical design easy drain out the dirty and for better maintenance
--Roller speed adjust by inverter
--Bottom with conical design easy drain out the dirty and for better maintenance
--Machine is made by stainless steel 304
--With platform one set on the side of the tank
--With platform one set on the side of the tank

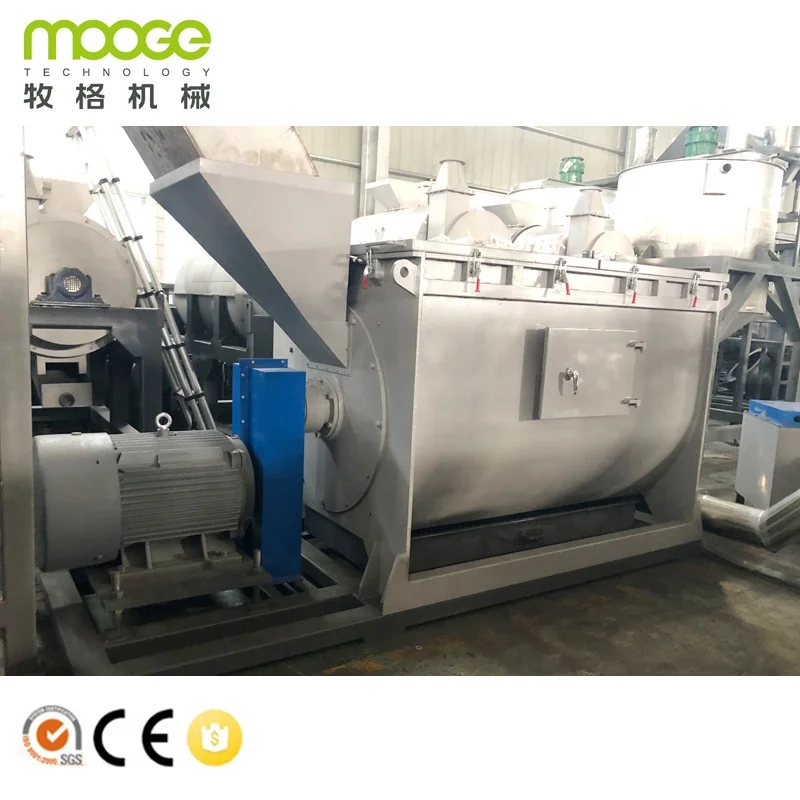

High Speed Dewatering Machine
Function: take out dirty and remove water
--With the roller bearing fixed outside for long use life
--Bearing is “NSK” Brand from Japan
--With water to wash the screen and a rotating brush the clean the screen
--Bottom with dirty water drain out
--With water to cooling the bearing house
--The chamber is easy to opening to maintenance
--With the roller bearing fixed outside for long use life
--Bearing is “NSK” Brand from Japan
--With water to wash the screen and a rotating brush the clean the screen
--Bottom with dirty water drain out
--With water to cooling the bearing house
--The chamber is easy to opening to maintenance

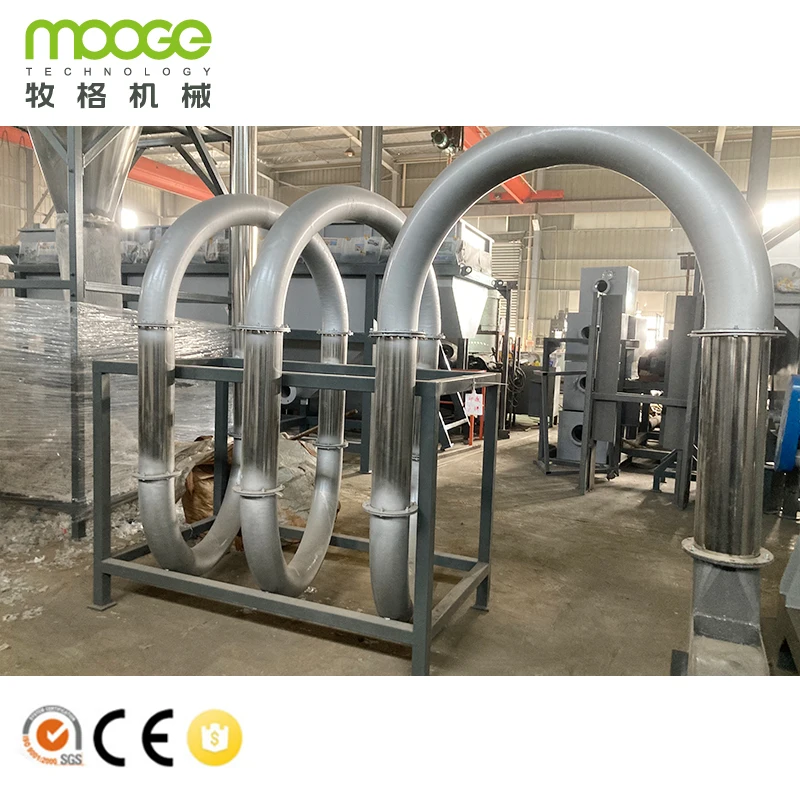

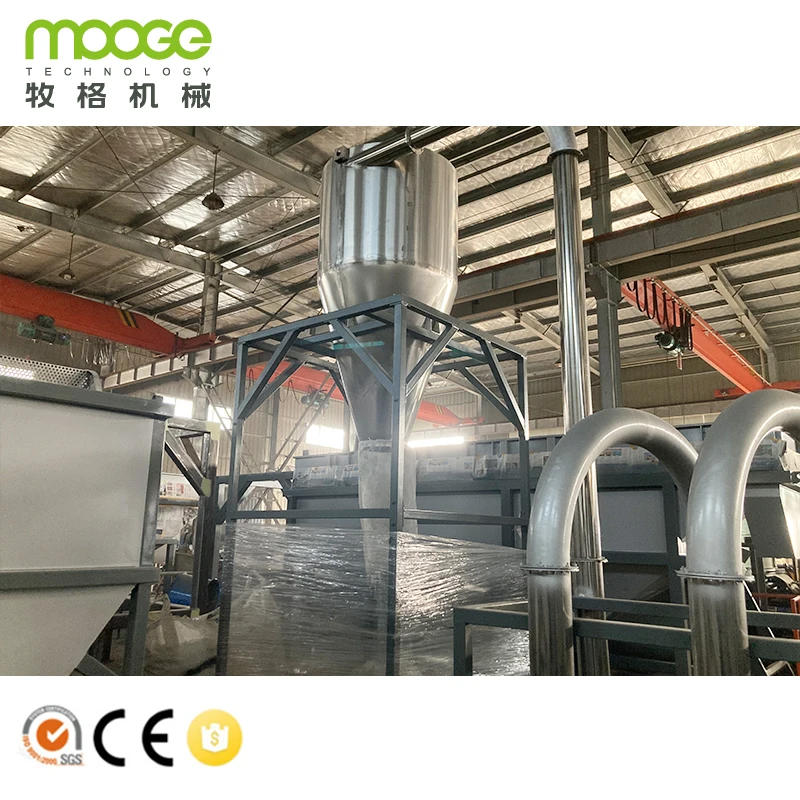

Hot Air Dryer System
Function:drying the material with hot air so as to get clean material as dry as possible
--Heating by electricity box
--Heating by electricity box
--Electric heating box: 1 set
--Heating motor power: 48KW
--Drying pipe diameter: 219mm
--Drying pipe made by stainless steel 304
--Heating motor power: 48KW
--Drying pipe diameter: 219mm
--Drying pipe made by stainless steel 304
--Blower one set
--Blower motor power: 7.5KW
--Blower motor power: 7.5KW

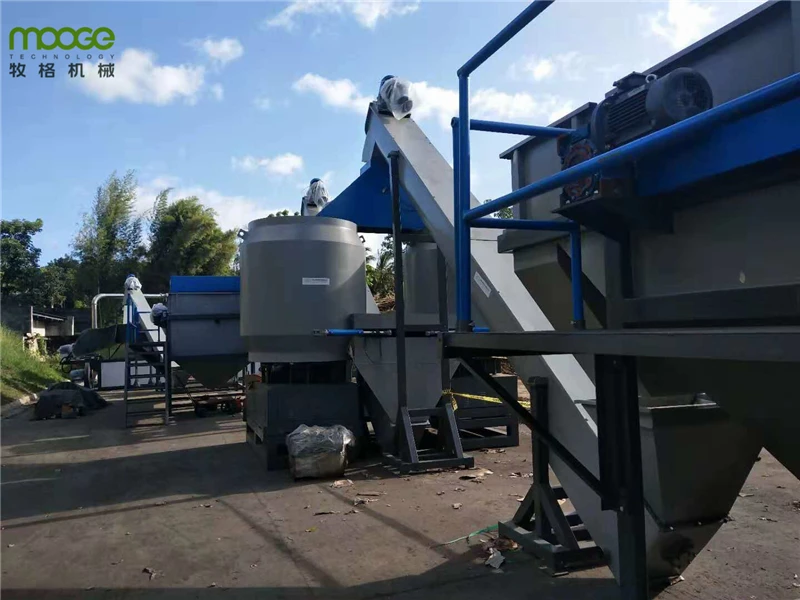

Customer Onsite
ME-500 PP film recycling line in Angola
ME-500 plastic PE film washing machine sold to Myanmar
ME-500 HDPE film recycling machine sold to Nigeria
ME-500 PP woven bags recycling machine sold to Argentina
ME-1000 PE film PP bags recycling washing line sold to Brazil
Company Profile

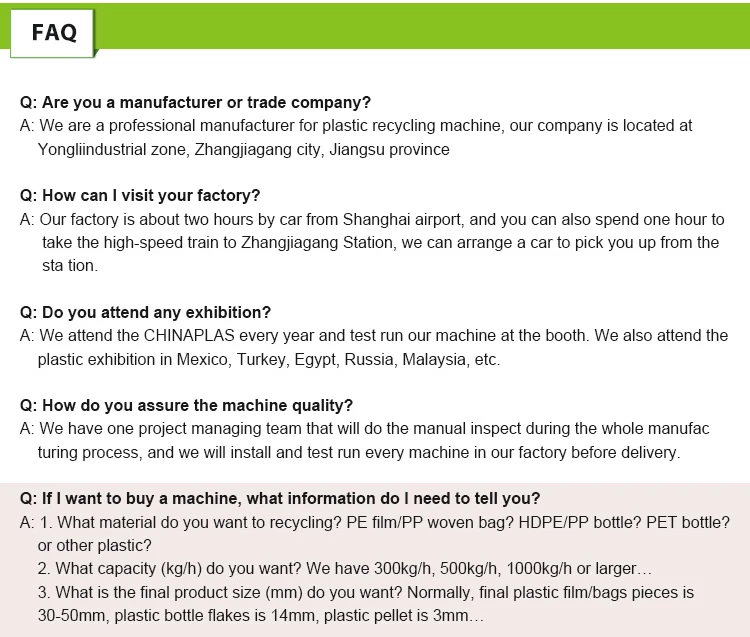

FAQ
