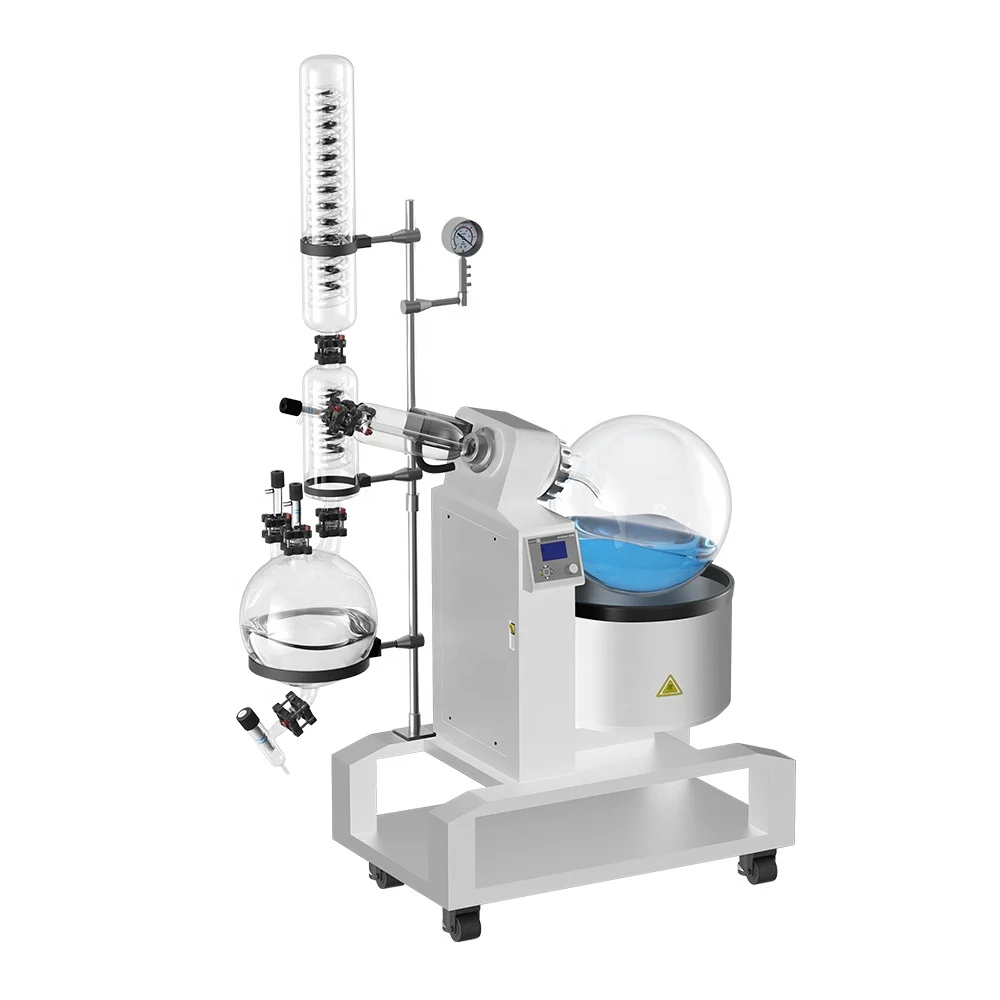

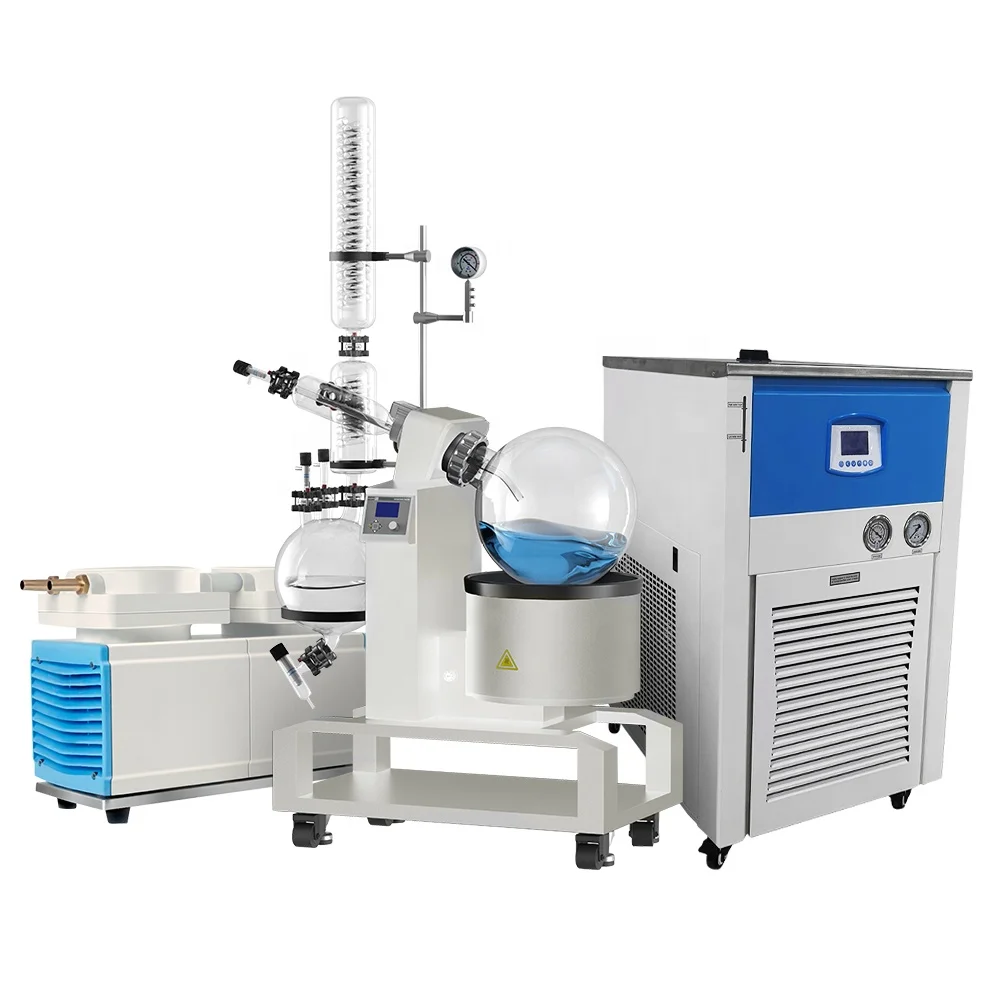

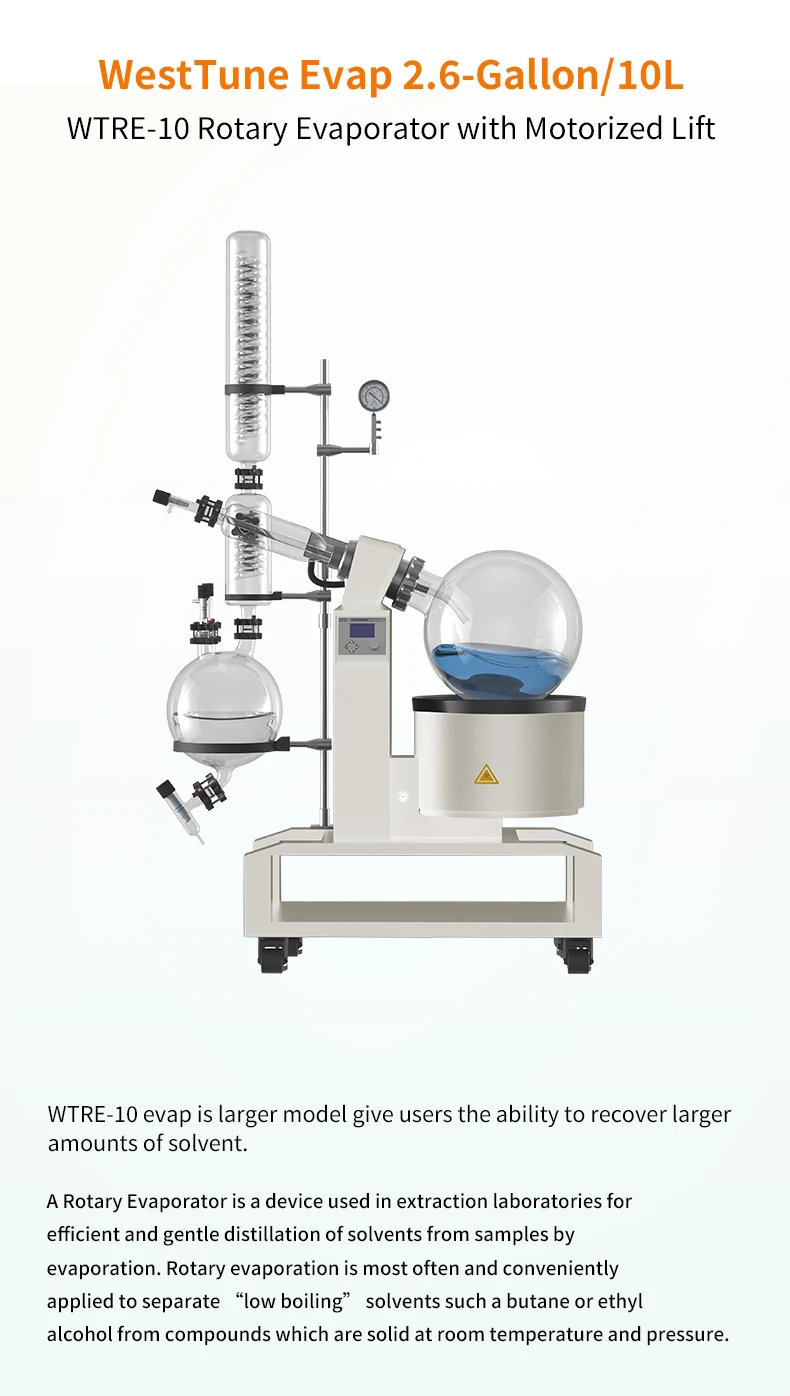

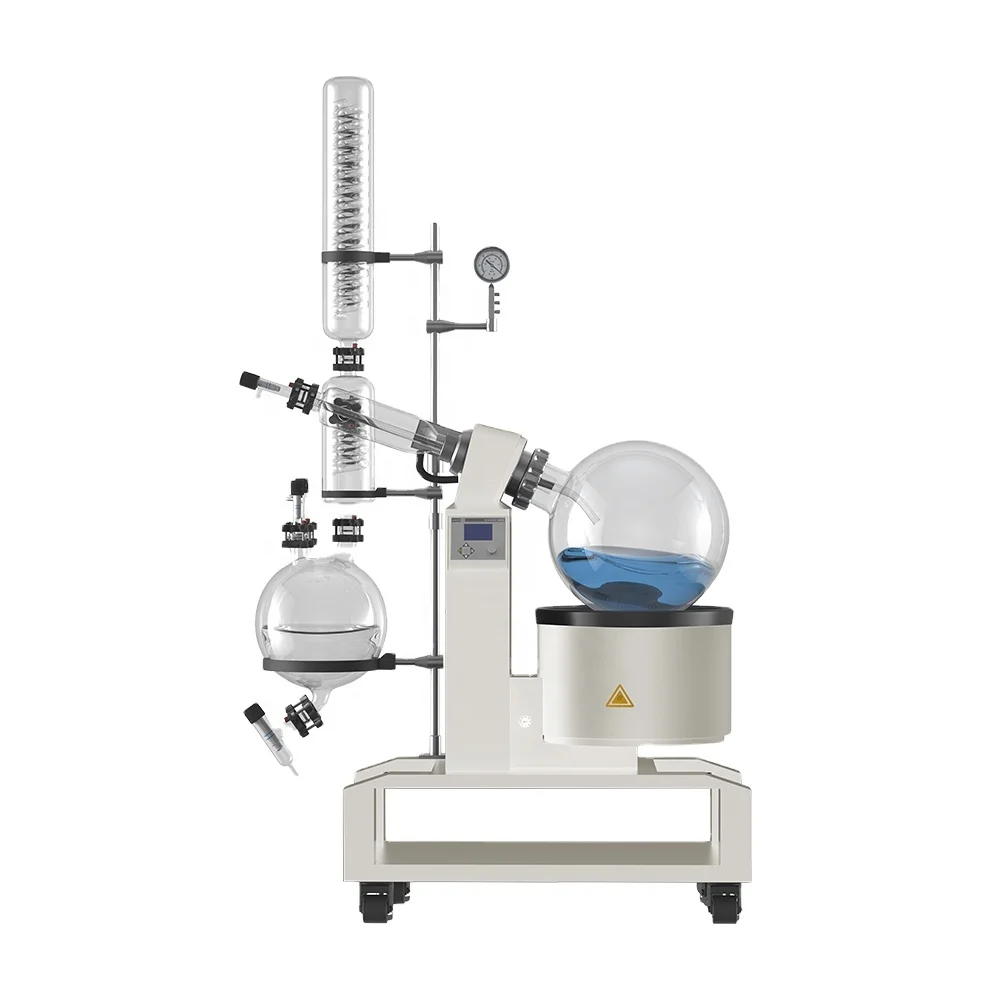

Industrial Laboratory 10L Rotary Evaporator Vacuum for Extraction Distillation
- Category: >>>
- Supplier: Hangzhou West Tune Trading Co. ltd.
Share on (1600488041820):
Product Overview
Description
Products Description
Features:
1. ETL: authoritative certification, security assurance
2. Paint: matte black paint, more beautiful.No paint chips.

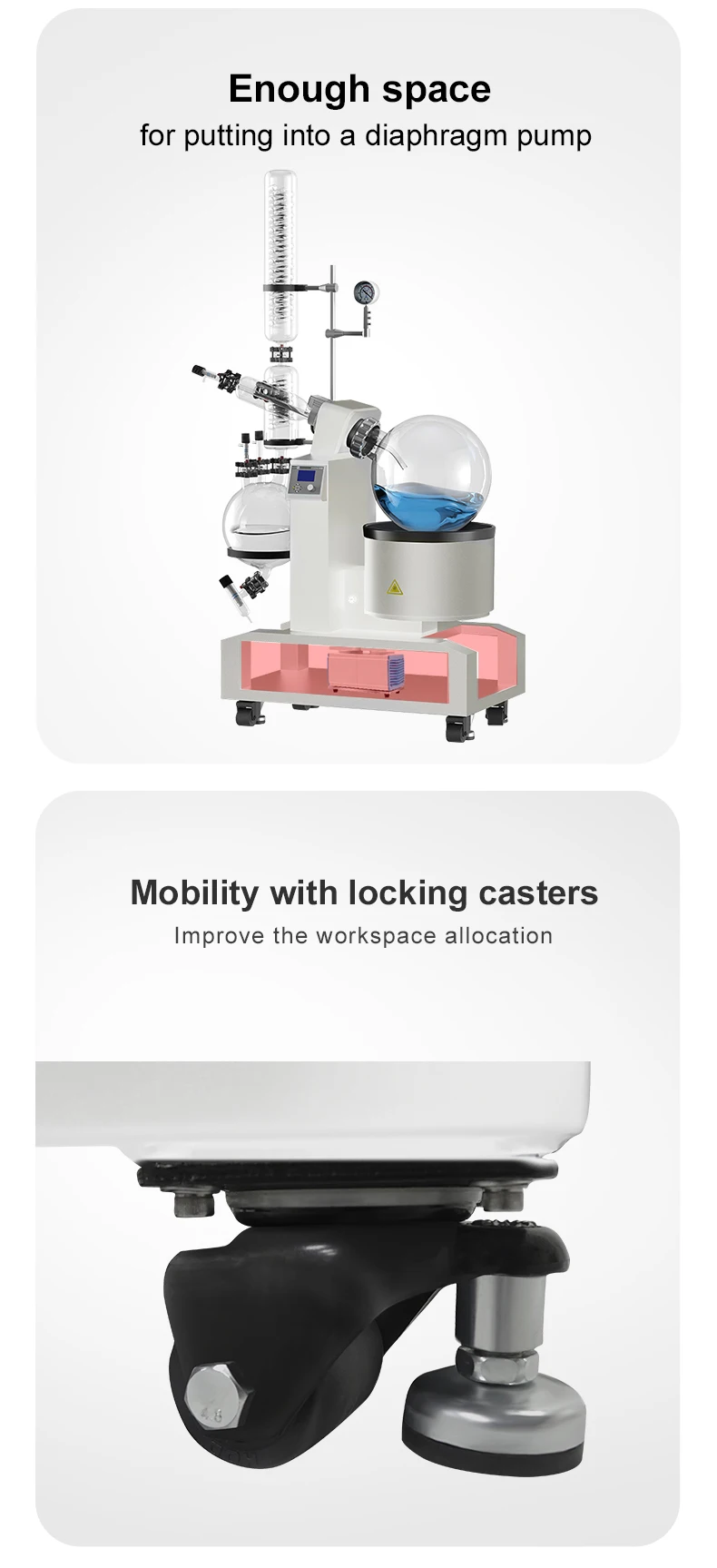

3. Base: hollow base with sufficient space, can put into the pump, reasonable use of space.

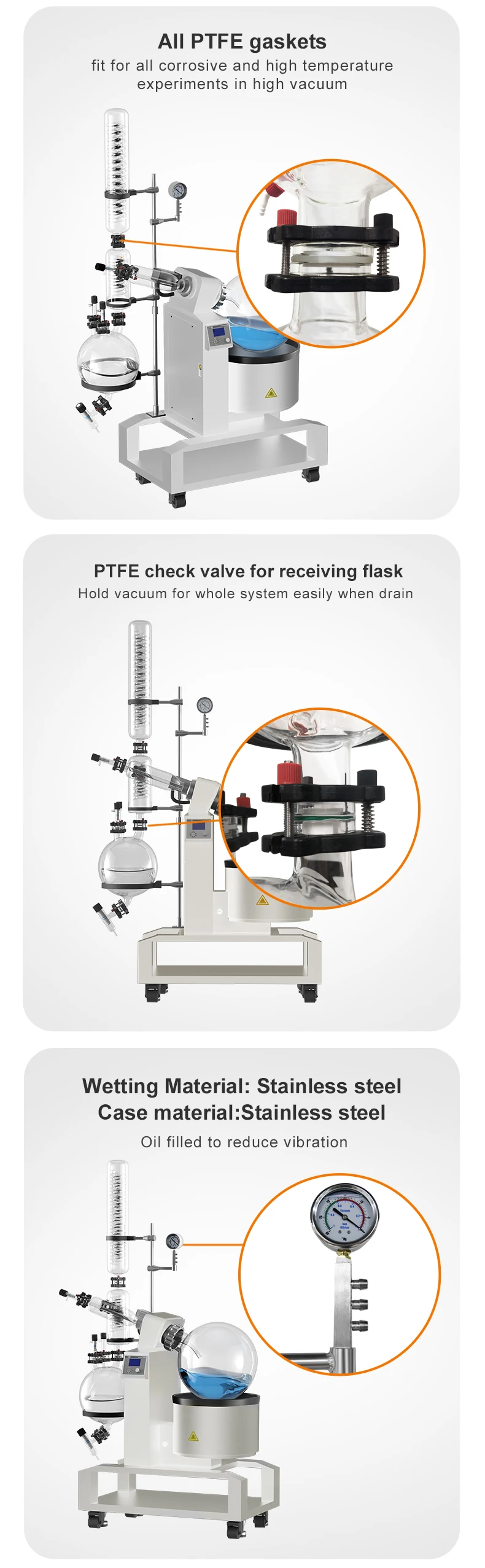

4. Water bath: with stainless steel gasket, cover the exposed coil and make the bottom more beautiful
5. Panel: matte dark red panel, with matte black paint, the overall vision is more advanced and beautiful. Sensitive buttons, simple operation. there is no company LOGO, suitable for dealers, individuals, and can accept the customer LOGO design. 6. The maintenance cover at the rotating shaft: Convenient for the customer to open the cover and maintain.
7. Small knob: The small knob can set the safe temperature which is uesd for keeping safety. If the temperature of water bath is more than safe temperature, it will spring back to the safe temperature.
Specifications
Model | WTRE-10 Rotary Evaporator |
Operating Ambient Temperature | 5~35C / 41~95F |
Glass Material | GG-17 High Borosilicate |
Main motor | DC brushless |
Power (V/Hz) | 220V 50/60Hz Single Phase |
Speed setting | Knob setting +LCD controller |
Vacuum seal | PTFE＋Teflon coating |
Temperature Control | PID Controller |
Cooling area（㎡） | 0.49 |
Rotation Speed | 10～130 rpm |
Bath temp. control range | RT+5-99C / 0-210F |
Maximum Vacuum Pressure | < 6 torrs |
Evaporating Flask Capacity | 10L / 2.64 gallon |
Receiving Flask Capacity | 5L / 1.32 gallon |

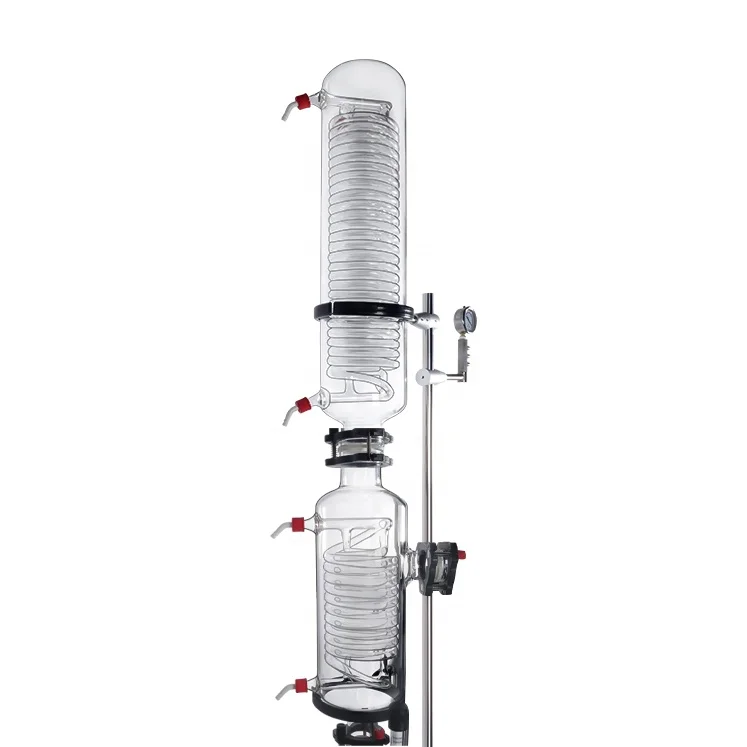

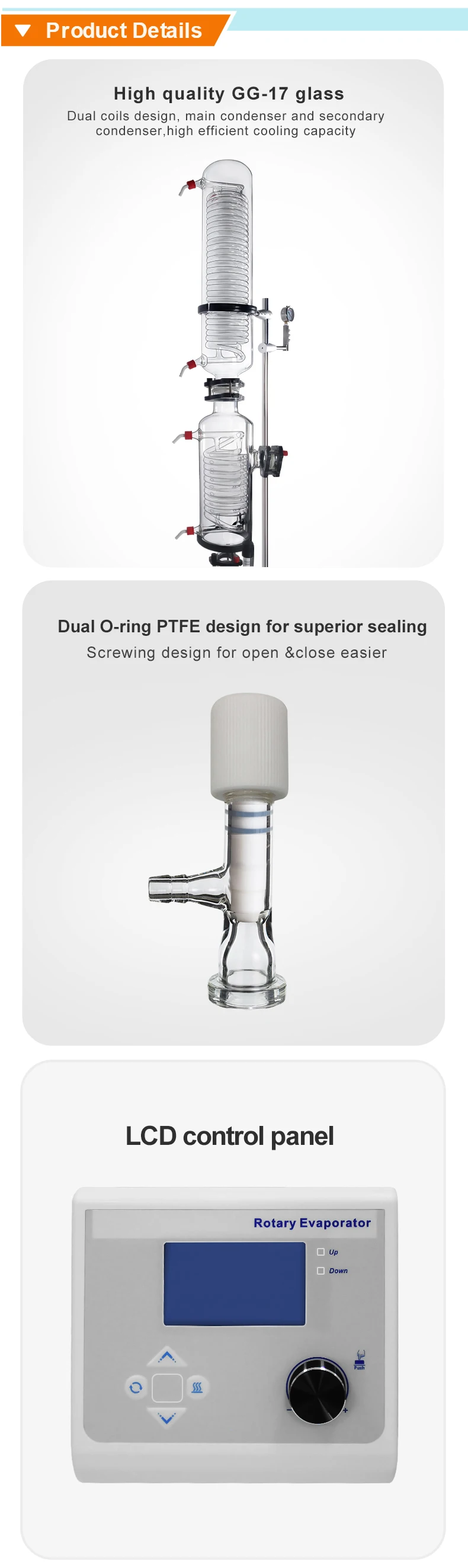

Condenser Style | Main + Auxiliary Vertical Double Helix |
Water bath heating method for water bath | Built-in heating |
Water Bath Material | Stainless steel corrosion resistant coating |
Lift Mode | Auto lift |
Lifting Distance | 190mm/ 74.8'' |
Heating Power | 3000W |
Packing Dimensions | (L) 850 x (W) 510 x (H) 1780mm |
Gross Weight | 140kg/ 309lbs |
Net Weight | 100kg/ 221lbs. |
Vacuum Connection | M18 |
Condenser Connection | M18 |
Safety | 1. Over current protection 2.Over temp. protection 3.Power interruption alarm 4. Anti-dry protection |

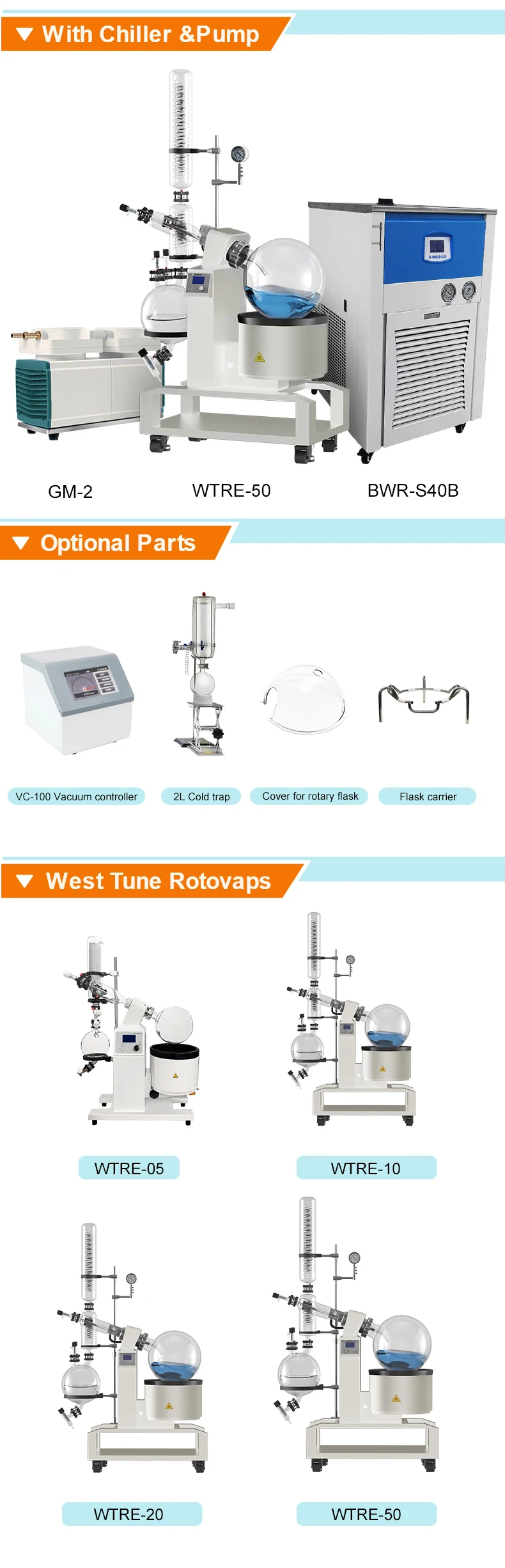

Related Products
>>Home Page<< | >>More Products<< | >>True View Video<< |
You Can Contact Us for More Competitive Price !

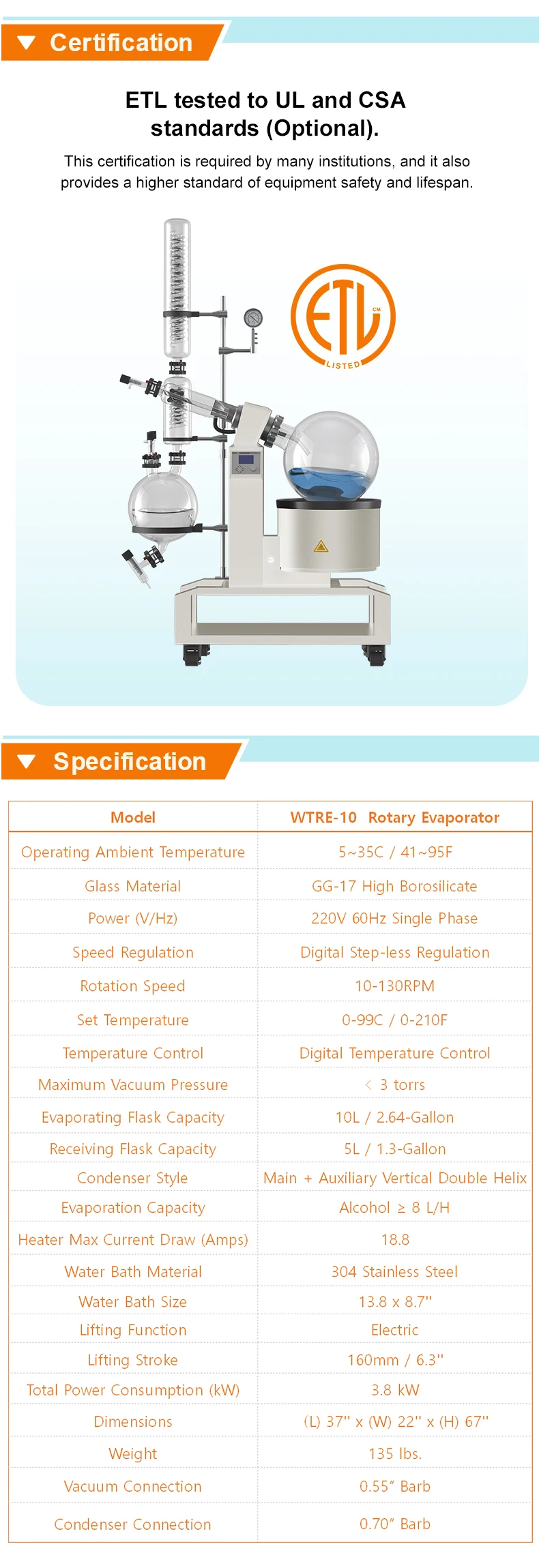

Certifications
