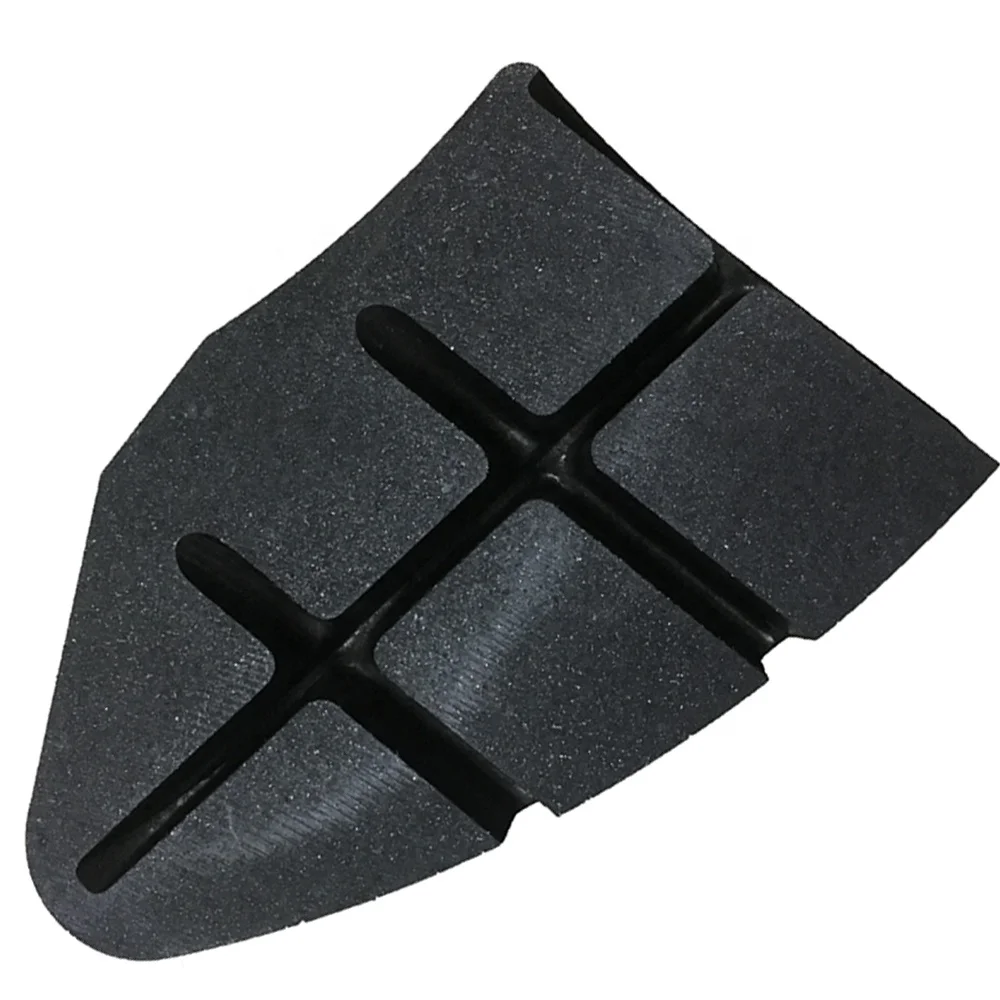

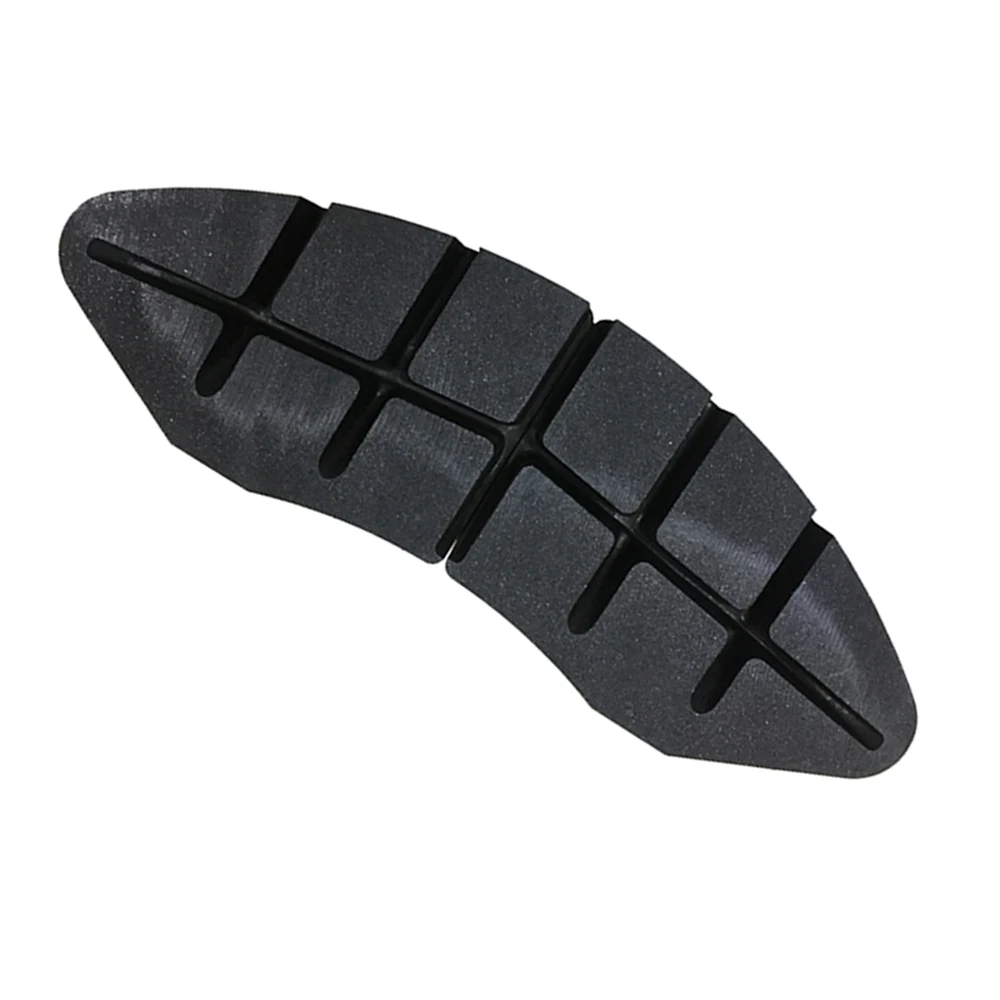

Locomotive Diesel Railway Brake Vans Brake Pad
- Category: >>>
- Supplier: Chongqing Hengtai Electromechanical Equipment Co. Ltd.
Share on (1600488043377):
Product Overview
Description
Product Description
Disc braking refers to a way of friction braking of railway trains. The locomotive brake pad is an important component of the disc brake device, which plays a decisive role in the braking performance.
The friction material used in this composite brake pad has the advantages of stable friction coefficient in a wide temperature range, good high temperature wear resistance, and can significantly improve the temperature resistance of the friction surface.
This kind of composite brake pad can meet the use requirements of the speed-up passenger car. It is shown by loading and using on the whole road that the braking effect is good, and there is no thermal damage and abnormal wear to the brake disc.
The friction material used in this composite brake pad has the advantages of stable friction coefficient in a wide temperature range, good high temperature wear resistance, and can significantly improve the temperature resistance of the friction surface.
This kind of composite brake pad can meet the use requirements of the speed-up passenger car. It is shown by loading and using on the whole road that the braking effect is good, and there is no thermal damage and abnormal wear to the brake disc.
Specification
item | value |
Material | Resin based friction material products |
Operating speed | ≤250km/h |
Storage time | ≤12 months |
Surface treatment | rust-proof |
Abrasion value | ≤0.8cm³/MJ |
static friction coefficient | ≥0.35 |
Standard | UIC 541-3 : 2010, TB/T3344-2014 |
Structure | Dovetail structure |
Application | urban rail vehicle, rolling stock, high speed train etc. |
Components | steel back, friction body |
Max. withstand temperature | 400℃ |

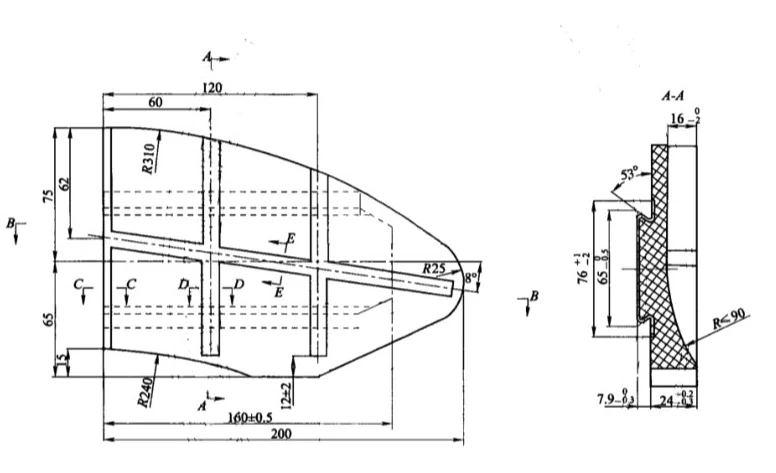

Product drawing
Below is the current drawing for reference, it can be customized as per requires.
Product Paramenters

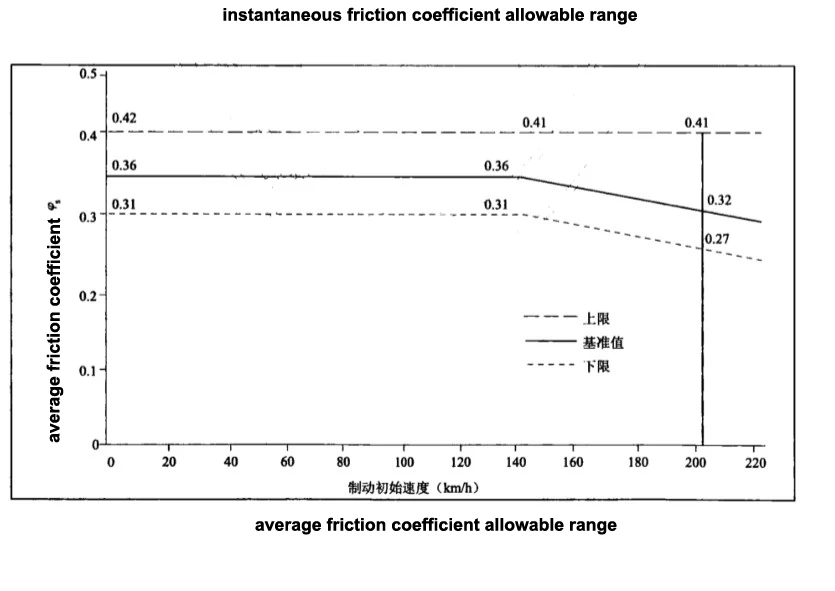

Below is the instantaneous friction coefficient allowable range
Applications

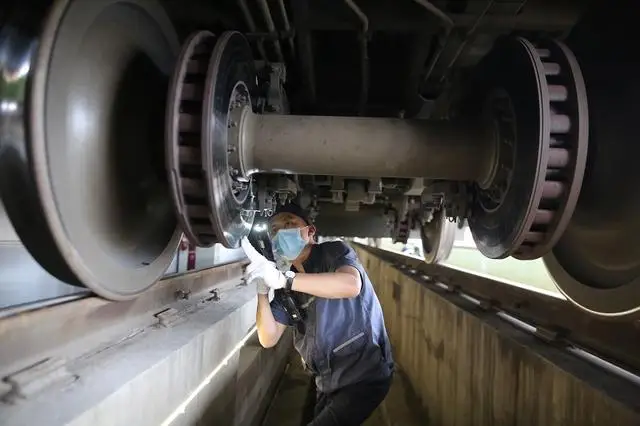

Below picture shows that the brake pad is applied to locomotive brake dics.

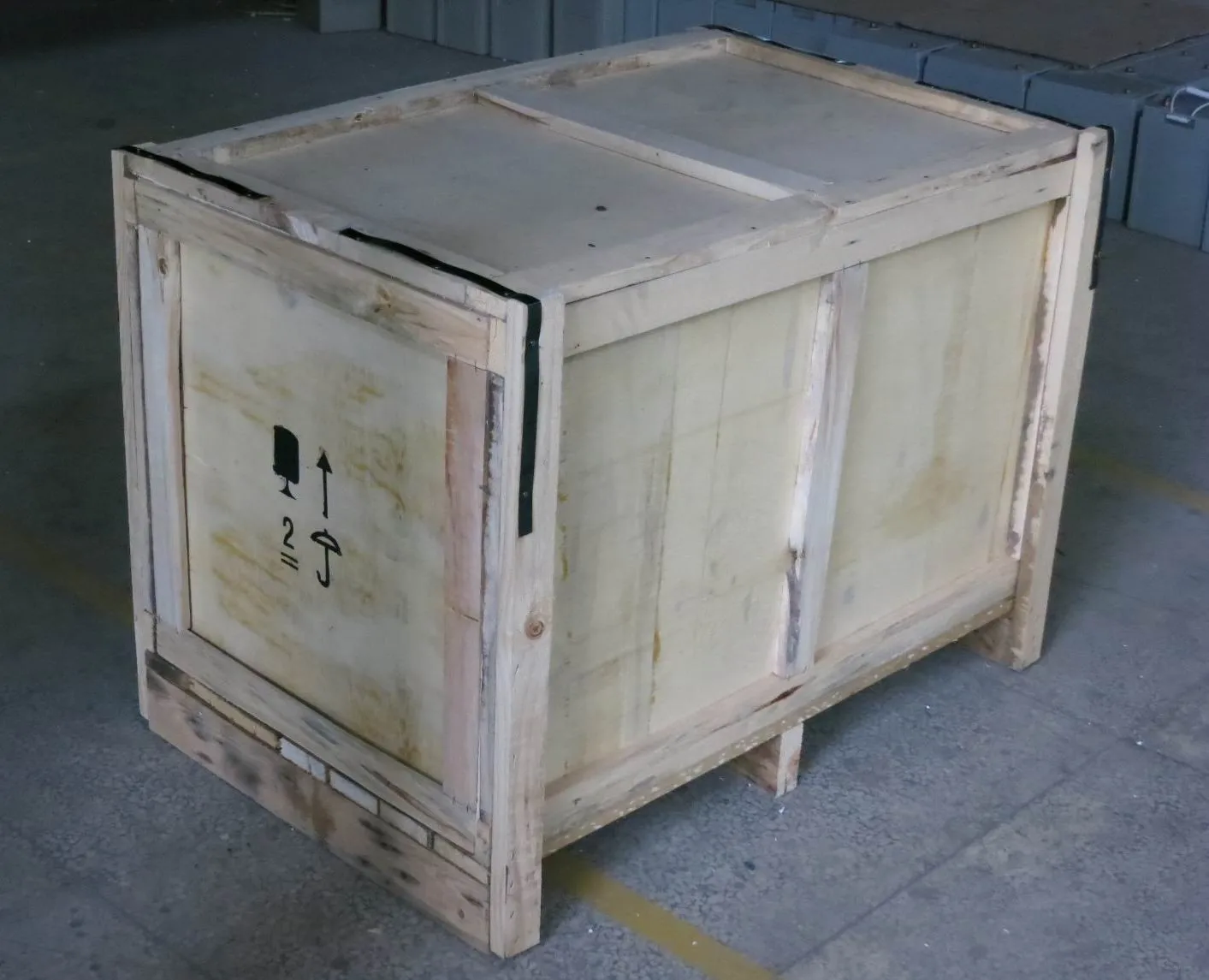

Packing & Delivery
1. standard package
2. as per requires
2. as per requires
Company Profile

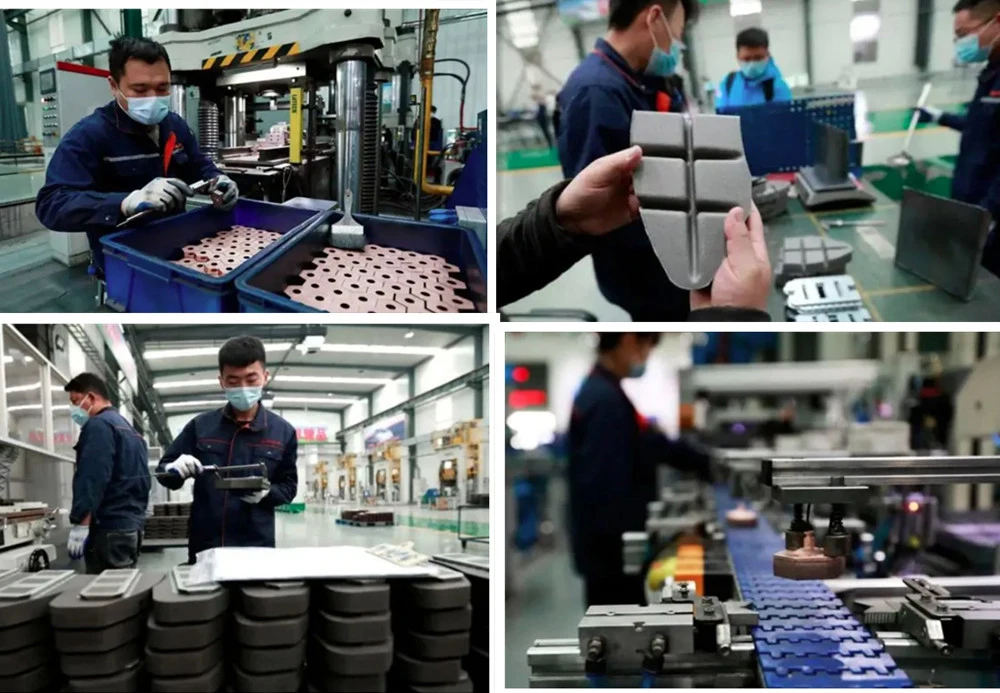

Chongqing Hengtairail Equipment Co., Ltd. is devoted to designing, researching, developing and manufacturing the products of railway vehicles and formed as a specialized integrator and supplier in railway industry. Main products cover completed parts of the vehicle car, including running gear, coupling devices, interior facilities, electric system, and etc. Especially, Hengtai owned the ability to refurbish and renovate the railway vehicles.
We insisting on the developing idea of "professional is the precondition, technology is the key, quality is the goal"
We insisting on the developing idea of "professional is the precondition, technology is the key, quality is the goal"
