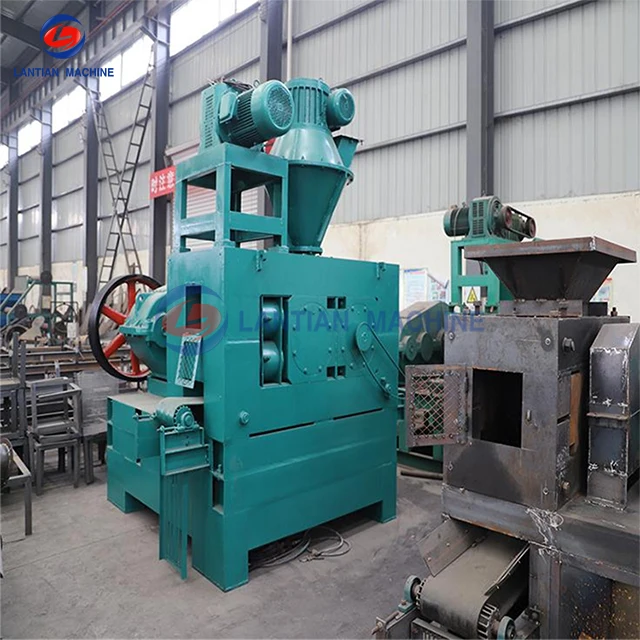

High pressure briquetting machine Metal powder dry powder hydraulic briquette press machine
Product Description
Hydraulic briquette press machine can compress and make molding of various mineral powder, metal powder, pulverized coal, coke powder and other materials. Since the roller is forced to extrusion, the final product has three high densities, high strength and high strength and high hardness. In addition, the mold has good wear resistance, effectively improves the life of the pressure roller.

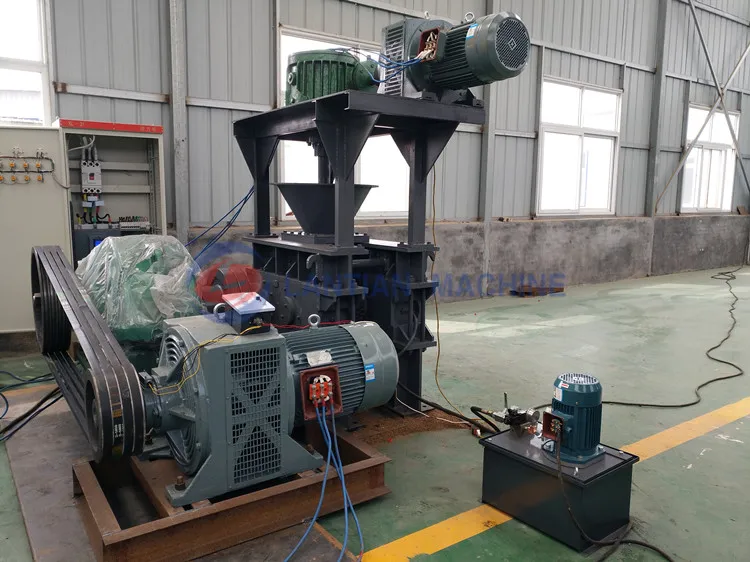

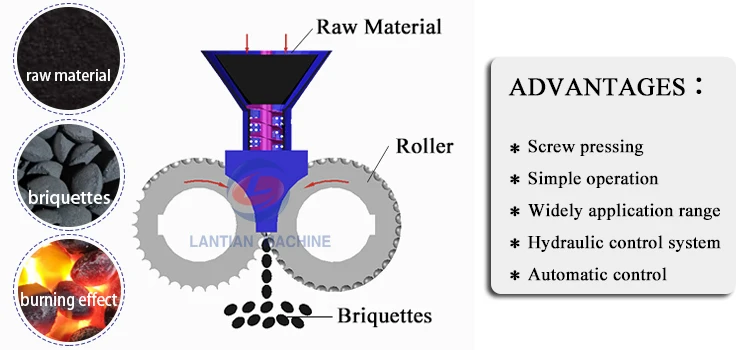

Working principle of hydraulic briquette press machine
Hydraulic briquette machine is like this: the raw materials produced by the motor, through the reduce,the through the coupler to the drive shaft, then by a pair of open gear, to ensure the two rollers synchronous.

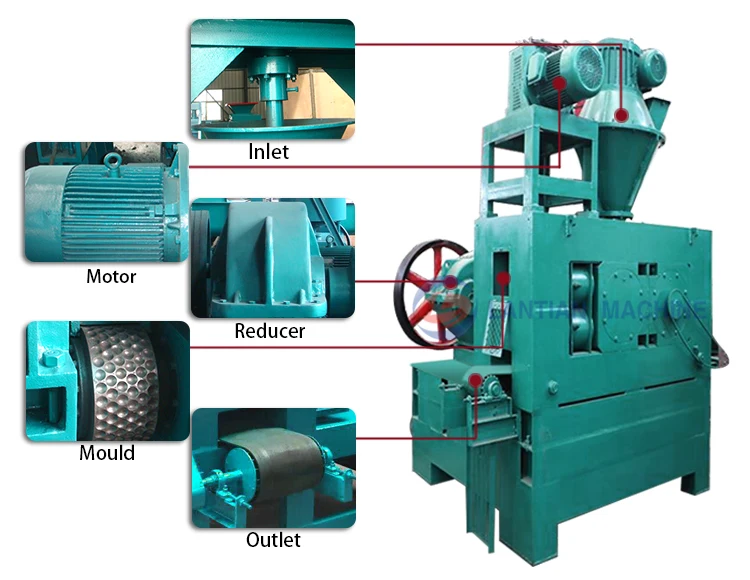

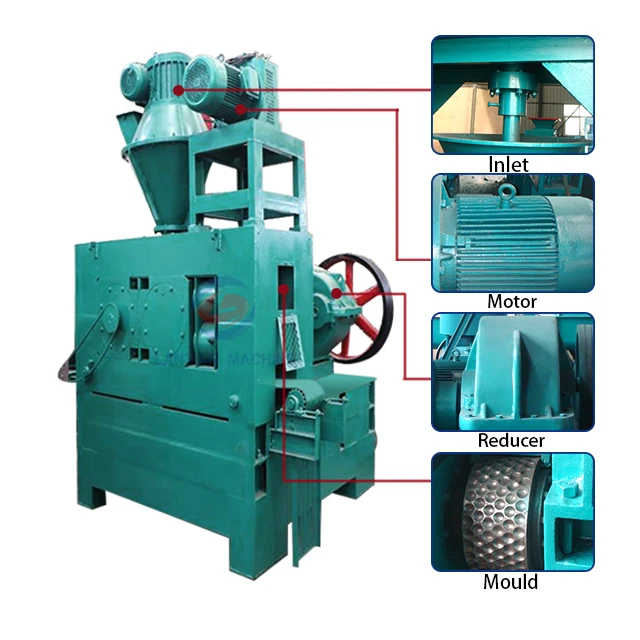

DETAILS IMAGES
Feeding Part
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly.Specifically,the screw feeder,driven by electromagnetic speed adjustable motor,presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer.Owing to constant torque,the motor can keep constant feeding pressure,ensuring stable briquette quality.
Drive Part
The main drive system of the hydraulic ball press machine is composed of motor,triangle belt,reducer,exposed gear and rollers.The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley,reducer and coupler,and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
Briquette Molding Part
The core of the briquette molding part is the rollers.Through rollers,the raw materials can be compressed into briquettes with various shapes.In addition, the rollers feature overload protection,hence keeping sound quality.
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly.Specifically,the screw feeder,driven by electromagnetic speed adjustable motor,presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer.Owing to constant torque,the motor can keep constant feeding pressure,ensuring stable briquette quality.
Drive Part
The main drive system of the hydraulic ball press machine is composed of motor,triangle belt,reducer,exposed gear and rollers.The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley,reducer and coupler,and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
Briquette Molding Part
The core of the briquette molding part is the rollers.Through rollers,the raw materials can be compressed into briquettes with various shapes.In addition, the rollers feature overload protection,hence keeping sound quality.
Specification
Model | Capacity | Roller diam | Motor power | Briquette size |
LT-290 | 1.5-2 t/h | 290 mm | 5.5 kw | 30-60mm |
LT-360 | 2-3t/h | 360 mm | 7.5 kw | 30-60mm |
LT-450 | 4-5 t/h | 450 mm | 15 kw | 30-60mm |
LT-500 | 6-8 t/h | 500 mm | 22 kw | 30-60mm |
LT-650 | 10-15 t/h | 650 mm | 30 kw | 30-60mm |
LT-850 | 25-35t/h | 850 mm | 37-45 kw | 30-60mm |
LT-1000 | 35-40 | 1000 mm | 75-90 kw | 30-60mm |
Raw materials&final products
A: Coal/coke/charcoal powder.
B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
C: Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
D: Size of materials: less than 1 mm, should be controlled between 30-40%; between 1-2 mm, should be 30-40%; the max size should be no bigger than 3 mm, with 20%.
E: Moisture of material: should be in 8-12%.
F: Not allowed: slad or other massive sundries with high hardness, or the roll and splindle will be demaged.
G: Agglomerant or other additives(e.g. dedulfurizer): should be prepared by users in accordance with coal type and the operating environment(or supplied by the supplier through consulation).
B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
C: Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
D: Size of materials: less than 1 mm, should be controlled between 30-40%; between 1-2 mm, should be 30-40%; the max size should be no bigger than 3 mm, with 20%.
E: Moisture of material: should be in 8-12%.
F: Not allowed: slad or other massive sundries with high hardness, or the roll and splindle will be demaged.
G: Agglomerant or other additives(e.g. dedulfurizer): should be prepared by users in accordance with coal type and the operating environment(or supplied by the supplier through consulation).

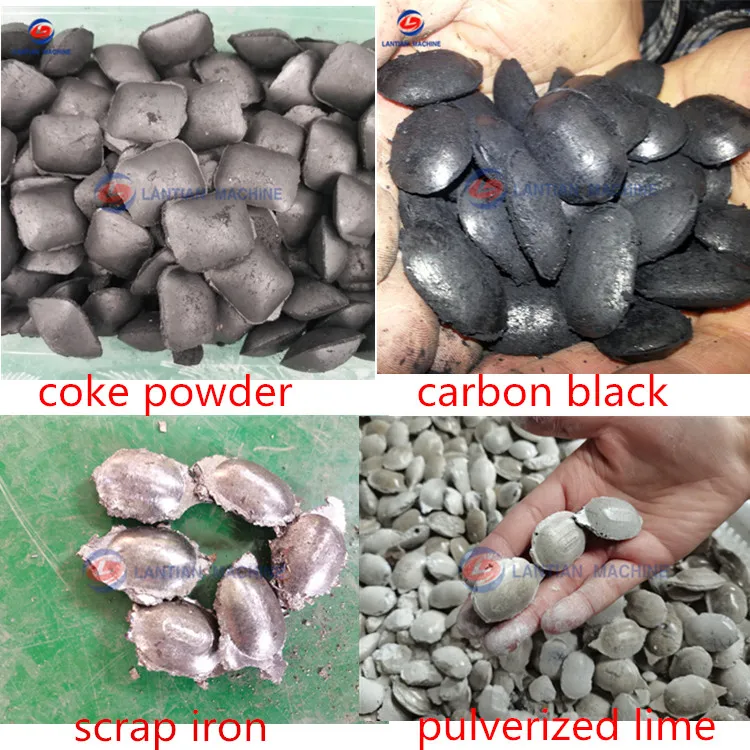

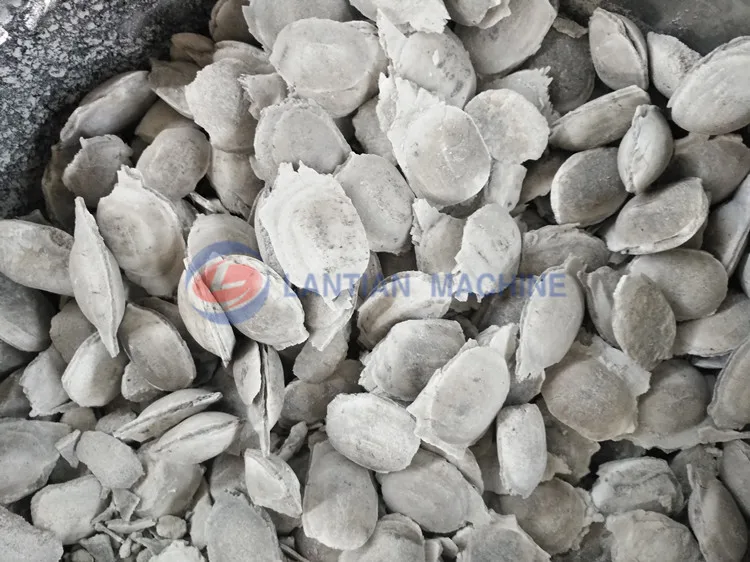

The finished products of hydraulic briquette press machine usually 25-60 mm, can be square shape, egg-shaped, ball shape, round shape, oval shape, bread, pillow shape, etc.
This is coke briquettes, small pillow shape.

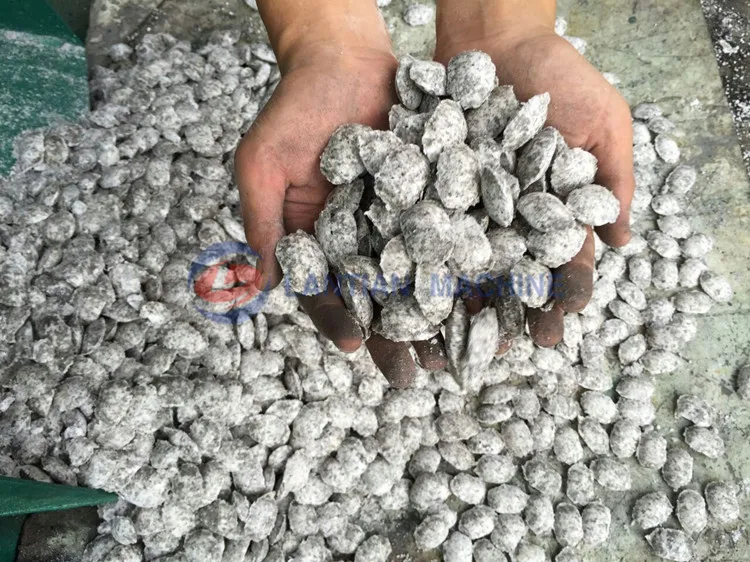

Urea molding salt, dry powder molding
Product Line

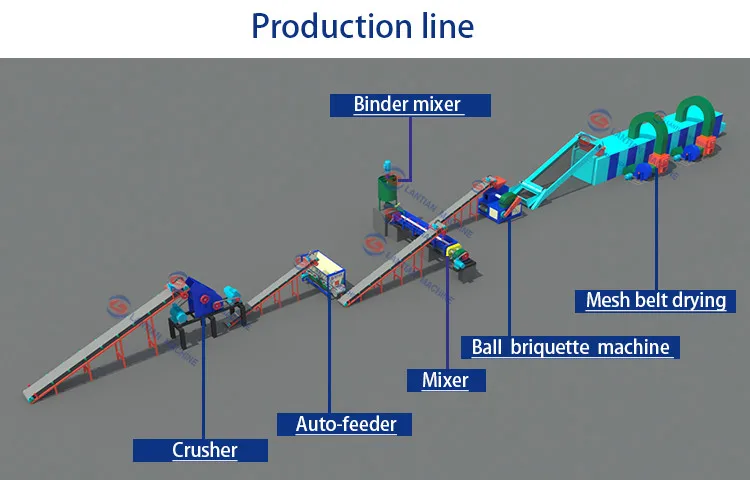

Different type materials, the production process also will be different. In general, the production line has crusher(if your materials need)---mixer,(mixing powder with binder)---hydrualic briquette press machine (molding)--- dryer(drying briquette, reduce the moisture). We can design the production line according your demand.
Note:We can provide different adhesive formulations, technical formulations, raw materials ratios, reasonable processing programs, which are important factors that need you consideration. We have rich experience, we will do our best to provide technical support, service support

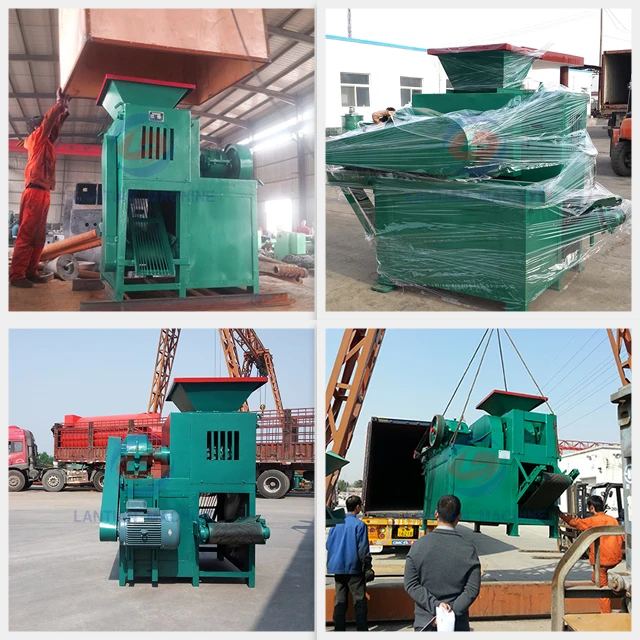

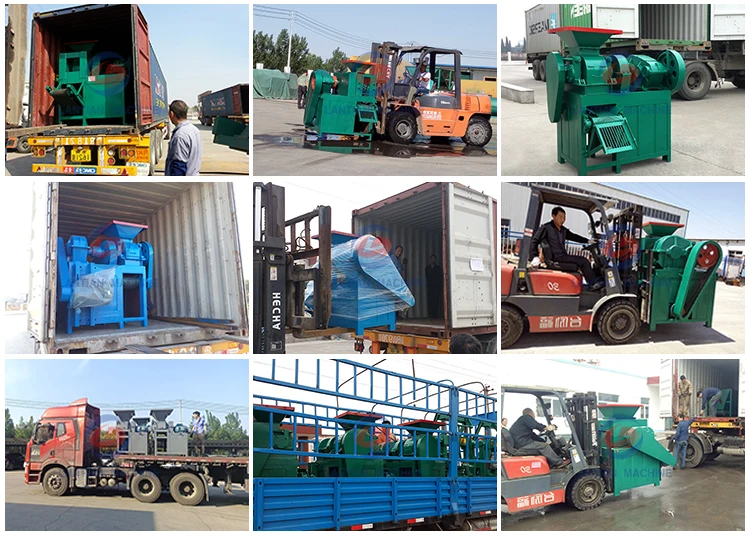

Packing & Delivery
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days.
Service
1. Before Sale: help you to set a purchase plan according to your requirement
2. During Sale: accompany you to check the performance of the machine; train technical stuff for you
3. After Sale: Sent artisan to your place and help you with the installation
2. During Sale: accompany you to check the performance of the machine; train technical stuff for you
3. After Sale: Sent artisan to your place and help you with the installation

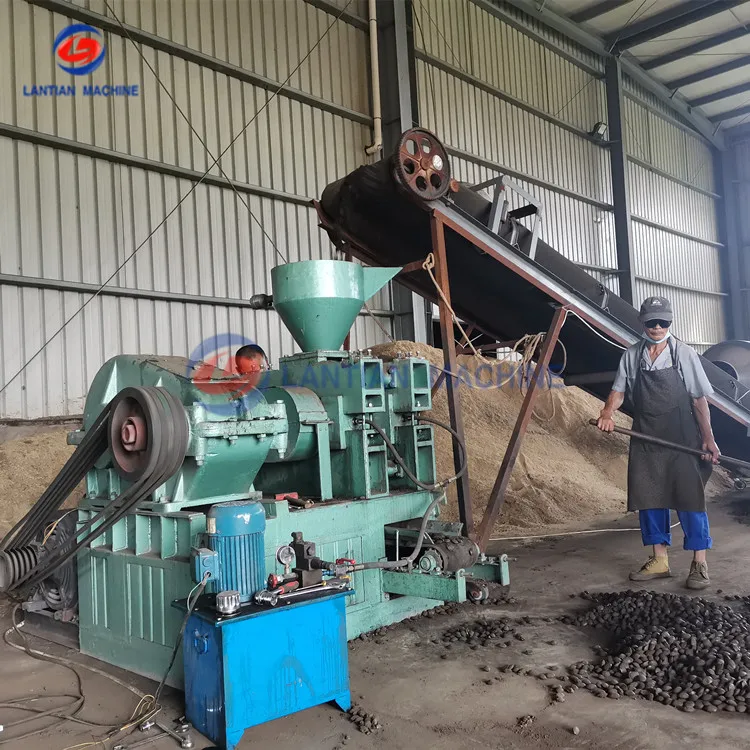

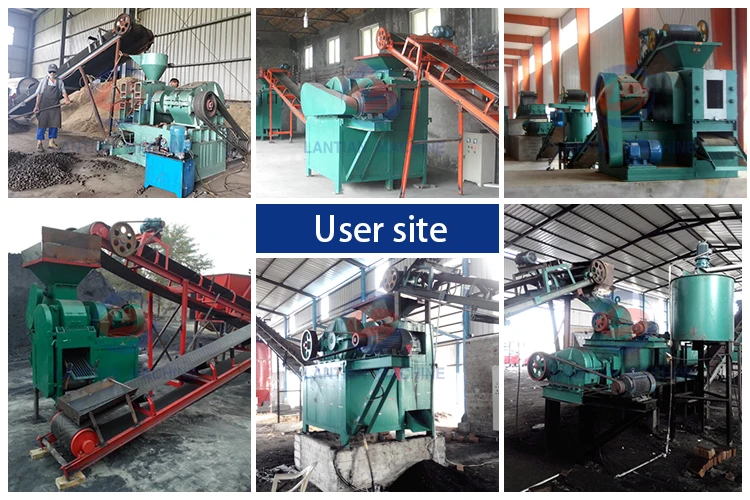

Customer Site
Before you create a briquettes production project, please depend on the property of raw material, production capacity, investment budget, own local development prospects, to determine the model of machine , also combined with the experience from us, to achieve the best proposal , it's very economic and practical, also to ensure long-term durability, then start to invest ,it will be a real profitable project! Welcome to contact with us and get an inquiry!
