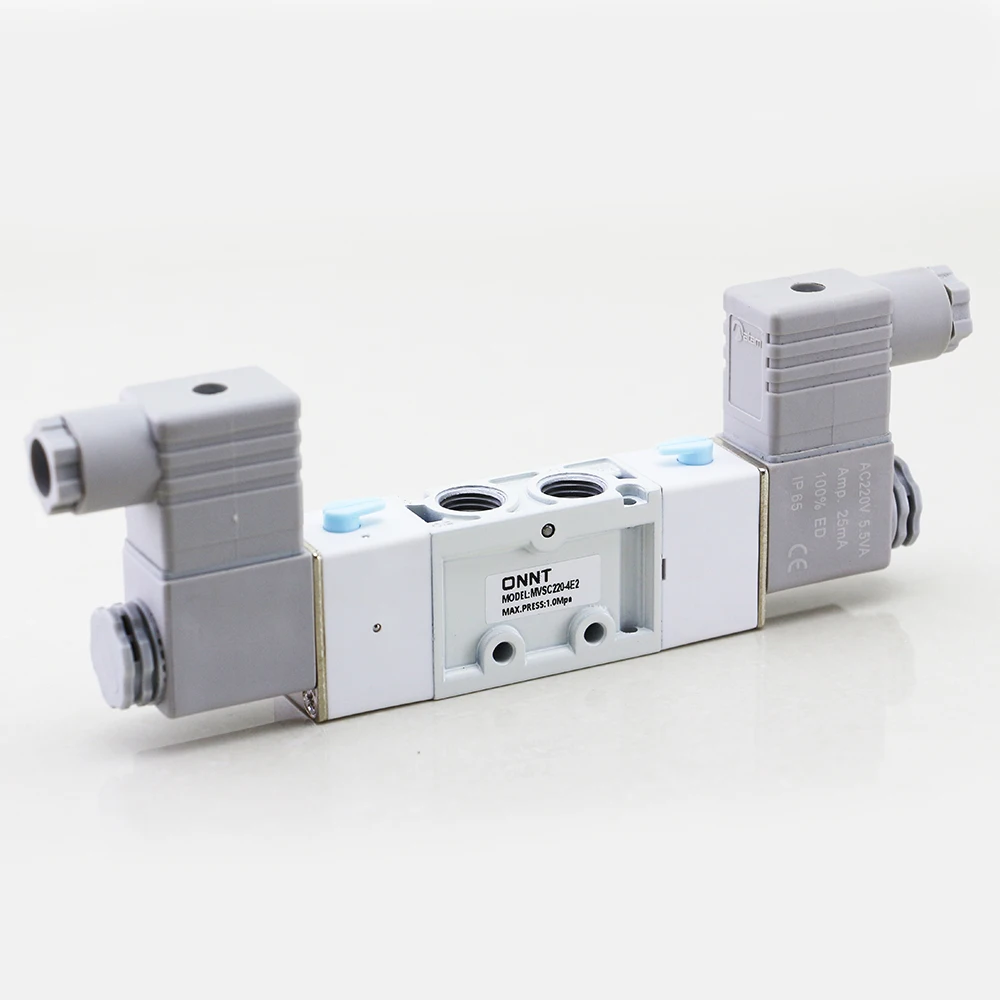

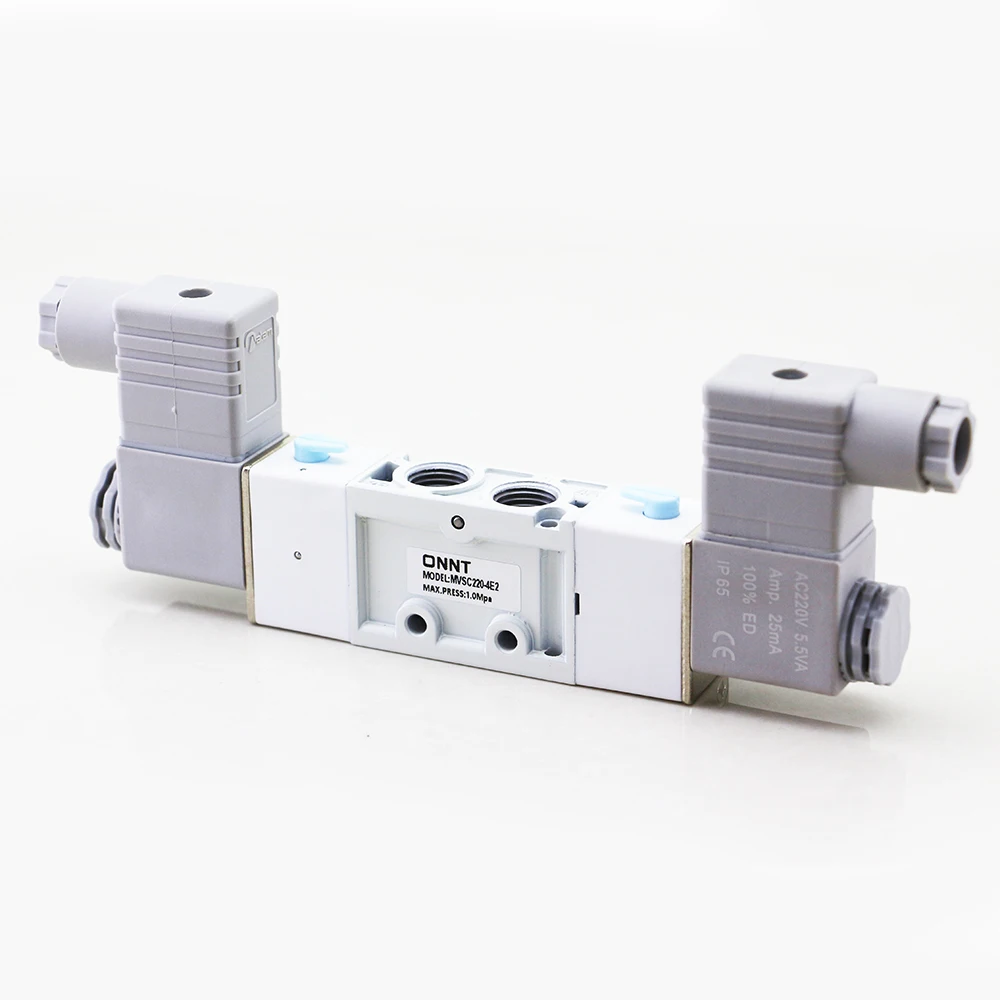

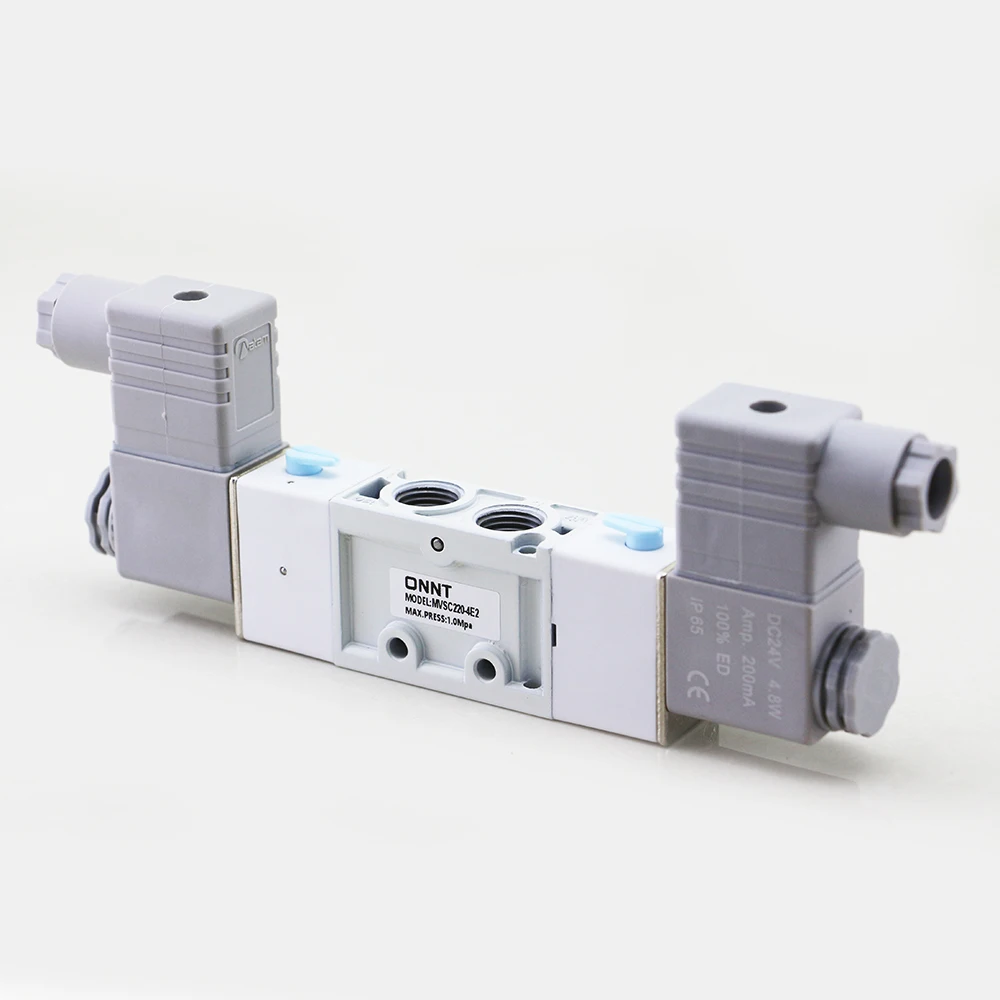

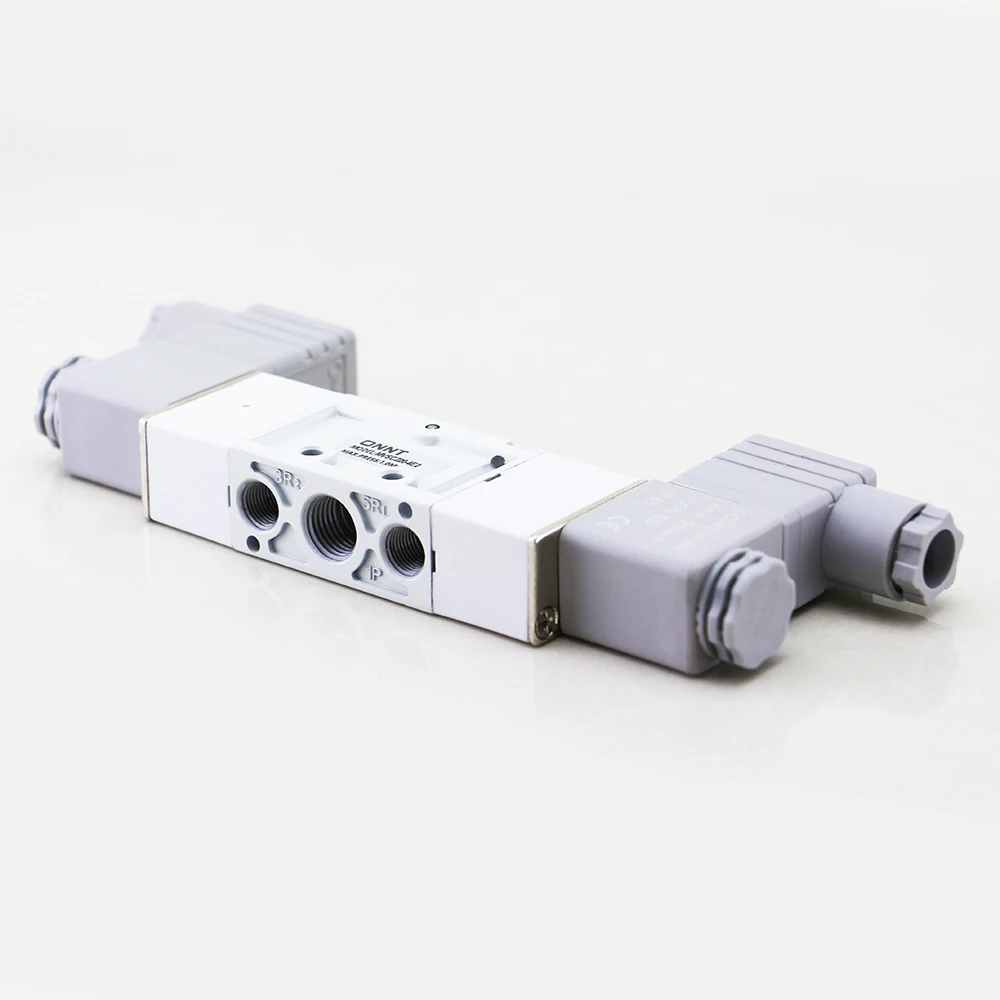

5/2 (Two Position and Five Port) Double Coil Solenoid Valve Pneumatic MVSC 220 4E2 DC24V AC220V Mindman Pneumatic Valve
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600488138530):
Product Overview
Description
5/2 (Two-position and Five-port) Mindman Double Coil Solenoid Valve Pneumatico MVSC 220 4E2 DC24V AC220V Mindman Pneumatic Valve

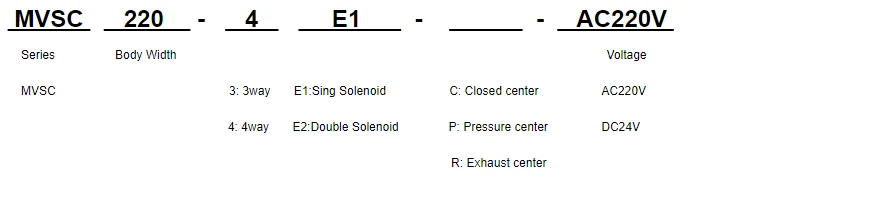

Ordering Code:
Specifications
Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2 C.P.R | ||||
Bore No. | 8A | 6A 8A | |||||||
Port size | Rc1/4 | Rc 1/8, Rc1/4 | |||||||
No. of port | 3 | 5 | |||||||
No. of position | 2 | 2 | 3 | ||||||
Medium | Air | ||||||||
Operating pressure range | 0.2~0.8MPa | 0.3~0.8MPa | |||||||
Operating pressure(LP) | 0~0.8 MPa | ||||||||

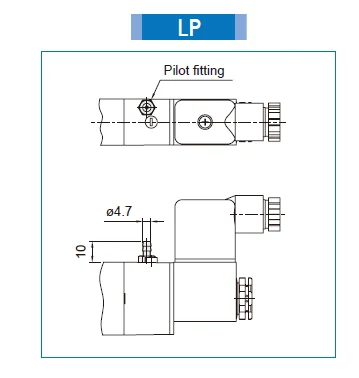

Pilot pressure range(LP) | (0.34 x P*+0.1)~0.5MPa | ||||||||
Proof pressure | 1 MPa | ||||||||
Effective orifice | 18mm² | 16mm² | |||||||
Reponse time | 30ms | 40ms | |||||||
Ambient temperature | -5 ~ 50 | ||||||||
Voltage | AC100V, 220V(50/60)Hz DC24V | ||||||||
Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W | ||||||||
Available voltage range | +- 10% | ||||||||
Insulation class | F class | ||||||||
Weight | 181g | 294g | 198g | 313g | 352g | ||||

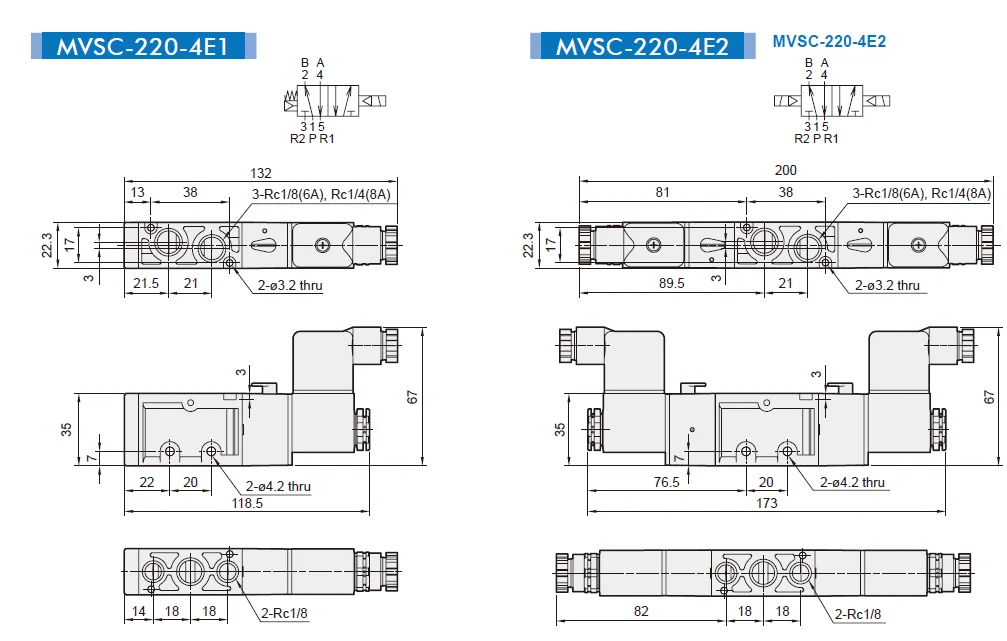

Dimensions
More products:

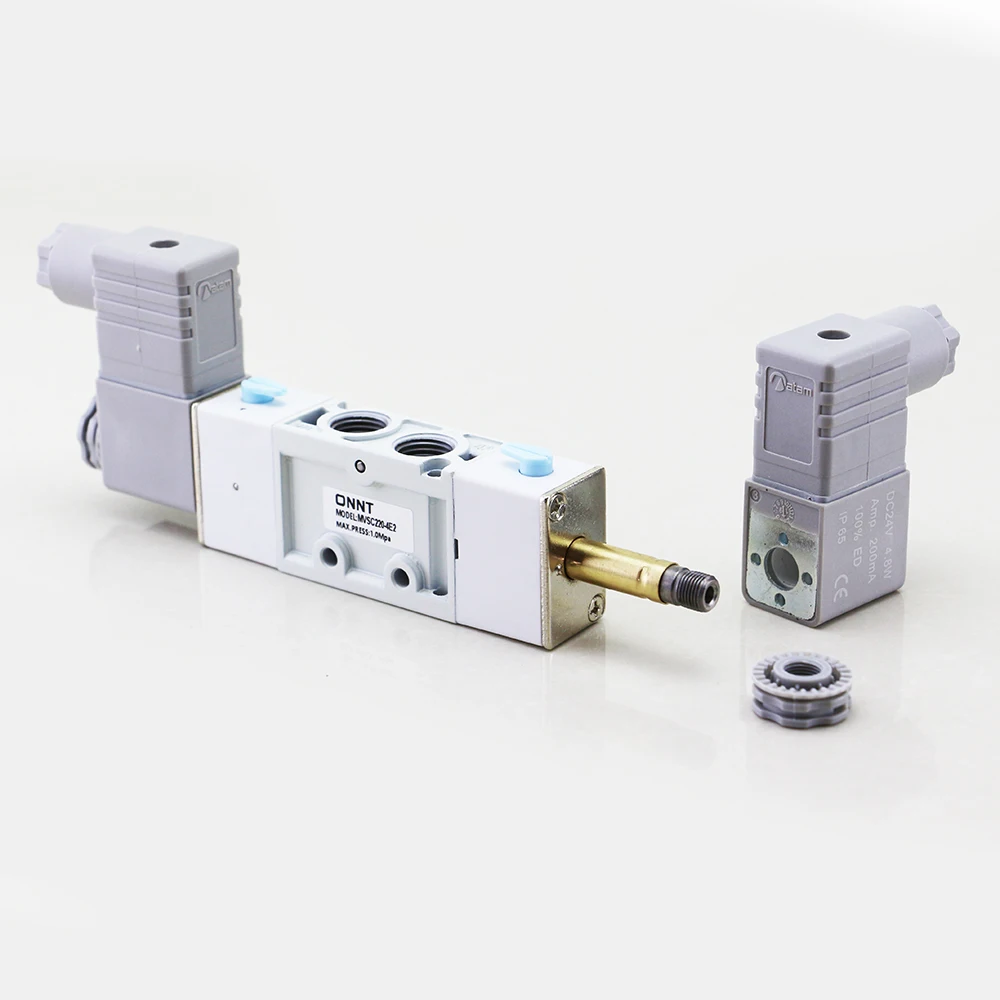

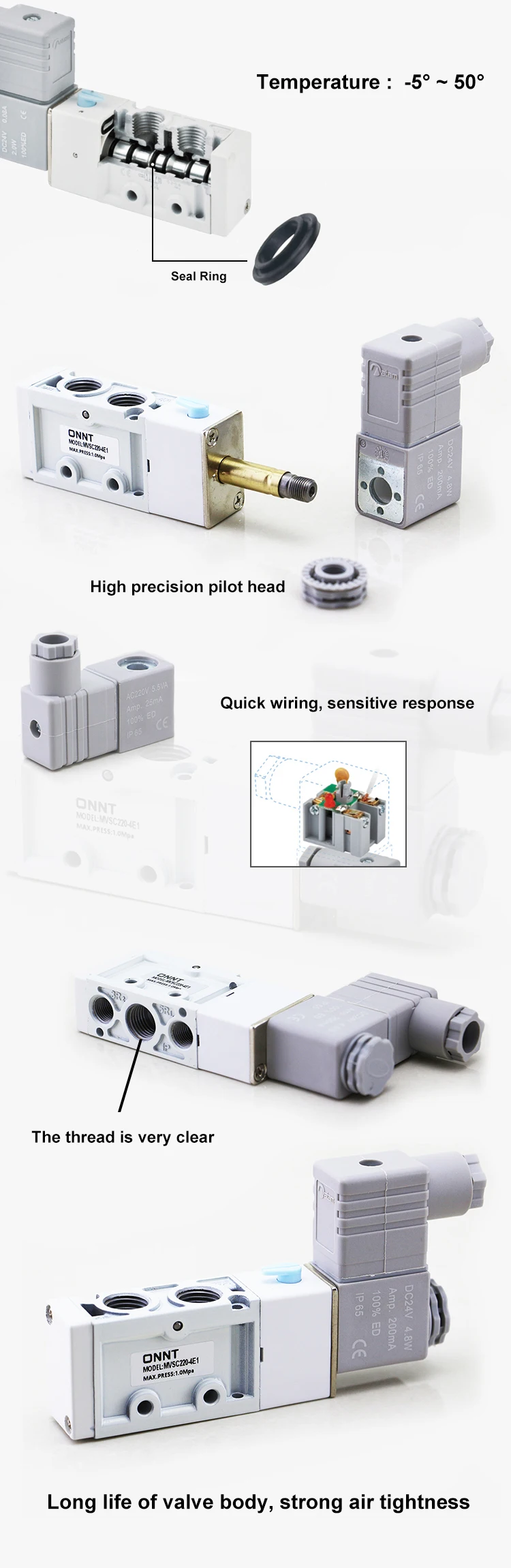

Details Images:
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
