10mW 1653nm Fiber Coupled Diode Laser for TDLAS Gas Detection
- Category: >>>
- Supplier: Hangzhou Brandnew Technology Co. Ltd.
Share on (1600488167322):
Product Overview
Description
Product Description
Item Name
10mW 1653nm Fiber Coupled Diode Laser for TDLAS Gas Detection
Feature
Built-in opto-isolator, thermoelectric cooler, thermistor
DFB semiconductor laser chip is coupled out via G652 single-mode fiber, FA/APC optical connector

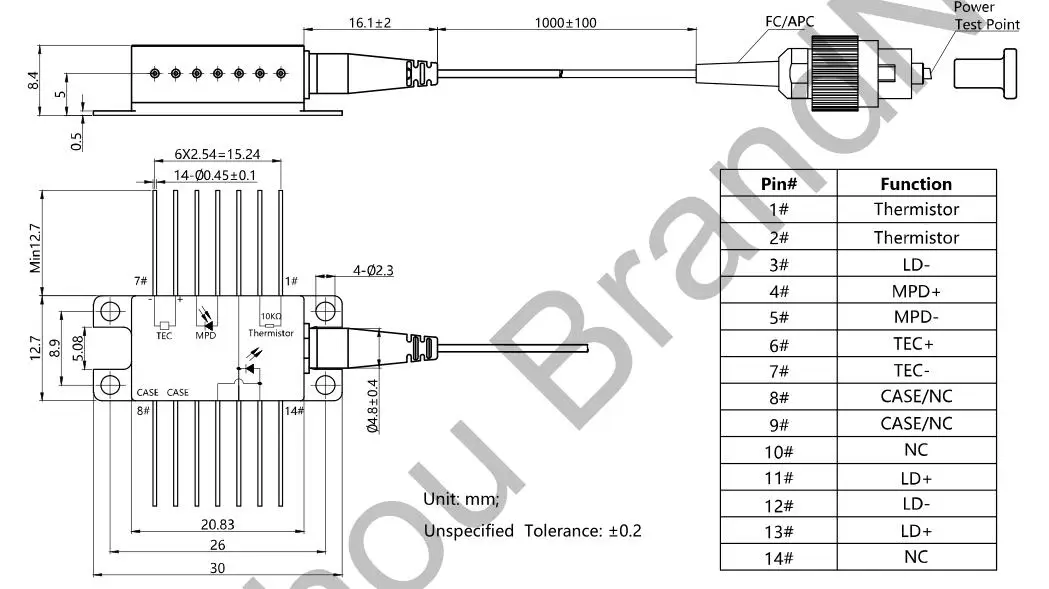

14PIN butterfly package
Adapt to ROSH specification
DFB semiconductor laser chip is coupled out via G652 single-mode fiber, FA/APC optical connector
14PIN butterfly package
Adapt to ROSH specification
Advantage
10mW output power at 1653nm center wavelength
Small light emitting aperture
Stable and reliable performance
Other wavelength and output power are available
Small light emitting aperture
Stable and reliable performance
Other wavelength and output power are available
Application
Gas Detection
Light Source
Laser Therapy
Laser Rangefinder
Industrial optical modules
Light Source
Laser Therapy
Laser Rangefinder
Industrial optical modules
Specification
Optical | Typical Value |
Center Wavelength λ | 1653nm |
Working Mode | CW |
Output Power | 10mW |
Fiber | |
Fiber Bend Radius | 30mm |
Fiber Connector | FC/APC |
Fiber Longitudinal Pull | 5N |
Electrical | |
Threshold Current Lth | 10mA |
Operating Current Lop | 120mA |
TEC Operating Voltage Vop | 0.2V |
Termistor β （—25℃） | 10KΩ |
Thermal | |
Operating Temperature | —20~70℃ |
Storage Temperature | —40~85℃ |
Wavelength Temperature Coefficient | 0.1nm/℃ |
